Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

5 part groups · 2 illustrations

Illustrations

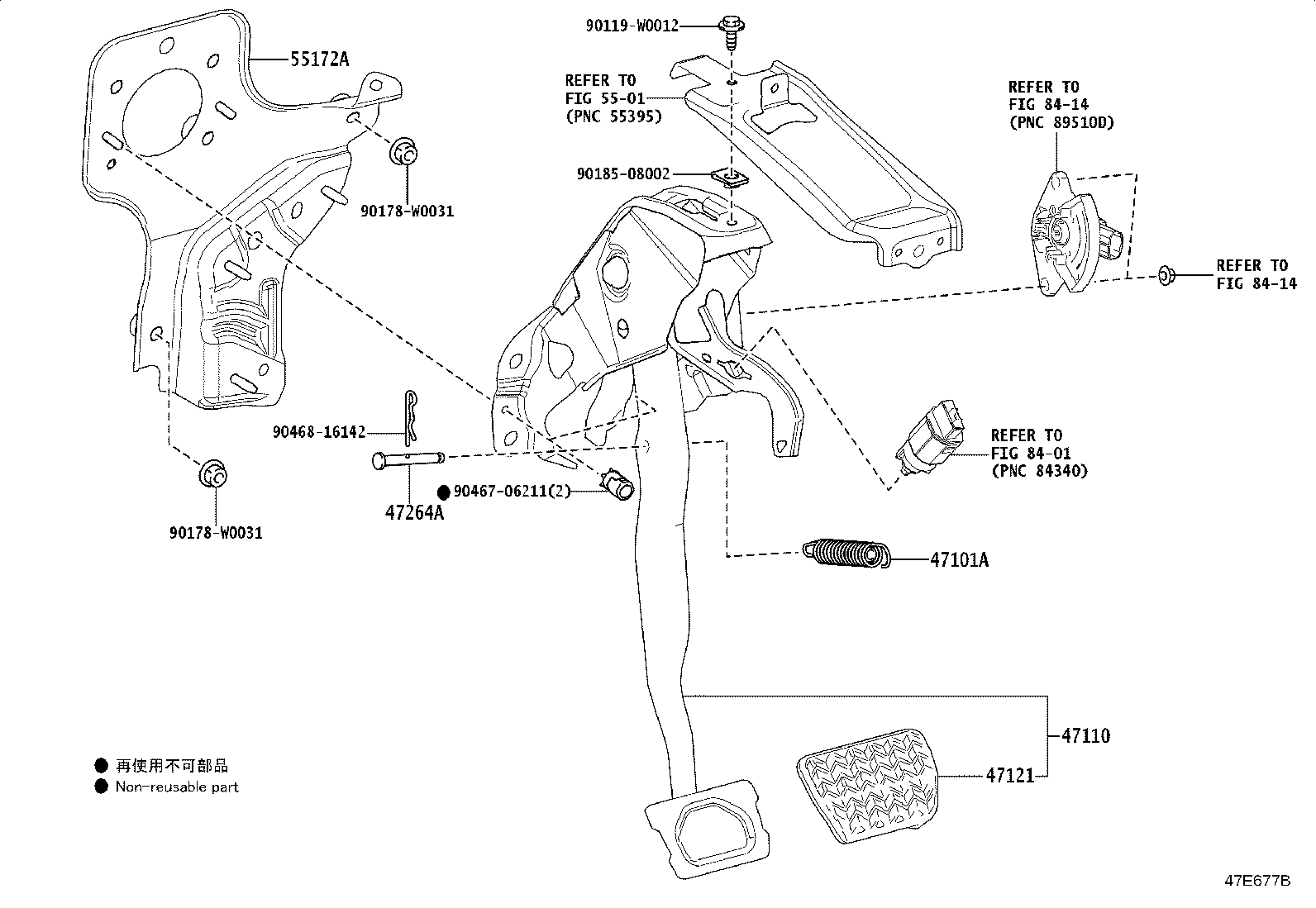

Figure 47E676B 47E676B 2023-10 → — Figure 47E677B 47E677B 2023-10 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
