Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

45 part groups · 8 illustrations

Illustrations

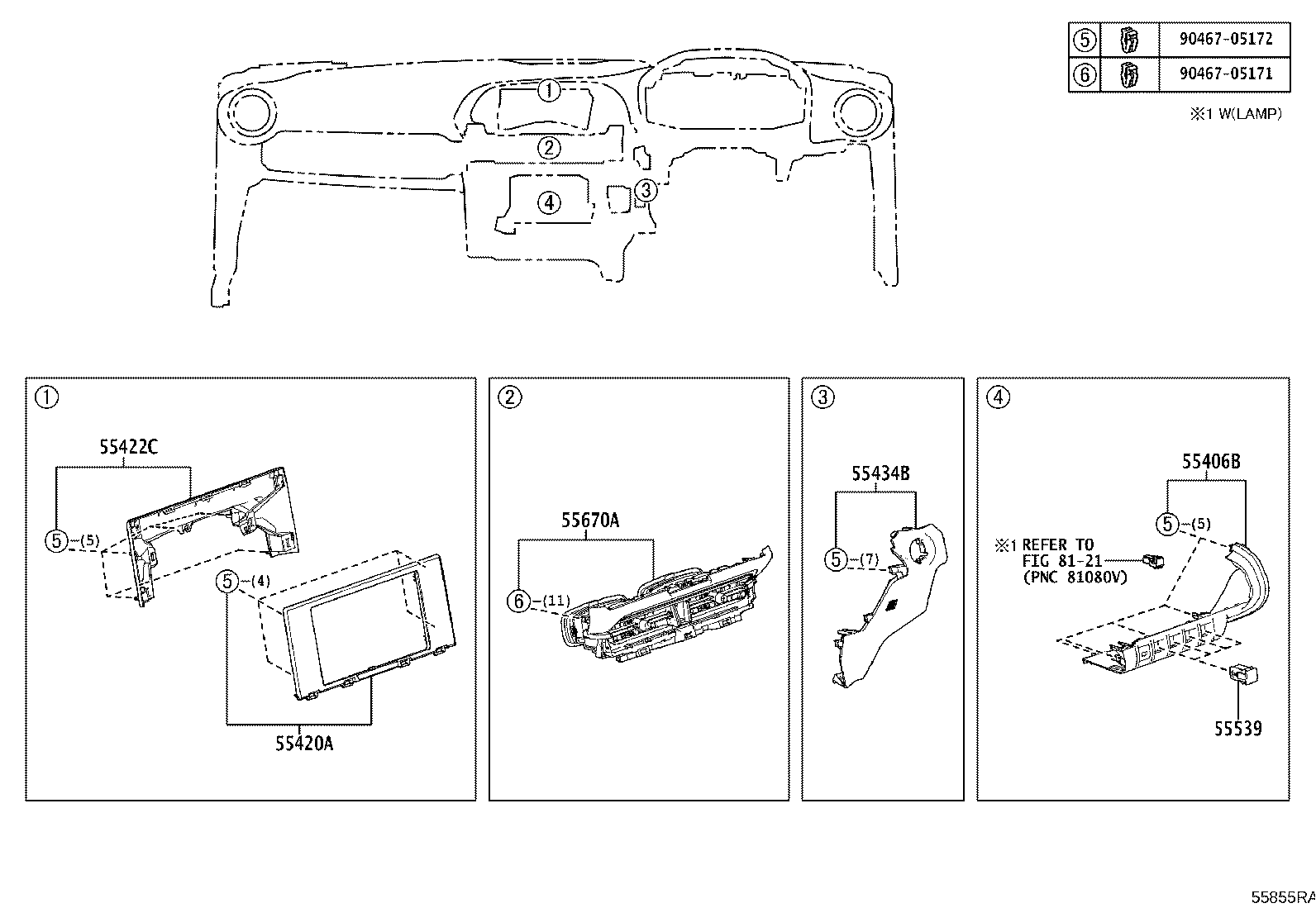

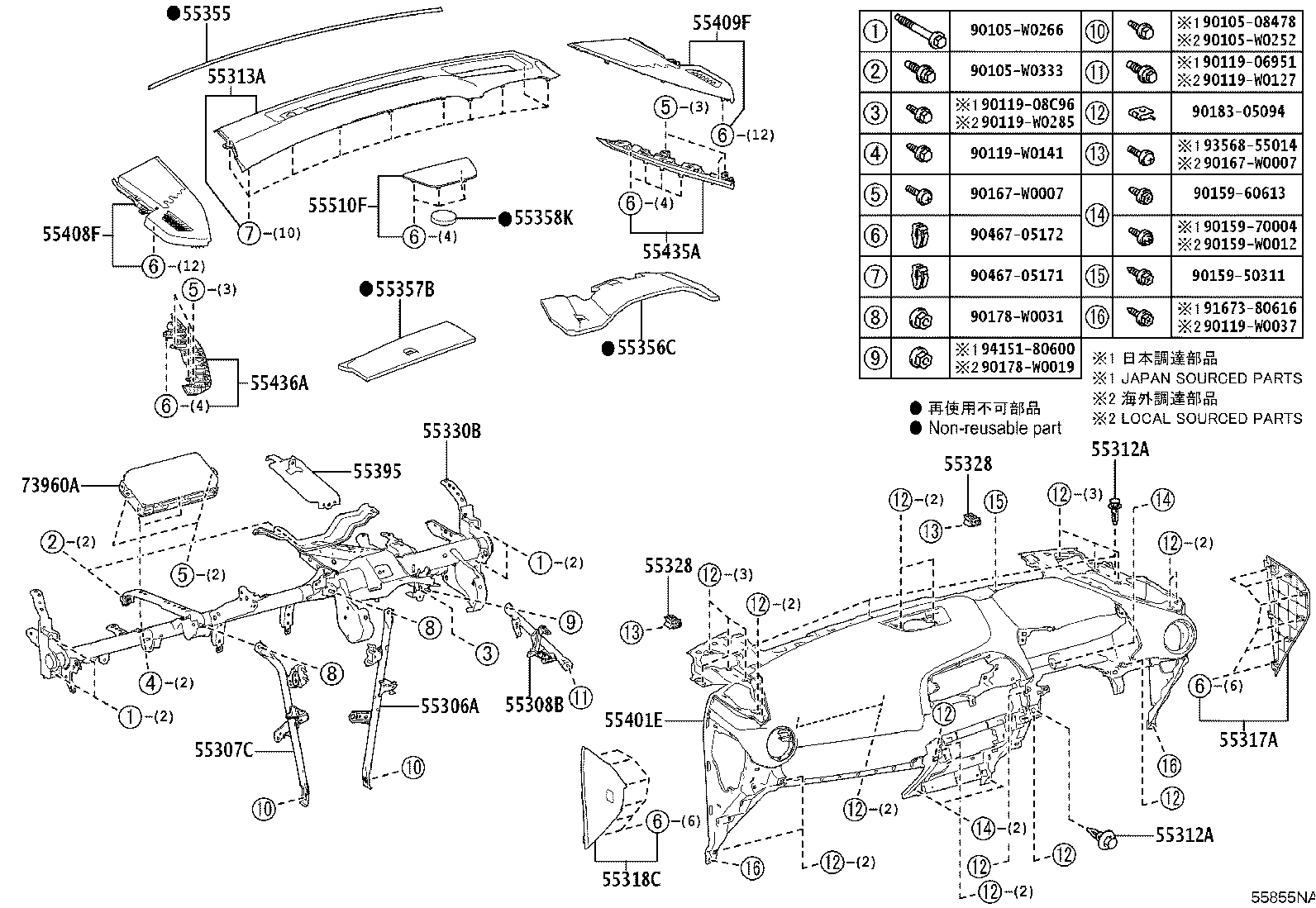

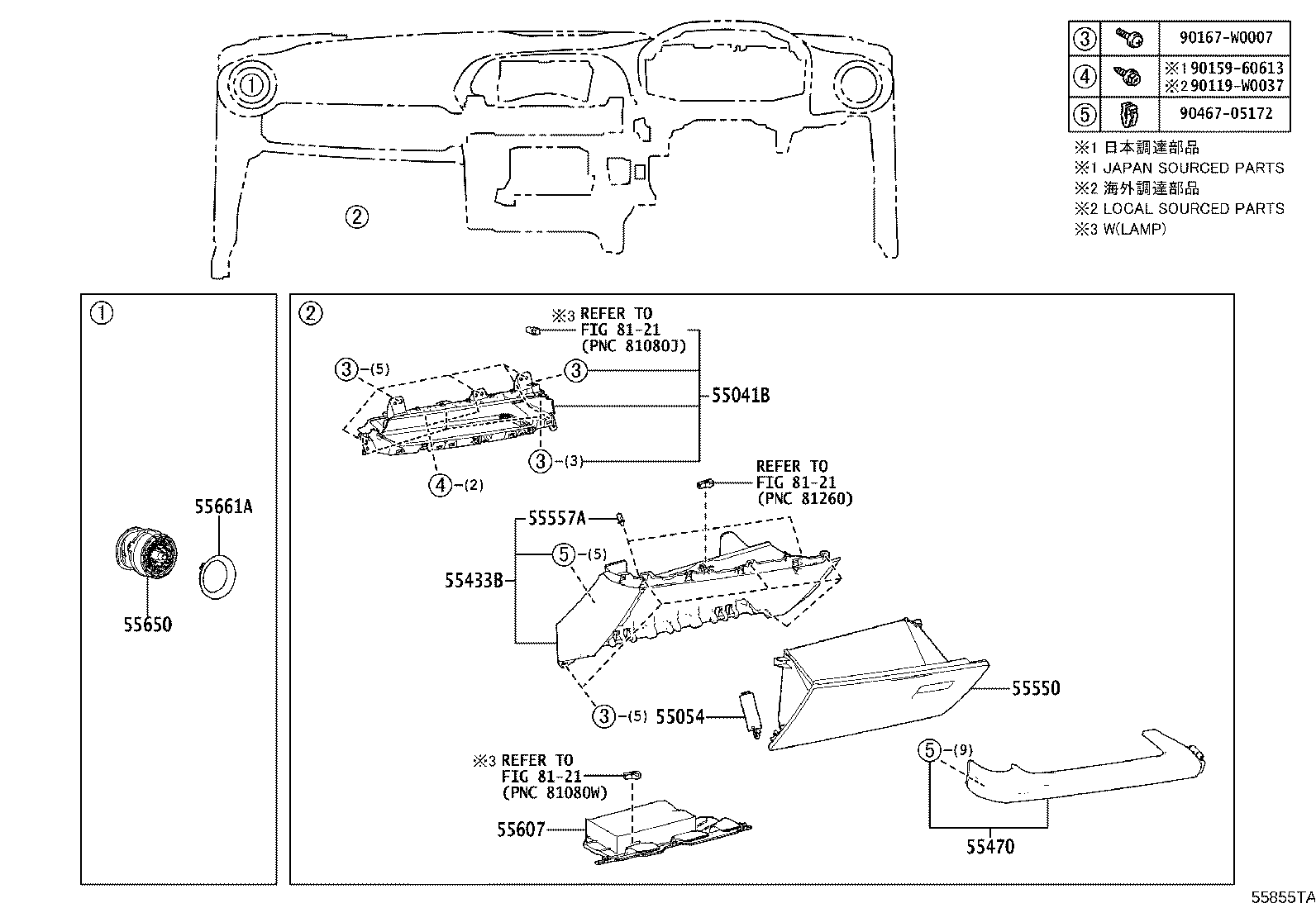

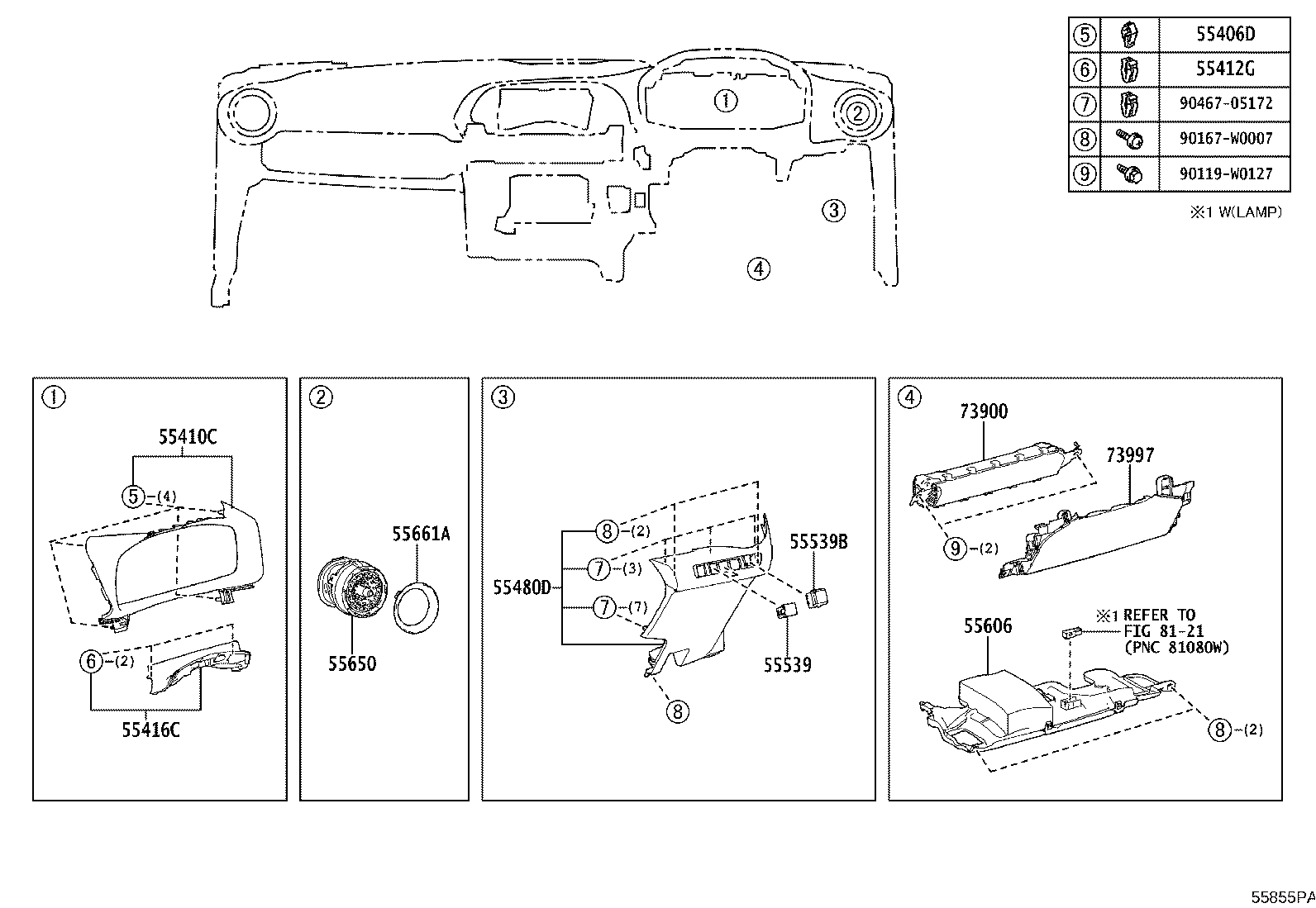

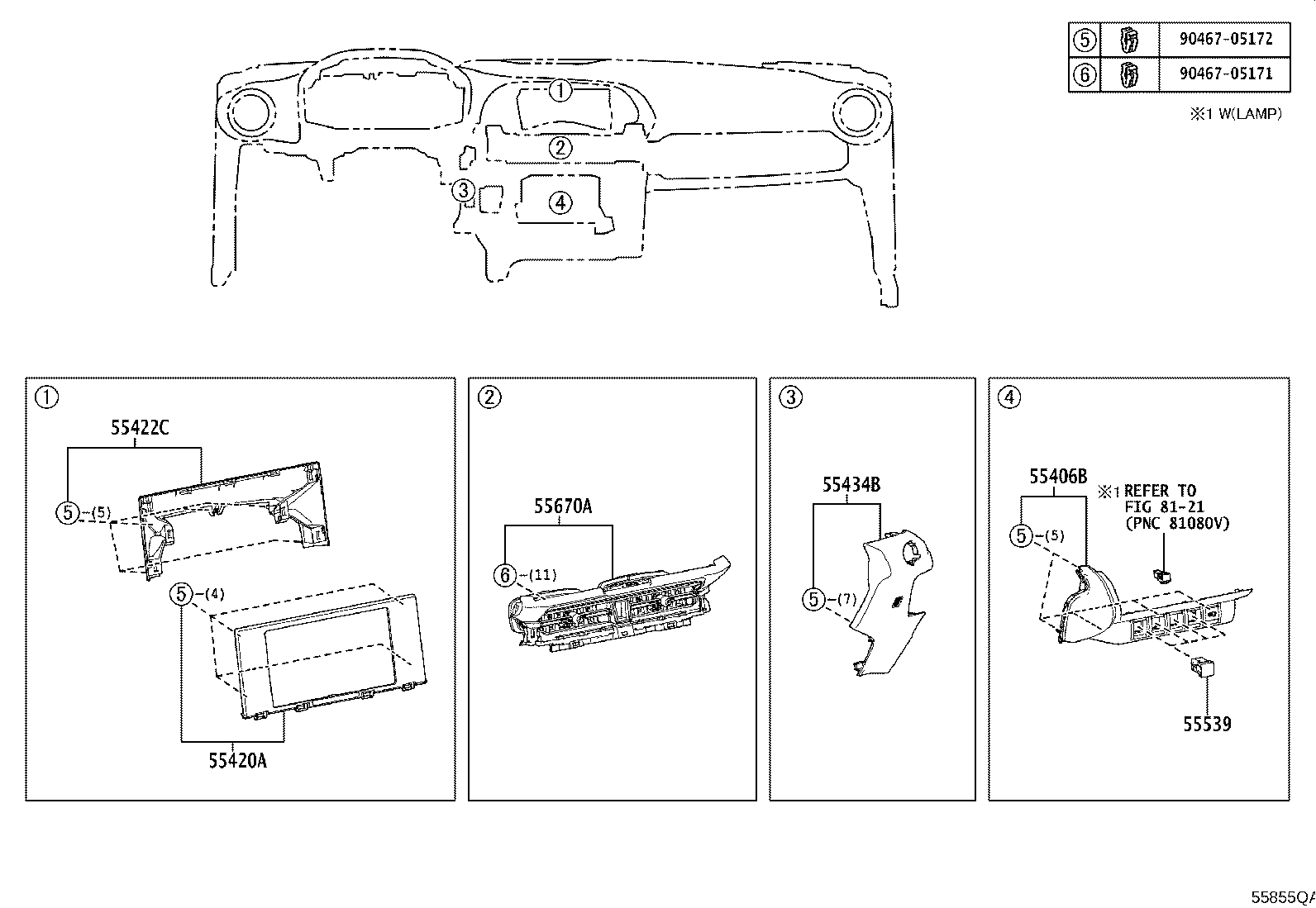

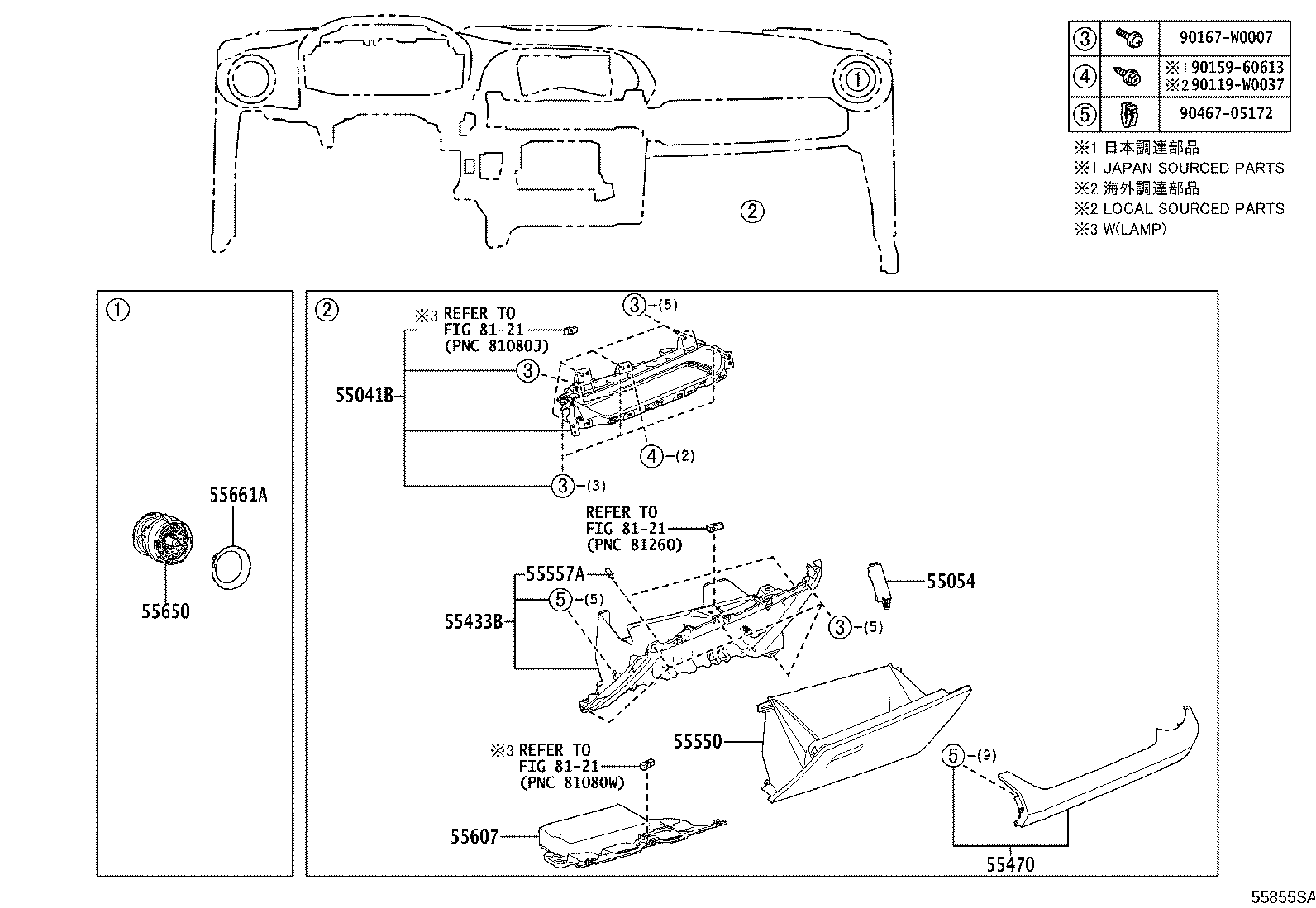

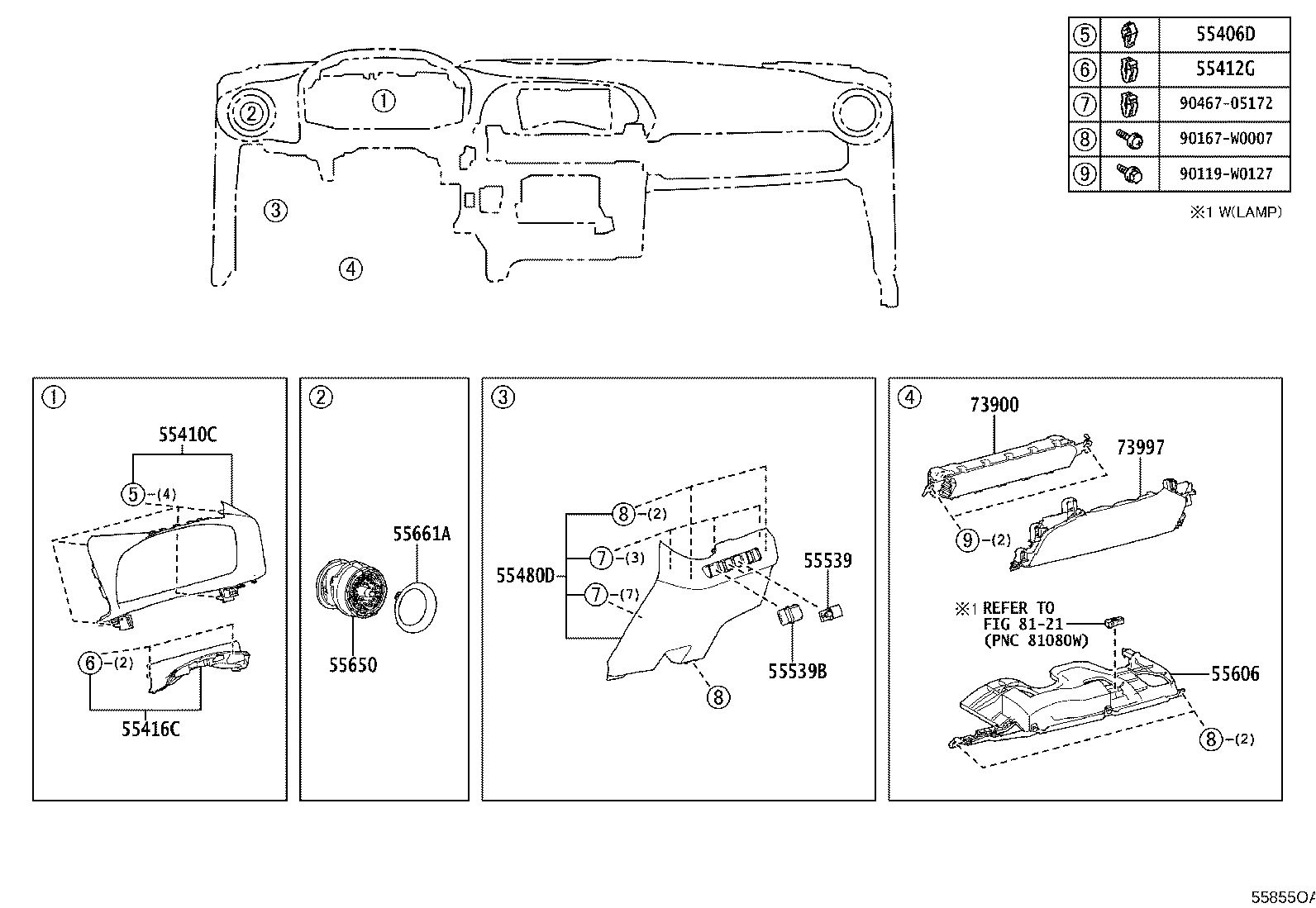

Figure 55855MA 55855MA 2023-10 → — Figure 55855OA 55855OA 2023-10 → — Figure 55855QA 55855QA 2023-10 → — Figure 55855SA 55855SA 2023-10 → — Figure 55855NA 55855NA 2023-10 → — Figure 55855PA 55855PA 2023-10 → — Figure 55855RA 55855RA 2023-10 → — Figure 55855TA 55855TA 2023-10 → —

Part groups

PNCDescription
55041B Door Sub-assy, Instrument Panel Box, NO.1
55054 Stopper Sub-assy, Glove Compartment Door
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312A Clip, Instrument Panel
55313A Panel, Instrument Main
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55358K Cushion, Instrument Panel, NO.4
55395 Bracket, Instrument Panel TO Pedal
55401E Pad Sub-assy, Instrument Panel Safety
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55416C Retainer, Instrument Cluster Finish Panel
55420A Panel Assy, Instrument Cluster Finish, Center
55422C Panel, Instrument Cluster Finish, Center Upper
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55470 Garnish Assy, Instrument Cluster Finish Panel
55480D Panel Assy, Instrument Panel Finish, Lwr
55510F Cover Assy, Speaker Opening, NO.1
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55661A Bezel, Instrument Panel Register
55670A Register Assy, Instrument Panel, Center
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73997 Door, Instrument Panel Airbag, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
