Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 2 illustrations

Illustrations

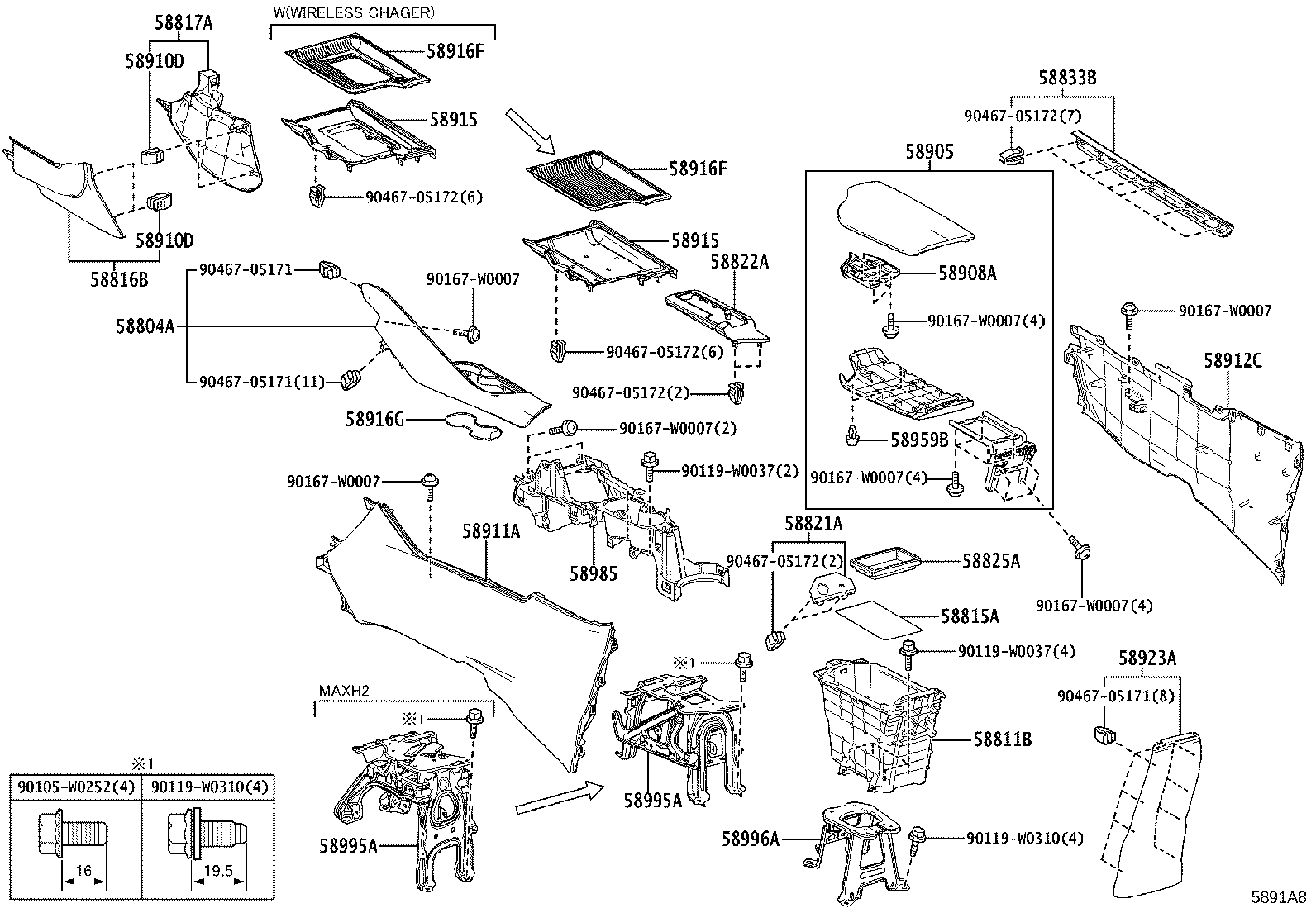

Figure 5891A7 5891A7 2023-10 → — Figure 5891A8 5891A8 2023-10 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58811B Box, Console
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821A Panel, Console
58822A Panel, Console, Upper Rear
58825A Pocket, Console Box
58833B Garnish, Console Upper Panel, NO.1
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910D Clip(FOR CONSOLE BOX)
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58915 Panel, Box Bottom
58916F Mat, Box Bottom, NO.1
58916G Mat, Box Bottom, NO.2
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58985 Retainer, Console Box
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
