Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General

Supported model Data version 2023-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

3 part groups · 2 illustrations

Illustrations

Figure 74685K

74685K 2023-10 → —

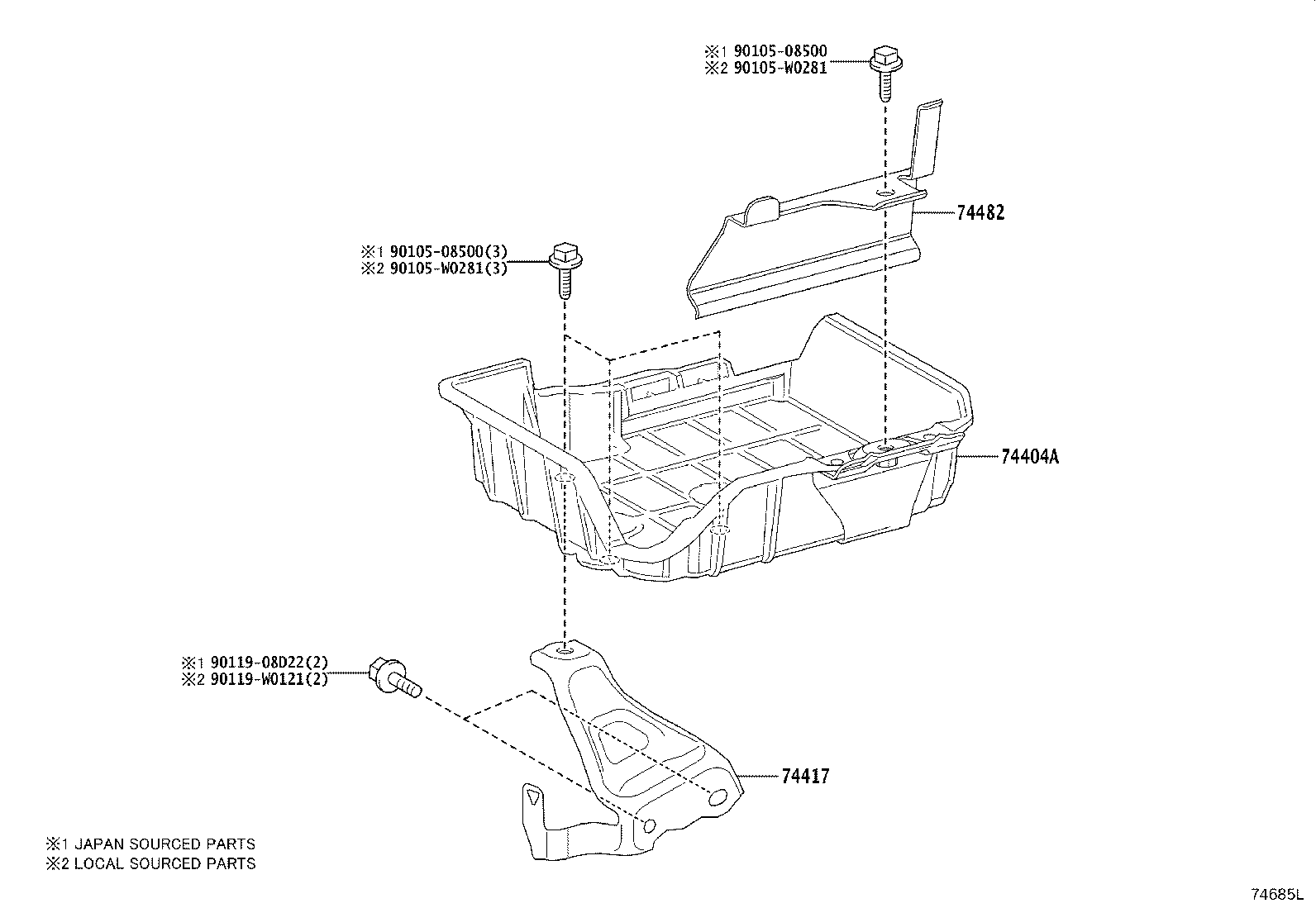

Figure 74685L

74685L 2023-10 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74417	Bracket, Battery Carrier
74482	Clamp, Battery, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
