Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

9 part groups · 3 illustrations

Illustrations

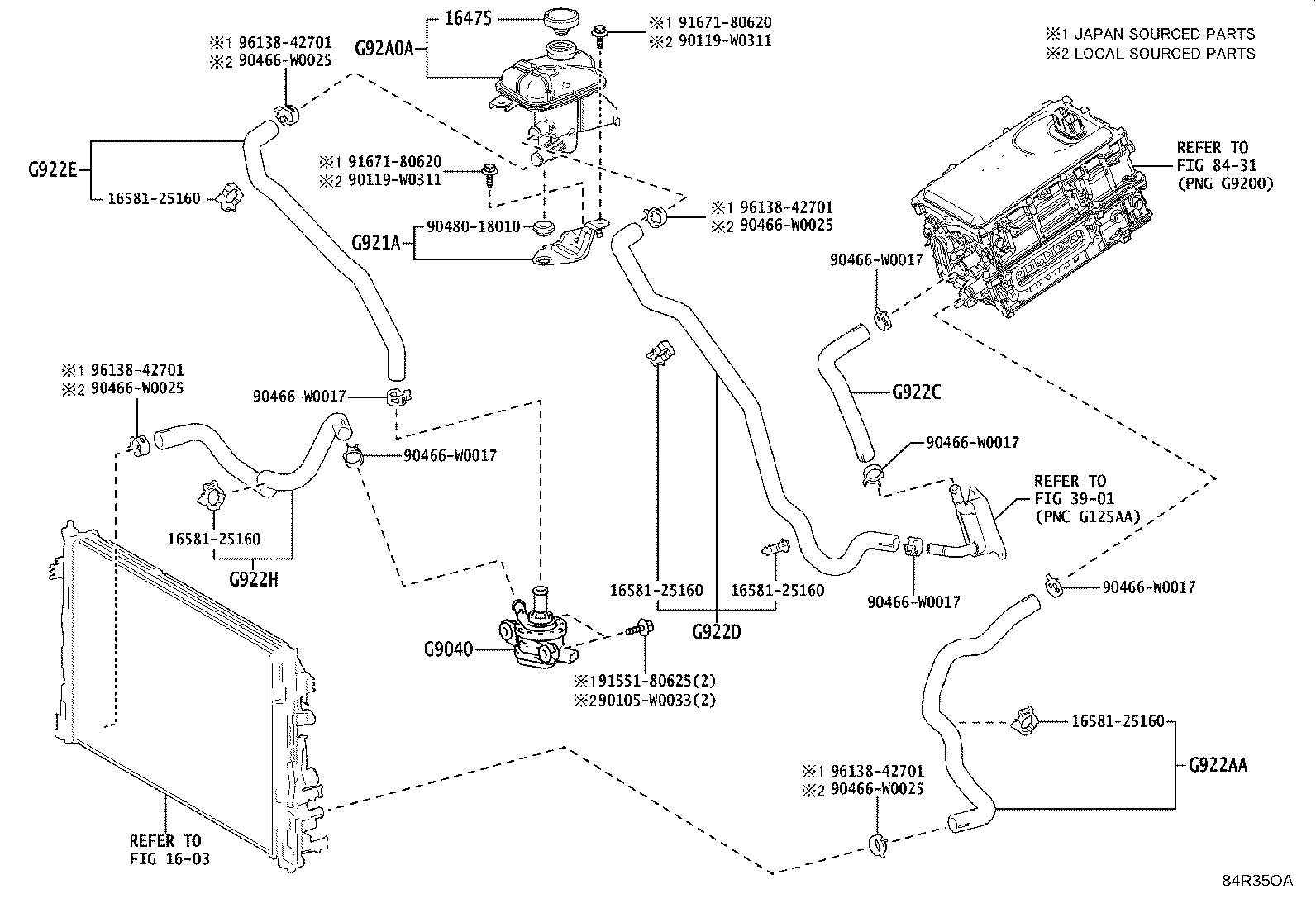

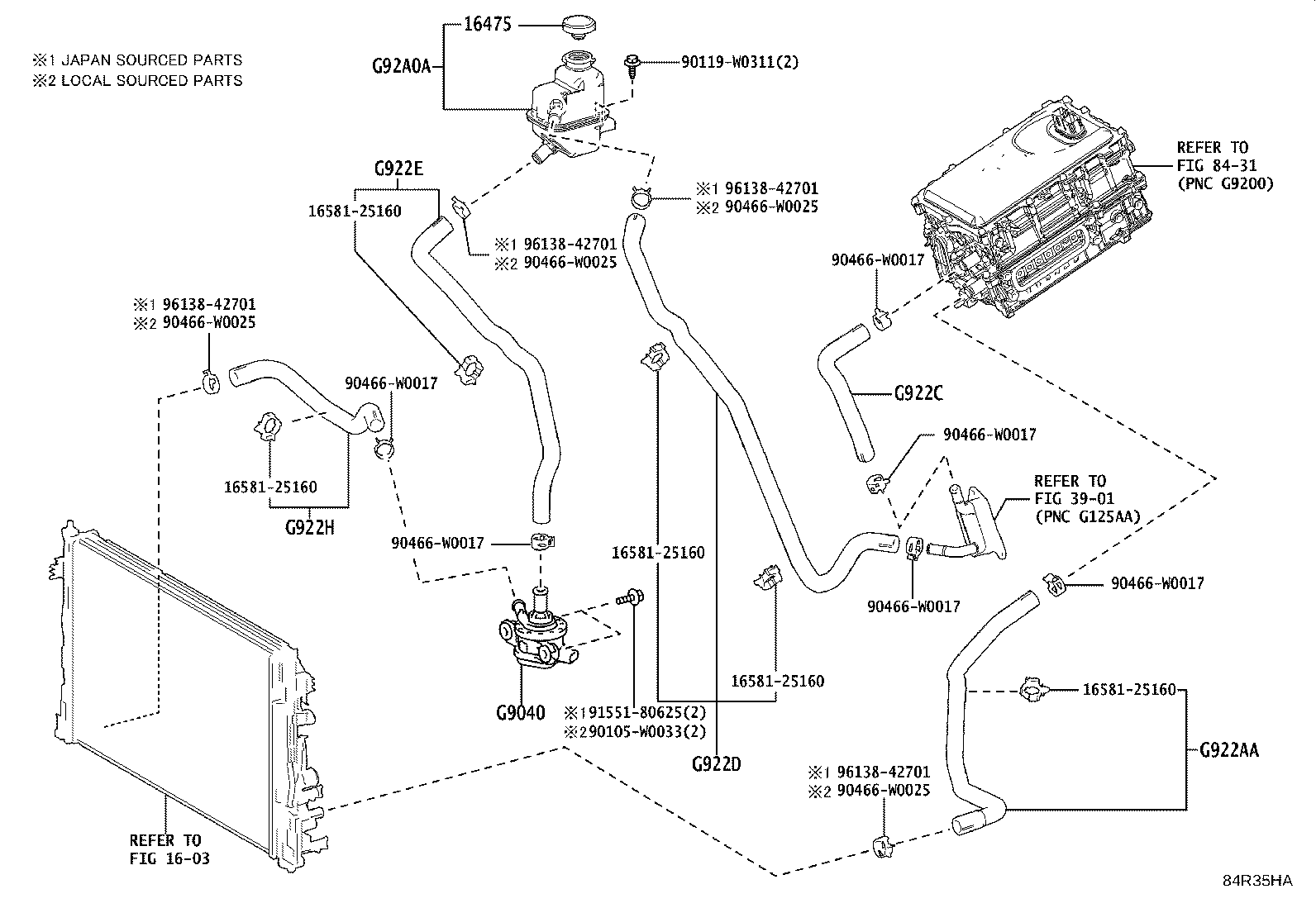

Figure 84R35GA 84R35GA 2023-10 → — Figure 84R35HA 84R35HA 2023-10 → — Figure 84R35OA 84R35OA 2024-01 → —

Part groups

PNCDescription
16475 Cap, Reserve Tank
G9040 Inverter Water Pump Assy(W/MOTOR)
G921A Bracket, Inverter Reserve Tank, NO.1
G922AA Hose, Inverter Cooling Inlet, NO.1
G922C Hose, Inverter Cooling Outlet, NO.1
G922D Hose, Inverter Cooling Outlet, NO.2
G922E Hose, Hybrid Water Pump Inlet
G922H Hose, Hybrid Radiator Inlet
G92A0A Tank Assy, Inverter Reserve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
