Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

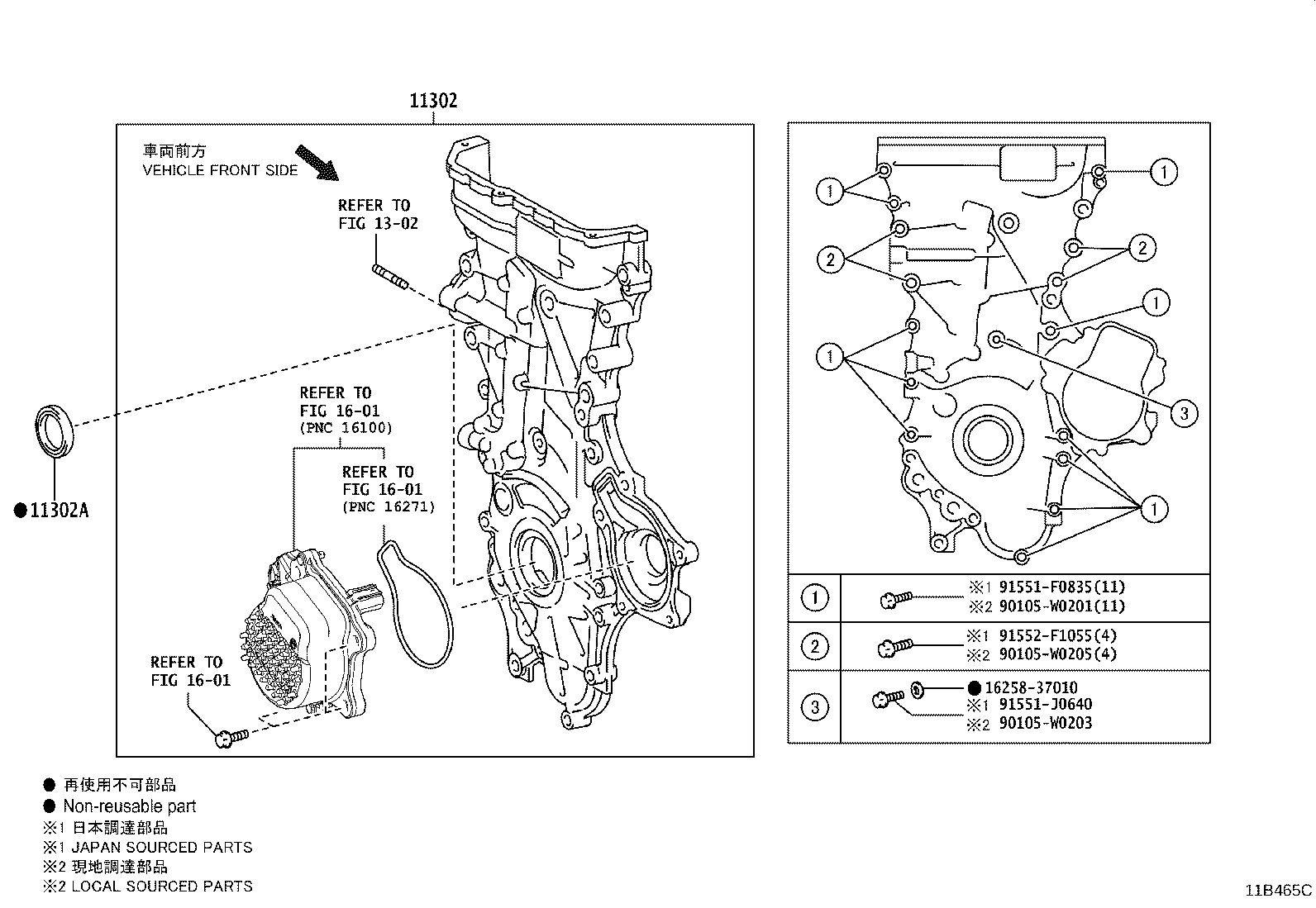

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11310-37090 |
Cover Sub-assy, Timing Chain OR Belt
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-36007 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90311-36007 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
