Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

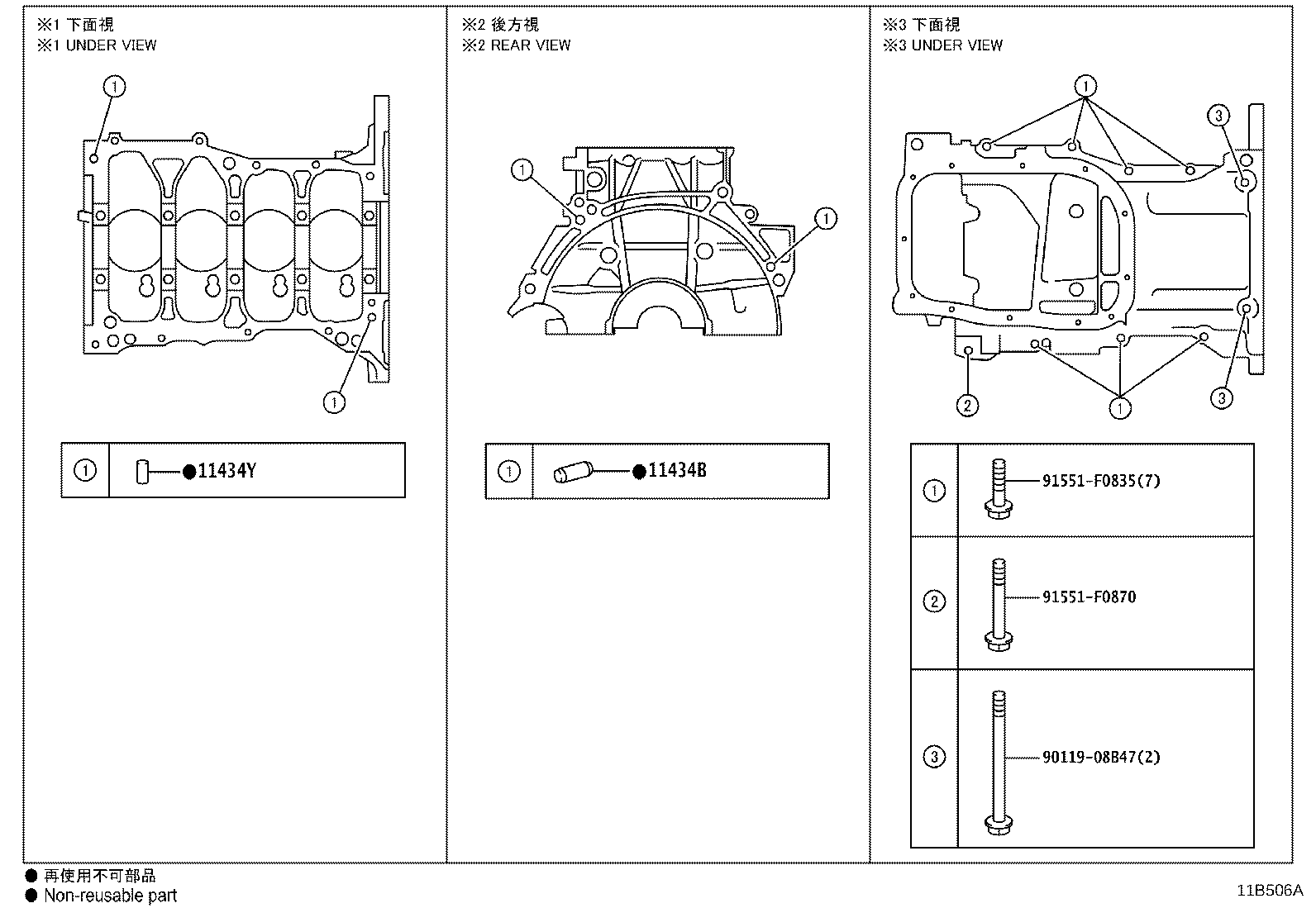

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 11434Y — Pin, Straight(FOR OIL PAN) | ||||
| 90250-08120 |
Pin, Straight(FOR OIL PAN)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90250-08120 |
Pin, Straight(FOR OIL PAN)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90250-08120 |
Pin, Straight(FOR OIL PAN)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
