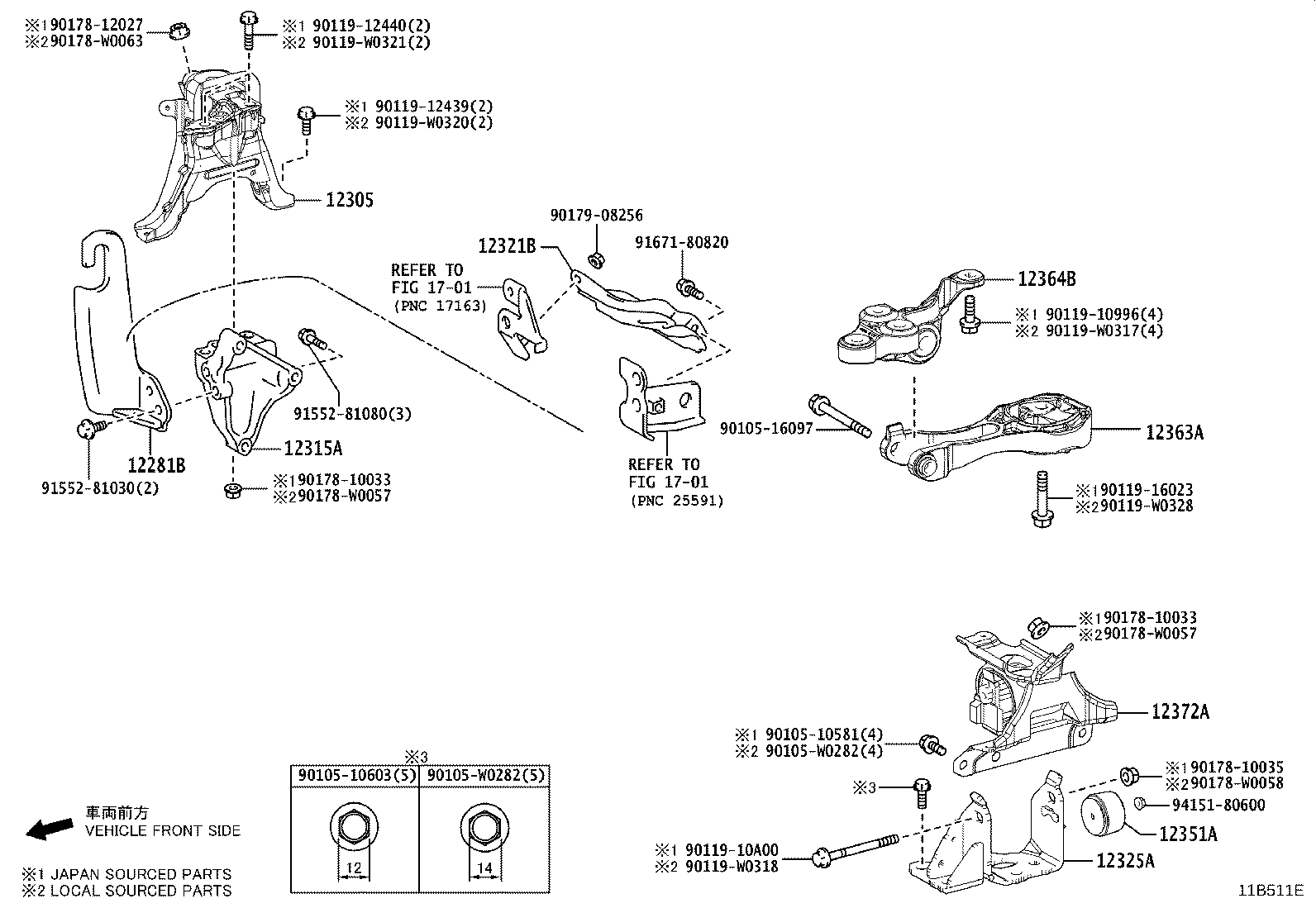

Exploded illustration 11B511E 9010510581 — not listed in this catalogue 90105W0282 — not listed in this catalogue 9011910996 — not listed in this catalogue 90119W0317 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (3 parts) 12321B — INSULATOR SUB-ASSY, DRIVE SHAFT HEAT (3 parts) 12281B — HANGER, ENGINE, NO.1 (2 parts) 9155281080 — not listed in this catalogue 9017908256 — not listed in this catalogue 9167180820 — not listed in this catalogue 9155281030 — not listed in this catalogue 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (4 parts) 12351A — DAMPER, ENGINE MOUNTING(FOR INSULATOR) (2 parts) 12363A — ROD, ENGINE MOVING CONTROL (7 parts) 12364B — ROD, ENGINE MOVING CONTROL, NO.2 (5 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (9 parts) 9010516097 — not listed in this catalogue 9415180600 — not listed in this catalogue 9011910A00 — not listed in this catalogue 90119W0318 — not listed in this catalogue 9011912439 — not listed in this catalogue 90119W0320 — not listed in this catalogue 9011912440 — not listed in this catalogue 90119W0321 — not listed in this catalogue 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (7 parts) 9017810033 — not listed in this catalogue 90178W0057 — not listed in this catalogue 9017812027 — not listed in this catalogue 90178W0063 — not listed in this catalogue 9017810035 — not listed in this catalogue 90178W0058 — not listed in this catalogue 9017810033 — not listed in this catalogue 90178W0057 — not listed in this catalogue 9010510603 — not listed in this catalogue 90105W0282 — not listed in this catalogue 9011916023 — not listed in this catalogue 90119W0328 — not listed in this catalogue
11B511E · 9 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
12281B — Hanger, Engine, NO.1
12281-47060 Hanger, Engine, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
12281-47060 Hanger, Engine, NO.1
2019-09 → —
8NRFTS NGX10,50 —
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-0Y150 Insulator Sub-assy, Engine Mounting, RH
2016-10 → 2018-11 ended
8NRFTS NGX10 —
12305-0Y151 Insulator Sub-assy, Engine Mounting, RH
2018-12 → 2019-09 ended
8NRFTS NGX10 —
12305-0Y160 Insulator Sub-assy, Engine Mounting, RH
2016-10 → 2018-11 ended
8NRFTS NGX50 —
12305-0Y161 Insulator Sub-assy, Engine Mounting, RH
2018-12 → 2019-09 ended
8NRFTS NGX50 —
12305-0T332 Insulator Sub-assy, Engine Mounting, RH
2019-09 → —
2ZRFXE ZYX10 —
12305-0Y151 Insulator Sub-assy, Engine Mounting, RH
2019-09 → —
8NRFTS NGX10 —
12305-0Y161 Insulator Sub-assy, Engine Mounting, RH
2019-09 → —
8NRFTS NGX50 —
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-47081 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
12315-37060 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2019-09 → —
2ZRFXE ZYX10 —
12315-47081 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2019-09 → —
8NRFTS NGX10,50 —
12321B — Insulator Sub-assy, Drive Shaft Heat
43409-02080 Insulator Sub-assy, Drive Shaft Heat
2016-10 → 2019-09 ended
8NRFTS NGX10 —
43409-02080 Insulator Sub-assy, Drive Shaft Heat
2019-09 → 2019-11 ended
8NRFTS NGX10 —
43409-02081 Insulator Sub-assy, Drive Shaft Heat
2019-12 → —
8NRFTS NGX10 —
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-0Y210 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-10 → 2019-09 ended
8NRFTS NGX10 6F —
12325-0Y220 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
12325-0Y210 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-09 → —
8NRFTS NGX10 6F —
12325-0Y220 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-09 → —
8NRFTS NGX10,50 CVT —
12351A — Damper, Engine Mounting(FOR INSULATOR)
12351-0T070 Damper, Engine Mounting(FOR INSULATOR)
2016-10 → 2019-09 ended
8NRFTS NGX10 6F —
12351-0T070 Damper, Engine Mounting(FOR INSULATOR)
2019-09 → —
8NRFTS NGX10 6F —
12363A — Rod, Engine Moving Control
12363-0Y150 Rod, Engine Moving Control
2016-10 → 2019-09 ended
8NRFTS NGX10 6F —
12363-47100 Rod, Engine Moving Control
2016-10 → 2018-08 ended
8NRFTS NGX10,50 CVT —
12363-47101 Rod, Engine Moving Control
2018-09 → 2019-09 ended
8NRFTS NGX10,50 CVT —
12363-0Y150 Rod, Engine Moving Control
2019-09 → —
8NRFTS NGX10 6F —
12363-37031 Rod, Engine Moving Control
2019-09 → 2023-02 ended
2ZRFXE ZYX10 —
12363-37032 Rod, Engine Moving Control
2023-03 → —
2ZRFXE ZYX10 —
12363-47101 Rod, Engine Moving Control
2019-09 → —
8NRFTS NGX10,50 CVT —
12364B — Rod, Engine Moving Control, NO.2
12364-0Y060 Rod, Engine Moving Control, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10 6F —
12364-0Y070 Rod, Engine Moving Control, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
12364-0T020 Rod, Engine Moving Control, NO.2
2019-09 → —
2ZRFXE ZYX10 —
12364-0Y060 Rod, Engine Moving Control, NO.2
2019-09 → —
8NRFTS NGX10 6F —
12364-0Y070 Rod, Engine Moving Control, NO.2
2019-09 → —
8NRFTS NGX10,50 CVT —
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-0Y180 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-10 → 2018-05 ended
8NRFTS NGX10 6F —
12372-0Y181 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-06 → 2018-11 ended
8NRFTS NGX10 6F —
12372-0Y182 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-12 → 2019-09 ended
8NRFTS NGX10 6F —
12372-0Y190 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-10 → 2018-05 ended
8NRFTS NGX10,50 CVT —
12372-0Y191 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-06 → 2018-11 ended
8NRFTS NGX10,50 CVT —
12372-0Y192 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-12 → 2019-09 ended
8NRFTS NGX10,50 CVT —
12372-0T571 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-09 → —
2ZRFXE ZYX10 —
12372-0Y182 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-09 → —
8NRFTS NGX10 6F —
12372-0Y192 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-09 → —
8NRFTS NGX10,50 CVT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
