Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

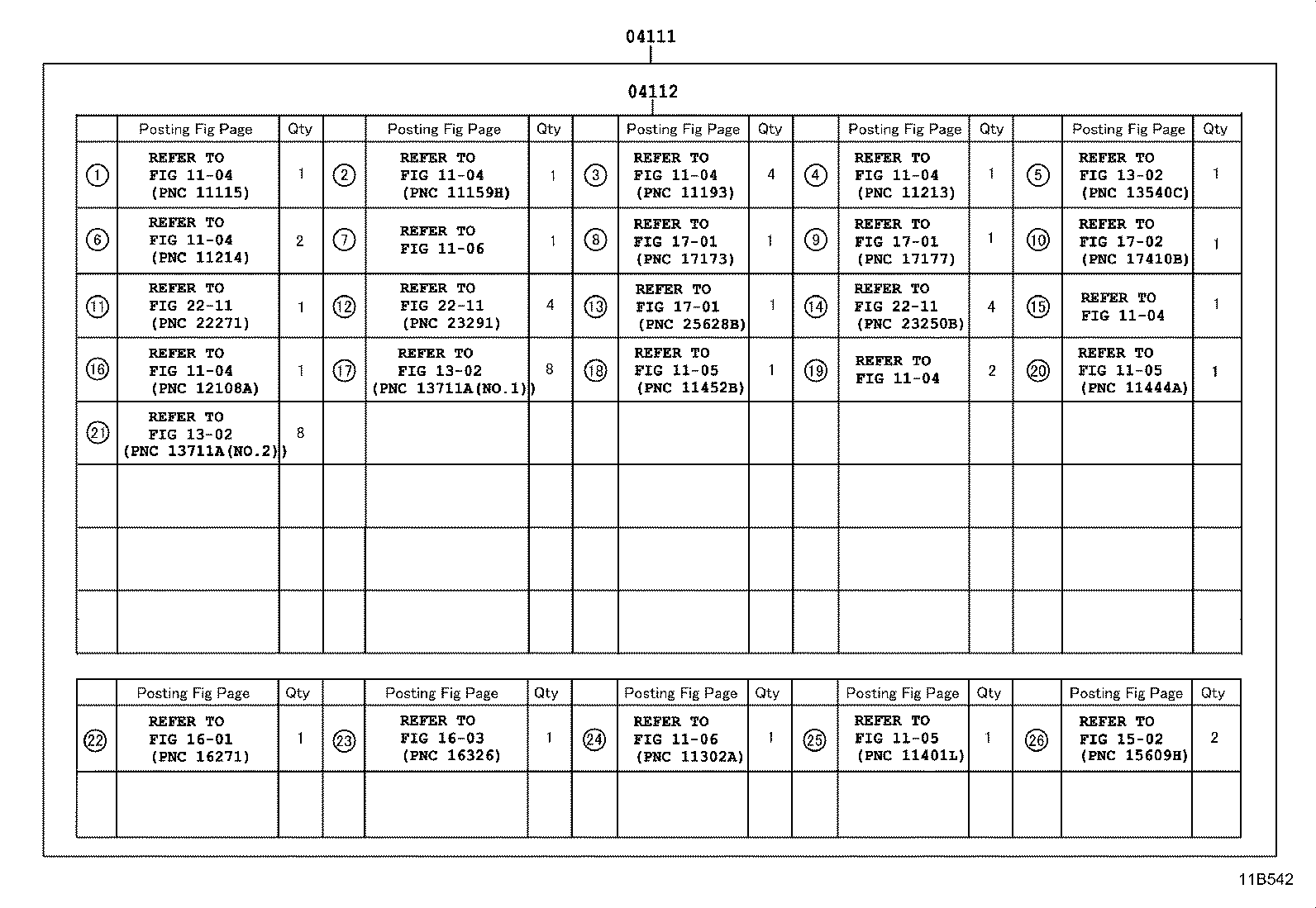

Exploded illustration 11B542 04112 — GASKET KIT, ENGINE VALVE GRIND (10 parts) 04111 — GASKET KIT, ENGINE OVERHAUL (10 parts) 1104 — not listed in this catalogue 1104 — not listed in this catalogue 2211 — not listed in this catalogue 1105 — not listed in this catalogue 1601 — not listed in this catalogue 1104 — not listed in this catalogue 1106 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1603 — not listed in this catalogue 1104 — not listed in this catalogue 1104 — not listed in this catalogue 1701 — not listed in this catalogue 1104 — not listed in this catalogue 1105 — not listed in this catalogue 1106 — not listed in this catalogue 1104 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1104 — not listed in this catalogue 1105 — not listed in this catalogue 1302 — not listed in this catalogue 1702 — not listed in this catalogue 1302 — not listed in this catalogue 1302 — not listed in this catalogue 1502 — not listed in this catalogue
11B542 · 2 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
04111 — Gasket Kit, Engine Overhaul
04111-47270 Gasket Kit, Engine Overhaul
2016-10 → 2017-11 ended
8NRFTS NGX10 —
04111-47272 Gasket Kit, Engine Overhaul
2017-11 → 2019-09 ended
8NRFTS NGX10 —
04111-47290 Gasket Kit, Engine Overhaul
2016-10 → 2017-11 ended
8NRFTS NGX50 —
04111-47291 Gasket Kit, Engine Overhaul
2017-11 → 2019-09 ended
8NRFTS NGX50 —
04111-0T281 note Gasket Kit, Engine Overhaul
2019-09 → 2021-10 ended
2ZRFXE ZYX10 —
04111-0T283 note Gasket Kit, Engine Overhaul
2021-10 → —
2ZRFXE ZYX10 —
04111-37501 note Gasket Kit, Engine Overhaul
2019-09 → 2021-10 ended
2ZRFXE ZYX10 —
04111-37502 note Gasket Kit, Engine Overhaul
2021-10 → —
2ZRFXE ZYX10 —
04111-47272 Gasket Kit, Engine Overhaul
2019-09 → —
8NRFTS NGX10 —
04111-47291 Gasket Kit, Engine Overhaul
2019-09 → —
8NRFTS NGX50 —
04112 — Gasket Kit, Engine Valve Grind
04112-47180 Gasket Kit, Engine Valve Grind
2016-10 → 2017-11 ended
8NRFTS NGX10 —
04112-47182 Gasket Kit, Engine Valve Grind
2017-11 → 2019-09 ended
8NRFTS NGX10 —
04112-47200 Gasket Kit, Engine Valve Grind
2016-10 → 2017-11 ended
8NRFTS NGX50 —
04112-47201 Gasket Kit, Engine Valve Grind
2017-11 → 2019-09 ended
8NRFTS NGX50 —
04112-0T231 note Gasket Kit, Engine Valve Grind
2019-09 → 2021-10 ended
2ZRFXE ZYX10 —
04112-0T233 note Gasket Kit, Engine Valve Grind
2021-10 → —
2ZRFXE ZYX10 —
04112-37381 note Gasket Kit, Engine Valve Grind
2019-09 → 2021-10 ended
2ZRFXE ZYX10 —
04112-37382 note Gasket Kit, Engine Valve Grind
2021-10 → —
2ZRFXE ZYX10 —
04112-47182 Gasket Kit, Engine Valve Grind
2019-09 → —
8NRFTS NGX10 —
04112-47201 Gasket Kit, Engine Valve Grind
2019-09 → —
8NRFTS NGX50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
