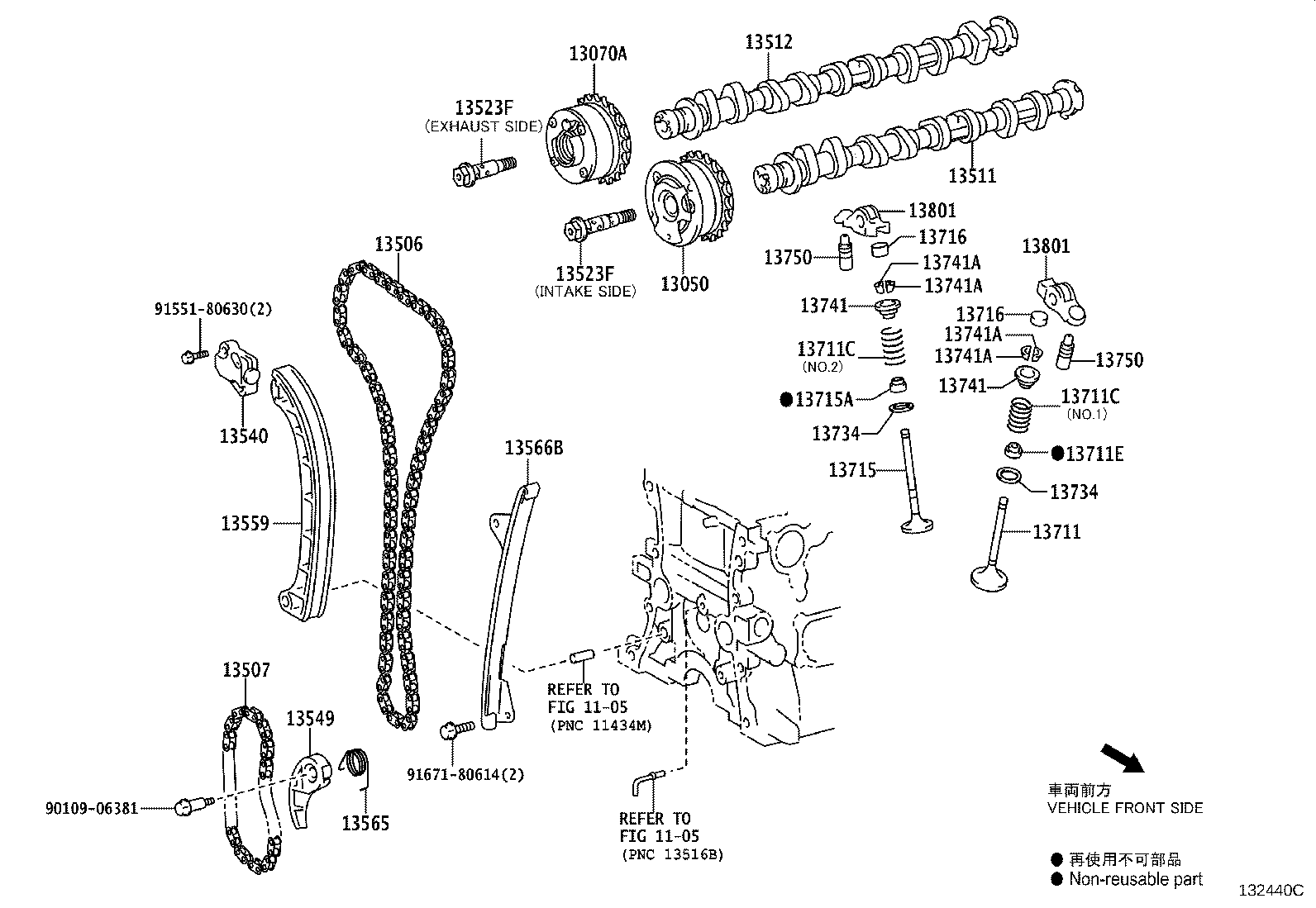

Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-47030 |
Gear Assy, Camshaft Timing
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13050-37050 |
Gear Assy, Camshaft Timing
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13050-47030 |
Gear Assy, Camshaft Timing
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13070A — Gear Assy, Camshaft Timing Exhaust | ||||
| 13070-47030 |
Gear Assy, Camshaft Timing Exhaust
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13070-47030 |
Gear Assy, Camshaft Timing Exhaust
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-47040 |
Chain Sub-assy
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13506-0T110 note |
Chain Sub-assy
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13506-37070 note |
Chain Sub-assy
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13506-47040 |
Chain Sub-assy
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13507 — Chain Sub-assy, NO.2 | ||||
| 13507-47010 |
Chain Sub-assy, NO.2
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13507-28010 |
Chain Sub-assy, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13507-47010 |
Chain Sub-assy, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13511 — Camshaft | ||||
| 13501-47070 |
Camshaft
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13501-0T090 note |
Camshaft
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13501-37080 note |
Camshaft
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13501-47070 |
Camshaft
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-47060 |
Camshaft, NO.2
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13502-0T080 note |
Camshaft, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13502-37070 note |
Camshaft, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13502-47060 |
Camshaft, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13523F — Bolt(FOR CAMSHAFT TIMING GEAR) | ||||
| 135A0-36011 note |
Bolt(FOR CAMSHAFT TIMING GEAR)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 135A0-47020 note |
Bolt(FOR CAMSHAFT TIMING GEAR)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 135A0-36011 note |
Bolt(FOR CAMSHAFT TIMING GEAR)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 135A0-47020 note |
Bolt(FOR CAMSHAFT TIMING GEAR)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-47060 |
Tensioner Assy, Chain, NO.1
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13540-47060 |
Tensioner Assy, Chain, NO.1
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13549 — Plate, Chain Tensioner | ||||
| 13549-47010 |
Plate, Chain Tensioner
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13549-0T050 note |
Plate, Chain Tensioner
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13549-47010 |
Plate, Chain Tensioner
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0Y010 |
Slipper, Chain Tensioner
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13559-0Y010 |
Slipper, Chain Tensioner
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13565 — Spring, Chain Damper | ||||
| 13565-37010 |
Spring, Chain Damper
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13565-0T030 note |
Spring, Chain Damper
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13565-37010 note |
Spring, Chain Damper
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13565-37010 |
Spring, Chain Damper
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13566B — Guide, Timing Chain | ||||
| 13566-0Y030 |
Guide, Timing Chain
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13566-0Y030 |
Guide, Timing Chain
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13711 — Valve, Intake | ||||
| 13711-47010 |
Valve, Intake
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13711-0T040 note |
Valve, Intake
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13711-37020 note |
Valve, Intake
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13711-47010 |
Valve, Intake
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13711C — Spring, Compression(FOR OUTER) | ||||
| 90501-30035 note |
Spring, Compression(FOR OUTER)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90501-30036 note |
Spring, Compression(FOR OUTER)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90501-30035 note |
Spring, Compression(FOR OUTER)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 90501-30036 note |
Spring, Compression(FOR OUTER)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13711E — Seal, Intake Valve Stem Oil | ||||
| 90913-02126 |
Seal, Intake Valve Stem Oil
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90913-02126 |
Seal, Intake Valve Stem Oil
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-47040 |
Valve, Exhaust
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13715-0T040 note |
Valve, Exhaust
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13715-37030 note |
Valve, Exhaust
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13715-47040 |
Valve, Exhaust
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13715A — Seal, Exhaust Valve Stem Oil | ||||
| 90913-02127 |
Seal, Exhaust Valve Stem Oil
2016-10 → 2017-10
ended
|
8NRFTS NGX10,50 | — | |
| 90913-02131 |
Seal, Exhaust Valve Stem Oil
2017-11 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90913-02127 |
Seal, Exhaust Valve Stem Oil
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13716 — Cap, Valve Stem | ||||
| 13716-75020 |
Cap, Valve Stem
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13716-0T020 note |
Cap, Valve Stem
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13716-75020 |
Cap, Valve Stem
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13716-75020 note |
Cap, Valve Stem
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-62020 |
Seat, Valve Spring
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13734-0P010 note |
Seat, Valve Spring
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13734-62020 note |
Seat, Valve Spring
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13734-62020 |
Seat, Valve Spring
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-36010 |
Retainer, Valve Spring
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13741-36010 |
Retainer, Valve Spring
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13741-36010 |
Retainer, Valve Spring
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03028 |
Lock, Valve Spring Retainer
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13750 — Adjuster Assy, Valve Lash | ||||
| 13750-36020 |
Adjuster Assy, Valve Lash
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13750-36020 |
Adjuster Assy, Valve Lash
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 13801 — Arm Sub-assy, Valve Rocker, NO.1 | ||||
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2019-09 → —
|
8NRFTS NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
