Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

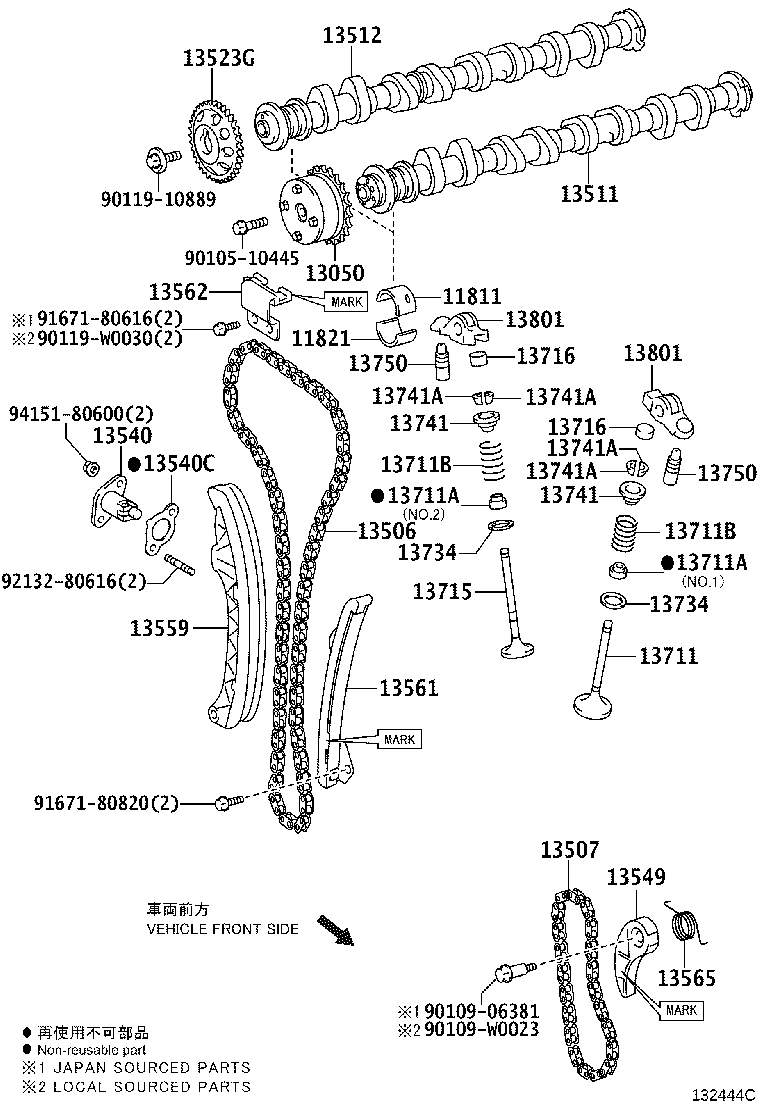

Exploded illustration 132444C 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (4 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13741 — RETAINER, VALVE SPRING (3 parts) 13750 — ADJUSTER ASSY, VALVE LASH (4 parts) 13750 — ADJUSTER ASSY, VALVE LASH (4 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (4 parts) 13716 — CAP, VALVE STEM (4 parts) 13716 — CAP, VALVE STEM (4 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (4 parts) 13050 — GEAR ASSY, CAMSHAFT TIMING (3 parts) 13523G — SPROCKET, CAMSHAFT TIMING (1 parts) 9415180600 — not listed in this catalogue 9167180616 — not listed in this catalogue 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13562 — DAMPER, CHAIN VIBRATION, NO.2 (2 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13734 — SEAT, VALVE SPRING (4 parts) 13715 — VALVE, EXHAUST (4 parts) 13549 — PLATE, CHAIN TENSIONER (4 parts) 13565 — SPRING, CHAIN DAMPER (4 parts) 13741 — RETAINER, VALVE SPRING (3 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13734 — SEAT, VALVE SPRING (4 parts) 13711 — VALVE, INTAKE (4 parts) 13559 — SLIPPER, CHAIN TENSIONER (4 parts) 13561 — DAMPER, CHAIN VIBRATION, NO.1 (2 parts) 13511 — CAMSHAFT (4 parts) 13512 — CAMSHAFT, NO.2 (4 parts) 13507 — CHAIN SUB-ASSY, NO.2 (3 parts) 9010906381 — not listed in this catalogue 9167180820 — not listed in this catalogue 9213280616 — not listed in this catalogue 13540C — GASKET(FOR CHAIN TENSIONER) (2 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (4 parts) 9011910889 — not listed in this catalogue 9010510445 — not listed in this catalogue 13506 — CHAIN SUB-ASSY (4 parts) 90119W0030 — not listed in this catalogue 90109W0023 — not listed in this catalogue 11811 — BEARING, CAMSHAFT, NO.1 (2 parts) 11821 — BEARING, CAMSHAFT, NO.2 (2 parts)
132444C · 35 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
11811 — Bearing, Camshaft, NO.1
11811-37010 Bearing, Camshaft, NO.1
2023-01 → —
2ZRFXE ZYX10 —
11811-37020 Bearing, Camshaft, NO.1
2019-09 → 2023-01 ended
2ZRFXE ZYX10 —
11821 — Bearing, Camshaft, NO.2
11821-37010 Bearing, Camshaft, NO.2
2023-01 → —
2ZRFXE ZYX10 —
11821-37020 Bearing, Camshaft, NO.2
2019-09 → 2023-01 ended
2ZRFXE ZYX10 —
13050 — Gear Assy, Camshaft Timing
13050-47030 Gear Assy, Camshaft Timing
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13050-37050 Gear Assy, Camshaft Timing
2019-09 → —
2ZRFXE ZYX10 —
13050-47030 Gear Assy, Camshaft Timing
2019-09 → —
8NRFTS NGX10,50 —
13506 — Chain Sub-assy
13506-47040 Chain Sub-assy
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13506-0T110 note Chain Sub-assy
2019-09 → —
2ZRFXE ZYX10 —
13506-37070 note Chain Sub-assy
2019-09 → —
2ZRFXE ZYX10 —
13506-47040 Chain Sub-assy
2019-09 → —
8NRFTS NGX10,50 —
13507 — Chain Sub-assy, NO.2
13507-47010 Chain Sub-assy, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13507-28010 Chain Sub-assy, NO.2
2019-09 → —
2ZRFXE ZYX10 —
13507-47010 Chain Sub-assy, NO.2
2019-09 → —
8NRFTS NGX10,50 —
13511 — Camshaft
13501-47070 Camshaft
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13501-0T090 note Camshaft
2019-09 → —
2ZRFXE ZYX10 —
13501-37080 note Camshaft
2019-09 → —
2ZRFXE ZYX10 —
13501-47070 Camshaft
2019-09 → —
8NRFTS NGX10,50 —
13512 — Camshaft, NO.2
13502-47060 Camshaft, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13502-0T080 note Camshaft, NO.2
2019-09 → —
2ZRFXE ZYX10 —
13502-37070 note Camshaft, NO.2
2019-09 → —
2ZRFXE ZYX10 —
13502-47060 Camshaft, NO.2
2019-09 → —
8NRFTS NGX10,50 —
13523G — Sprocket, Camshaft Timing
13523-22020 Sprocket, Camshaft Timing
2019-09 → —
2ZRFXE ZYX10 —
13540 — Tensioner Assy, Chain, NO.1
13540-47060 Tensioner Assy, Chain, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13540-0T030 note Tensioner Assy, Chain, NO.1
2019-09 → —
2ZRFXE ZYX10 —
13540-37030 note Tensioner Assy, Chain, NO.1
2019-09 → —
2ZRFXE ZYX10 —
13540-47060 Tensioner Assy, Chain, NO.1
2019-09 → —
8NRFTS NGX10,50 —
13540C — Gasket(FOR CHAIN TENSIONER)
13552-0T030 note Gasket(FOR CHAIN TENSIONER)
2019-09 → —
2ZRFXE ZYX10 —
13552-37010 note Gasket(FOR CHAIN TENSIONER)
2019-09 → —
2ZRFXE ZYX10 —
13549 — Plate, Chain Tensioner
13549-47010 Plate, Chain Tensioner
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13549-0T050 note Plate, Chain Tensioner
2019-09 → —
2ZRFXE ZYX10 —
13549-37020 note Plate, Chain Tensioner
2019-09 → —
2ZRFXE ZYX10 —
13549-47010 Plate, Chain Tensioner
2019-09 → —
8NRFTS NGX10,50 —
13559 — Slipper, Chain Tensioner
13559-0Y010 Slipper, Chain Tensioner
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13559-0T080 note Slipper, Chain Tensioner
2019-09 → —
2ZRFXE ZYX10 —
13559-0Y010 Slipper, Chain Tensioner
2019-09 → —
8NRFTS NGX10,50 —
13559-37050 note Slipper, Chain Tensioner
2019-09 → —
2ZRFXE ZYX10 —
13561 — Damper, Chain Vibration, NO.1
13561-0T080 note Damper, Chain Vibration, NO.1
2019-09 → —
2ZRFXE ZYX10 —
13561-37050 note Damper, Chain Vibration, NO.1
2019-09 → —
2ZRFXE ZYX10 —
13562 — Damper, Chain Vibration, NO.2
13562-0T050 note Damper, Chain Vibration, NO.2
2019-09 → —
2ZRFXE ZYX10 —
13562-37020 note Damper, Chain Vibration, NO.2
2019-09 → —
2ZRFXE ZYX10 —
13565 — Spring, Chain Damper
13565-37010 Spring, Chain Damper
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13565-0T030 note Spring, Chain Damper
2019-09 → —
2ZRFXE ZYX10 —
13565-37010 Spring, Chain Damper
2019-09 → —
8NRFTS NGX10,50 —
13565-37010 note Spring, Chain Damper
2019-09 → —
2ZRFXE ZYX10 —
13711 — Valve, Intake
13711-47010 Valve, Intake
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13711-0T040 note Valve, Intake
2019-09 → —
2ZRFXE ZYX10 —
13711-37020 note Valve, Intake
2019-09 → —
2ZRFXE ZYX10 —
13711-47010 Valve, Intake
2019-09 → —
8NRFTS NGX10,50 —
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90080-31061 note Seal OR Ring, O(FOR VALVE STEM OIL)
2019-09 → —
2ZRFXE ZYX10 —
90080-31062 note Seal OR Ring, O(FOR VALVE STEM OIL)
2019-09 → —
2ZRFXE ZYX10 —
90913-02101 note Seal OR Ring, O(FOR VALVE STEM OIL)
2019-09 → —
2ZRFXE ZYX10 —
90913-02112 note Seal OR Ring, O(FOR VALVE STEM OIL)
2019-09 → —
2ZRFXE ZYX10 —
13711B — Spring, Compression(FOR INNER)
90501-30039 note Spring, Compression(FOR INNER)
2019-09 → —
2ZRFXE ZYX10 —
13715 — Valve, Exhaust
13715-47040 Valve, Exhaust
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13715-0T040 note Valve, Exhaust
2019-09 → —
2ZRFXE ZYX10 —
13715-37030 note Valve, Exhaust
2019-09 → —
2ZRFXE ZYX10 —
13715-47040 Valve, Exhaust
2019-09 → —
8NRFTS NGX10,50 —
13716 — Cap, Valve Stem
13716-75020 Cap, Valve Stem
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13716-0T020 note Cap, Valve Stem
2019-09 → —
2ZRFXE ZYX10 —
13716-75020 Cap, Valve Stem
2019-09 → —
8NRFTS NGX10,50 —
13716-75020 note Cap, Valve Stem
2019-09 → —
2ZRFXE ZYX10 —
13734 — Seat, Valve Spring
13734-62020 Seat, Valve Spring
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13734-0P010 note Seat, Valve Spring
2019-09 → —
2ZRFXE ZYX10 —
13734-62020 note Seat, Valve Spring
2019-09 → —
2ZRFXE ZYX10 —
13734-62020 Seat, Valve Spring
2019-09 → —
8NRFTS NGX10,50 —
13741 — Retainer, Valve Spring
13741-36010 Retainer, Valve Spring
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13741-36010 Retainer, Valve Spring
2019-09 → —
2ZRFXE ZYX10 —
13741-36010 Retainer, Valve Spring
2019-09 → —
8NRFTS NGX10,50 —
13741A — Lock, Valve Spring Retainer
90913-03028 Lock, Valve Spring Retainer
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90913-03028 Lock, Valve Spring Retainer
2019-09 → —
8NRFTS NGX10,50 —
90913-03028 note Lock, Valve Spring Retainer
2019-09 → —
2ZRFXE ZYX10 —
90913-W3001 note Lock, Valve Spring Retainer
2019-09 → —
2ZRFXE ZYX10 —
13750 — Adjuster Assy, Valve Lash
13750-36020 Adjuster Assy, Valve Lash
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13750-0T040 note Adjuster Assy, Valve Lash
2019-09 → —
2ZRFXE ZYX10 —
13750-21010 note Adjuster Assy, Valve Lash
2019-09 → —
2ZRFXE ZYX10 —
13750-36020 Adjuster Assy, Valve Lash
2019-09 → —
8NRFTS NGX10,50 —
13801 — Arm Sub-assy, Valve Rocker, NO.1
13801-36020 Arm Sub-assy, Valve Rocker, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
13801-0T030 note Arm Sub-assy, Valve Rocker, NO.1
2019-09 → —
2ZRFXE ZYX10 —
13801-36020 note Arm Sub-assy, Valve Rocker, NO.1
2019-09 → —
2ZRFXE ZYX10 —
13801-36020 Arm Sub-assy, Valve Rocker, NO.1
2019-09 → —
8NRFTS NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
