Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

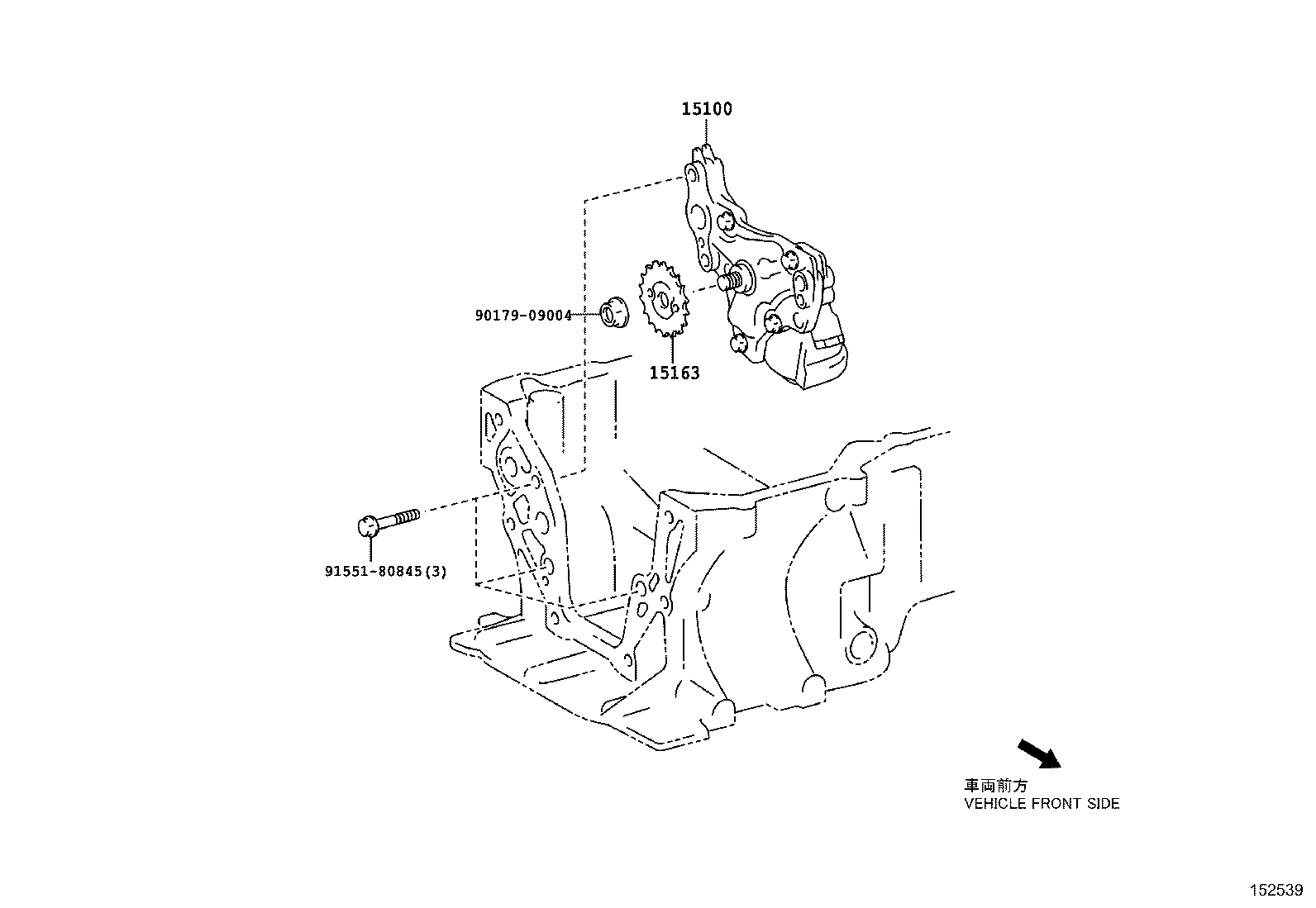

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-47050 |
Pump Assy, Oil
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 15100-0T100 note |
Pump Assy, Oil
2019-09 → 2022-04
ended
|
2ZRFXE ZYX10 | — | |
| 15100-0T160 note |
Pump Assy, Oil
2022-05 → —
|
2ZRFXE ZYX10 | — | |
| 15100-37060 note |
Pump Assy, Oil
2019-09 → 2021-07
ended
|
2ZRFXE ZYX10 | — | |
| 15100-37070 note |
Pump Assy, Oil
2021-08 → —
|
2ZRFXE ZYX10 | — | |
| 15100-47050 |
Pump Assy, Oil
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 15163 — Gear, Oil Pump Drive Shaft | ||||
| 15163-33010 |
Gear, Oil Pump Drive Shaft
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 15163-0H010 note |
Gear, Oil Pump Drive Shaft
2019-09 → 2023-01
ended
|
2ZRFXE ZYX10 | — | |
| 15163-0T030 note |
Gear, Oil Pump Drive Shaft
2023-01 → —
|
2ZRFXE ZYX10 | — | |
| 15163-28010 note |
Gear, Oil Pump Drive Shaft
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 15163-33010 |
Gear, Oil Pump Drive Shaft
2019-09 → —
|
8NRFTS NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
