Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

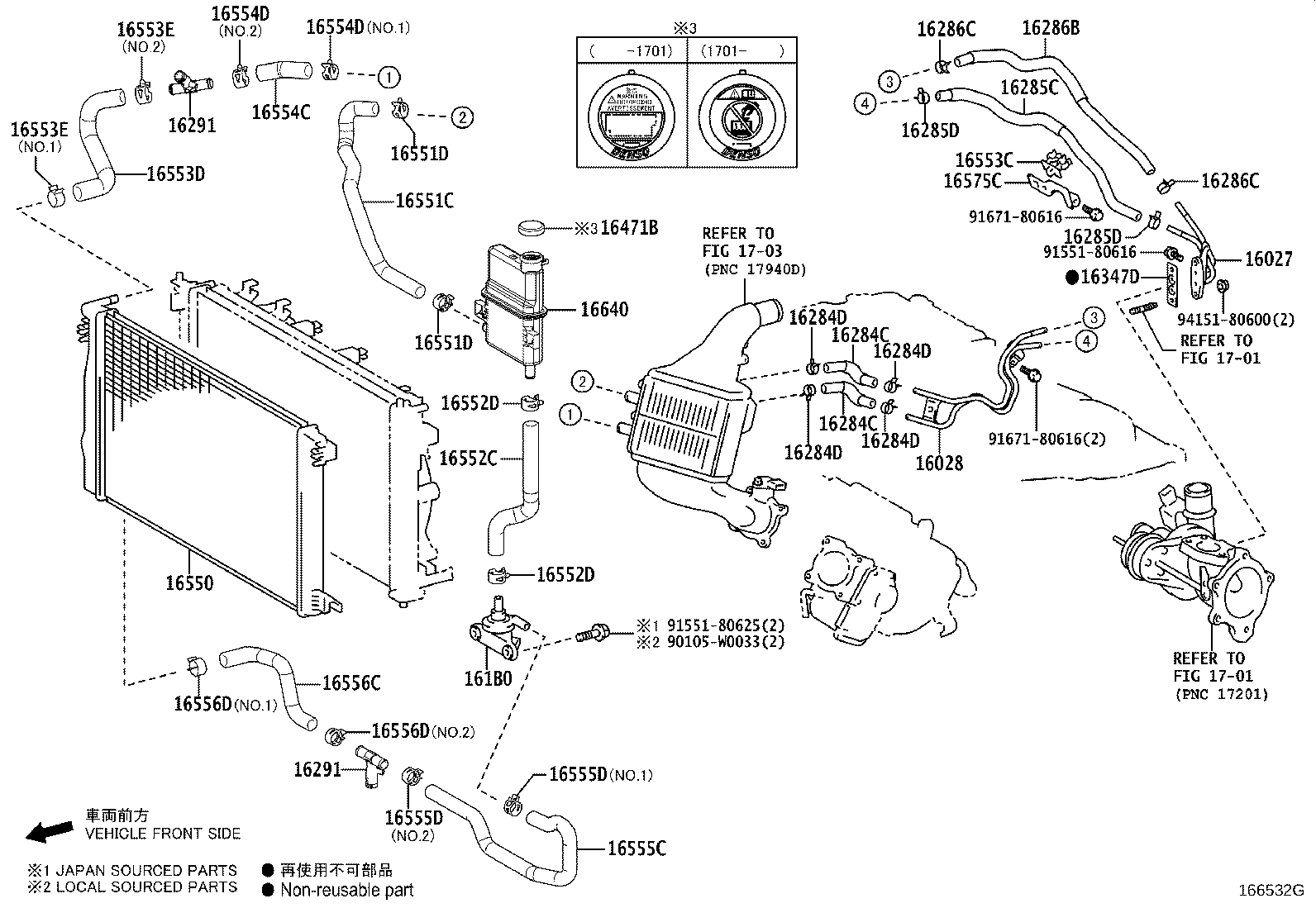

Exploded illustration 166532G 9155180625 — not listed in this catalogue 90105W0033 — not listed in this catalogue 1703 — not listed in this catalogue 1701 — not listed in this catalogue 16028 — PIPE SUB-ASSY, TURBO WATER, NO.2 (2 parts) 9167180616 — not listed in this catalogue 1701 — not listed in this catalogue 16027 — PIPE SUB-ASSY, TURBO WATER, NO.1 (2 parts) 16284C — HOSE, INTERCOOLER WATER, NO.1 (2 parts) 16284C — HOSE, INTERCOOLER WATER, NO.1 (2 parts) 16284D — CLIP(FOR INTERCOOLER WATER HOSE NO.1) (2 parts) 16284D — CLIP(FOR INTERCOOLER WATER HOSE NO.1) (2 parts) 16284D — CLIP(FOR INTERCOOLER WATER HOSE NO.1) (2 parts) 16284D — CLIP(FOR INTERCOOLER WATER HOSE NO.1) (2 parts) 16285C — HOSE, INTERCOOLER WATER, NO.2 (2 parts) 16285D — CLIP(FOR INTERCOOLER WATER HOSE NO.2) (2 parts) 16286B — HOSE, INTERCOOLER WATER, NO.3 (2 parts) 16286C — CLIP(FOR INTERCOOLER WATER HOSE NO.3) (2 parts) 16285D — CLIP(FOR INTERCOOLER WATER HOSE NO.2) (2 parts) 16286C — CLIP(FOR INTERCOOLER WATER HOSE NO.3) (2 parts) 16347D — GASKET, WATER BY-PASS (2 parts) 16553C — CLAMP, HOSE (2 parts) 16575C — BRACKET, WATER HOSE CLAMP, NO.1 (2 parts) 9155180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9415180600 — not listed in this catalogue 161B0 — PUMP ASSY, ELECTRIC WATER (2 parts) 16291 — JOINT, WATER HOSE (2 parts) 16291 — JOINT, WATER HOSE (2 parts) 16471B — CAP, RESERVE TANK (3 parts) 16550 — RADIATOR ASSY, INTERCOOLER COOLING (2 parts) 16551C — HOSE, INTERCOOLER COOLING WATER, NO.1 (2 parts) 16551D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) (3 parts) 16551D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) (3 parts) 16552C — HOSE, INTERCOOLER COOLING WATER, NO.2 (2 parts) 16552D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) (3 parts) 16552D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) (3 parts) 16553D — HOSE, INTERCOOLER COOLING WATER, NO.3 (2 parts) 16553E — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) (6 parts) 16553E — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) (6 parts) 16554C — HOSE, INTERCOOLER COOLING WATER, NO.4 (2 parts) 16554D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) (5 parts) 16554D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) (5 parts) 16555C — HOSE, INTERCOOLER COOLING WATER, NO.5 (2 parts) 16555D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) (3 parts) 16555D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) (3 parts) 16556C — HOSE, INTERCOOLER COOLING WATER, NO.6 (2 parts) 16556D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) (4 parts) 16556D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) (4 parts) 16640 — TANK ASSY, INTERCOOLER RESERVE (2 parts)
166532G · 41 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
16027 — Pipe Sub-assy, Turbo Water, NO.1
16027-47010 Pipe Sub-assy, Turbo Water, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16027-47010 Pipe Sub-assy, Turbo Water, NO.1
2019-09 → —
8NRFTS NGX10,50 —
16028 — Pipe Sub-assy, Turbo Water, NO.2
16028-47010 Pipe Sub-assy, Turbo Water, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16028-47010 Pipe Sub-assy, Turbo Water, NO.2
2019-09 → —
8NRFTS NGX10,50 —
161B0 — Pump Assy, Electric Water
161B0-47010 Pump Assy, Electric Water
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
161B0-47010 Pump Assy, Electric Water
2019-09 → —
8NRFTS NGX10,50 —
16284C — Hose, Intercooler Water, NO.1
16284-47010 Hose, Intercooler Water, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16284-47010 Hose, Intercooler Water, NO.1
2019-09 → —
8NRFTS NGX10,50 —
16284D — Clip(FOR INTERCOOLER WATER HOSE NO.1)
96136-41501 Clip(FOR INTERCOOLER WATER HOSE NO.1)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clip(FOR INTERCOOLER WATER HOSE NO.1)
2019-09 → —
8NRFTS NGX10,50 —
16285C — Hose, Intercooler Water, NO.2
16285-47010 Hose, Intercooler Water, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16285-47010 Hose, Intercooler Water, NO.2
2019-09 → —
8NRFTS NGX10,50 —
16285D — Clip(FOR INTERCOOLER WATER HOSE NO.2)
96136-41501 Clip(FOR INTERCOOLER WATER HOSE NO.2)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clip(FOR INTERCOOLER WATER HOSE NO.2)
2019-09 → —
8NRFTS NGX10,50 —
16286B — Hose, Intercooler Water, NO.3
16286-47010 Hose, Intercooler Water, NO.3
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16286-47010 Hose, Intercooler Water, NO.3
2019-09 → —
8NRFTS NGX10,50 —
16286C — Clip(FOR INTERCOOLER WATER HOSE NO.3)
96136-41501 Clip(FOR INTERCOOLER WATER HOSE NO.3)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clip(FOR INTERCOOLER WATER HOSE NO.3)
2019-09 → —
8NRFTS NGX10,50 —
16291 — Joint, Water Hose
16291-47050 Joint, Water Hose
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16291-47050 Joint, Water Hose
2019-09 → —
8NRFTS NGX10,50 —
16347D — Gasket, Water By-pass
16347-47010 Gasket, Water By-pass
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16347-47010 Gasket, Water By-pass
2019-09 → —
8NRFTS NGX10,50 —
16471B — Cap, Reserve Tank
16475-28140 Cap, Reserve Tank
2017-01 → 2019-09 ended
8NRFTS NGX10,50 —
16475-37011 Cap, Reserve Tank
2016-10 → 2017-01 ended
8NRFTS NGX10,50 —
16475-28140 Cap, Reserve Tank
2019-09 → —
8NRFTS NGX10,50 —
16550 — Radiator Assy, Intercooler Cooling
16550-0Y020 Radiator Assy, Intercooler Cooling
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16550-0Y020 Radiator Assy, Intercooler Cooling
2019-09 → —
8NRFTS NGX10,50 —
16551C — Hose, Intercooler Cooling Water, NO.1
16551-0Y010 Hose, Intercooler Cooling Water, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16551-0Y010 Hose, Intercooler Cooling Water, NO.1
2019-09 → —
8NRFTS NGX10,50 —
16551D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 —
90466-W0007 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2019-09 → —
8NRFTS NGX10,50 —
16552C — Hose, Intercooler Cooling Water, NO.2
16552-0Y010 Hose, Intercooler Cooling Water, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16552-0Y010 Hose, Intercooler Cooling Water, NO.2
2019-09 → —
8NRFTS NGX10,50 —
16552D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 —
90466-W0007 Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2019-09 → —
8NRFTS NGX10,50 —
16553C — Clamp, Hose
16581-47090 Clamp, Hose
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16581-47090 Clamp, Hose
2019-09 → —
8NRFTS NGX10,50 —
16553D — Hose, Intercooler Cooling Water, NO.3
16553-0Y010 Hose, Intercooler Cooling Water, NO.3
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16553-0Y010 Hose, Intercooler Cooling Water, NO.3
2019-09 → —
8NRFTS NGX10,50 —
16553E — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
90466-23005 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90466-23005 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2019-09 → —
8NRFTS NGX10,50 —
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2019-09 → —
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2019-09 → —
8NRFTS NGX10,50 —
16554C — Hose, Intercooler Cooling Water, NO.4
16554-0Y010 Hose, Intercooler Cooling Water, NO.4
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16554-0Y010 Hose, Intercooler Cooling Water, NO.4
2019-09 → —
8NRFTS NGX10,50 —
16554D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2019-09 → —
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2019-09 → —
8NRFTS NGX10,50 —
16555C — Hose, Intercooler Cooling Water, NO.5
16555-0Y010 Hose, Intercooler Cooling Water, NO.5
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16555-0Y010 Hose, Intercooler Cooling Water, NO.5
2019-09 → —
8NRFTS NGX10,50 —
16555D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 —
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2019-09 → —
8NRFTS NGX10,50 —
16556C — Hose, Intercooler Cooling Water, NO.6
16556-0Y010 Hose, Intercooler Cooling Water, NO.6
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16556-0Y010 Hose, Intercooler Cooling Water, NO.6
2019-09 → —
8NRFTS NGX10,50 —
16556D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
90466-23005 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90466-23005 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2019-09 → —
8NRFTS NGX10,50 —
90466-W0007 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2019-09 → —
8NRFTS NGX10,50 —
16575C — Bracket, Water Hose Clamp, NO.1
16575-47020 Bracket, Water Hose Clamp, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16575-47020 Bracket, Water Hose Clamp, NO.1
2019-09 → —
8NRFTS NGX10,50 —
16640 — Tank Assy, Intercooler Reserve
16640-0Y020 Tank Assy, Intercooler Reserve
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16640-0Y020 Tank Assy, Intercooler Reserve
2019-09 → —
8NRFTS NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
