Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

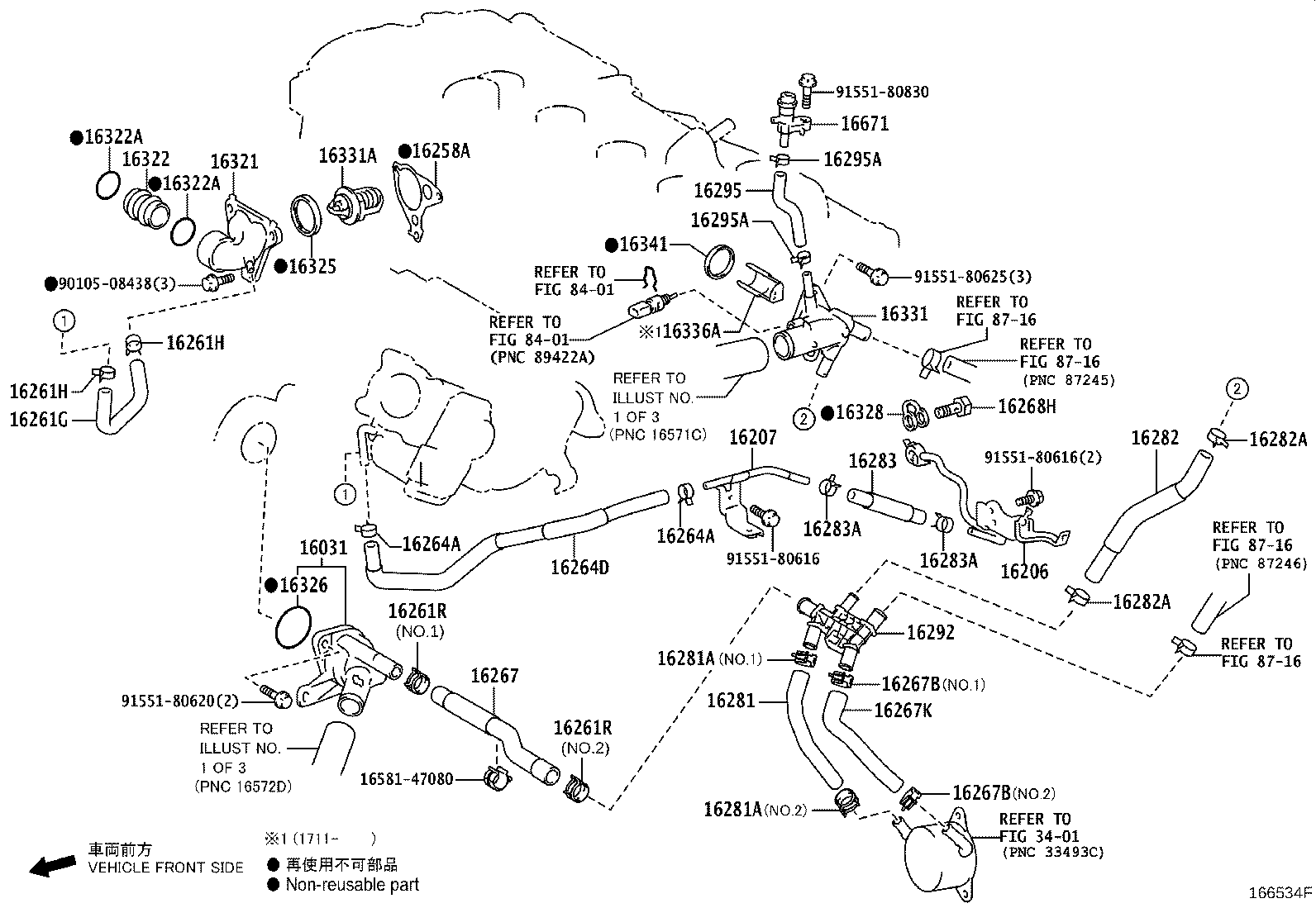

Exploded illustration 166534F 8716 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (3 parts) 16206 — PIPE SUB-ASSY, WATER BY-PASS (2 parts) 16258A — GASKET(FOR HEATER RETURN) (2 parts) 16261G — HOSE, WATER BY-PASS, NO.1 (3 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (4 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (4 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (3 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (3 parts) 16264D — HOSE, WATER BY-PASS, NO.2 (3 parts) 16268H — BOLT, UNION(FOR WATER BY-PASS PIPE) (2 parts) 16282 — HOSE, WATER BY-PASS, NO.5 (2 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (2 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (2 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (4 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (3 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (3 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (2 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (2 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (2 parts) 16321 — INLET, WATER (2 parts) 16322 — PIPE, WATER INLET (2 parts) 16322A — RING, O(FOR WATER INLET) (2 parts) 16322A — RING, O(FOR WATER INLET) (2 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (2 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (3 parts) 16328 — GASKET, WATER INLET PIPE (2 parts) 16331 — OUTLET, WATER (3 parts) 16331A — THERMOSTAT (2 parts) 16341 — GASKET, WATER OUTLET (3 parts) 16671 — VALVE, WATER (2 parts) 9010508438 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180620 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180830 — not listed in this catalogue 16207 — PIPE SUB-ASSY, WATER BY-PASS, NO.2 (2 parts) 16292 — JOINT, WATER HOSE, NO.2 (2 parts) 16267K — HOSE, WATER BY-PASS, NO.3 (2 parts) 16281 — HOSE, WATER BY-PASS, NO.4 (3 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (3 parts) 16261R — CLAMP OR CLIP(FOR WATER BY-PASS HOSE) (8 parts) 16261R — CLAMP OR CLIP(FOR WATER BY-PASS HOSE) (8 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (6 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (6 parts) 16267B — CLIP(FOR WATER BY-PASS HOSE) (6 parts) 16267B — CLIP(FOR WATER BY-PASS HOSE) (6 parts) 1658147080 — not listed in this catalogue 3401 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 16336A — INSERT, WATER OUTLET (2 parts)
166534F · 42 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-47030 Water Inlet Sub-assy, W/Thermostat
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16031-37010 Water Inlet Sub-assy, W/Thermostat
2019-09 → —
2ZRFXE ZYX10 —
16031-47030 Water Inlet Sub-assy, W/Thermostat
2019-09 → —
8NRFTS NGX10,50 —
16206 — Pipe Sub-assy, Water By-pass
16206-47010 Pipe Sub-assy, Water By-pass
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16206-47010 Pipe Sub-assy, Water By-pass
2019-09 → —
8NRFTS NGX10,50 —
16207 — Pipe Sub-assy, Water By-pass, NO.2
16207-47010 Pipe Sub-assy, Water By-pass, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16207-47010 Pipe Sub-assy, Water By-pass, NO.2
2019-09 → —
8NRFTS NGX10,50 —
16258A — Gasket(FOR HEATER RETURN)
16258-47010 Gasket(FOR HEATER RETURN)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16258-47010 Gasket(FOR HEATER RETURN)
2019-09 → —
8NRFTS NGX10,50 —
16261G — Hose, Water By-pass, NO.1
16261-47140 Hose, Water By-pass, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16261-0T250 Hose, Water By-pass, NO.1
2019-09 → —
2ZRFXE ZYX10 —
16261-47140 Hose, Water By-pass, NO.1
2019-09 → —
8NRFTS NGX10,50 —
16261H — Clip(FOR WATER BY-PASS HOSE NO.1)
96136-41501 Clip(FOR WATER BY-PASS HOSE NO.1)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90466-W0007 note Clip(FOR WATER BY-PASS HOSE NO.1)
2019-09 → —
2ZRFXE ZYX10 —
90466-W0017 note Clip(FOR WATER BY-PASS HOSE NO.1)
2019-09 → —
2ZRFXE ZYX10 —
96136-41501 Clip(FOR WATER BY-PASS HOSE NO.1)
2019-09 → —
8NRFTS NGX10,50 —
16261R — Clamp OR Clip(FOR WATER BY-PASS HOSE)
90466-W0007 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10 6F —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42701 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
90466-W0007 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10,50 CVT —
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10 6F —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10,50 CVT —
96136-42701 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10,50 CVT —
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2019-09 → —
8NRFTS NGX10,50 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2019-09 → —
2ZRFXE ZYX10 —
16264D — Hose, Water By-pass, NO.2
16264-47060 Hose, Water By-pass, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16264-0T190 Hose, Water By-pass, NO.2
2019-09 → —
2ZRFXE ZYX10 —
16264-47060 Hose, Water By-pass, NO.2
2019-09 → —
8NRFTS NGX10,50 —
16267 — Hose, Water By-pass, NO.3
16267-47030 Hose, Water By-pass, NO.3
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
16267-0T160 Hose, Water By-pass, NO.3
2019-09 → —
2ZRFXE ZYX10 —
16267-47030 Hose, Water By-pass, NO.3
2019-09 → —
8NRFTS NGX10,50 CVT —
16267B — Clip(FOR WATER BY-PASS HOSE)
90466-W0007 note Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42201 note Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42501 note Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 CVT —
90466-W0007 note Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10,50 CVT —
96136-41901 Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
2ZRFXE ZYX10 —
96136-42201 note Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10,50 CVT —
16267K — Hose, Water By-pass, NO.3
16267-0Y070 Hose, Water By-pass, NO.3
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
16267-0Y070 Hose, Water By-pass, NO.3
2019-09 → —
8NRFTS NGX10,50 CVT —
16268H — Bolt, Union(FOR WATER BY-PASS PIPE)
90401-14003 Bolt, Union(FOR WATER BY-PASS PIPE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90401-14003 Bolt, Union(FOR WATER BY-PASS PIPE)
2019-09 → —
8NRFTS NGX10,50 —
16281 — Hose, Water By-pass, NO.4
16281-0Y050 Hose, Water By-pass, NO.4
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
16281-0T150 Hose, Water By-pass, NO.4
2019-09 → —
2ZRFXE ZYX10 —
16281-0Y050 Hose, Water By-pass, NO.4
2019-09 → —
8NRFTS NGX10,50 CVT —
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
90466-W0007 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42201 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 CVT —
90466-W0007 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2019-09 → —
8NRFTS NGX10,50 CVT —
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2019-09 → —
2ZRFXE ZYX10 —
96136-42201 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2019-09 → —
8NRFTS NGX10,50 CVT —
16282 — Hose, Water By-pass, NO.5
16282-47030 Hose, Water By-pass, NO.5
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
16282-47030 Hose, Water By-pass, NO.5
2019-09 → —
8NRFTS NGX10,50 CVT —
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2019-09 → —
8NRFTS NGX10,50 CVT —
16283 — Hose, Water By-pass, NO.6
16283-47040 Hose, Water By-pass, NO.6
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16283-0T060 note Hose, Water By-pass, NO.6
2019-09 → —
2ZRFXE ZYX10 —
16283-37021 note Hose, Water By-pass, NO.6
2019-09 → —
2ZRFXE ZYX10 —
16283-47040 Hose, Water By-pass, NO.6
2019-09 → —
8NRFTS NGX10,50 —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2019-09 → —
8NRFTS NGX10,50 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2019-09 → —
2ZRFXE ZYX10 —
16292 — Joint, Water Hose, NO.2
87251-12060 Joint, Water Hose, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 CVT —
87251-12060 Joint, Water Hose, NO.2
2019-09 → —
8NRFTS NGX10,50 CVT —
16295 — Hose, Water By-pass, NO.7
16295-47030 Hose, Water By-pass, NO.7
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16295-47030 Hose, Water By-pass, NO.7
2019-09 → —
8NRFTS NGX10,50 —
16295A — Clip(FOR WATER BY-PASS HOSE NO.7)
90467-15022 Clip(FOR WATER BY-PASS HOSE NO.7)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90467-15022 Clip(FOR WATER BY-PASS HOSE NO.7)
2019-09 → —
8NRFTS NGX10,50 —
16321 — Inlet, Water
16321-47040 Inlet, Water
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16321-47040 Inlet, Water
2019-09 → —
8NRFTS NGX10,50 —
16322 — Pipe, Water Inlet
16322-47010 Pipe, Water Inlet
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16322-47010 Pipe, Water Inlet
2019-09 → —
8NRFTS NGX10,50 —
16322A — Ring, O(FOR WATER INLET)
96761-35031 Ring, O(FOR WATER INLET)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96761-35031 Ring, O(FOR WATER INLET)
2019-09 → —
8NRFTS NGX10,50 —
16325 — Gasket, Water Inlet Housing, NO.1
16325-36040 Gasket, Water Inlet Housing, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16325-36040 Gasket, Water Inlet Housing, NO.1
2019-09 → —
8NRFTS NGX10,50 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-47020 Gasket, Water Inlet Housing, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16326-37020 Gasket, Water Inlet Housing, NO.2
2019-09 → —
2ZRFXE ZYX10 —
16326-47020 Gasket, Water Inlet Housing, NO.2
2019-09 → —
8NRFTS NGX10,50 —
16328 — Gasket, Water Inlet Pipe
16328-47010 Gasket, Water Inlet Pipe
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16328-47010 Gasket, Water Inlet Pipe
2019-09 → —
8NRFTS NGX10,50 —
16331 — Outlet, Water
16331-47050 Outlet, Water
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16331-37100 Outlet, Water
2019-09 → —
2ZRFXE ZYX10 —
16331-47050 Outlet, Water
2019-09 → —
8NRFTS NGX10,50 —
16331A — Thermostat
90916-03154 note Thermostat
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90916-03154 note Thermostat
2019-09 → —
8NRFTS NGX10,50 —
16336A — Insert, Water Outlet
16336-47010 Insert, Water Outlet
2017-11 → 2019-09 ended
8NRFTS NGX10,50 —
16336-47010 Insert, Water Outlet
2019-09 → —
8NRFTS NGX10,50 —
16341 — Gasket, Water Outlet
16341-47030 Gasket, Water Outlet
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16341-37010 Gasket, Water Outlet
2019-09 → —
2ZRFXE ZYX10 —
16341-47030 Gasket, Water Outlet
2019-09 → —
8NRFTS NGX10,50 —
16671 — Valve, Water
16671-47010 Valve, Water
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16671-47010 Valve, Water
2019-09 → —
8NRFTS NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
