Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

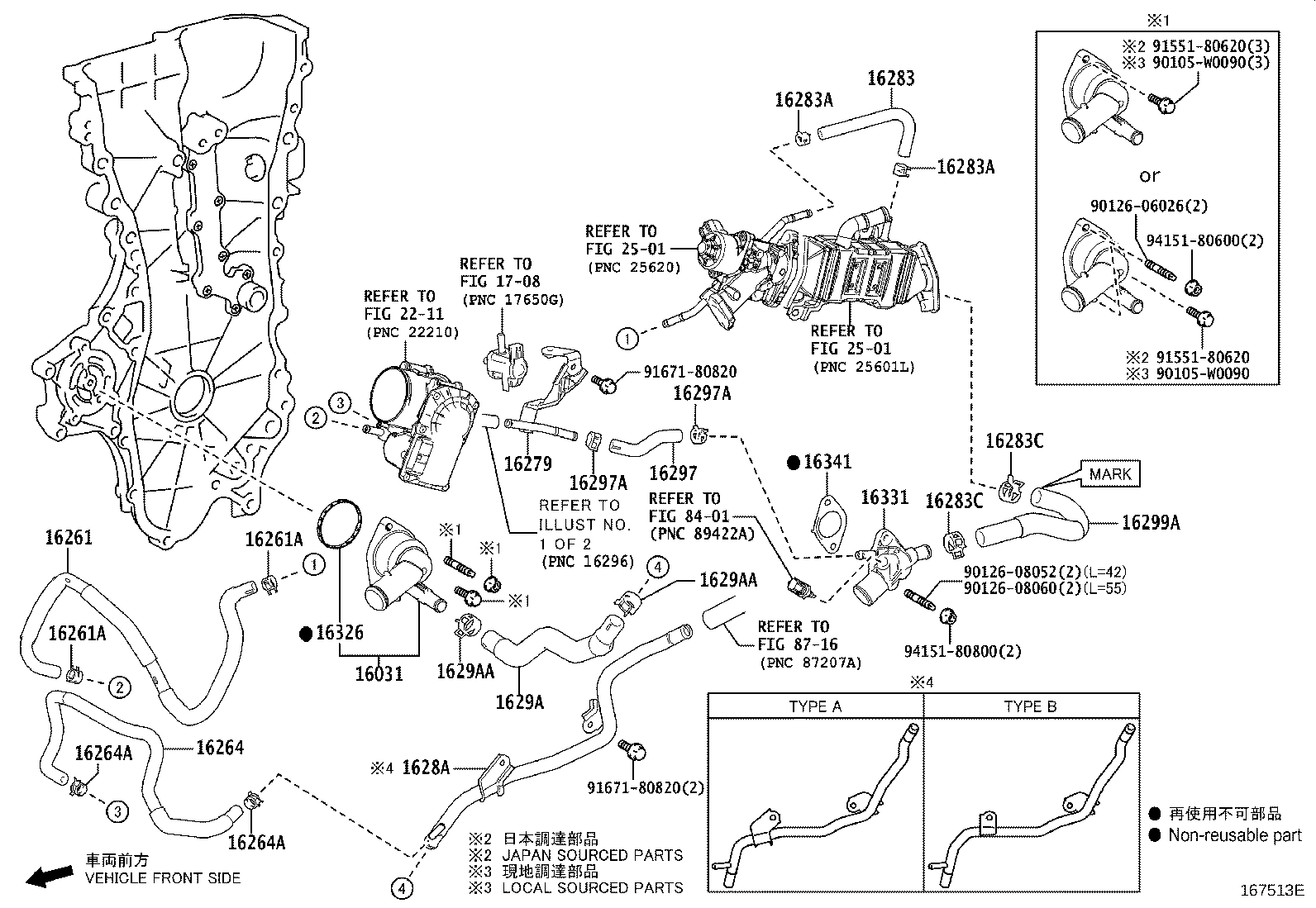

Exploded illustration 167513E 2501 — not listed in this catalogue 2501 — not listed in this catalogue 8716 — not listed in this catalogue 8401 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (3 parts) 16261 — HOSE, WATER BY-PASS (4 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (2 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (3 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (3 parts) 1629A — HOSE, WATER BY-PASS, NO.14 (2 parts) 1629AA — CLIP(FOR WATER BY-PASS HOSE NO.14) (2 parts) 1629AA — CLIP(FOR WATER BY-PASS HOSE NO.14) (2 parts) 1628A — PIPE, WATER BY-PASS, NO.6 (4 parts) 16279 — PIPE, WATER BY-PASS, NO.3 (1 parts) 16299A — HOSE, WATER BY-PASS, NO.13 (6 parts) 16283C — CLAMP OR CLIP(FOR WATER BY-PASS HOSE) (2 parts) 16283C — CLAMP OR CLIP(FOR WATER BY-PASS HOSE) (2 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (4 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (3 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (3 parts) 16297 — HOSE, WATER BY-PASS, NO.9 (1 parts) 16297A — CLIP(FOR WATER BY-PASS HOSE NO.9) (2 parts) 16297A — CLIP(FOR WATER BY-PASS HOSE NO.9) (2 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (3 parts) 16331 — OUTLET, WATER (3 parts) 16341 — GASKET, WATER OUTLET (3 parts) 9167180820 — not listed in this catalogue 9415180800 — not listed in this catalogue 9155180620 — not listed in this catalogue 90105W0090 — not listed in this catalogue 9155180620 — not listed in this catalogue 90105W0090 — not listed in this catalogue 9012606026 — not listed in this catalogue 9415180600 — not listed in this catalogue 9012608052 — not listed in this catalogue 9012608060 — not listed in this catalogue 9167180820 — not listed in this catalogue
167513E · 24 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-47030 Water Inlet Sub-assy, W/Thermostat
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16031-37010 Water Inlet Sub-assy, W/Thermostat
2019-09 → —
2ZRFXE ZYX10 —
16031-47030 Water Inlet Sub-assy, W/Thermostat
2019-09 → —
8NRFTS NGX10,50 —
16261 — Hose, Water By-pass
16261-0Y050 Hose, Water By-pass
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16261-0T290 note Hose, Water By-pass
2019-09 → —
2ZRFXE ZYX10 —
16261-0Y050 Hose, Water By-pass
2019-09 → —
8NRFTS NGX10,50 —
16261-37160 note Hose, Water By-pass
2019-09 → —
2ZRFXE ZYX10 —
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90466-W0007 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-10 → 2018-08 ended
8NRFTS NGX10,50 —
90466-W0007 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2019-09 → —
8NRFTS NGX10,50 —
96137-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2019-09 → —
2ZRFXE ZYX10 —
16264 — Hose, Water By-pass, NO.2
16264-0T230 note Hose, Water By-pass, NO.2
2019-09 → —
2ZRFXE ZYX10 —
16264-37130 note Hose, Water By-pass, NO.2
2019-09 → —
2ZRFXE ZYX10 —
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2019-09 → —
8NRFTS NGX10,50 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2019-09 → —
2ZRFXE ZYX10 —
16279 — Pipe, Water By-pass, NO.3
16279-37020 Pipe, Water By-pass, NO.3
2019-09 → —
2ZRFXE ZYX10 —
16283 — Hose, Water By-pass, NO.6
16283-47040 Hose, Water By-pass, NO.6
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16283-0T060 note Hose, Water By-pass, NO.6
2019-09 → —
2ZRFXE ZYX10 —
16283-37021 note Hose, Water By-pass, NO.6
2019-09 → —
2ZRFXE ZYX10 —
16283-47040 Hose, Water By-pass, NO.6
2019-09 → —
8NRFTS NGX10,50 —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2019-09 → —
8NRFTS NGX10,50 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2019-09 → —
2ZRFXE ZYX10 —
16283C — Clamp OR Clip(FOR WATER BY-PASS HOSE)
90466-W0007 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
2ZRFXE ZYX10 —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
2ZRFXE ZYX10 —
1628A — Pipe, Water By-pass, NO.6
16268-0T180 note Pipe, Water By-pass, NO.6
2019-09 → 2022-12 ended
2ZRFXE ZYX10 —
16268-0T320 note Pipe, Water By-pass, NO.6
2023-01 → —
2ZRFXE ZYX10 —
16268-37110 note Pipe, Water By-pass, NO.6
2019-09 → 2021-08 ended
2ZRFXE ZYX10 —
16268-37150 note Pipe, Water By-pass, NO.6
2021-09 → —
2ZRFXE ZYX10 —
16297 — Hose, Water By-pass, NO.9
16297-37010 Hose, Water By-pass, NO.9
2019-09 → —
2ZRFXE ZYX10 —
16297A — Clip(FOR WATER BY-PASS HOSE NO.9)
90466-16005 Clip(FOR WATER BY-PASS HOSE NO.9)
2019-09 → 2020-08 ended
2ZRFXE ZYX10 —
96137-51701 Clip(FOR WATER BY-PASS HOSE NO.9)
2020-09 → —
2ZRFXE ZYX10 —
16299A — Hose, Water By-pass, NO.13
16281-0T330 note Hose, Water By-pass, NO.13
2023-01 → —
2ZRFXE ZYX10 —
16281-37080 note Hose, Water By-pass, NO.13
2019-09 → 2021-07 ended
2ZRFXE ZYX10 —
16281-37190 note Hose, Water By-pass, NO.13
2021-07 → 2021-10 ended
2ZRFXE ZYX10 —
16281-37191 Hose, Water By-pass, NO.13
2021-11 → 2023-01 ended
2ZRFXE ZYX10 —
16281-37191 note Hose, Water By-pass, NO.13
2021-11 → —
2ZRFXE ZYX10 —
16281-37191 note Hose, Water By-pass, NO.13
2023-01 → —
2ZRFXE ZYX10 —
1629A — Hose, Water By-pass, NO.14
16267-0T090 note Hose, Water By-pass, NO.14
2019-09 → —
2ZRFXE ZYX10 —
16267-37100 note Hose, Water By-pass, NO.14
2019-09 → —
2ZRFXE ZYX10 —
1629AA — Clip(FOR WATER BY-PASS HOSE NO.14)
90466-W0007 note Clip(FOR WATER BY-PASS HOSE NO.14)
2019-09 → —
2ZRFXE ZYX10 —
96136-42501 note Clip(FOR WATER BY-PASS HOSE NO.14)
2019-09 → —
2ZRFXE ZYX10 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-47020 Gasket, Water Inlet Housing, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16326-37020 Gasket, Water Inlet Housing, NO.2
2019-09 → —
2ZRFXE ZYX10 —
16326-47020 Gasket, Water Inlet Housing, NO.2
2019-09 → —
8NRFTS NGX10,50 —
16331 — Outlet, Water
16331-47050 Outlet, Water
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16331-37100 Outlet, Water
2019-09 → —
2ZRFXE ZYX10 —
16331-47050 Outlet, Water
2019-09 → —
8NRFTS NGX10,50 —
16341 — Gasket, Water Outlet
16341-47030 Gasket, Water Outlet
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
16341-37010 Gasket, Water Outlet
2019-09 → —
2ZRFXE ZYX10 —
16341-47030 Gasket, Water Outlet
2019-09 → —
8NRFTS NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
