Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

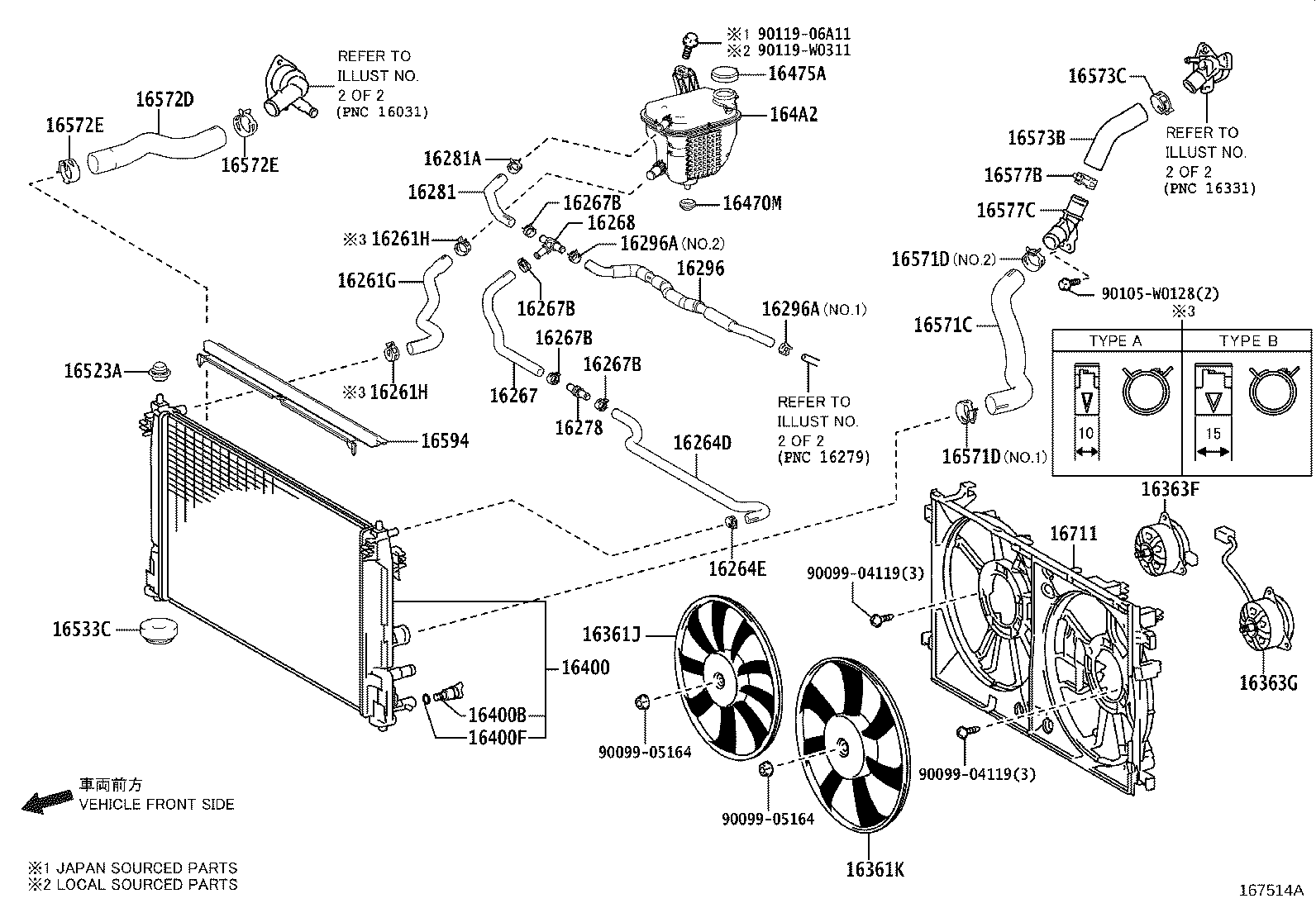

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-47140 |
Hose, Water By-pass, NO.1
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16261-0T250 |
Hose, Water By-pass, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16261-47140 |
Hose, Water By-pass, NO.1
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90466-W0017 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16264D — Hose, Water By-pass, NO.2 | ||||
| 16264-47060 |
Hose, Water By-pass, NO.2
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16264-0T190 |
Hose, Water By-pass, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16264-47060 |
Hose, Water By-pass, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16264E — Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-47030 |
Hose, Water By-pass, NO.3
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 CVT | — | |
| 16267-0T160 |
Hose, Water By-pass, NO.3
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16267-47030 |
Hose, Water By-pass, NO.3
2019-09 → —
|
8NRFTS NGX10,50 CVT | — | |
| 16267B — Clip(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 CVT | — | |
| 96136-42201 note |
Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 CVT | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE)
2016-10 → 2018-08
ended
|
8NRFTS NGX10,50 CVT | — | |
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
|
8NRFTS NGX10,50 CVT | — | |
| 96136-41901 |
Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 96136-42201 note |
Clip(FOR WATER BY-PASS HOSE)
2019-09 → —
|
8NRFTS NGX10,50 CVT | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-0T160 |
Pipe, Water By-pass, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16278 — Pipe, Water By-pass, NO.2 | ||||
| 16268-0T170 |
Pipe, Water By-pass, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0Y050 |
Hose, Water By-pass, NO.4
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 CVT | — | |
| 16281-0T150 |
Hose, Water By-pass, NO.4
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16281-0Y050 |
Hose, Water By-pass, NO.4
2019-09 → —
|
8NRFTS NGX10,50 CVT | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 CVT | — | |
| 96136-42201 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2016-10 → 2018-08
ended
|
8NRFTS NGX10,50 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2019-09 → —
|
8NRFTS NGX10,50 CVT | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 96136-42201 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2019-09 → —
|
8NRFTS NGX10,50 CVT | — | |
| 16296 — Hose, Water By-pass, NO.8 | ||||
| 16296-0T010 |
Hose, Water By-pass, NO.8
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16296A — Clip(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90466-16004 note |
Clip(FOR WATER BY-PASS HOSE NO.8)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 96136-41901 note |
Clip(FOR WATER BY-PASS HOSE NO.8)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16361J — Fan, RH | ||||
| 16361-0Y140 |
Fan, RH
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16361-0Y140 |
Fan, RH
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16361-37080 |
Fan, RH
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16361K — Fan, LH | ||||
| 16361-0Y130 |
Fan, LH
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16361-0Y130 |
Fan, LH
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16361-37090 |
Fan, LH
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16363F — Motor, Cooling Fan, RH | ||||
| 16363-47050 |
Motor, Cooling Fan, RH
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16363-37070 |
Motor, Cooling Fan, RH
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16363-47050 |
Motor, Cooling Fan, RH
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16363G — Motor, Cooling Fan, LH | ||||
| 16363-47060 |
Motor, Cooling Fan, LH
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16363-24140 |
Motor, Cooling Fan, LH
2023-05 → —
|
2ZRFXE ZYX10 | — | |
| 16363-37080 |
Motor, Cooling Fan, LH
2019-09 → 2023-04
ended
|
2ZRFXE ZYX10 | — | |
| 16363-47060 |
Motor, Cooling Fan, LH
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16400 — Radiator Assy | ||||
| 16400-0Y170 |
Radiator Assy
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16400-0T570 |
Radiator Assy
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16400-0Y170 |
Radiator Assy
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-21280 |
Plug, Radiator Drain Cock
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16417-21280 |
Plug, Radiator Drain Cock
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16417-21280 |
Plug, Radiator Drain Cock
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16470M — Grommet | ||||
| 90480-18010 |
Grommet
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90480-18010 |
Grommet
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90480-18010 |
Grommet
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16475A — Cap, Reserve Tank | ||||
| 16475-28140 |
Cap, Reserve Tank
2017-01 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16475-37011 |
Cap, Reserve Tank
2016-10 → 2017-01
ended
|
8NRFTS NGX10,50 | — | |
| 16475-28140 |
Cap, Reserve Tank
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16475-28140 |
Cap, Reserve Tank
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 164A2 — Tank, Reserve Sealed W/O Cap | ||||
| 164A2-0T021 |
Tank, Reserve Sealed W/O Cap
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 164A2-0T021 |
Tank, Reserve Sealed W/O Cap
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 164A2-0T021 |
Tank, Reserve Sealed W/O Cap
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-0T050 |
Cushion, Radiator Support
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16523-0T050 |
Cushion, Radiator Support
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16523-0T050 |
Cushion, Radiator Support
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16533C — Grommet(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
Grommet(FOR RADIATOR SUPPORT)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90480-40021 |
Grommet(FOR RADIATOR SUPPORT)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90480-40021 |
Grommet(FOR RADIATOR SUPPORT)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-0Y120 |
Hose, Radiator, NO.1
2016-10 → 2017-08
ended
|
8NRFTS NGX10,50 | — | |
| 16571-0Y121 |
Hose, Radiator, NO.1
2017-08 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16571-0T280 |
Hose, Radiator, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16571-0Y121 |
Hose, Radiator, NO.1
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2016-10 → 2018-09
ended
|
8NRFTS NGX10,50 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2018-09 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2016-10 → 2018-09
ended
|
8NRFTS NGX10,50 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-0Y100 |
Hose, Radiator, NO.2
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16572-0T050 |
Hose, Radiator, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16572-0Y100 |
Hose, Radiator, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2016-10 → 2018-09
ended
|
8NRFTS NGX10,50 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2018-09 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2016-10 → 2018-09
ended
|
8NRFTS NGX10,50 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 90466-W0016 |
Clip, Radiator Hose, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16573B — Hose, Radiator, NO.3 | ||||
| 16573-0T110 |
Hose, Radiator, NO.3
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16573C — Clamp OR Clip, Radiator Hose, NO.3 | ||||
| 96136-43901 |
Clamp OR Clip, Radiator Hose, NO.3
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16577B — Clamp OR Clip, Hose(FOR RADIATOR PIPE) | ||||
| 96136-43901 |
Clamp OR Clip, Hose(FOR RADIATOR PIPE)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16577C — Pipe, Radiator | ||||
| 16577-0T120 |
Pipe, Radiator
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16594 — Guide, Radiator Air, NO.2 | ||||
| 16594-0Y020 |
Guide, Radiator Air, NO.2
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16594-0T040 |
Guide, Radiator Air, NO.2
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16594-0Y020 |
Guide, Radiator Air, NO.2
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 16711 — Shroud, Fan | ||||
| 16711-0Y120 |
Shroud, Fan
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16711-0T170 |
Shroud, Fan
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 16711-0Y120 |
Shroud, Fan
2019-09 → —
|
8NRFTS NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
