Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

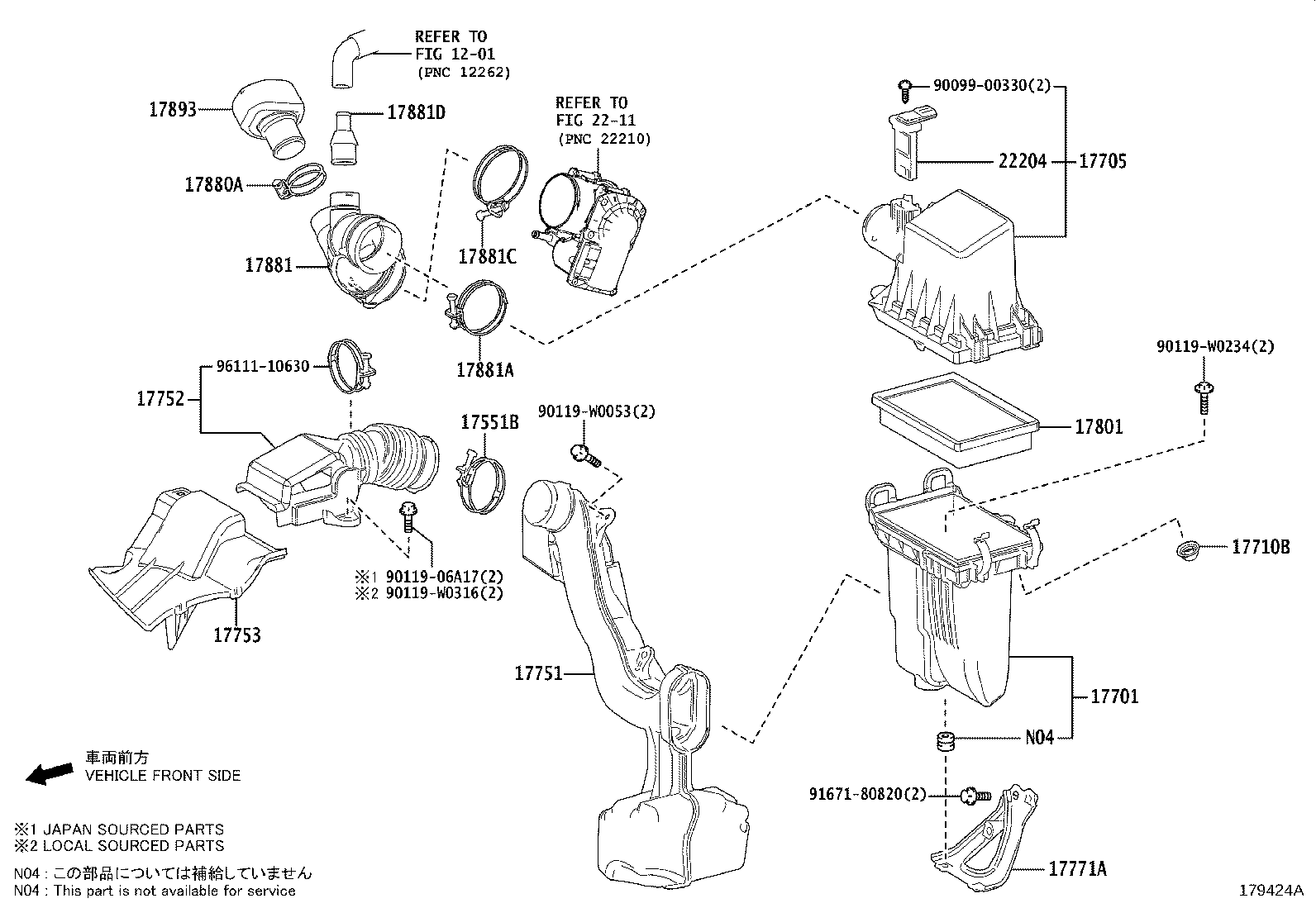

Exploded illustration 179424A 9011906A17 — not listed in this catalogue 90119W0316 — not listed in this catalogue 17752 — INLET, AIR CLEANER, NO.2 (3 parts) 9611110630 — not listed in this catalogue 2211 — not listed in this catalogue 17551B — CLAMP(FOR AIR CLEANER INLET, NO.1) (1 parts) 17701 — CASE SUB-ASSY, AIR CLEANER (4 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (3 parts) 17710B — GROMMET (3 parts) 17751 — INLET, AIR CLEANER, NO.1 (3 parts) 17753 — INLET, AIR CLEANER, NO.3 (3 parts) 17771A — BRACKET, AIR CLEANER (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (6 parts) 17880A — CLAMP, HOSE (1 parts) 17881 — HOSE, AIR CLEANER, NO.1 (3 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (3 parts) 17881C — CLAMP(FOR AIR CLEANER HOSE, NO.1) (1 parts) 17881D — TUBE, UNION(FOG AIR CLEANER HOSE) (1 parts) 17893 — RESONATOR, INTAKE AIR (1 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (3 parts) 9009900330 — not listed in this catalogue 90119W0234 — not listed in this catalogue 9167180820 — not listed in this catalogue 90119W0053 — not listed in this catalogue 1201 — not listed in this catalogue
179424A · 16 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
17551B — Clamp(FOR AIR CLEANER INLET, NO.1)
96111-10650 Clamp(FOR AIR CLEANER INLET, NO.1)
2019-09 → —
2ZRFXE ZYX10 —
17701 — Case Sub-assy, Air Cleaner
17701-0T180 Case Sub-assy, Air Cleaner
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17701-0T140 Case Sub-assy, Air Cleaner
2019-09 → 2022-05 ended
2ZRFXE ZYX10 —
17701-0T141 Case Sub-assy, Air Cleaner
2022-06 → —
2ZRFXE ZYX10 —
17701-0T180 Case Sub-assy, Air Cleaner
2019-09 → —
8NRFTS NGX10,50 —
17705 — Cap Sub-assy, Air Cleaner
17705-0Y080 Cap Sub-assy, Air Cleaner
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17705-0T170 Cap Sub-assy, Air Cleaner
2019-09 → —
2ZRFXE ZYX10 —
17705-0Y080 Cap Sub-assy, Air Cleaner
2019-09 → —
8NRFTS NGX10,50 —
17710B — Grommet
90480-18006 Grommet
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
90480-18006 Grommet
2019-09 → —
2ZRFXE ZYX10 —
90480-18006 Grommet
2019-09 → —
8NRFTS NGX10,50 —
17751 — Inlet, Air Cleaner, NO.1
17751-0Y160 Inlet, Air Cleaner, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17751-0T190 Inlet, Air Cleaner, NO.1
2019-09 → —
2ZRFXE ZYX10 —
17751-0Y160 Inlet, Air Cleaner, NO.1
2019-09 → —
8NRFTS NGX10,50 —
17752 — Inlet, Air Cleaner, NO.2
17752-0T070 Inlet, Air Cleaner, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17752-0T060 Inlet, Air Cleaner, NO.2
2019-09 → —
2ZRFXE ZYX10 —
17752-0T070 Inlet, Air Cleaner, NO.2
2019-09 → —
8NRFTS NGX10,50 —
17753 — Inlet, Air Cleaner, NO.3
17753-0T020 Inlet, Air Cleaner, NO.3
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17753-0T010 Inlet, Air Cleaner, NO.3
2019-09 → —
2ZRFXE ZYX10 —
17753-0T020 Inlet, Air Cleaner, NO.3
2019-09 → —
8NRFTS NGX10,50 —
17771A — Bracket, Air Cleaner
17771-0T010 Bracket, Air Cleaner
2019-09 → —
2ZRFXE ZYX10 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-0T060 note Element Sub-assy, Air Cleaner Filter
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17801-77050 note Element Sub-assy, Air Cleaner Filter
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17801-0M040 note Element Sub-assy, Air Cleaner Filter
2019-09 → —
2ZRFXE ZYX10 —
17801-0T060 note Element Sub-assy, Air Cleaner Filter
2019-09 → —
8NRFTS NGX10,50 —
17801-21060 note Element Sub-assy, Air Cleaner Filter
2019-09 → —
2ZRFXE ZYX10 —
17801-77050 note Element Sub-assy, Air Cleaner Filter
2019-09 → —
8NRFTS NGX10,50 —
17880A — Clamp, Hose
96111-10460 Clamp, Hose
2019-09 → —
2ZRFXE ZYX10 —
17881 — Hose, Air Cleaner, NO.1
17881-0Y040 Hose, Air Cleaner, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17881-0T440 Hose, Air Cleaner, NO.1
2019-09 → —
2ZRFXE ZYX10 —
17881-0Y040 Hose, Air Cleaner, NO.1
2019-09 → —
8NRFTS NGX10,50 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10730 Clamp(FOR AIR CLEANER HOSE, NO.1)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96111-10650 Clamp(FOR AIR CLEANER HOSE, NO.1)
2019-09 → —
2ZRFXE ZYX10 —
96111-10730 Clamp(FOR AIR CLEANER HOSE, NO.1)
2019-09 → —
8NRFTS NGX10,50 —
17881C — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2019-09 → —
2ZRFXE ZYX10 —
17881D — Tube, Union(FOG AIR CLEANER HOSE)
90904-06008 Tube, Union(FOG AIR CLEANER HOSE)
2019-09 → —
2ZRFXE ZYX10 —
17893 — Resonator, Intake Air
17893-0T050 Resonator, Intake Air
2019-09 → —
2ZRFXE ZYX10 —
22204 — Meter Sub-assy, Intake Air Flow
22204-75030 Meter Sub-assy, Intake Air Flow
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
22204-75030 Meter Sub-assy, Intake Air Flow
2019-09 → —
2ZRFXE ZYX10 —
22204-75030 Meter Sub-assy, Intake Air Flow
2019-09 → —
8NRFTS NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
