Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

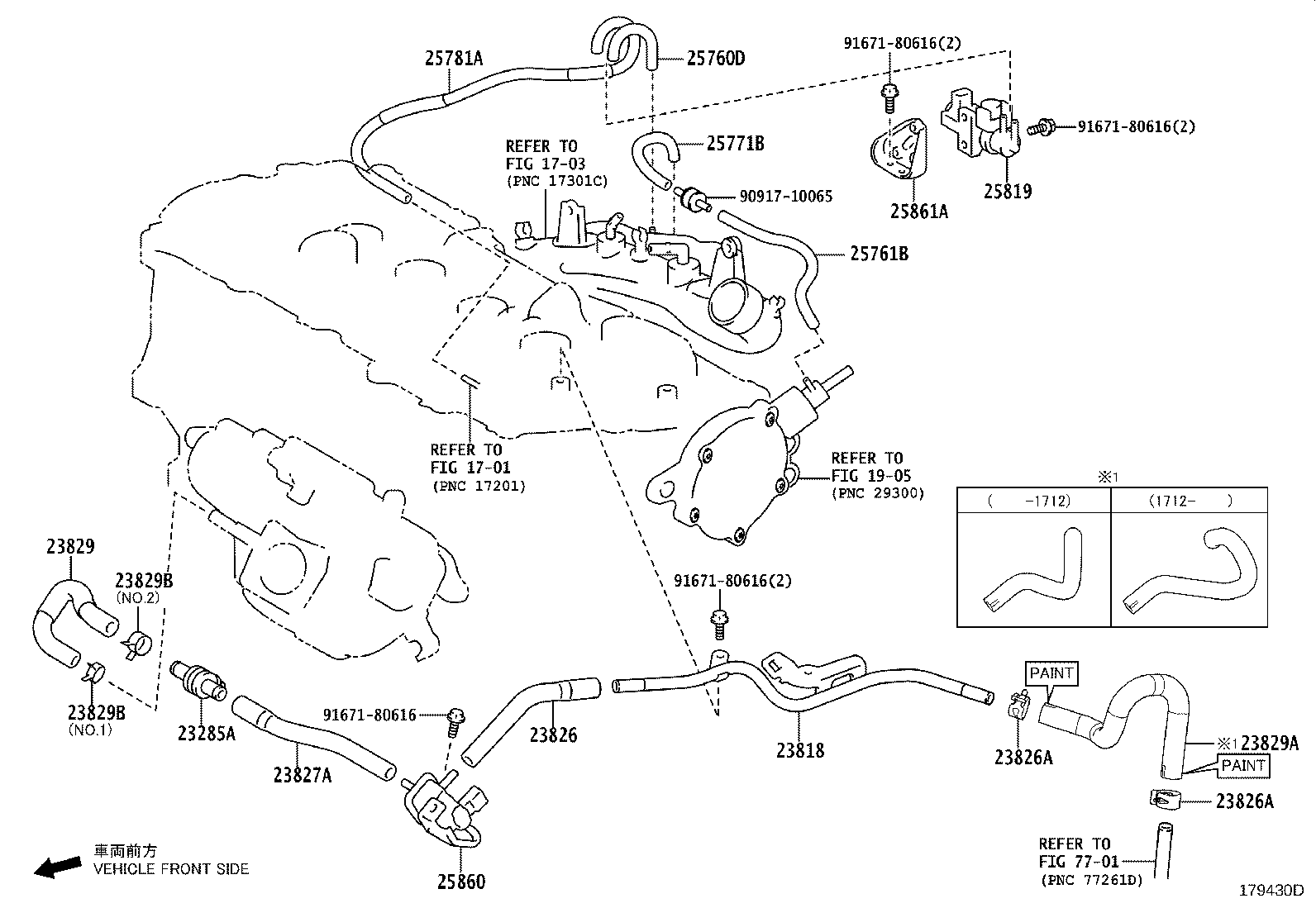

Exploded illustration 179430D 23829B — CLIP(FOR FUEL VAPOR FEED HOSE) (5 parts) 23829B — CLIP(FOR FUEL VAPOR FEED HOSE) (5 parts) 23826A — CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) (2 parts) 23826A — CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) (2 parts) 1701 — not listed in this catalogue 23285A — VALVE, CHECK, NO.1 (3 parts) 23826 — HOSE, FUEL VAPOR FEED, NO.1 (4 parts) 23827A — HOSE, FUEL VAPOR FEED, NO.2 (4 parts) 23829 — HOSE, FUEL VAPOR FEED, NO.3 (2 parts) 23829A — HOSE, FUEL VAPOR FEED (8 parts) 25819 — VALVE ASSY, VACUUM REGULATING (2 parts) 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (2 parts) 25861A — BRACKET, VACUUM SWITCHING VALVE, NO.2 (2 parts) 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 7701 — not listed in this catalogue 1905 — not listed in this catalogue 23818 — PIPE, FUEL VAPOR FEED (3 parts) 9167180616 — not listed in this catalogue 1703 — not listed in this catalogue 25761B — HOSE, VACCUM TRANSMITTING, NO.1 (2 parts) 25771B — HOSE, VACCUM TRANSMITTING, NO.2 (2 parts) 25760D — HOSE ASSY, VACUUM TRANSMITTING, NO.4 (3 parts) 25781A — HOSE, VACUUM TRANSMITTING, NO.3 (5 parts) 9091710065 — not listed in this catalogue
179430D · 17 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
23285A — Valve, Check, NO.1
25748-36010 Valve, Check, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
25748-25030 Valve, Check, NO.1
2023-01 → —
8NRFTS NGX10,50 —
25748-36010 Valve, Check, NO.1
2019-09 → 2022-12 ended
8NRFTS NGX10,50 —
23818 — Pipe, Fuel Vapor Feed
23818-47020 Pipe, Fuel Vapor Feed
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
23818-37030 Pipe, Fuel Vapor Feed
2019-09 → —
2ZRFXE ZYX10 —
23818-47020 Pipe, Fuel Vapor Feed
2019-09 → —
8NRFTS NGX10,50 —
23826 — Hose, Fuel Vapor Feed, NO.1
23826-47090 Hose, Fuel Vapor Feed, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
23826-0T300 note Hose, Fuel Vapor Feed, NO.1
2019-09 → —
2ZRFXE ZYX10 —
23826-37250 note Hose, Fuel Vapor Feed, NO.1
2019-09 → —
2ZRFXE ZYX10 —
23826-47090 Hose, Fuel Vapor Feed, NO.1
2019-09 → —
8NRFTS NGX10,50 —
23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2019-09 → —
8NRFTS NGX10,50 —
23827A — Hose, Fuel Vapor Feed, NO.2
23827-47130 Hose, Fuel Vapor Feed, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
23827-0T050 note Hose, Fuel Vapor Feed, NO.2
2019-09 → —
2ZRFXE ZYX10 —
23827-37070 note Hose, Fuel Vapor Feed, NO.2
2019-09 → —
2ZRFXE ZYX10 —
23827-47130 Hose, Fuel Vapor Feed, NO.2
2019-09 → —
8NRFTS NGX10,50 —
23829 — Hose, Fuel Vapor Feed, NO.3
23829-47010 Hose, Fuel Vapor Feed, NO.3
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
23829-47010 Hose, Fuel Vapor Feed, NO.3
2019-09 → —
8NRFTS NGX10,50 —
23829A — Hose, Fuel Vapor Feed
23826-0Y080 Hose, Fuel Vapor Feed
2016-10 → 2017-12 ended
8NRFTS NGX10,50 —
23826-0Y350 Hose, Fuel Vapor Feed
2017-12 → 2019-09 ended
8NRFTS NGX10,50 —
23826-0T260 Hose, Fuel Vapor Feed
2019-09 → 2022-07 ended
2ZRFXE ZYX10 —
23826-0T260 note Hose, Fuel Vapor Feed
2022-07 → —
2ZRFXE ZYX10 —
23826-0Y350 Hose, Fuel Vapor Feed
2019-09 → 2022-07 ended
8NRFTS NGX10,50 —
23826-0Y350 note Hose, Fuel Vapor Feed
2022-07 → —
8NRFTS NGX10,50 —
23826-37241 note Hose, Fuel Vapor Feed
2022-07 → —
2ZRFXE ZYX10 —
23826-47150 note Hose, Fuel Vapor Feed
2022-07 → —
8NRFTS NGX10,50 —
23829B — Clip(FOR FUEL VAPOR FEED HOSE)
96136-41901 note Clip(FOR FUEL VAPOR FEED HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-42201 note Clip(FOR FUEL VAPOR FEED HOSE)
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
96136-41901 note Clip(FOR FUEL VAPOR FEED HOSE)
2019-09 → —
8NRFTS NGX10,50 —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE)
2019-09 → —
2ZRFXE ZYX10 —
96136-42201 note Clip(FOR FUEL VAPOR FEED HOSE)
2019-09 → —
8NRFTS NGX10,50 —
25760D — Hose Assy, Vacuum Transmitting, NO.4
25791-47010 note Hose Assy, Vacuum Transmitting, NO.4
2016-10 → 2017-09 ended
8NRFTS NGX10,50 —
25791-47020 note Hose Assy, Vacuum Transmitting, NO.4
2017-09 → 2019-09 ended
8NRFTS NGX10,50 —
25791-47020 Hose Assy, Vacuum Transmitting, NO.4
2019-09 → —
8NRFTS NGX10,50 —
25761B — Hose, Vaccum Transmitting, NO.1
25761-47010 Hose, Vaccum Transmitting, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
25761-47010 Hose, Vaccum Transmitting, NO.1
2019-09 → —
8NRFTS NGX10,50 —
25771B — Hose, Vaccum Transmitting, NO.2
25771-47010 Hose, Vaccum Transmitting, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
25771-47010 Hose, Vaccum Transmitting, NO.2
2019-09 → —
8NRFTS NGX10,50 —
25781A — Hose, Vacuum Transmitting, NO.3
25781-47010 note Hose, Vacuum Transmitting, NO.3
2016-10 → 2017-09 ended
8NRFTS NGX10,50 —
25781-47020 note Hose, Vacuum Transmitting, NO.3
2017-09 → 2017-10 ended
8NRFTS NGX10,50 —
25781-47040 note Hose, Vacuum Transmitting, NO.3
2017-10 → 2017-11 ended
8NRFTS NGX10,50 —
25781-47050 Hose, Vacuum Transmitting, NO.3
2017-11 → 2019-09 ended
8NRFTS NGX10,50 —
25781-47050 Hose, Vacuum Transmitting, NO.3
2019-09 → —
8NRFTS NGX10,50 —
25819 — Valve Assy, Vacuum Regulating
25819-0W010 Valve Assy, Vacuum Regulating
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
25819-0W010 Valve Assy, Vacuum Regulating
2019-09 → —
8NRFTS NGX10,50 —
25860 — Valve Assy, Vacuum Switching, NO.1
25860-47050 Valve Assy, Vacuum Switching, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
25860-47050 Valve Assy, Vacuum Switching, NO.1
2019-09 → —
8NRFTS NGX10,50 —
25861A — Bracket, Vacuum Switching Valve, NO.2
25862-47010 Bracket, Vacuum Switching Valve, NO.2
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
25862-47010 Bracket, Vacuum Switching Valve, NO.2
2019-09 → —
8NRFTS NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
