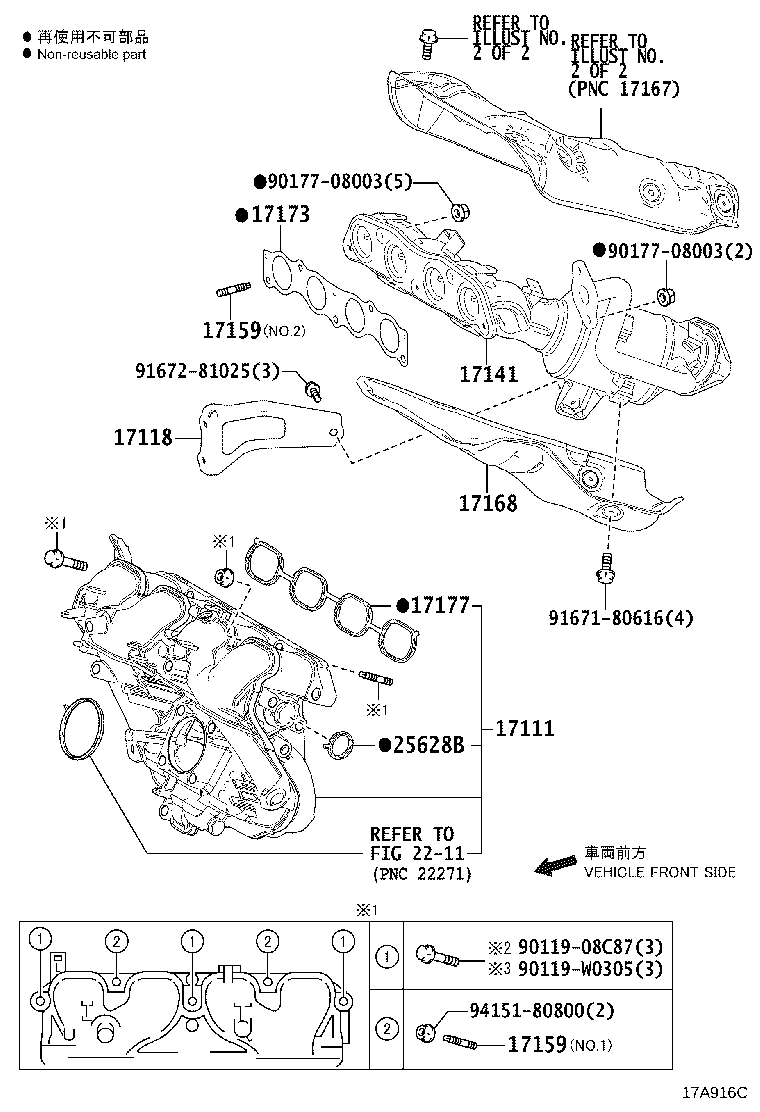

Exploded illustration 17A916C 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (2 parts) 2211 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (6 parts) 17118 — STAY, MANIFOLD (1 parts) 17141 — MANIFOLD, EXHAUST (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (1 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (1 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (4 parts) 25628B — GASKET, EGR INLET (1 parts) 90119W0305 — not listed in this catalogue 9017708003 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167281025 — not listed in this catalogue 9415180800 — not listed in this catalogue 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (2 parts) 9011908C87 — not listed in this catalogue 9017708003 — not listed in this catalogue
17A916C · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17120-47100 Manifold, Intake
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17120-0T180 note Manifold, Intake
2019-09 → —
2ZRFXE ZYX10 —
17120-0Y090 note Manifold, Intake
2023-04 → —
8NRFTS NGX10,50 —
17120-37110 note Manifold, Intake
2019-09 → —
2ZRFXE ZYX10 —
17120-47100 Manifold, Intake
2019-09 → 2023-04 ended
8NRFTS NGX10,50 —
17120-47100 note Manifold, Intake
2023-04 → —
8NRFTS NGX10,50 —
17118 — Stay, Manifold
17118-37090 Stay, Manifold
2019-09 → —
2ZRFXE ZYX10 —
17141 — Manifold, Exhaust
17141-37210 note Manifold, Exhaust
2019-09 → 2022-02 ended
2ZRFXE ZYX10 —
17141-37211 note Manifold, Exhaust
2022-02 → —
2ZRFXE ZYX10 —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2019-09 → —
2ZRFXE ZYX10 —
90126-08052 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2019-09 → —
2ZRFXE ZYX10 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-37120 Insulator, Exhaust Manifold Heat, NO.2
2019-09 → —
2ZRFXE ZYX10 —
17173 — Gasket, Exhaust Manifold TO Head
17173-37010 Gasket, Exhaust Manifold TO Head
2019-09 → —
2ZRFXE ZYX10 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-47050 Gasket, Intake Manifold TO Head, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 —
17177-0Y070 note Gasket, Intake Manifold TO Head, NO.1
2023-04 → —
8NRFTS NGX10,50 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2019-09 → —
2ZRFXE ZYX10 —
17177-47050 note Gasket, Intake Manifold TO Head, NO.1
2019-09 → —
8NRFTS NGX10,50 —
25628B — Gasket, Egr Inlet
25628-36020 Gasket, Egr Inlet
2019-09 → —
2ZRFXE ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
