Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

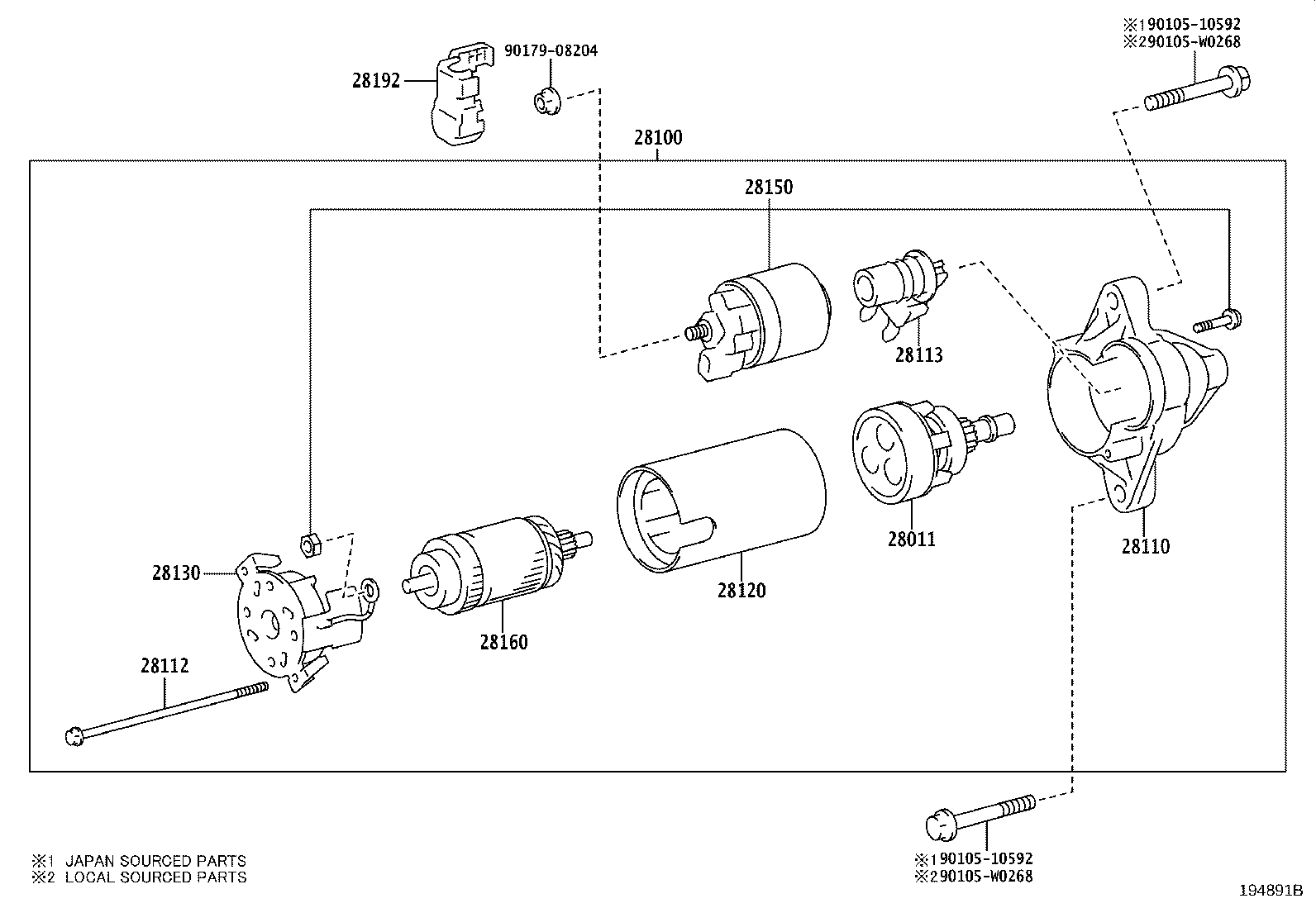

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28011 — Clutch Sub-assy, Starter | ||||
| 28011-0Y270 |
Clutch Sub-assy, Starter
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28011-0Y270 |
Clutch Sub-assy, Starter
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28100 — Starter Assy | ||||
| 28100-0Y270 note |
Starter Assy
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28100-0Y270 note |
Starter Assy
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-0Y270 |
Housing Assy, Starter Drive
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28110-0Y270 |
Housing Assy, Starter Drive
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28112 — Bolt, Housing Set | ||||
| 28112-0Y270 |
Bolt, Housing Set
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28112-0Y270 |
Bolt, Housing Set
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28113 — Lever, Starter Pinion Drive | ||||
| 28113-0Y270 |
Lever, Starter Pinion Drive
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28113-0Y270 |
Lever, Starter Pinion Drive
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-0Y270 |
Yoke Assy, Starter
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28120-0Y270 |
Yoke Assy, Starter
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-0Y270 |
Frame Assy, Starter Commutator End
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28130-0Y270 |
Frame Assy, Starter Commutator End
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-0Y270 |
Switch Assy, Magnet Starter
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28150-0Y270 |
Switch Assy, Magnet Starter
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-0Y270 |
Armature Assy, Starter
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28160-0Y270 |
Armature Assy, Starter
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28192 — Cover, Starter | ||||
| 28192-47010 |
Cover, Starter
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
