Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

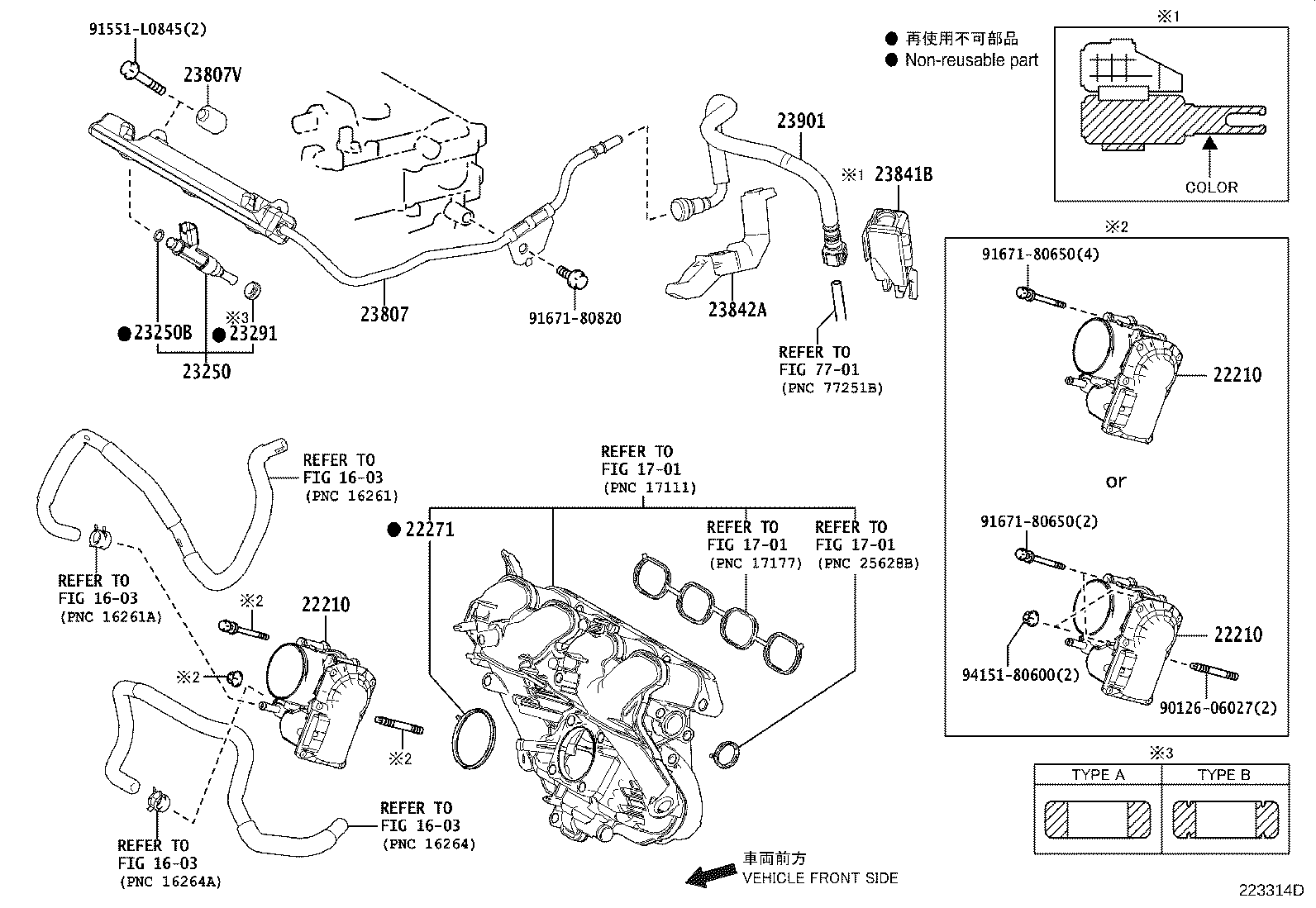

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22210 — Body Assy, Throttle | ||||
| 22030-0T110 note |
Body Assy, Throttle
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 22030-37060 note |
Body Assy, Throttle
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-47060 |
Gasket, Throttle Body
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 22271-0Y050 note |
Gasket, Throttle Body
2023-04 → —
|
8NRFTS NGX10,50 | — | |
| 22271-37020 |
Gasket, Throttle Body
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 22271-47060 note |
Gasket, Throttle Body
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-47070-01 note |
Injector Assy, Fuel
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23209-47070-02 note |
Injector Assy, Fuel
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23209-47070-03 note |
Injector Assy, Fuel
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23209-09370 note |
Injector Assy, Fuel
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23209-39295 note |
Injector Assy, Fuel
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23209-47070-01 note |
Injector Assy, Fuel
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23209-47070-02 note |
Injector Assy, Fuel
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23209-47070-03 note |
Injector Assy, Fuel
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-05011 |
Ring, O(FOR FUEL INJECTOR)
2016-10 → 2019-01
ended
|
8NRFTS NGX10,50 | — | |
| 90301-05013 |
Ring, O(FOR FUEL INJECTOR)
2019-02 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90301-05013 |
Ring, O(FOR FUEL INJECTOR)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-31020 |
Insulator, Injector Vibration
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23291-23010 |
Insulator, Injector Vibration
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23291-28020 note |
Insulator, Injector Vibration
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23291-31020 |
Insulator, Injector Vibration
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23814-37100 |
Pipe Sub-assy, Fuel Delivery
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-37010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23841-37081 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23841-37131 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-0Y060 note |
Tube Sub-assy, Fuel
2016-10 → 2018-03
ended
|
8NRFTS NGX10,50 | — | |
| 23901-0Y371 note |
Tube Sub-assy, Fuel
2018-03 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23901-0T221 |
Tube Sub-assy, Fuel
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23901-0Y371 |
Tube Sub-assy, Fuel
2019-09 → —
|
8NRFTS NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
