Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

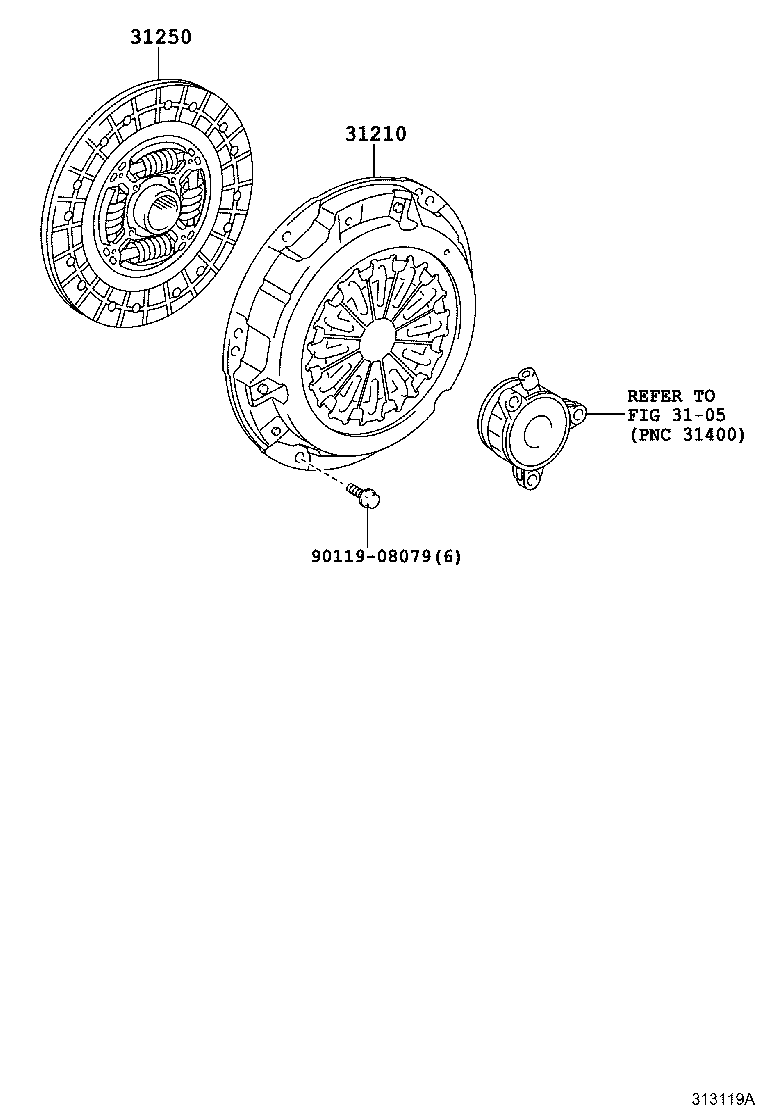

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31210 — Cover Assy, Clutch | ||||
| 31210-12371 |
Cover Assy, Clutch
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 31210-12371 |
Cover Assy, Clutch
2019-09 → —
|
NGX10 6F | — | |
| 31250 — Disc Assy, Clutch | ||||
| 31250-12630 |
Disc Assy, Clutch
2016-10 → 2017-10
ended
|
NGX10 6F | — | |
| 31250-12680 |
Disc Assy, Clutch
2017-11 → 2019-09
ended
|
NGX10 6F | — | |
| 31250-12680 |
Disc Assy, Clutch
2019-09 → —
|
NGX10 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
