Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

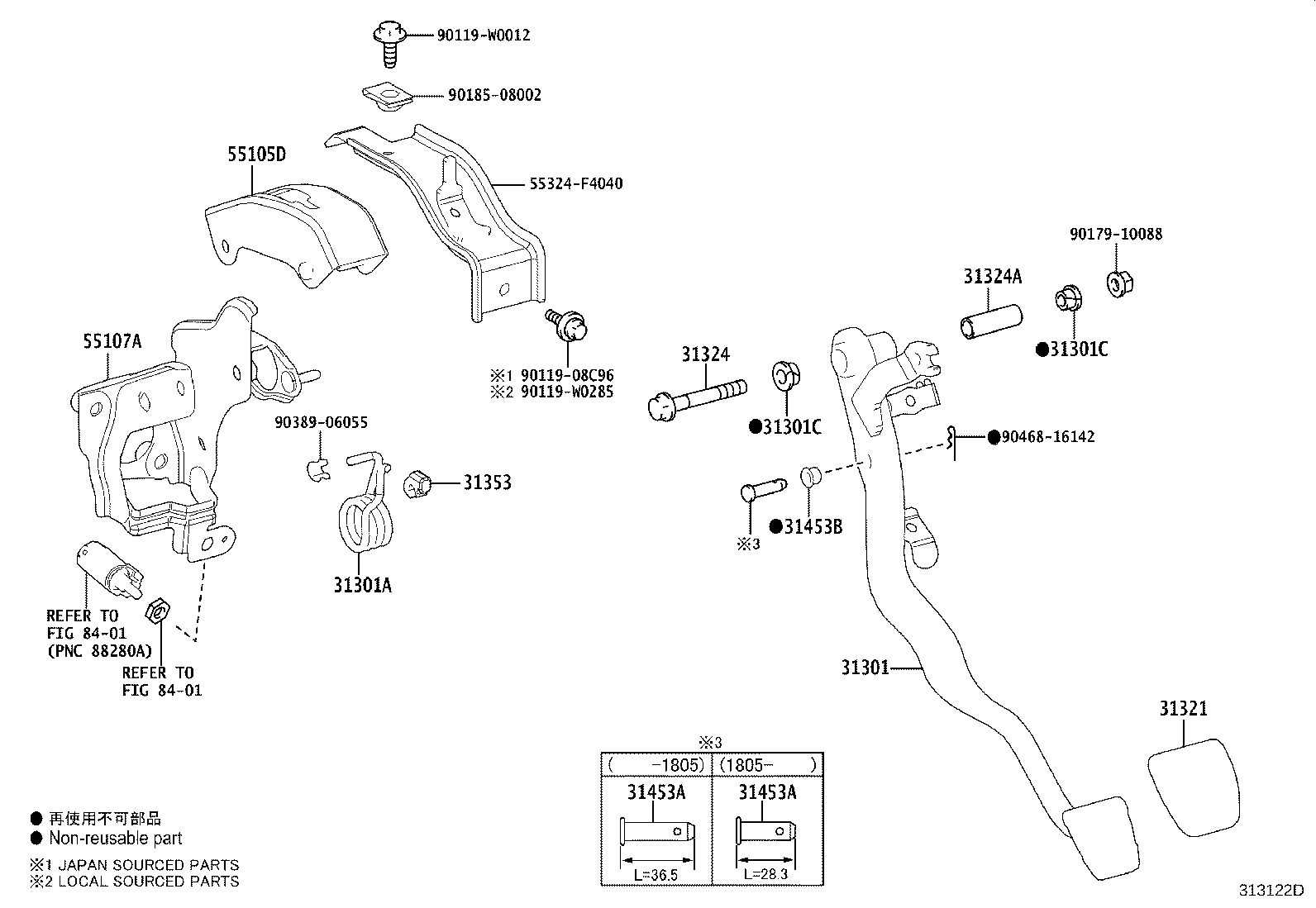

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31301 — Pedal Sub-assy, Clutch | ||||
| 31301-F4010 |
Pedal Sub-assy, Clutch
2016-10 → 2019-09
ended
|
NGX10 LHD 6F | — | |
| 31301-F4020 |
Pedal Sub-assy, Clutch
2016-10 → 2019-09
ended
|
NGX10 RHD 6F | — | |
| 31301-F4010 |
Pedal Sub-assy, Clutch
2019-09 → —
|
NGX10 LHD 6F | — | |
| 31301-F4020 |
Pedal Sub-assy, Clutch
2019-09 → —
|
NGX10 RHD 6F | — | |
| 31301A — Spring(FOR CLUTCH PEDAL) | ||||
| 90949-03068 |
Spring(FOR CLUTCH PEDAL)
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 31394-02010 |
Spring(FOR CLUTCH PEDAL)
2021-09 → —
|
NGX10 6F | — | |
| 90949-03068 |
Spring(FOR CLUTCH PEDAL)
2019-09 → 2021-08
ended
|
NGX10 6F | — | |
| 31301C — Bush(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
Bush(FOR CLUTCH PEDAL)
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 90386-13015 |
Bush(FOR CLUTCH PEDAL)
2019-09 → —
|
NGX10 6F | — | |
| 31321 — Pad, Clutch Pedal | ||||
| 31321-42010 |
Pad, Clutch Pedal
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 31321-42010 |
Pad, Clutch Pedal
2019-09 → —
|
NGX10 6F | — | |
| 31324 — Shaft, Clutch Pedal | ||||
| 90105-10524 |
Shaft, Clutch Pedal
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 90105-10524 |
Shaft, Clutch Pedal
2019-09 → —
|
NGX10 6F | — | |
| 31324A — Collar, Clutch Pedal Shaft | ||||
| 90387-10003 |
Collar, Clutch Pedal Shaft
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 90387-10003 |
Collar, Clutch Pedal Shaft
2019-09 → —
|
NGX10 6F | — | |
| 31353 — Holder, Clutch Pedal Spring | ||||
| 31353-26010 |
Holder, Clutch Pedal Spring
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 31353-26010 |
Holder, Clutch Pedal Spring
2019-09 → —
|
NGX10 6F | — | |
| 31453A — Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08083 note |
Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2016-10 → 2018-05
ended
|
NGX10 6F | — | |
| 90240-W0001 |
Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2018-05 → 2019-09
ended
|
NGX10 6F | — | |
| 90240-W0001 |
Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2019-09 → —
|
NGX10 6F | — | |
| 31453B — Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 90386-08033 |
Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2019-09 → —
|
NGX10 6F | — | |
| 55105D — Bracket Sub-assy, Clutch Pedal | ||||
| 55105-F4010 |
Bracket Sub-assy, Clutch Pedal
2016-10 → 2019-09
ended
|
NGX10 LHD 6F | — | |
| 55105-F4010 |
Bracket Sub-assy, Clutch Pedal
2019-09 → —
|
NGX10 LHD 6F | — | |
| 55107A — Support Sub-assy, Clutch Pedal | ||||
| 55107-F4010 |
Support Sub-assy, Clutch Pedal
2016-10 → 2019-09
ended
|
NGX10 LHD 6F | — | |
| 55107-F4020 |
Support Sub-assy, Clutch Pedal
2016-10 → 2019-09
ended
|
NGX10 RHD 6F | — | |
| 55107-F4010 |
Support Sub-assy, Clutch Pedal
2019-09 → —
|
NGX10 LHD 6F | — | |
| 55107-F4020 |
Support Sub-assy, Clutch Pedal
2019-09 → —
|
NGX10 RHD 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
