Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

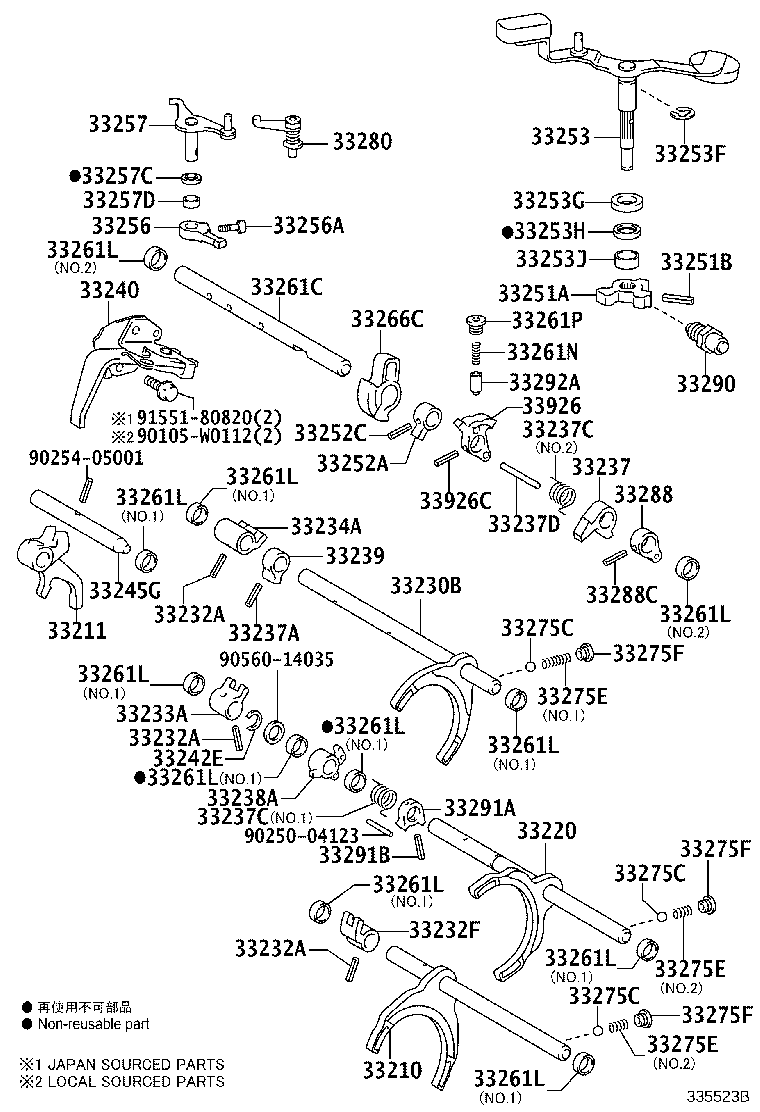

Exploded illustration 335523B 33253 — LEVER, SHIFT OUTER, NO.1 (2 parts) 33253F — RING, E(FOR SHIFT OUTER LEVER) (2 parts) 33253G — SPACER(FOR SHIFT OUTER LEVER) (2 parts) 33253H — SEAL, OIL(FOR SHIFT OUTER LEVER) (2 parts) 33253J — BUSH(FOR SHIFT OUTER LEVER) (2 parts) 33251A — LEVER, SHIFT, INNER NO.1 (3 parts) 33251B — PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) (2 parts) 33290 — BALL ASSY, LOCK, NO.1 (3 parts) 33288 — BLOCK, SELECT STOPPER (3 parts) 33237 — HEAD, RELEASE (3 parts) 33237C — SPRING, TORSION(FOR RELEASE HEAD) (5 parts) 33926 — LEVER, SHIFT INNER, FRONT (3 parts) 33292A — PIN, LOCK BALL (2 parts) 33261N — SPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT) (2 parts) 33261P — PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT) (2 parts) 33237D — PIN, STRAIGHT(FOR RELEASE HEAD) (2 parts) 33240 — BRACKET ASSY, REVERSE SHIFT ARM (2 parts) 33256A — BOLT, SET (FOR SELECT INNER LEVER) (2 parts) 33280 — PIN ASSY, REVERSE RESTRICT (2 parts) 33256 — LEVER, SELECT INNER (2 parts) 33257D — BUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER) (2 parts) 33257C — SEAL, OIL(FOR OUTER SELECT LEVER) (2 parts) 33257 — LEVER, SELECT OUTER (2 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33261C — SHAFT, SHIFT & SELECT LEVER (2 parts) 33266C — PLATE, SHIFT INTERLOCK (2 parts) 33252A — LEVER, SHIFT, INNER NO.2 (2 parts) 33252C — PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) (2 parts) 33926C — PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER) (2 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33288C — PIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK) (2 parts) 9025004123 — not listed in this catalogue 9056014035 — not listed in this catalogue 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (2 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (2 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (4 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (4 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33232F — HEAD, GEAR SHIFT, NO.1 (3 parts) 33232A — PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) (2 parts) 33233A — HEAD, GEAR SHIFT, NO.2 (3 parts) 33234A — HEAD, GEAR SHIFT, NO.3 (3 parts) 33239 — HEAD, REVERSE PRE-BALK, NO.3 (3 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33232A — PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) (2 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33291B — PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) (2 parts) 33291A — STOPPER, SHIFT FORK SHAFT (3 parts) 33238A — HEAD, REVERSE PRE-BALK, NO.2 (3 parts) 33232A — PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) (2 parts) 33237A — PIN, SLOTTED SPRING (FOR RELEASE HEAD) (2 parts) 33237C — SPRING, TORSION(FOR RELEASE HEAD) (5 parts) 33230B — FORK ASSY, GEAR SHIFT, NO.3 (4 parts) 33220 — FORK ASSY, GEAR SHIFT, NO.2 (4 parts) 33210 — FORK ASSY, GEAR SHIFT, NO.1 (4 parts) 9025405001 — not listed in this catalogue 33211 — FORK, REVERSE SHIFT (2 parts) 33245G — SHAFT, GEAR SHIFT FORK, NO.4 (2 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 9155180820 — not listed in this catalogue 90105W0112 — not listed in this catalogue
335523B · 67 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
120 parts on this figure
Part number Description Fitment Price
33210 — Fork Assy, Gear Shift, NO.1
33210-02010 Fork Assy, Gear Shift, NO.1
2017-05 → 2019-09 ended
NGX10 6F —
33210-20020 Fork Assy, Gear Shift, NO.1
2016-10 → 2017-04 ended
NGX10 6F —
33210-02010 Fork Assy, Gear Shift, NO.1
2019-09 → 2024-01 ended
NGX10 6F —
33210-20020 Fork Assy, Gear Shift, NO.1
2024-01 → —
NGX10 6F —
33211 — Fork, Reverse Shift
33211-05020 Fork, Reverse Shift
2016-10 → 2019-09 ended
NGX10 6F —
33211-05020 Fork, Reverse Shift
2019-09 → —
NGX10 6F —
33220 — Fork Assy, Gear Shift, NO.2
33220-02010 Fork Assy, Gear Shift, NO.2
2017-05 → 2019-09 ended
NGX10 6F —
33220-20020 Fork Assy, Gear Shift, NO.2
2016-10 → 2017-04 ended
NGX10 6F —
33220-02010 Fork Assy, Gear Shift, NO.2
2019-09 → 2024-01 ended
NGX10 6F —
33220-20020 Fork Assy, Gear Shift, NO.2
2024-01 → —
NGX10 6F —
33230B — Fork Assy, Gear Shift, NO.3
33230-02010 Fork Assy, Gear Shift, NO.3
2017-05 → 2019-09 ended
NGX10 6F —
33230-20030 Fork Assy, Gear Shift, NO.3
2016-10 → 2017-04 ended
NGX10 6F —
33230-02010 Fork Assy, Gear Shift, NO.3
2019-09 → 2024-01 ended
NGX10 6F —
33230-20030 Fork Assy, Gear Shift, NO.3
2024-01 → —
NGX10 6F —
33232A — Pin, Slotted Spring (FOR SHIFT HEAD SET)
90254-05001 Pin, Slotted Spring (FOR SHIFT HEAD SET)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05001 Pin, Slotted Spring (FOR SHIFT HEAD SET)
2019-09 → —
NGX10 6F —
33232F — Head, Gear Shift, NO.1
33232-02020 Head, Gear Shift, NO.1
2018-01 → 2019-09 ended
NGX10 6F —
33232-20070 Head, Gear Shift, NO.1
2016-10 → 2017-12 ended
NGX10 6F —
33232-02020 Head, Gear Shift, NO.1
2019-09 → —
NGX10 6F —
33233A — Head, Gear Shift, NO.2
33233-02010 Head, Gear Shift, NO.2
2018-01 → 2019-09 ended
NGX10 6F —
33233-20040 Head, Gear Shift, NO.2
2016-10 → 2017-12 ended
NGX10 6F —
33233-02010 Head, Gear Shift, NO.2
2019-09 → —
NGX10 6F —
33234A — Head, Gear Shift, NO.3
33234-02010 Head, Gear Shift, NO.3
2018-01 → 2019-09 ended
NGX10 6F —
33234-20020 Head, Gear Shift, NO.3
2016-10 → 2017-12 ended
NGX10 6F —
33234-02010 Head, Gear Shift, NO.3
2019-09 → —
NGX10 6F —
33237 — Head, Release
33237-0D010 Head, Release
2016-10 → 2019-09 ended
NGX10 6F —
33237-0D010 Head, Release
2019-09 → 2023-08 ended
NGX10 6F —
33237-20030 Head, Release
2023-08 → —
NGX10 6F —
33237A — Pin, Slotted Spring (FOR RELEASE HEAD)
90254-05001 Pin, Slotted Spring (FOR RELEASE HEAD)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05001 Pin, Slotted Spring (FOR RELEASE HEAD)
2019-09 → —
NGX10 6F —
33237C — Spring, Torsion(FOR RELEASE HEAD)
90508-17006 note Spring, Torsion(FOR RELEASE HEAD)
2016-10 → 2019-09 ended
NGX10 6F —
90508-27001 note Spring, Torsion(FOR RELEASE HEAD)
2016-10 → 2019-09 ended
NGX10 6F —
90508-17006 note Spring, Torsion(FOR RELEASE HEAD)
2019-09 → 2020-08 ended
NGX10 6F —
90508-17007 note Spring, Torsion(FOR RELEASE HEAD)
2020-08 → —
NGX10 6F —
90508-27001 note Spring, Torsion(FOR RELEASE HEAD)
2019-09 → —
NGX10 6F —
33237D — Pin, Straight(FOR RELEASE HEAD)
90250-06042 Pin, Straight(FOR RELEASE HEAD)
2016-10 → 2019-09 ended
NGX10 6F —
90250-06042 Pin, Straight(FOR RELEASE HEAD)
2019-09 → —
NGX10 6F —
33238A — Head, Reverse Pre-balk, NO.2
33238-0D010 Head, Reverse Pre-balk, NO.2
2016-10 → 2019-09 ended
NGX10 6F —
33238-0D010 Head, Reverse Pre-balk, NO.2
2019-09 → 2023-08 ended
NGX10 6F —
33238-20030 Head, Reverse Pre-balk, NO.2
2023-08 → —
NGX10 6F —
33239 — Head, Reverse Pre-balk, NO.3
33239-0D010 Head, Reverse Pre-balk, NO.3
2016-10 → 2019-09 ended
NGX10 6F —
33239-0D010 Head, Reverse Pre-balk, NO.3
2019-09 → 2023-08 ended
NGX10 6F —
33239-20030 Head, Reverse Pre-balk, NO.3
2023-08 → —
NGX10 6F —
33240 — Bracket Assy, Reverse Shift Arm
33240-0D021 Bracket Assy, Reverse Shift Arm
2016-10 → 2019-09 ended
NGX10 6F —
33240-0D021 Bracket Assy, Reverse Shift Arm
2019-09 → —
NGX10 6F —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2019-09 → —
NGX10 6F —
33245G — Shaft, Gear Shift Fork, NO.4
33245-10030 Shaft, Gear Shift Fork, NO.4
2016-10 → 2019-09 ended
NGX10 6F —
33245-10030 Shaft, Gear Shift Fork, NO.4
2019-09 → —
NGX10 6F —
33251A — Lever, Shift, Inner NO.1
33251-0D011 Lever, Shift, Inner NO.1
2016-10 → 2019-09 ended
NGX10 6F —
33251-0D011 Lever, Shift, Inner NO.1
2019-09 → 2023-08 ended
NGX10 6F —
33251-12120 Lever, Shift, Inner NO.1
2023-08 → —
NGX10 6F —
33251B — Pin, Slotted Spring (FOR SHIFT INNER LEVER)
90254-05011 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05011 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
2019-09 → —
NGX10 6F —
33252A — Lever, Shift, Inner NO.2
33252-0D020 Lever, Shift, Inner NO.2
2016-10 → 2019-09 ended
NGX10 6F —
33252-0D020 Lever, Shift, Inner NO.2
2019-09 → —
NGX10 6F —
33252C — Pin, Slotted Spring(FOR SHIFT LEVER INN NO.2)
90254-05001 Pin, Slotted Spring(FOR SHIFT LEVER INN NO.2)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05001 Pin, Slotted Spring(FOR SHIFT LEVER INN NO.2)
2019-09 → —
NGX10 6F —
33253 — Lever, Shift Outer, NO.1
33253-02010 Lever, Shift Outer, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
33253-02010 Lever, Shift Outer, NO.1
2019-09 → —
NGX10 6F —
33253F — Ring, E(FOR SHIFT OUTER LEVER)
90523-15003 Ring, E(FOR SHIFT OUTER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90523-15003 Ring, E(FOR SHIFT OUTER LEVER)
2019-09 → —
NGX10 6F —
33253G — Spacer(FOR SHIFT OUTER LEVER)
90560-18017 Spacer(FOR SHIFT OUTER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90560-18017 Spacer(FOR SHIFT OUTER LEVER)
2019-09 → —
NGX10 6F —
33253H — Seal, Oil(FOR SHIFT OUTER LEVER)
90310-18003 Seal, Oil(FOR SHIFT OUTER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90310-18003 Seal, Oil(FOR SHIFT OUTER LEVER)
2019-09 → —
NGX10 6F —
33253J — Bush(FOR SHIFT OUTER LEVER)
90384-W0012 Bush(FOR SHIFT OUTER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90384-W0012 Bush(FOR SHIFT OUTER LEVER)
2019-09 → —
NGX10 6F —
33256 — Lever, Select Inner
33256-0D030 Lever, Select Inner
2016-10 → 2019-09 ended
NGX10 6F —
33256-0D030 Lever, Select Inner
2019-09 → —
NGX10 6F —
33256A — Bolt, Set (FOR SELECT INNER LEVER)
90110-08041 Bolt, Set (FOR SELECT INNER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90110-08041 Bolt, Set (FOR SELECT INNER LEVER)
2019-09 → —
NGX10 6F —
33257 — Lever, Select Outer
33257-02020 Lever, Select Outer
2016-10 → 2019-09 ended
NGX10 6F —
33257-02020 Lever, Select Outer
2019-09 → —
NGX10 6F —
33257C — Seal, Oil(FOR OUTER SELECT LEVER)
90310-15005 Seal, Oil(FOR OUTER SELECT LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90310-15005 Seal, Oil(FOR OUTER SELECT LEVER)
2019-09 → —
NGX10 6F —
33257D — Bush, Bimetal Formed(FOR OUTER SELECT LEVER)
90384-W0003 Bush, Bimetal Formed(FOR OUTER SELECT LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90384-W0003 Bush, Bimetal Formed(FOR OUTER SELECT LEVER)
2019-09 → —
NGX10 6F —
33261C — Shaft, Shift & Select Lever
33261-05010 Shaft, Shift & Select Lever
2016-10 → 2019-09 ended
NGX10 6F —
33261-05010 Shaft, Shift & Select Lever
2019-09 → —
NGX10 6F —
33261L — Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
90384-W0009 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90384-W0010 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90384-W0009 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2019-09 → —
NGX10 6F —
90384-W0010 note Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2019-09 → —
NGX10 6F —
33261N — Spring, Compression(FOR SHIFT & SELECT LEVER SHAFT)
90501-11108 Spring, Compression(FOR SHIFT & SELECT LEVER SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90501-11108 Spring, Compression(FOR SHIFT & SELECT LEVER SHAFT)
2019-09 → —
NGX10 6F —
33261P — Plug, Straight Screw W/Head(FOR SHIFT & SELECT LEVER SHAFT)
90341-16013 Plug, Straight Screw W/Head(FOR SHIFT & SELECT LEVER SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90341-16013 Plug, Straight Screw W/Head(FOR SHIFT & SELECT LEVER SHAFT)
2019-09 → —
NGX10 6F —
33266C — Plate, Shift Interlock
33266-20062 Plate, Shift Interlock
2016-10 → 2019-09 ended
NGX10 6F —
33266-20062 Plate, Shift Interlock
2019-09 → —
NGX10 6F —
33275C — Ball (FOR SHIFT DETENT)
90360-10003 Ball (FOR SHIFT DETENT)
2016-10 → 2019-09 ended
NGX10 6F —
90360-10003 Ball (FOR SHIFT DETENT)
2019-09 → —
NGX10 6F —
33275E — Spring, Compression (FOR SHIFT DETENT BALL)
90501-13088 note Spring, Compression (FOR SHIFT DETENT BALL)
2016-10 → 2019-09 ended
NGX10 6F —
90501-13089 note Spring, Compression (FOR SHIFT DETENT BALL)
2016-10 → 2019-09 ended
NGX10 6F —
90501-13088 note Spring, Compression (FOR SHIFT DETENT BALL)
2019-09 → —
NGX10 6F —
90501-13089 note Spring, Compression (FOR SHIFT DETENT BALL)
2019-09 → —
NGX10 6F —
33275F — Plug (FOR SHIFT DETENT BALL)
90341-12004 Plug (FOR SHIFT DETENT BALL)
2016-10 → 2019-09 ended
NGX10 6F —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2019-09 → —
NGX10 6F —
33280 — Pin Assy, Reverse Restrict
33280-20050 Pin Assy, Reverse Restrict
2016-10 → 2019-09 ended
NGX10 6F —
33280-20050 Pin Assy, Reverse Restrict
2019-09 → —
NGX10 6F —
33288 — Block, Select Stopper
33288-0D010 Block, Select Stopper
2016-10 → 2019-09 ended
NGX10 6F —
33288-0D010 Block, Select Stopper
2019-09 → 2023-08 ended
NGX10 6F —
33288-20020 Block, Select Stopper
2023-08 → —
NGX10 6F —
33288C — Pin, Slotted Spring(FOR SELECT STOPPER BLOCK)
90254-05001 Pin, Slotted Spring(FOR SELECT STOPPER BLOCK)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05001 Pin, Slotted Spring(FOR SELECT STOPPER BLOCK)
2019-09 → —
NGX10 6F —
33290 — Ball Assy, Lock, NO.1
33290-02011 Ball Assy, Lock, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
33290-02011 Ball Assy, Lock, NO.1
2019-09 → 2019-10 ended
NGX10 6F —
33290-02020 Ball Assy, Lock, NO.1
2019-10 → —
NGX10 6F —
33291A — Stopper, Shift Fork Shaft
33886-0D010 Stopper, Shift Fork Shaft
2016-10 → 2019-09 ended
NGX10 6F —
33886-0D010 Stopper, Shift Fork Shaft
2019-09 → 2023-08 ended
NGX10 6F —
33886-20060 Stopper, Shift Fork Shaft
2023-08 → —
NGX10 6F —
33291B — Pin, Slotted Spring (FOR SHIFT FORK SHAFT STOPPER)
90254-05001 Pin, Slotted Spring (FOR SHIFT FORK SHAFT STOPPER)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05001 Pin, Slotted Spring (FOR SHIFT FORK SHAFT STOPPER)
2019-09 → —
NGX10 6F —
33292A — Pin, Lock Ball
33292-05020 Pin, Lock Ball
2016-10 → 2019-09 ended
NGX10 6F —
33292-05020 Pin, Lock Ball
2019-09 → —
NGX10 6F —
33926 — Lever, Shift Inner, Front
33926-0D011 Lever, Shift Inner, Front
2016-10 → 2019-09 ended
NGX10 6F —
33926-0D011 Lever, Shift Inner, Front
2019-09 → 2023-08 ended
NGX10 6F —
33926-20011 Lever, Shift Inner, Front
2023-08 → —
NGX10 6F —
33926C — Pin, Slotted Spring(FOR SHIFT INNER LEVER)
90254-05001 Pin, Slotted Spring(FOR SHIFT INNER LEVER)
2016-10 → 2019-09 ended
NGX10 6F —
90254-05001 Pin, Slotted Spring(FOR SHIFT INNER LEVER)
2019-09 → —
NGX10 6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
