Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

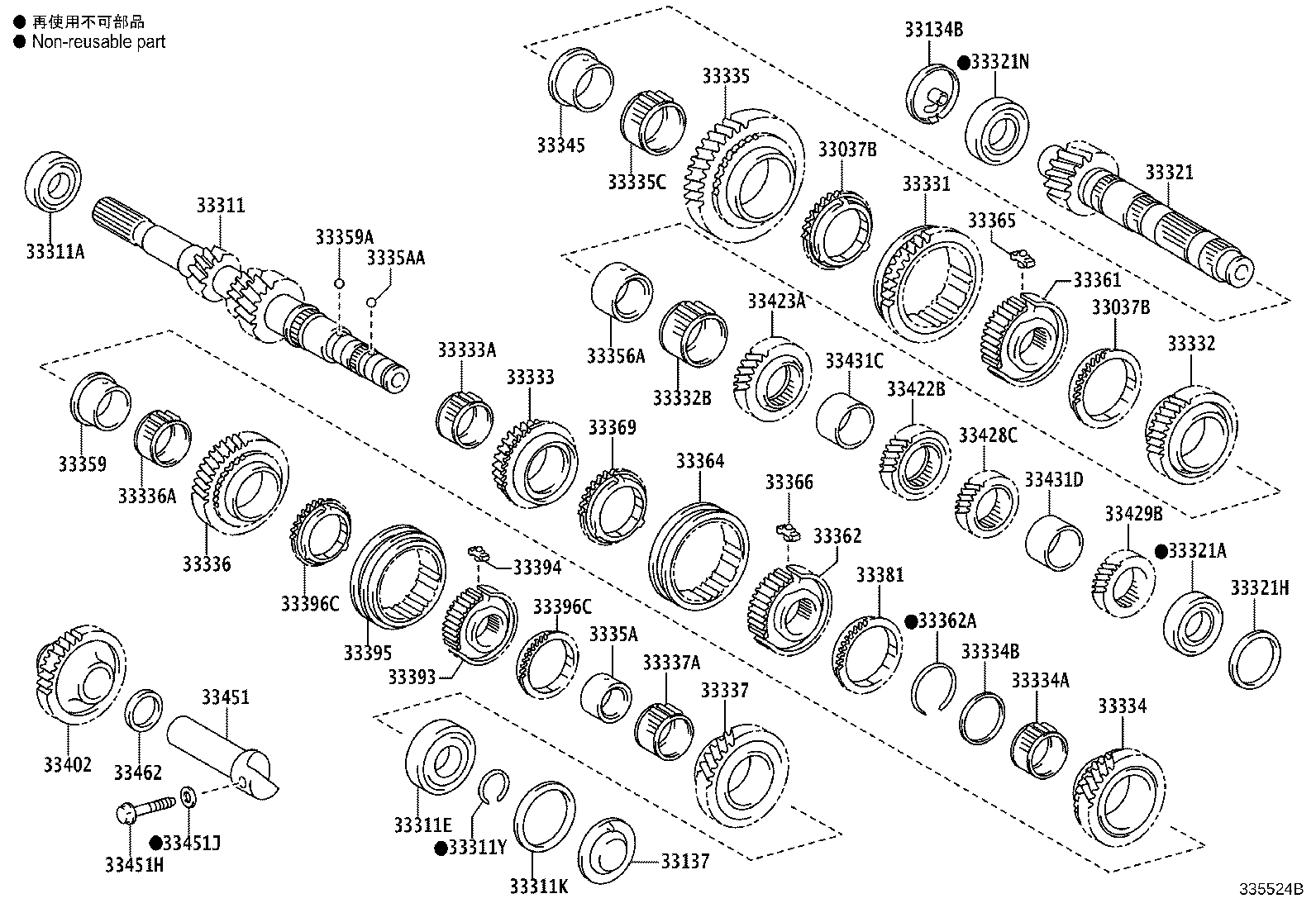

Exploded illustration 335524B 33311 — SHAFT, INPUT (2 parts) 33311A — BEARING (FOR INPUT SHAFT FRONT) (3 parts) 33134B — COVER, OUTPUT SHAFT(MTM) (2 parts) 33321 — SHAFT, OUTPUT (2 parts) 33321H — SHIM (FOR OUTPUT SHAFT REAR BEARING) (86 parts) 33321A — BEARING (FOR OUTPUT SHAFT REAR) (2 parts) 33423A — GEAR, 3RD DRIVEN (2 parts) 33356A — RACE, 2ND GEAR BEARING INNER (2 parts) 33332B — BEARING, NEEDLE ROLLER (FOR 2ND GEAR) (2 parts) 33429B — GEAR, 6TH DRIVEN (2 parts) 33428C — GEAR, 5TH DRIVEN (2 parts) 33422B — GEAR, 4TH DRIVEN (2 parts) 33431D — SPACER, OUTPUT GEAR (3 parts) 33332 — GEAR, 2ND (2 parts) 33037B — RING SET, SYNCHRONIZER, NO.1 (2 parts) 33361 — HUB, TRANSMISSION CLUTCH, NO.1 (2 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33331 — GEAR, REVERSE (2 parts) 33335 — GEAR, 1ST (2 parts) 33335C — BEARING, NEEDLE ROLLER(FOR 1ST GEAR) (2 parts) 33345 — BUSH, 1ST GEAR (2 parts) 33037B — RING SET, SYNCHRONIZER, NO.1 (2 parts) 33431C — SPACER, OUTPUT GEAR (2 parts) 33321N — BEARING (FOR OUTPUT SHAFT FRONT) (2 parts) 33451H — BOLT (FOR REVERSE IDLER GEAR SHAFT) (4 parts) 33451J — GASKET (FOR REVERSE IDLER GEAR SHAFT) (3 parts) 33137 — COVER, INPUT SHAFT(MTM) (2 parts) 3335A — RACE, 6TH GEAR BEARING, INNER(MTM) (2 parts) 33396C — RING, SYNCHRONIZER, NO.5(MTM) (3 parts) 33394 — KEY, SYNCHROMESH SHIFTING, NO.3 (2 parts) 33396C — RING, SYNCHRONIZER, NO.5(MTM) (3 parts) 33395 — SLEEVE, TRANSMISSION HUB, NO.3 (2 parts) 33359 — RACE, 5TH GEAR BEARING INNER (2 parts) 33336 — GEAR, 5TH (2 parts) 33333A — BEARING, NEEDLE ROLLER (FOR 3RD GEAR) (2 parts) 33334A — BEARING, NEEDLE ROLLER (FOR 4TH GEAR) (2 parts) 33334B — SPACER (FOR 4TH GEAR BEARING) (2 parts) 33362A — RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) (16 parts) 33381 — RING, 2ND SYNCHRONIZER OUTER (3 parts) 33362 — HUB, TRANSMISSION CLUTCH, NO.2 (3 parts) 33366 — KEY, SYNCHROMESH SHIFTING, NO.2 (2 parts) 33364 — SLEEVE, TRANSMISSION HUB, NO.2 (2 parts) 33369 — RING, SYNCHRONIZER, NO.3 (2 parts) 33333 — GEAR, 3RD (2 parts) 33334 — GEAR, 4TH (2 parts) 33336A — BEARING, NEEDLE ROLLER (FOR 5TH GEAR) (2 parts) 33359A — BALL, 5TH GEAR BEARING INNER RACE LOCK (2 parts) 3335AA — BALL, 6TH GEAR BEARING, INNER RACE ROCK(MTM) (2 parts) 33393 — HUB, TRANSMISSION CLUTCH, NO.3 (3 parts) 33337A — BEARING, NEEDLE ROLLER (FOR 6TH GEAR) (2 parts) 33337 — GEAR SUB-ASSY, 6TH (2 parts) 33311K — SHIM (FOR INPUT SHAFT REAR BEARING) (24 parts) 33311Y — RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) (28 parts) 33311E — BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) (4 parts) 33462 — WASHER, REVERSE IDLER THRUST (2 parts) 33451 — SHAFT, REVERSE IDLER GEAR (2 parts) 33402 — GEAR SUB-ASSY, REVERSE IDLER (2 parts)
335524B · 57 callouts Full size ↗
267 parts on this figure
Part number Description Fitment Price
33037B — Ring Set, Synchronizer, NO.1
33037-02030 Ring Set, Synchronizer, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
33037-02030 Ring Set, Synchronizer, NO.1
2019-09 → —
NGX10 6F —
33134B — Cover, Output Shaft(MTM)
33134-0D050 Cover, Output Shaft(MTM)
2016-10 → 2019-09 ended
NGX10 6F —
33134-0D050 Cover, Output Shaft(MTM)
2019-09 → —
NGX10 6F —
33137 — Cover, Input Shaft(MTM)
33137-0D010 Cover, Input Shaft(MTM)
2016-10 → 2019-09 ended
NGX10 6F —
33137-0D010 Cover, Input Shaft(MTM)
2019-09 → —
NGX10 6F —
33311 — Shaft, Input
33311-02050 Shaft, Input
2016-10 → 2019-09 ended
NGX10 6F —
33311-02050 Shaft, Input
2019-09 → —
NGX10 6F —
33311A — Bearing (FOR INPUT SHAFT FRONT)
90363-W0010 Bearing (FOR INPUT SHAFT FRONT)
2016-10 → 2017-03 ended
NGX10 6F —
90363-W0015 Bearing (FOR INPUT SHAFT FRONT)
2017-04 → 2019-09 ended
NGX10 6F —
90363-W0015 Bearing (FOR INPUT SHAFT FRONT)
2019-09 → —
NGX10 6F —
33311E — Bearing, Radial Ball (FOR INPUT SHAFT REAR)
90363-W0013 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2016-10 → 2017-03 ended
NGX10 6F —
90363-W0014 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2017-04 → 2019-06 ended
NGX10 6F —
90363-W0016 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2019-07 → 2019-09 ended
NGX10 6F —
90363-W0016 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2019-09 → —
NGX10 6F —
33311K — Shim (FOR INPUT SHAFT REAR BEARING)
90564-54103 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54104 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54105 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54106 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54107 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54108 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54109 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54110 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54111 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54112 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54113 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54114 note Shim (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-54103 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54104 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54105 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54106 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54107 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54108 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54109 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54110 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54111 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54112 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54113 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-54114 note Shim (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
33311Y — Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
90520-25059 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25062 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25063 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25064 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25065 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25066 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25067 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25068 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25069 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25070 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25071 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25072 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25074 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25075 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-25059 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25062 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25063 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25064 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25065 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25066 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25067 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25068 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25069 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25070 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25071 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25072 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25074 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90520-25075 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
33321 — Shaft, Output
33321-02080 Shaft, Output
2016-10 → 2019-09 ended
NGX10 6F —
33321-02080 Shaft, Output
2019-09 → —
NGX10 6F —
33321A — Bearing (FOR OUTPUT SHAFT REAR)
90366-W0025 Bearing (FOR OUTPUT SHAFT REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90366-W0025 Bearing (FOR OUTPUT SHAFT REAR)
2019-09 → —
NGX10 6F —
33321H — Shim (FOR OUTPUT SHAFT REAR BEARING)
90564-45153 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45154 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45155 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45156 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45157 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45158 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45159 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45160 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45161 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45162 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45163 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45164 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45165 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45166 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45167 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45168 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45169 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45170 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45171 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45172 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45173 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45174 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45175 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45176 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45177 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45178 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45179 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45180 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45181 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45182 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45183 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45184 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45185 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45186 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45187 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45188 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45189 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45190 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45191 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45192 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45193 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45194 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45195 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90564-45153 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45154 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45155 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45156 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45157 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45158 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45159 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45160 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45161 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45162 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45163 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45164 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45165 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45166 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45167 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45168 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45169 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45170 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45171 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45172 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45173 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45174 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45175 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45176 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45177 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45178 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45179 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45180 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45181 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45182 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45183 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45184 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45185 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45186 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45187 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45188 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45189 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45190 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45191 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45192 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45193 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45194 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
90564-45195 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2019-09 → —
NGX10 6F —
33321N — Bearing (FOR OUTPUT SHAFT FRONT)
90366-W0028 Bearing (FOR OUTPUT SHAFT FRONT)
2016-10 → 2019-09 ended
NGX10 6F —
90366-W0028 Bearing (FOR OUTPUT SHAFT FRONT)
2019-09 → —
NGX10 6F —
33331 — Gear, Reverse
33331-05030 Gear, Reverse
2016-10 → 2019-09 ended
NGX10 6F —
33331-05030 Gear, Reverse
2019-09 → —
NGX10 6F —
33332 — Gear, 2ND
33332-02050 Gear, 2ND
2016-10 → 2019-09 ended
NGX10 6F —
33332-02050 Gear, 2ND
2019-09 → —
NGX10 6F —
33332B — Bearing, Needle Roller (FOR 2ND GEAR)
90364-W0008 Bearing, Needle Roller (FOR 2ND GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90364-W0008 Bearing, Needle Roller (FOR 2ND GEAR)
2019-09 → —
NGX10 6F —
33333 — Gear, 3RD
33034-05030 Gear, 3RD
2016-10 → 2019-09 ended
NGX10 6F —
33034-05030 Gear, 3RD
2019-09 → —
NGX10 6F —
33333A — Bearing, Needle Roller (FOR 3RD GEAR)
90364-W0007 Bearing, Needle Roller (FOR 3RD GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90364-W0007 Bearing, Needle Roller (FOR 3RD GEAR)
2019-09 → —
NGX10 6F —
33334 — Gear, 4TH
33035-05051 Gear, 4TH
2016-10 → 2019-09 ended
NGX10 6F —
33035-05051 Gear, 4TH
2019-09 → —
NGX10 6F —
33334A — Bearing, Needle Roller (FOR 4TH GEAR)
90364-W0007 Bearing, Needle Roller (FOR 4TH GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90364-W0007 Bearing, Needle Roller (FOR 4TH GEAR)
2019-09 → —
NGX10 6F —
33334B — Spacer (FOR 4TH GEAR BEARING)
90560-37004 Spacer (FOR 4TH GEAR BEARING)
2016-10 → 2019-09 ended
NGX10 6F —
90560-37004 Spacer (FOR 4TH GEAR BEARING)
2019-09 → —
NGX10 6F —
33335 — Gear, 1ST
33335-02070 Gear, 1ST
2016-10 → 2019-09 ended
NGX10 6F —
33335-02070 Gear, 1ST
2019-09 → —
NGX10 6F —
33335C — Bearing, Needle Roller(FOR 1ST GEAR)
90364-W0005 Bearing, Needle Roller(FOR 1ST GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90364-W0005 Bearing, Needle Roller(FOR 1ST GEAR)
2019-09 → —
NGX10 6F —
33336 — Gear, 5TH
33036-02070 Gear, 5TH
2016-10 → 2019-09 ended
NGX10 6F —
33036-02070 Gear, 5TH
2019-09 → —
NGX10 6F —
33336A — Bearing, Needle Roller (FOR 5TH GEAR)
90364-W0007 Bearing, Needle Roller (FOR 5TH GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90364-W0007 Bearing, Needle Roller (FOR 5TH GEAR)
2019-09 → —
NGX10 6F —
33337 — Gear Sub-assy, 6TH
33037-0D030 Gear Sub-assy, 6TH
2016-10 → 2019-09 ended
NGX10 6F —
33037-0D030 Gear Sub-assy, 6TH
2019-09 → —
NGX10 6F —
33337A — Bearing, Needle Roller (FOR 6TH GEAR)
90364-W0004 Bearing, Needle Roller (FOR 6TH GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90364-W0004 Bearing, Needle Roller (FOR 6TH GEAR)
2019-09 → —
NGX10 6F —
33345 — Bush, 1ST Gear
33345-20030 Bush, 1ST Gear
2016-10 → 2019-09 ended
NGX10 6F —
33345-20030 Bush, 1ST Gear
2019-09 → —
NGX10 6F —
33356A — Race, 2ND Gear Bearing Inner
33356-20050 Race, 2ND Gear Bearing Inner
2016-10 → 2019-09 ended
NGX10 6F —
33356-20050 Race, 2ND Gear Bearing Inner
2019-09 → —
NGX10 6F —
33359 — Race, 5TH Gear Bearing Inner
33359-20010 Race, 5TH Gear Bearing Inner
2016-10 → 2019-09 ended
NGX10 6F —
33359-20010 Race, 5TH Gear Bearing Inner
2019-09 → —
NGX10 6F —
33359A — Ball, 5TH Gear Bearing Inner Race Lock
90360-05012 Ball, 5TH Gear Bearing Inner Race Lock
2016-10 → 2019-09 ended
NGX10 6F —
90360-05012 Ball, 5TH Gear Bearing Inner Race Lock
2019-09 → —
NGX10 6F —
3335A — Race, 6TH Gear Bearing, Inner(MTM)
3335A-20010 Race, 6TH Gear Bearing, Inner(MTM)
2016-10 → 2019-09 ended
NGX10 6F —
3335A-20010 Race, 6TH Gear Bearing, Inner(MTM)
2019-09 → —
NGX10 6F —
3335AA — Ball, 6TH Gear Bearing, Inner Race Rock(MTM)
90360-05012 Ball, 6TH Gear Bearing, Inner Race Rock(MTM)
2016-10 → 2019-09 ended
NGX10 6F —
90360-05012 Ball, 6TH Gear Bearing, Inner Race Rock(MTM)
2019-09 → —
NGX10 6F —
33361 — Hub, Transmission Clutch, NO.1
33361-05030 Hub, Transmission Clutch, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
33361-05030 Hub, Transmission Clutch, NO.1
2019-09 → —
NGX10 6F —
33362 — Hub, Transmission Clutch, NO.2
33362-05031 Hub, Transmission Clutch, NO.2
2016-10 → 2017-09 ended
NGX10 6F —
33362-05032 Hub, Transmission Clutch, NO.2
2017-10 → 2019-09 ended
NGX10 6F —
33362-05032 Hub, Transmission Clutch, NO.2
2019-09 → —
NGX10 6F —
33362A — Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
90520-35034 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35035 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35036 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35037 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35038 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35039 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35040 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35041 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2016-10 → 2019-09 ended
NGX10 6F —
90520-35034 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35035 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35036 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35037 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35038 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35039 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35040 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
90520-35041 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2019-09 → —
NGX10 6F —
33364 — Sleeve, Transmission Hub, NO.2
33364-05030 Sleeve, Transmission Hub, NO.2
2016-10 → 2019-09 ended
NGX10 6F —
33364-05030 Sleeve, Transmission Hub, NO.2
2019-09 → —
NGX10 6F —
33365 — Key, Synchromesh Shifting, NO.1
33365-05010 Key, Synchromesh Shifting, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
33365-05010 Key, Synchromesh Shifting, NO.1
2019-09 → —
NGX10 6F —
33366 — Key, Synchromesh Shifting, NO.2
33365-05010 Key, Synchromesh Shifting, NO.2
2016-10 → 2019-09 ended
NGX10 6F —
33365-05010 Key, Synchromesh Shifting, NO.2
2019-09 → —
NGX10 6F —
33369 — Ring, Synchronizer, NO.3
33369-20050 Ring, Synchronizer, NO.3
2016-10 → 2019-09 ended
NGX10 6F —
33369-20050 Ring, Synchronizer, NO.3
2019-09 → —
NGX10 6F —
33381 — Ring, 2ND Synchronizer Outer
33381-20020 Ring, 2ND Synchronizer Outer
2016-10 → 2019-09 ended
NGX10 6F —
33381-05010 Ring, 2ND Synchronizer Outer
2020-01 → —
NGX10 6F —
33381-20020 Ring, 2ND Synchronizer Outer
2019-09 → 2020-01 ended
NGX10 6F —
33393 — Hub, Transmission Clutch, NO.3
33393-05030 Hub, Transmission Clutch, NO.3
2016-10 → 2017-07 ended
NGX10 6F —
33393-05031 Hub, Transmission Clutch, NO.3
2017-08 → 2019-09 ended
NGX10 6F —
33393-05031 Hub, Transmission Clutch, NO.3
2019-09 → —
NGX10 6F —
33394 — Key, Synchromesh Shifting, NO.3
33365-05010 Key, Synchromesh Shifting, NO.3
2016-10 → 2019-09 ended
NGX10 6F —
33365-05010 Key, Synchromesh Shifting, NO.3
2019-09 → —
NGX10 6F —
33395 — Sleeve, Transmission Hub, NO.3
33395-05030 Sleeve, Transmission Hub, NO.3
2016-10 → 2019-09 ended
NGX10 6F —
33395-05030 Sleeve, Transmission Hub, NO.3
2019-09 → —
NGX10 6F —
33396C — Ring, Synchronizer, NO.5(MTM)
33396-20010 Ring, Synchronizer, NO.5(MTM)
2016-10 → 2019-09 ended
NGX10 6F —
33396-02010 Ring, Synchronizer, NO.5(MTM)
2020-05 → —
NGX10 6F —
33396-20010 Ring, Synchronizer, NO.5(MTM)
2019-09 → 2020-01 ended
NGX10 6F —
33402 — Gear Sub-assy, Reverse Idler
33402-05030 Gear Sub-assy, Reverse Idler
2016-10 → 2019-09 ended
NGX10 6F —
33402-05030 Gear Sub-assy, Reverse Idler
2019-09 → —
NGX10 6F —
33422B — Gear, 4TH Driven
33422-05050 Gear, 4TH Driven
2016-10 → 2019-09 ended
NGX10 6F —
33422-05050 Gear, 4TH Driven
2019-09 → —
NGX10 6F —
33423A — Gear, 3RD Driven
33423-05030 Gear, 3RD Driven
2016-10 → 2019-09 ended
NGX10 6F —
33423-05030 Gear, 3RD Driven
2019-09 → —
NGX10 6F —
33428C — Gear, 5TH Driven
33428-02070 Gear, 5TH Driven
2016-10 → 2019-09 ended
NGX10 6F —
33428-02070 Gear, 5TH Driven
2019-09 → —
NGX10 6F —
33429B — Gear, 6TH Driven
33429-0D020 Gear, 6TH Driven
2016-10 → 2019-09 ended
NGX10 6F —
33429-0D020 Gear, 6TH Driven
2019-09 → —
NGX10 6F —
33431C — Spacer, Output Gear
33431-20090 Spacer, Output Gear
2016-10 → 2019-09 ended
NGX10 6F —
33431-20090 Spacer, Output Gear
2019-09 → —
NGX10 6F —
33431D — Spacer, Output Gear
33431-20090 Spacer, Output Gear
2016-10 → 2019-09 ended
NGX10 6F —
33431-12050 Spacer, Output Gear
2020-11 → —
NGX10 6F —
33431-20090 Spacer, Output Gear
2019-09 → 2020-11 ended
NGX10 6F —
33451 — Shaft, Reverse Idler Gear
33451-05020 Shaft, Reverse Idler Gear
2016-10 → 2019-09 ended
NGX10 6F —
33451-05020 Shaft, Reverse Idler Gear
2019-09 → —
NGX10 6F —
33451H — Bolt (FOR REVERSE IDLER GEAR SHAFT)
90105-08150 note Bolt (FOR REVERSE IDLER GEAR SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90105-W0271 note Bolt (FOR REVERSE IDLER GEAR SHAFT)
2017-01 → 2019-09 ended
NGX10 6F —
90105-08150 note Bolt (FOR REVERSE IDLER GEAR SHAFT)
2019-09 → —
NGX10 6F —
90105-W0271 note Bolt (FOR REVERSE IDLER GEAR SHAFT)
2019-09 → —
NGX10 6F —
33451J — Gasket (FOR REVERSE IDLER GEAR SHAFT)
90430-W0002 Gasket (FOR REVERSE IDLER GEAR SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90430-08010 Gasket (FOR REVERSE IDLER GEAR SHAFT)
2021-12 → —
NGX10 6F —
90430-W0002 Gasket (FOR REVERSE IDLER GEAR SHAFT)
2019-09 → 2021-12 ended
NGX10 6F —
33462 — Washer, Reverse Idler Thrust
33462-20090 Washer, Reverse Idler Thrust
2016-10 → 2019-09 ended
NGX10 6F —
33462-20090 Washer, Reverse Idler Thrust
2019-09 → —
NGX10 6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
