Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

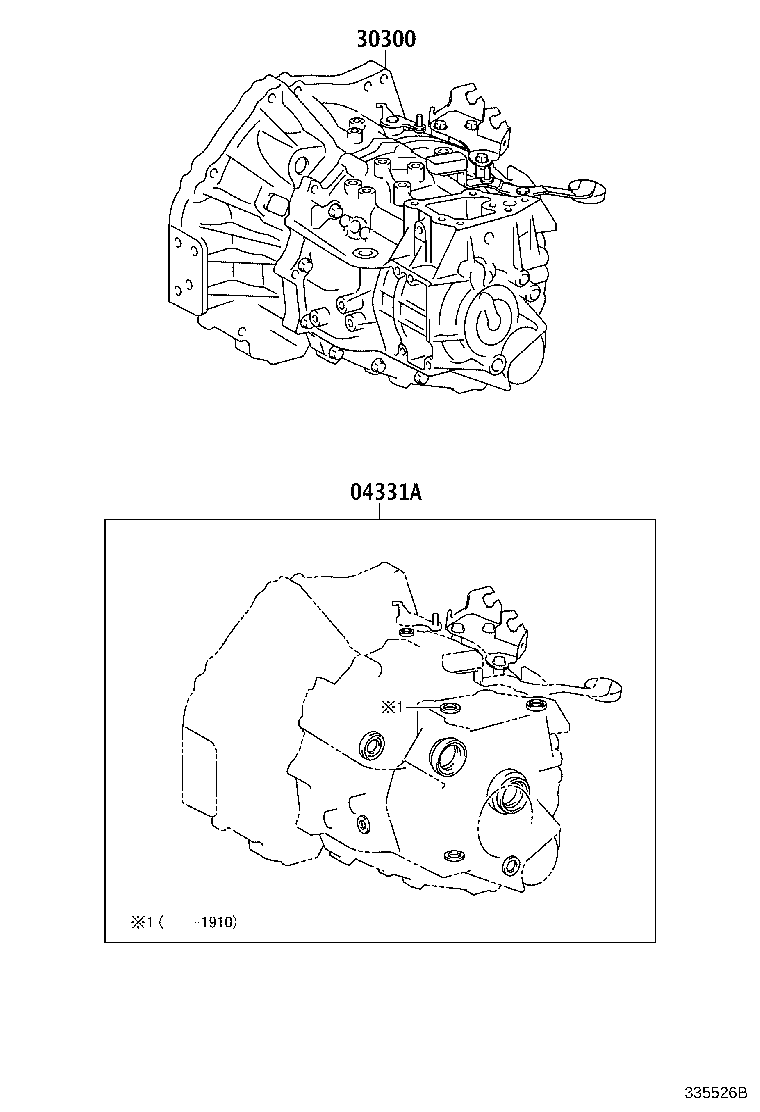

| 04331A — Gasket Kit, Transaxle Overhaul(MTM) | ||||
| 04331-0F010 |
Gasket Kit, Transaxle Overhaul(MTM)
2016-10 → 2016-12
ended
|
NGX10 6F | — | |
| 04331-0F011 |
Gasket Kit, Transaxle Overhaul(MTM)
2016-12 → 2019-09
ended
|
NGX10 6F | — | |
| 04331-0F011 |
Gasket Kit, Transaxle Overhaul(MTM)
2019-09 → 2019-10
ended
|
NGX10 6F | — | |
| 04331-0F020 |
Gasket Kit, Transaxle Overhaul(MTM)
2019-10 → —
|
NGX10 6F | — | |
| 30300 — Transaxle Assy, Manual | ||||
| 30300-F4010 note |
Transaxle Assy, Manual
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 30300-F4010 note |
Transaxle Assy, Manual
2019-09 → 2019-10
ended
|
NGX10 6F | — | |
| 30300-F4012 note |
Transaxle Assy, Manual
2019-10 → —
|
NGX10 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
