Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

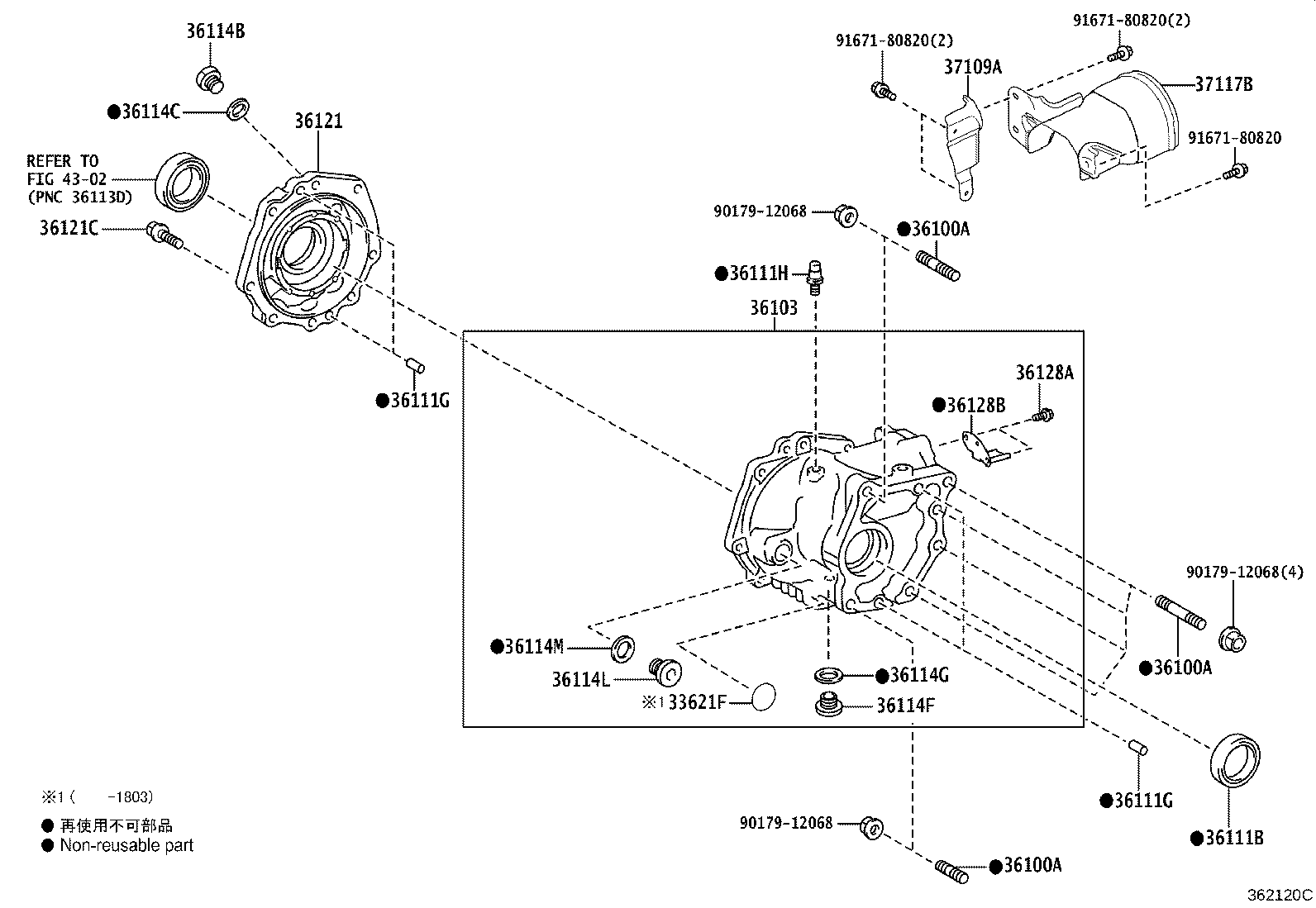

Exploded illustration 362120C 36114B — PLUG, NO.1 (FOR TRANSFER CASE) (2 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (2 parts) 36121 — COVER, TRANSFER CASE, NO.1 (2 parts) 36121C — BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER) (2 parts) 4302 — not listed in this catalogue 36100A — BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) (6 parts) 36100A — BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) (6 parts) 36100A — BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) (6 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (2 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (2 parts) 36111H — PLUG, BREATHER (FOR TRANSFER CASE) (2 parts) 36114F — PLUG (FOR TRANSFER DRAIN) (2 parts) 36114G — GASKET (FOR TRANSFER DRAIN PLUG) (2 parts) 36114L — PLUG, FILLER(FOR TRANSFER) (2 parts) 36114M — GASKET (FOR TRANSFER FILLER PLUG) (2 parts) 36128B — DEFLECTOR, BREATHER OIL (2 parts) 36128A — BOLT (FOR BREATHER OIL DEFLECTOR) (2 parts) 9017912068 — not listed in this catalogue 9017912068 — not listed in this catalogue 9017912068 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 33621F — LABEL, TRANSAXLE OIL INFORMATION (1 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (2 parts) 36103 — CASE SUB-ASSY, TRANSFER (2 parts) 37109A — BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR (2 parts) 37117B — INSULATOR, PROPELLER SHAFT HEAT (2 parts)
362120C · 21 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
33621F — Label, Transaxle Oil Information
33621-48020 Label, Transaxle Oil Information
2016-10 → 2018-03 ended
NGX50 —
36100A — Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2016-10 → 2019-09 ended
NGX50 —
90116-12034 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2016-10 → 2019-09 ended
NGX50 —
90116-12041 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2016-10 → 2019-09 ended
NGX50 —
90116-12028 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2019-09 → —
NGX50 —
90116-12034 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2019-09 → —
NGX50 —
90116-12041 note Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
2019-09 → —
NGX50 —
36103 — Case Sub-assy, Transfer
36103-42052 Case Sub-assy, Transfer
2016-10 → 2019-09 ended
NGX50 —
36103-42052 Case Sub-assy, Transfer
2019-09 → —
NGX50 —
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-49001 Seal, Oil (FOR TRANSFER CASE)
2016-10 → 2019-09 ended
NGX50 —
90311-49001 Seal, Oil (FOR TRANSFER CASE)
2019-09 → —
NGX50 —
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10017 note Pin, Straight (FOR TRANSFER CASE)
2016-10 → 2019-09 ended
NGX50 —
90250-10017 note Pin, Straight (FOR TRANSFER CASE)
2019-09 → —
NGX50 —
36111H — Plug, Breather (FOR TRANSFER CASE)
90930-03133 Plug, Breather (FOR TRANSFER CASE)
2016-10 → 2019-09 ended
NGX50 —
90930-03133 Plug, Breather (FOR TRANSFER CASE)
2019-09 → —
NGX50 —
36114B — Plug, NO.1 (FOR TRANSFER CASE)
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2016-10 → 2019-09 ended
NGX50 —
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2019-09 → —
NGX50 —
36114C — Gasket, NO.1 (FOR TRANSFER CASE)
12157-10010 Gasket, NO.1 (FOR TRANSFER CASE)
2016-10 → 2019-09 ended
NGX50 —
12157-10010 Gasket, NO.1 (FOR TRANSFER CASE)
2019-09 → —
NGX50 —
36114F — Plug (FOR TRANSFER DRAIN)
90341-18051 Plug (FOR TRANSFER DRAIN)
2016-10 → 2019-09 ended
NGX50 —
90341-18051 Plug (FOR TRANSFER DRAIN)
2019-09 → —
NGX50 —
36114G — Gasket (FOR TRANSFER DRAIN PLUG)
12157-10010 Gasket (FOR TRANSFER DRAIN PLUG)
2016-10 → 2019-09 ended
NGX50 —
12157-10010 Gasket (FOR TRANSFER DRAIN PLUG)
2019-09 → —
NGX50 —
36114L — Plug, Filler(FOR TRANSFER)
90341-18023 Plug, Filler(FOR TRANSFER)
2016-10 → 2019-09 ended
NGX50 —
90341-18023 Plug, Filler(FOR TRANSFER)
2019-09 → —
NGX50 —
36114M — Gasket (FOR TRANSFER FILLER PLUG)
12157-10010 Gasket (FOR TRANSFER FILLER PLUG)
2016-10 → 2019-09 ended
NGX50 —
12157-10010 Gasket (FOR TRANSFER FILLER PLUG)
2019-09 → —
NGX50 —
36121 — Cover, Transfer Case, NO.1
36121-52020 Cover, Transfer Case, NO.1
2016-10 → 2019-09 ended
NGX50 —
36121-52020 Cover, Transfer Case, NO.1
2019-09 → —
NGX50 —
36121C — Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
91552-81030 Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
2016-10 → 2019-09 ended
NGX50 —
91552-81030 Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
2019-09 → —
NGX50 —
36128A — Bolt (FOR BREATHER OIL DEFLECTOR)
91621-60614 Bolt (FOR BREATHER OIL DEFLECTOR)
2016-10 → 2019-09 ended
NGX50 —
91621-60614 Bolt (FOR BREATHER OIL DEFLECTOR)
2019-09 → —
NGX50 —
36128B — Deflector, Breather Oil
36128-52010 Deflector, Breather Oil
2016-10 → 2019-09 ended
NGX50 —
36128-52010 Deflector, Breather Oil
2019-09 → —
NGX50 —
37109A — Bracket Sub-assy, Propeller Shaft Heat Insulator
37109-10010 Bracket Sub-assy, Propeller Shaft Heat Insulator
2016-10 → 2019-09 ended
NGX50 —
37109-10010 Bracket Sub-assy, Propeller Shaft Heat Insulator
2019-09 → —
NGX50 —
37117B — Insulator, Propeller Shaft Heat
37117-10010 Insulator, Propeller Shaft Heat
2016-10 → 2019-09 ended
NGX50 —
37117-10010 Insulator, Propeller Shaft Heat
2019-09 → —
NGX50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
