Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

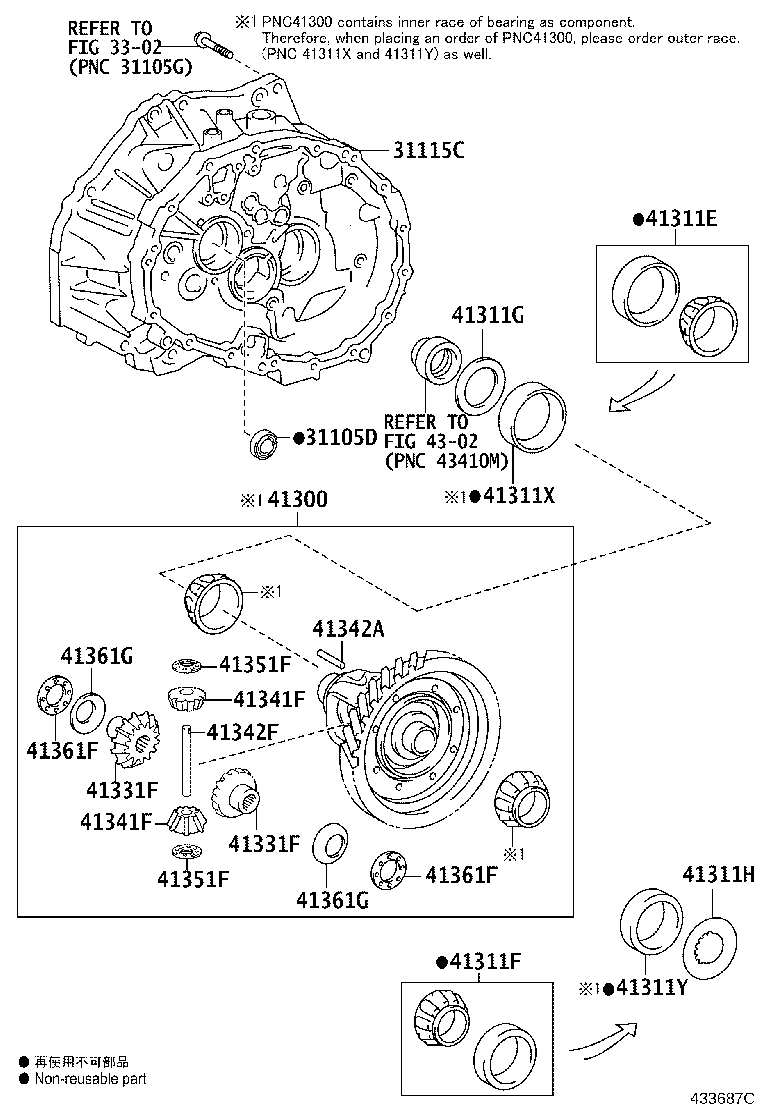

Exploded illustration 433687C 31115C — CASE, FRONT TRANSAXLE(MTM) (3 parts) 31105D — SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) (2 parts) 41311G — WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) (2 parts) 41300 — CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR (2 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (14 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (14 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (2 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (2 parts) 41342F — SHAFT, FRONT DIFFERENTIAL PINION, NO.1 (2 parts) 41342A — PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) (2 parts) 41311H — WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) (62 parts) 41311Y — OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR) (2 parts) 41311F — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) (2 parts) 41311E — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) (2 parts) 41311X — OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT) (2 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (2 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (2 parts) 41341F — PINION, FRONT DIFFERENTIAL (2 parts) 41341F — PINION, FRONT DIFFERENTIAL (2 parts) 41361G — WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR) (2 parts) 41361G — WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR) (2 parts) 4302 — not listed in this catalogue 3302 — not listed in this catalogue
433687C · 21 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
105 parts on this figure
Part number Description Fitment Price
31105D — Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2016-10 → 2019-09 ended
NGX10 6F —
90311-25030 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2019-09 → —
NGX10 6F —
31115C — Case, Front Transaxle(MTM)
31115-05031 Case, Front Transaxle(MTM)
2016-10 → 2019-09 ended
NGX10 6F —
31115-05031 Case, Front Transaxle(MTM)
2019-09 → 2019-10 ended
NGX10 6F —
31115-05033 Case, Front Transaxle(MTM)
2019-10 → —
NGX10 6F —
41300 — Case Assy, Front Differential, W/Ring Gear
41300-02070 Case Assy, Front Differential, W/Ring Gear
2016-10 → 2019-09 ended
NGX10 6F —
41300-02070 Case Assy, Front Differential, W/Ring Gear
2019-09 → —
NGX10 6F —
41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
90080-36143 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2016-10 → 2019-09 ended
NGX10 6F —
90080-36143 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2019-09 → —
NGX10 6F —
41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
90366-W0013 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90366-W0013 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
41311G — Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
2016-10 → 2019-09 ended
NGX10 6F —
90560-41003 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
2019-09 → —
NGX10 6F —
41311H — Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44039 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44040 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44041 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44042 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44043 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44044 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44045 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44046 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44047 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44048 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44049 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44050 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44051 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44052 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44053 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44054 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44055 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44056 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44057 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44058 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44059 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44060 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44061 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44062 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44063 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44064 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44065 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44066 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44067 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44068 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44069 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90564-44039 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44040 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44041 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44042 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44043 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44044 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44045 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44046 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44047 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44048 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44049 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44050 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44051 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44052 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44053 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44054 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44055 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44056 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44057 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44058 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44059 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44060 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44061 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44062 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44063 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44064 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44065 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44066 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44067 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44068 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
90564-44069 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2019-09 → —
NGX10 6F —
41311X — Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
90080-36144 Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
2016-10 → 2019-09 ended
NGX10 6F —
90080-36144 Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
2019-09 → —
NGX10 6F —
41311Y — Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
90366-W0014 Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
2016-10 → 2019-09 ended
NGX10 6F —
90366-W0014 Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
2019-09 → —
NGX10 6F —
41331F — Gear, Front Differential Side
41331-0D070 Gear, Front Differential Side
2016-10 → 2019-09 ended
NGX10 6F —
41331-0D070 Gear, Front Differential Side
2019-09 → —
NGX10 6F —
41341F — Pinion, Front Differential
41341-0D070 Pinion, Front Differential
2016-10 → 2019-09 ended
NGX10 6F —
41341-0D070 Pinion, Front Differential
2019-09 → —
NGX10 6F —
41342A — Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2016-10 → 2019-09 ended
NGX10 6F —
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2019-09 → —
NGX10 6F —
41342F — Shaft, Front Differential Pinion, NO.1
41342-52060 Shaft, Front Differential Pinion, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41342-52060 Shaft, Front Differential Pinion, NO.1
2019-09 → —
NGX10 6F —
41351F — Washer, Front Differential Pinion Thrust
41351-32010 Washer, Front Differential Pinion Thrust
2016-10 → 2019-09 ended
NGX10 6F —
41351-32010 Washer, Front Differential Pinion Thrust
2019-09 → —
NGX10 6F —
41361F — Washer, Front Differential Side Gear Thrust, NO.1
41361-22020 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-22030 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-22040 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-22140 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-22150 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-22160 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-48010 note Washer, Front Differential Side Gear Thrust, NO.1
2016-10 → 2019-09 ended
NGX10 6F —
41361-22020 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361-22030 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361-22040 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361-22140 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361-22150 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361-22160 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361-48010 note Washer, Front Differential Side Gear Thrust, NO.1
2019-09 → —
NGX10 6F —
41361G — Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
90208-35001 Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
2016-10 → 2019-09 ended
NGX10 6F —
90208-35001 Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
2019-09 → —
NGX10 6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
