Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

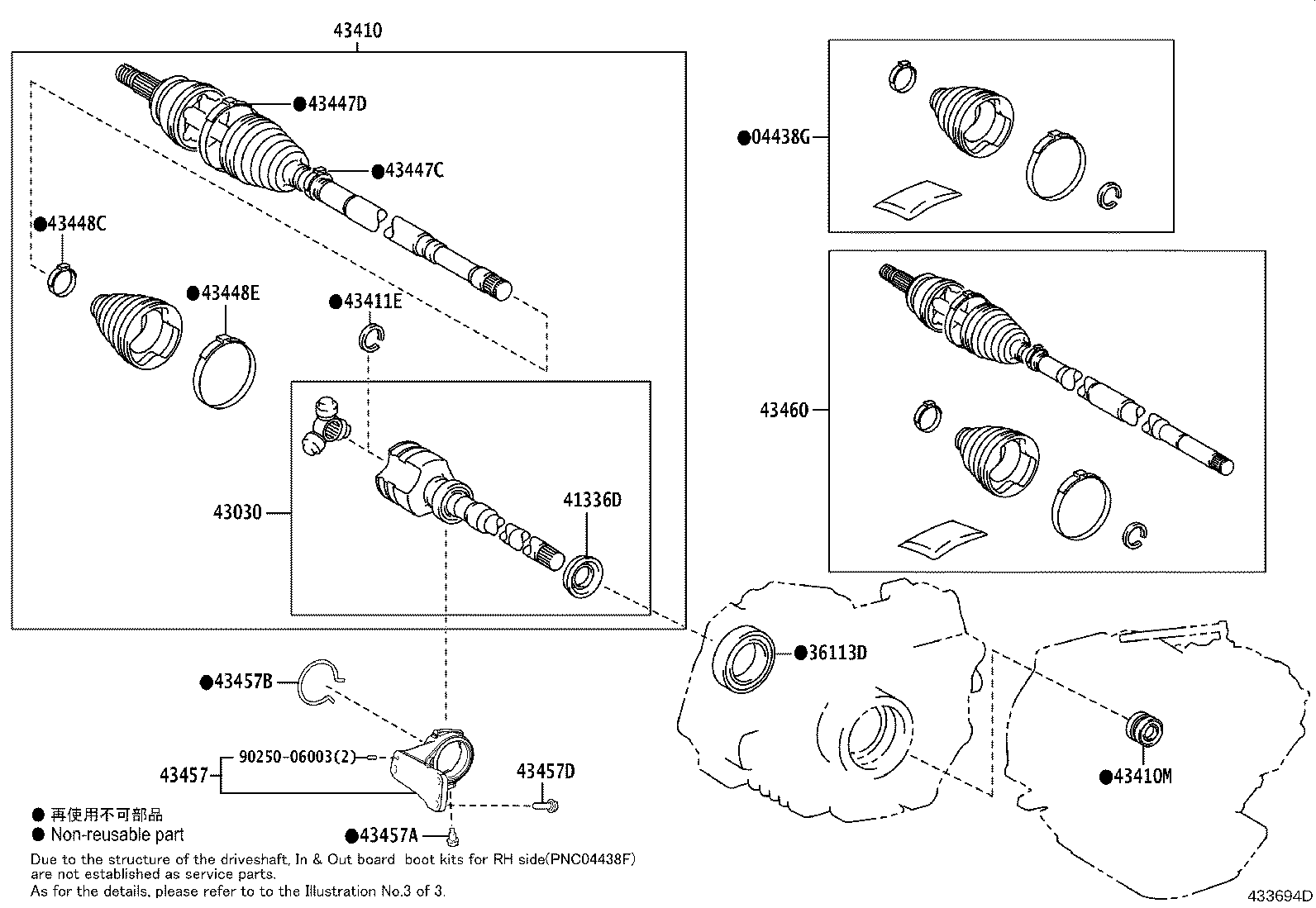

Exploded illustration 433694D 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (4 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (5 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (2 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (2 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (2 parts) 9025006003 — not listed in this catalogue 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (2 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (6 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (6 parts) 36113D — SEAL, OIL (FOR TRANSFER CASE RH) (2 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (8 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (10 parts)
433694D · 16 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-F4030 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-10 → 2018-08 ended
NGX10 —
04437-F4031 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-08 → 2019-09 ended
NGX10 —
04438-F4010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-10 → 2019-09 ended
NGX50 —
04437-02690 Boot Kit, Front Drive Shaft Inboard Joint, RH
2019-09 → —
ZYX10 —
04437-F4031 Boot Kit, Front Drive Shaft Inboard Joint, RH
2019-09 → —
NGX10 —
04438-F4010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2019-09 → —
NGX50 —
36113D — Seal, Oil (FOR TRANSFER CASE RH)
90311-35056 Seal, Oil (FOR TRANSFER CASE RH)
2016-10 → 2019-09 ended
NGX50 —
90311-35056 Seal, Oil (FOR TRANSFER CASE RH)
2019-09 → —
NGX50 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-F4010 Cover, Front Drive Shaft Dust, RH
2016-10 → 2019-09 ended
NGX10 —
41336-F4020 Cover, Front Drive Shaft Dust, RH
2016-10 → 2019-09 ended
NGX50 —
41336-05100 Cover, Front Drive Shaft Dust, RH
2019-09 → —
ZYX10 —
41336-F4010 Cover, Front Drive Shaft Dust, RH
2019-09 → —
NGX10 —
41336-F4020 Cover, Front Drive Shaft Dust, RH
2019-09 → —
NGX50 —
43030 — Joint Assy, Front Drive Inboard, RH
43030-F4020 Joint Assy, Front Drive Inboard, RH
2016-10 → 2019-09 ended
NGX50 —
43040-F4010 Joint Assy, Front Drive Inboard, RH
2016-10 → 2019-09 ended
NGX10 —
43030-02100 Joint Assy, Front Drive Inboard, RH
2019-09 → 2022-01 ended
ZYX10 —
43030-02101 Joint Assy, Front Drive Inboard, RH
2022-02 → —
ZYX10 —
43030-F4020 Joint Assy, Front Drive Inboard, RH
2019-09 → —
NGX50 —
43040-F4010 Joint Assy, Front Drive Inboard, RH
2019-09 → —
NGX10 —
43410 — Shaft Assy, Front Drive, RH
43410-F4060 Shaft Assy, Front Drive, RH
2016-10 → 2019-09 ended
NGX10 —
43410-F4070 Shaft Assy, Front Drive, RH
2016-10 → 2019-09 ended
NGX50 —
43410-F4060 Shaft Assy, Front Drive, RH
2019-09 → —
NGX10 —
43410-F4070 Shaft Assy, Front Drive, RH
2019-09 → —
NGX50 —
43410-F4160 Shaft Assy, Front Drive, RH
2019-09 → 2021-01 ended
ZYX10 —
43410-F4161 Shaft Assy, Front Drive, RH
2021-02 → —
ZYX10 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-35065 Oil Seal, Front Drive Shaft, RH
2016-10 → 2019-09 ended
NGX10 6F —
90311-35069 Oil Seal, Front Drive Shaft, RH
2016-10 → 2018-09 ended
NGX10 CVT —
90311-35076 Oil Seal, Front Drive Shaft, RH
2018-09 → 2019-09 ended
NGX10 CVT —
90316-28003 Oil Seal, Front Drive Shaft, RH
2016-10 → 2019-09 ended
NGX50 —
90311-35065 Oil Seal, Front Drive Shaft, RH
2019-09 → —
NGX10 6F —
90311-35076 Oil Seal, Front Drive Shaft, RH
2019-09 → —
NGX10 CVT —
90311-40038 Oil Seal, Front Drive Shaft, RH
2019-09 → —
ZYX10 —
90316-28003 Oil Seal, Front Drive Shaft, RH
2019-09 → —
NGX50 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-02230 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-10 → 2019-09 ended
NGX10 —
43425-05040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-10 → 2019-09 ended
NGX50 —
43425-02230 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2019-09 → —
NGX10,ZYX10 —
43425-05040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2019-09 → —
NGX50 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-02820 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-02820 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2019-09 → —
NGX10,50,ZYX10 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-02810 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-02810 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2019-09 → —
NGX10,50,ZYX10 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-02820 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-10 → 2019-09 ended
NGX10 —
42345-0F070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-10 → 2019-09 ended
NGX50 —
42345-02820 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2019-09 → —
NGX10,ZYX10 —
42345-0F070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2019-09 → —
NGX50 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-F4010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-10 → 2019-09 ended
NGX10 —
42345-F4020 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-10 → 2019-09 ended
NGX50 —
42345-F4010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2019-09 → —
NGX10,ZYX10 —
42345-F4020 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2019-09 → —
NGX50 —
43457 — Bracket, Drive Shaft Bearing
43457-10020 Bracket, Drive Shaft Bearing
2016-10 → 2019-09 ended
NGX50 —
43457-10020 Bracket, Drive Shaft Bearing
2019-09 → —
NGX50 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2016-10 → 2019-09 ended
NGX50 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2019-09 → —
NGX50 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2016-10 → 2019-09 ended
NGX50 —
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2019-09 → —
NGX50 —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-W0215 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2016-10 → 2019-09 ended
NGX50 —
90105-W0215 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2019-09 → —
NGX50 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-F9020 Shaft Assy, Front Drive Outboard Joint, RH
2016-10 → 2018-08 ended
NGX10 —
43460-F9021 Shaft Assy, Front Drive Outboard Joint, RH
2018-08 → 2019-09 ended
NGX10 —
43470-F9020 Shaft Assy, Front Drive Outboard Joint, RH
2016-10 → 2019-09 ended
NGX50 —
43460-F9012 Shaft Assy, Front Drive Outboard Joint, RH
2019-09 → 2020-07 ended
ZYX10 —
43460-F9014 Shaft Assy, Front Drive Outboard Joint, RH
2020-07 → 2021-02 ended
ZYX10 —
43460-F9015 Shaft Assy, Front Drive Outboard Joint, RH
2021-02 → —
ZYX10 —
43460-F9021 Shaft Assy, Front Drive Outboard Joint, RH
2019-09 → 2020-07 ended
NGX10 —
43460-F9022 Shaft Assy, Front Drive Outboard Joint, RH
2020-07 → —
NGX10 —
43470-F9020 Shaft Assy, Front Drive Outboard Joint, RH
2019-09 → 2020-07 ended
NGX50 —
43470-F9021 Shaft Assy, Front Drive Outboard Joint, RH
2020-07 → —
NGX50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
