Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

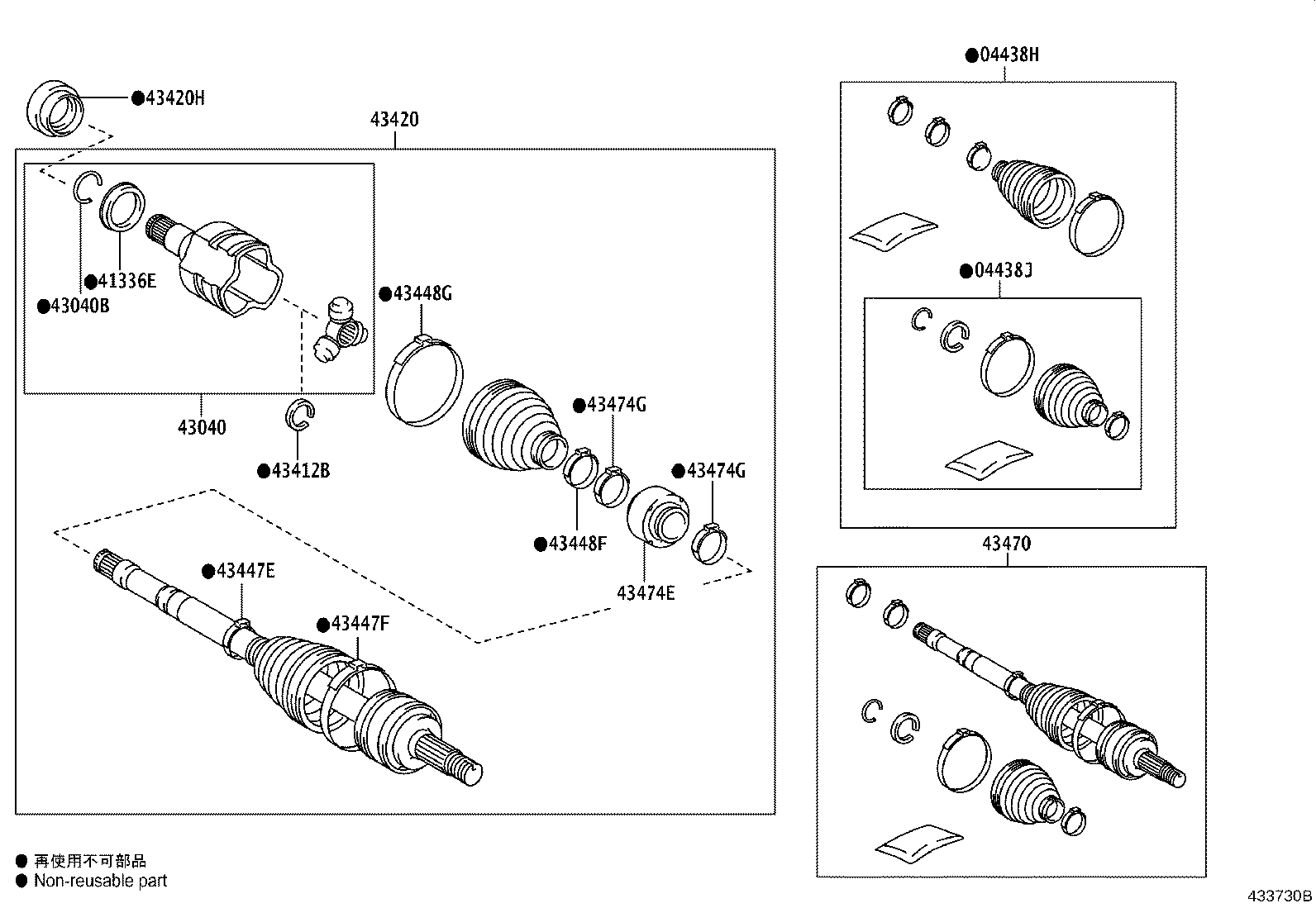

Exploded illustration 433730B 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (3 parts) 43040B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) (3 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (3 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (7 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (3 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (4 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (3 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (4 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (5 parts)
433730B · 16 callouts Full size ↗
47 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-F4020 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-10 → 2017-04 ended
NGX10,50 —
04428-F4021 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-04 → 2019-09 ended
NGX10,50 —
04428-F4011 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-09 → —
ZYX10 —
04428-F4021 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-09 → —
NGX10,50 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-F4020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-10 → 2019-09 ended
NGX10,50 —
04438-F4010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-09 → —
ZYX10 —
04438-F4020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-09 → —
NGX10,50 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-F4010 Cover, Front Drive Shaft Dust, LH
2016-10 → 2019-09 ended
NGX10,50 —
41336-05130 Cover, Front Drive Shaft Dust, LH
2019-09 → —
ZYX10 —
41336-F4010 Cover, Front Drive Shaft Dust, LH
2019-09 → —
NGX10,50 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-F4020 Joint Assy, Front Drive Inboard, LH
2016-10 → 2019-09 ended
NGX10,50 —
43040-05142 Joint Assy, Front Drive Inboard, LH
2019-09 → 2022-01 ended
ZYX10 —
43040-05143 Joint Assy, Front Drive Inboard, LH
2022-02 → —
ZYX10 —
43040-F4020 Joint Assy, Front Drive Inboard, LH
2019-09 → —
NGX10,50 —
43040B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
43425-F4010 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2016-10 → 2019-09 ended
NGX10,50 —
43425-05070 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2019-09 → —
ZYX10 —
43425-F4010 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2019-09 → —
NGX10,50 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-05040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-10 → 2019-09 ended
NGX10,50 —
43425-05040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-09 → —
NGX10,50,ZYX10 —
43420 — Shaft Assy, Front Drive, LH
43420-F4050 Shaft Assy, Front Drive, LH
2016-10 → 2019-09 ended
NGX10,50 —
43420-F4040 Shaft Assy, Front Drive, LH
2019-09 → —
ZYX10 —
43420-F4050 Shaft Assy, Front Drive, LH
2019-09 → —
NGX10,50 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-35066 Oil Seal, Front Drive Shaft, LH
2016-10 → 2017-03 ended
NGX10 6F —
90311-35068 Oil Seal, Front Drive Shaft, LH
2016-10 → 2018-09 ended
NGX10,50 CVT —
90311-35075 Oil Seal, Front Drive Shaft, LH
2017-03 → 2019-09 ended
NGX10 6F —
90311-35080 Oil Seal, Front Drive Shaft, LH
2018-09 → 2019-09 ended
NGX10,50 CVT —
90311-35075 Oil Seal, Front Drive Shaft, LH
2019-09 → —
NGX10 6F —
90311-35080 Oil Seal, Front Drive Shaft, LH
2019-09 → —
NGX10,50 CVT —
90311-50064 Oil Seal, Front Drive Shaft, LH
2019-09 → —
ZYX10 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02820 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-02820 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-09 → —
NGX10,50,ZYX10 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02810 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-02810 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-09 → —
NGX10,50,ZYX10 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0F070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-0F070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-09 → —
NGX10,50,ZYX10 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-F4020 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-F4020 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-09 → —
NGX10,50,ZYX10 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-F9050 Shaft Assy, Front Drive Outboard Joint, LH
2016-10 → 2019-09 ended
NGX10,50 —
43470-F9040 Shaft Assy, Front Drive Outboard Joint, LH
2019-09 → 2020-07 ended
ZYX10 —
43470-F9041 Shaft Assy, Front Drive Outboard Joint, LH
2020-07 → —
ZYX10 —
43470-F9050 Shaft Assy, Front Drive Outboard Joint, LH
2019-09 → 2020-07 ended
NGX10,50 —
43470-F9051 Shaft Assy, Front Drive Outboard Joint, LH
2020-07 → —
NGX10,50 —
43474E — Damper, Front Drive Shaft, LH
43474-02820 Damper, Front Drive Shaft, LH
2018-06 → 2019-09 ended
NGX10,50 —
43474-F4020 Damper, Front Drive Shaft, LH
2016-10 → 2018-05 ended
NGX10,50 —
43474-02820 Damper, Front Drive Shaft, LH
2019-09 → —
NGX10,50,ZYX10 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-05250 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2016-10 → 2019-09 ended
NGX10,50 —
42345-05250 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
