Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

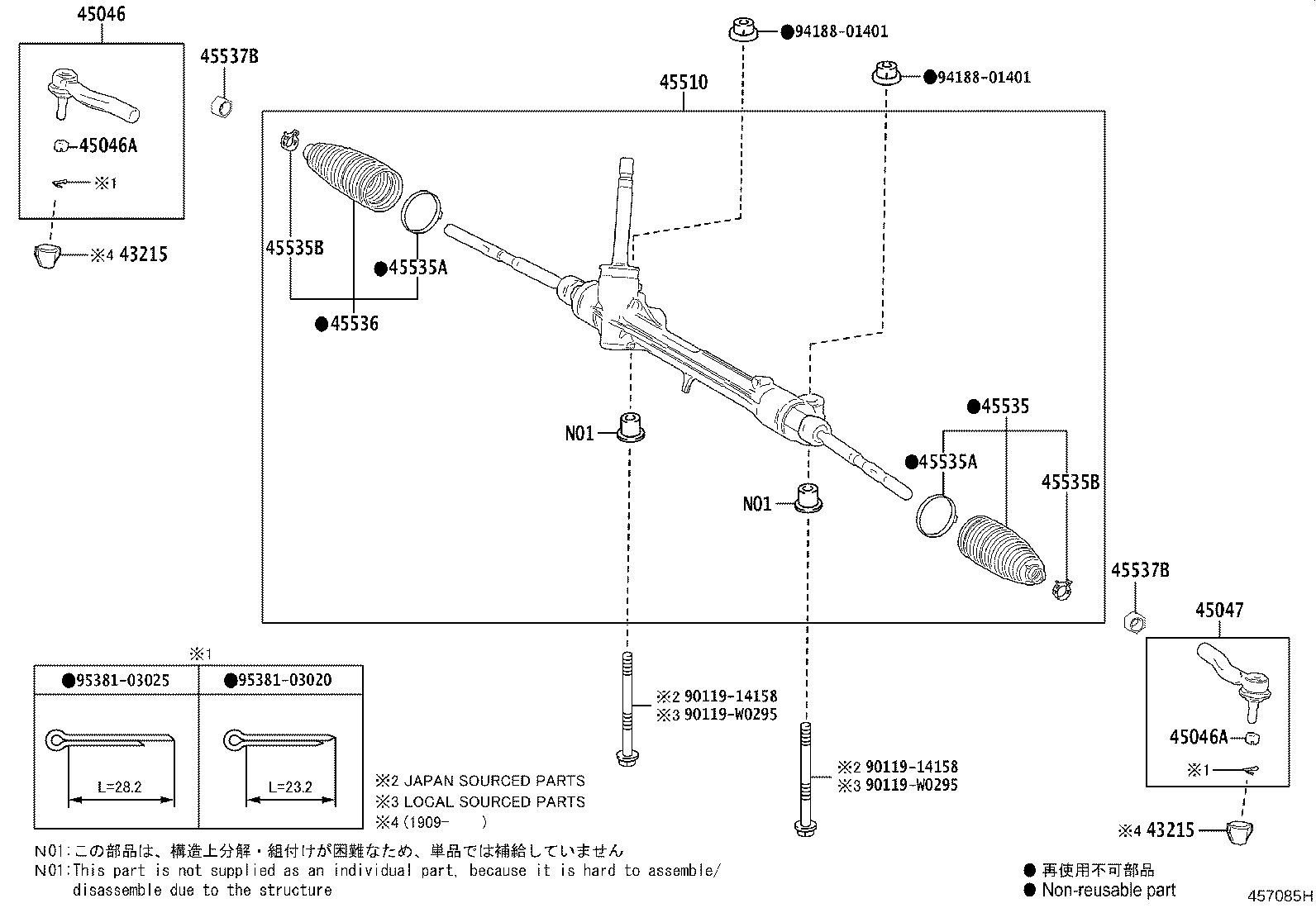

Exploded illustration 457085H 45046A — NUT, CASTLE(FOR TIE ROD END) (2 parts) 45537B — NUT, RACK END LOCK (2 parts) 45537B — NUT, RACK END LOCK (2 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (2 parts) 45536 — BOOT, STEERING RACK, NO.2 (2 parts) 45535 — BOOT, STEERING RACK, NO.1 (2 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (2 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (2 parts) 45535A — CLAMP(FOR STEERING RACK BOOT) (2 parts) 45535A — CLAMP(FOR STEERING RACK BOOT) (2 parts) 9538103020 — not listed in this catalogue 9538103025 — not listed in this catalogue 9011914158 — not listed in this catalogue 90119W0295 — not listed in this catalogue 9011914158 — not listed in this catalogue 90119W0295 — not listed in this catalogue 9418801401 — not listed in this catalogue 9418801401 — not listed in this catalogue 45510 — GEAR ASSY, STEERING (6 parts) 43215 — SEAL, STEERING KNUCKLE (1 parts) 43215 — SEAL, STEERING KNUCKLE (1 parts) 45046 — END SUB-ASSY, TIE ROD, RH (2 parts) 45047 — END SUB-ASSY, TIE ROD, LH (2 parts)
457085H · 15 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
43215 — Seal, Steering Knuckle
43215-12010 Seal, Steering Knuckle
2019-09 → —
NGX10,50,ZYX10 —
45046 — End Sub-assy, Tie Rod, RH
45046-F9010 End Sub-assy, Tie Rod, RH
2016-10 → 2019-09 ended
NGX10,50 —
45046-F9010 End Sub-assy, Tie Rod, RH
2019-09 → —
NGX10,50,ZYX10 —
45046A — Nut, Castle(FOR TIE ROD END)
90171-12028 Nut, Castle(FOR TIE ROD END)
2016-10 → 2019-09 ended
NGX10,50 —
90171-12028 Nut, Castle(FOR TIE ROD END)
2019-09 → —
NGX10,50,ZYX10 —
45047 — End Sub-assy, Tie Rod, LH
45047-F9010 End Sub-assy, Tie Rod, LH
2016-10 → 2019-09 ended
NGX10,50 —
45047-F9010 End Sub-assy, Tie Rod, LH
2019-09 → —
NGX10,50,ZYX10 —
45510 — Gear Assy, Steering
45510-F4010 Gear Assy, Steering
2016-10 → 2019-09 ended
NGX10,50 LHD —
45510-F4020 Gear Assy, Steering
2016-10 → 2019-09 ended
NGX10,50 RHD —
45510-F4010 Gear Assy, Steering
2019-09 → 2023-09 ended
NGX10,50,ZYX10 LHD —
45510-F4011 Gear Assy, Steering
2023-10 → —
NGX10,50,ZYX10 LHD —
45510-F4020 Gear Assy, Steering
2019-09 → 2023-09 ended
NGX10 RHD —
45510-F4021 Gear Assy, Steering
2023-10 → —
NGX10 RHD —
45535 — Boot, Steering Rack, NO.1
45535-F9010 Boot, Steering Rack, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
45535-F9010 Boot, Steering Rack, NO.1
2019-09 → —
NGX10,50,ZYX10 —
45535A — Clamp(FOR STEERING RACK BOOT)
45538-F4010 Clamp(FOR STEERING RACK BOOT)
2016-10 → 2019-09 ended
NGX10,50 —
45538-F4010 Clamp(FOR STEERING RACK BOOT)
2019-09 → —
NGX10,50,ZYX10 —
45535B — Clip(FOR STEERING RACK BOOT)
45537-02010 Clip(FOR STEERING RACK BOOT)
2016-10 → 2019-09 ended
NGX10,50 —
45537-02010 Clip(FOR STEERING RACK BOOT)
2019-09 → —
NGX10,50,ZYX10 —
45536 — Boot, Steering Rack, NO.2
45535-F9010 Boot, Steering Rack, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
45535-F9010 Boot, Steering Rack, NO.2
2019-09 → —
NGX10,50,ZYX10 —
45537B — Nut, Rack End Lock
90178-16001 Nut, Rack End Lock
2016-10 → 2019-09 ended
NGX10,50 —
90178-16001 Nut, Rack End Lock
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
