Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

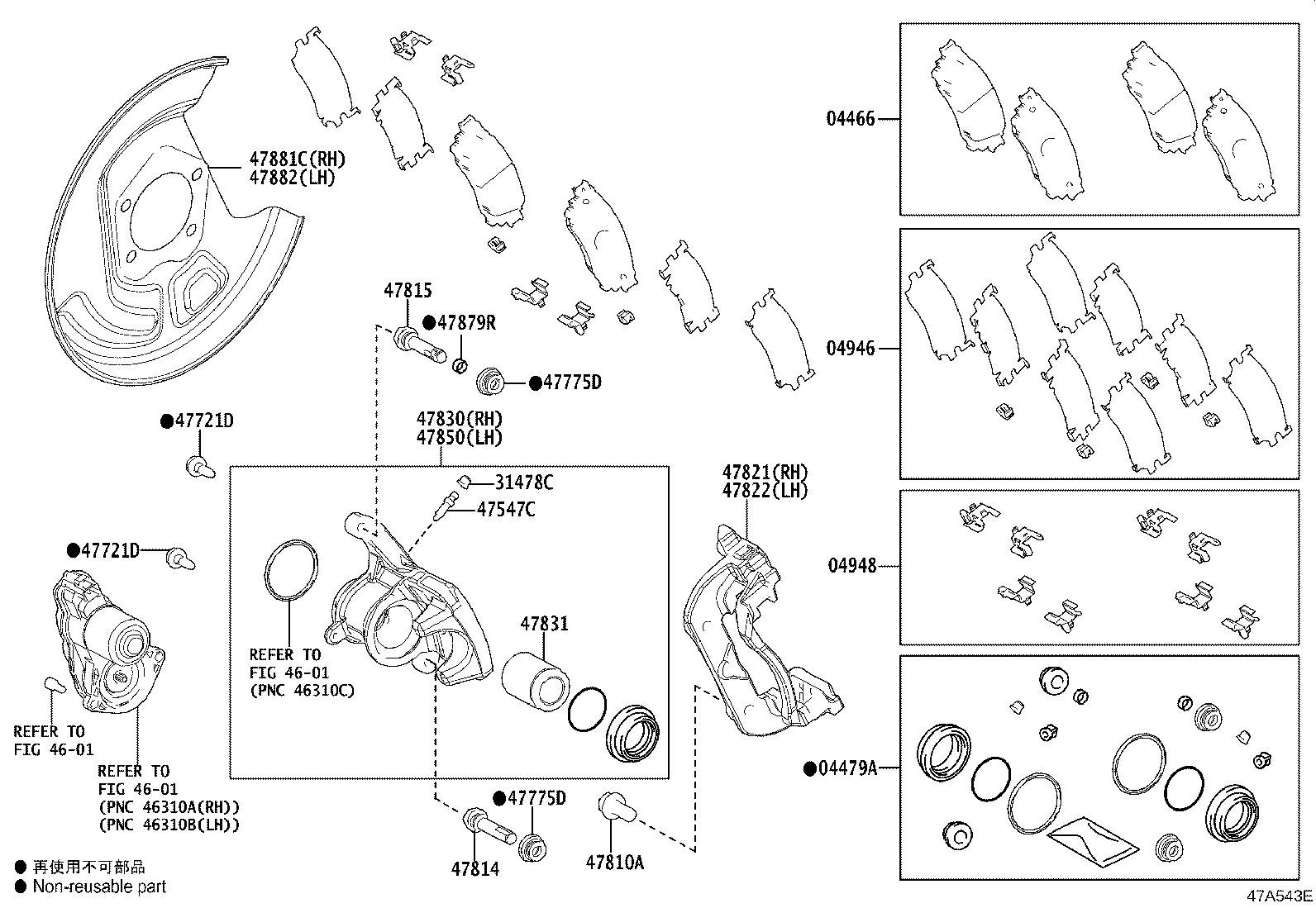

Exploded illustration 47A543E 47881C — COVER, DISC BRAKE DUST, REAR RH (3 parts) 47882 — COVER, DISC BRAKE DUST, REAR LH (3 parts) 47810A — BOLT, HEXAGON(FOR REAR CALIPER) (2 parts) 47830 — CYLINDER ASSY, DISC BRAKE, REAR RH (3 parts) 47850 — CYLINDER ASSY, DISC BRAKE, REAR LH (3 parts) 47821 — MOUNTING, REAR DISC BRAKE CYLINDER, RH (3 parts) 47822 — MOUNTING, REAR DISC BRAKE CYLINDER, LH (3 parts) 47815 — PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) (1 parts) 47879R — BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) (1 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (2 parts) 47814 — PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) (1 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (2 parts) 47831 — PISTON, REAR DISC BRAKE (3 parts) 47721D — BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) (3 parts) 47721D — BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) (3 parts) 4601 — not listed in this catalogue 4601 — not listed in this catalogue 4601 — not listed in this catalogue 31478C — CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) (3 parts) 47547C — PLUG, BLEEDER(FOR REAR DISC BRAKE) (3 parts) 04466 — PAD KIT, DISC BRAKE, REAR (3 parts) 04479A — CYLINDER KIT, DISC BRAKE, REAR (4 parts) 04946 — SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) (3 parts) 04948 — FITTING KIT, DISC BRAKE, REAR (4 parts)
47A543E · 21 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
04466 — Pad Kit, Disc Brake, Rear
04466-10010 note Pad Kit, Disc Brake, Rear
2016-10 → 2018-05 ended
NGX10,50 —
04466-F4010 note Pad Kit, Disc Brake, Rear
2018-05 → 2019-09 ended
NGX10,50 —
04466-F4010 note Pad Kit, Disc Brake, Rear
2019-09 → —
NGX10,50,ZYX10 —
04479A — Cylinder Kit, Disc Brake, Rear
04479-10090 Cylinder Kit, Disc Brake, Rear
2016-10 → 2017-05 ended
NGX10,50 —
04479-10091 Cylinder Kit, Disc Brake, Rear
2017-05 → 2018-05 ended
NGX10,50 —
04479-F4010 Cylinder Kit, Disc Brake, Rear
2018-05 → 2019-09 ended
NGX10,50 —
04479-F4010 Cylinder Kit, Disc Brake, Rear
2019-09 → —
NGX10,50,ZYX10 —
04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04946-48130 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2016-10 → 2018-05 ended
NGX10,50 —
04946-F4010 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2018-05 → 2019-09 ended
NGX10,50 —
04946-F4010 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2019-09 → —
NGX10,50,ZYX10 —
04948 — Fitting Kit, Disc Brake, Rear
04948-58010 Fitting Kit, Disc Brake, Rear
2016-10 → 2018-05 ended
NGX10,50 —
04948-F4010 Fitting Kit, Disc Brake, Rear
2018-05 → 2019-09 ended
NGX10,50 —
04948-F4010 Fitting Kit, Disc Brake, Rear
2019-09 → 2021-12 ended
NGX10,50,ZYX10 —
04948-F4020 Fitting Kit, Disc Brake, Rear
2021-12 → —
NGX10,50,ZYX10 —
31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2016-10 → 2018-05 ended
NGX10,50 —
90069-39027 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2018-05 → 2019-09 ended
NGX10,50 —
90069-39027 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2019-09 → —
NGX10,50,ZYX10 —
47547C — Plug, Bleeder(FOR REAR DISC BRAKE)
47547-20010 Plug, Bleeder(FOR REAR DISC BRAKE)
2016-10 → 2018-05 ended
NGX10,50 —
47547-F4030 Plug, Bleeder(FOR REAR DISC BRAKE)
2018-05 → 2019-09 ended
NGX10,50 —
47547-F4030 Plug, Bleeder(FOR REAR DISC BRAKE)
2019-09 → —
NGX10,50,ZYX10 —
47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2016-10 → 2018-05 ended
NGX10,50 —
90069-31417 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2018-05 → 2019-09 ended
NGX10,50 —
90069-31417 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2019-09 → —
NGX10,50,ZYX10 —
47775D — Boot, Bush Dust(FOR REAR DISC BRAKE)
47775-52190 Boot, Bush Dust(FOR REAR DISC BRAKE)
2016-10 → 2017-05 ended
NGX10,50 —
47875-33270 Boot, Bush Dust(FOR REAR DISC BRAKE)
2017-05 → 2018-05 ended
NGX10,50 —
47810A — Bolt, Hexagon(FOR REAR CALIPER)
90105-12174 Bolt, Hexagon(FOR REAR CALIPER)
2016-10 → 2019-09 ended
NGX10,50 —
90105-12174 Bolt, Hexagon(FOR REAR CALIPER)
2019-09 → —
NGX10,50,ZYX10 —
47814 — Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47814-78010 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2016-10 → 2018-05 ended
NGX10,50 —
47815 — Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47815-78010 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2016-10 → 2018-05 ended
NGX10,50 —
47821 — Mounting, Rear Disc Brake Cylinder, RH
47821-10030 Mounting, Rear Disc Brake Cylinder, RH
2016-10 → 2018-05 ended
NGX10,50 —
47821-F9010 Mounting, Rear Disc Brake Cylinder, RH
2018-05 → 2019-09 ended
NGX10,50 —
47821-F9010 Mounting, Rear Disc Brake Cylinder, RH
2019-09 → —
NGX10,50,ZYX10 —
47822 — Mounting, Rear Disc Brake Cylinder, LH
47822-10030 Mounting, Rear Disc Brake Cylinder, LH
2016-10 → 2018-05 ended
NGX10,50 —
47822-F9010 Mounting, Rear Disc Brake Cylinder, LH
2018-05 → 2019-09 ended
NGX10,50 —
47822-F9010 Mounting, Rear Disc Brake Cylinder, LH
2019-09 → —
NGX10,50,ZYX10 —
47830 — Cylinder Assy, Disc Brake, Rear RH
47830-10030 Cylinder Assy, Disc Brake, Rear RH
2016-10 → 2018-05 ended
NGX10,50 —
47830-F4030 Cylinder Assy, Disc Brake, Rear RH
2018-05 → 2019-09 ended
NGX10,50 —
47830-F4030 Cylinder Assy, Disc Brake, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
47831 — Piston, Rear Disc Brake
47831-10030 Piston, Rear Disc Brake
2016-10 → 2018-05 ended
NGX10,50 —
47831-F4030 Piston, Rear Disc Brake
2018-05 → 2019-09 ended
NGX10,50 —
47831-F4030 Piston, Rear Disc Brake
2019-09 → —
NGX10,50,ZYX10 —
47850 — Cylinder Assy, Disc Brake, Rear LH
47850-10030 Cylinder Assy, Disc Brake, Rear LH
2016-10 → 2018-05 ended
NGX10,50 —
47850-F4030 Cylinder Assy, Disc Brake, Rear LH
2018-05 → 2019-09 ended
NGX10,50 —
47850-F4030 Cylinder Assy, Disc Brake, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
47879R — Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2016-10 → 2018-05 ended
NGX10,50 —
47881C — Cover, Disc Brake Dust, Rear RH
47881-F4010 Cover, Disc Brake Dust, Rear RH
2016-10 → 2018-05 ended
NGX10,50 —
47881-F4030 Cover, Disc Brake Dust, Rear RH
2018-05 → 2019-09 ended
NGX10,50 —
47881-F4030 Cover, Disc Brake Dust, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
47882 — Cover, Disc Brake Dust, Rear LH
47882-F4010 Cover, Disc Brake Dust, Rear LH
2016-10 → 2018-05 ended
NGX10,50 —
47882-F4030 Cover, Disc Brake Dust, Rear LH
2018-05 → 2019-09 ended
NGX10,50 —
47882-F4030 Cover, Disc Brake Dust, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
