Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

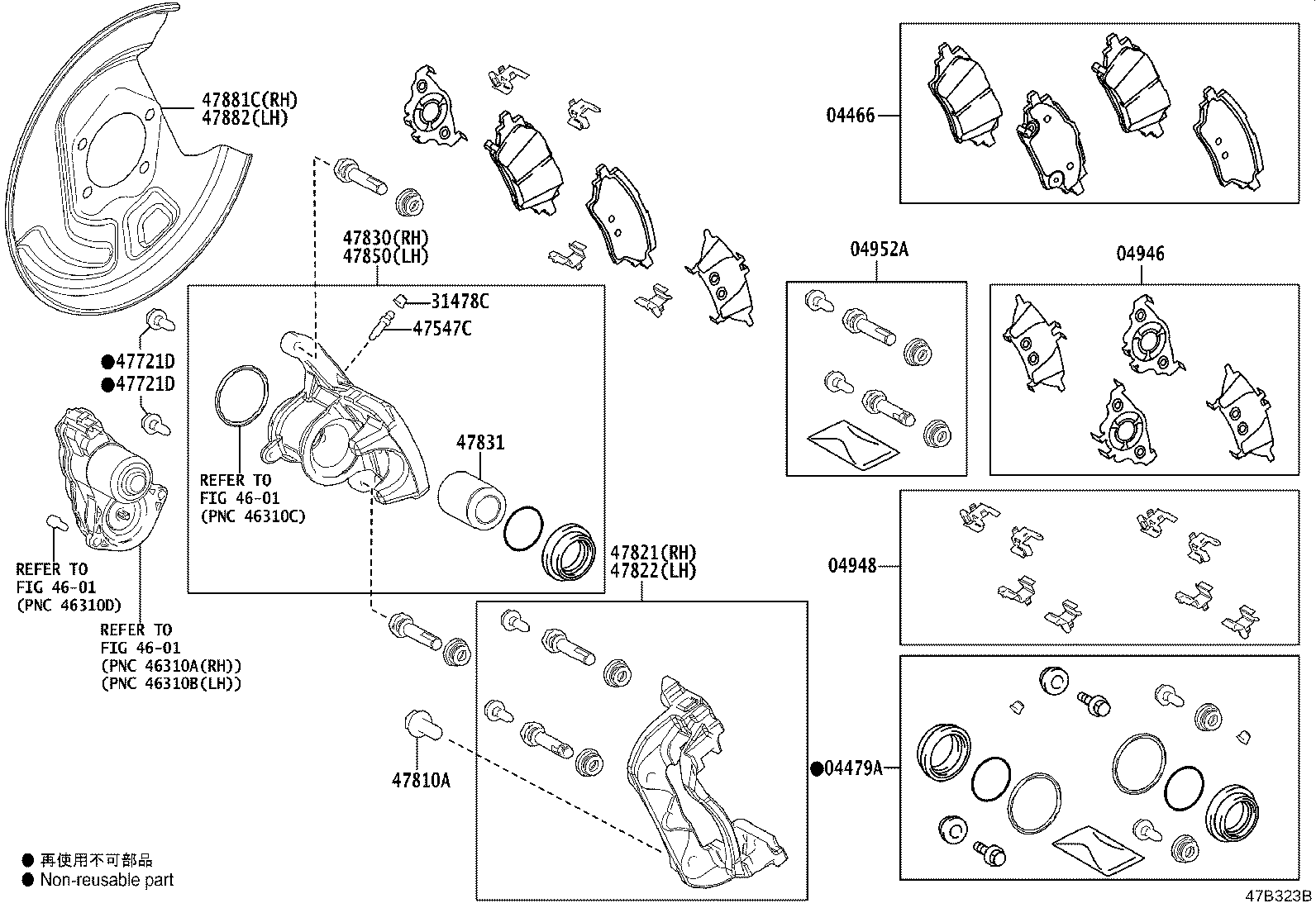

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-10010 note |
Pad Kit, Disc Brake, Rear
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 04466-F4010 note |
Pad Kit, Disc Brake, Rear
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 04466-F4010 note |
Pad Kit, Disc Brake, Rear
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-10090 |
Cylinder Kit, Disc Brake, Rear
2016-10 → 2017-05
ended
|
NGX10,50 | — | |
| 04479-10091 |
Cylinder Kit, Disc Brake, Rear
2017-05 → 2018-05
ended
|
NGX10,50 | — | |
| 04479-F4010 |
Cylinder Kit, Disc Brake, Rear
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 04479-F4010 |
Cylinder Kit, Disc Brake, Rear
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-48130 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 04946-F4010 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 04946-F4010 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-58010 |
Fitting Kit, Disc Brake, Rear
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 04948-F4010 |
Fitting Kit, Disc Brake, Rear
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 04948-F4010 |
Fitting Kit, Disc Brake, Rear
2019-09 → 2021-12
ended
|
NGX10,50,ZYX10 | — | |
| 04948-F4020 |
Fitting Kit, Disc Brake, Rear
2021-12 → —
|
NGX10,50,ZYX10 | — | |
| 04952A — Pin Kit, Rear Disc Brake Cylinder Slide | ||||
| 04952-F4020 |
Pin Kit, Rear Disc Brake Cylinder Slide
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 04952-F4020 |
Pin Kit, Rear Disc Brake Cylinder Slide
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 90069-39027 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 90069-39027 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47547-F4030 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47547-F4030 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 90069-31417 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 90069-31417 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 90105-12174 |
Bolt, Hexagon(FOR REAR CALIPER)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90105-12174 |
Bolt, Hexagon(FOR REAR CALIPER)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47821 — Mounting, Rear Disc Brake Cylinder, RH | ||||
| 47821-10030 |
Mounting, Rear Disc Brake Cylinder, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47821-F9010 |
Mounting, Rear Disc Brake Cylinder, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47821-F9010 |
Mounting, Rear Disc Brake Cylinder, RH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47822 — Mounting, Rear Disc Brake Cylinder, LH | ||||
| 47822-10030 |
Mounting, Rear Disc Brake Cylinder, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47822-F9010 |
Mounting, Rear Disc Brake Cylinder, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47822-F9010 |
Mounting, Rear Disc Brake Cylinder, LH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-10030 |
Cylinder Assy, Disc Brake, Rear RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47830-F4030 |
Cylinder Assy, Disc Brake, Rear RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47830-F4030 |
Cylinder Assy, Disc Brake, Rear RH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47831 — Piston, Rear Disc Brake | ||||
| 47831-10030 |
Piston, Rear Disc Brake
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47831-F4030 |
Piston, Rear Disc Brake
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47831-F4030 |
Piston, Rear Disc Brake
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47850-10030 |
Cylinder Assy, Disc Brake, Rear LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47850-F4030 |
Cylinder Assy, Disc Brake, Rear LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47850-F4030 |
Cylinder Assy, Disc Brake, Rear LH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47881C — Cover, Disc Brake Dust, Rear RH | ||||
| 47881-F4010 |
Cover, Disc Brake Dust, Rear RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47881-F4030 |
Cover, Disc Brake Dust, Rear RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47881-F4030 |
Cover, Disc Brake Dust, Rear RH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 47882 — Cover, Disc Brake Dust, Rear LH | ||||
| 47882-F4010 |
Cover, Disc Brake Dust, Rear LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 47882-F4030 |
Cover, Disc Brake Dust, Rear LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 47882-F4030 |
Cover, Disc Brake Dust, Rear LH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
