Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

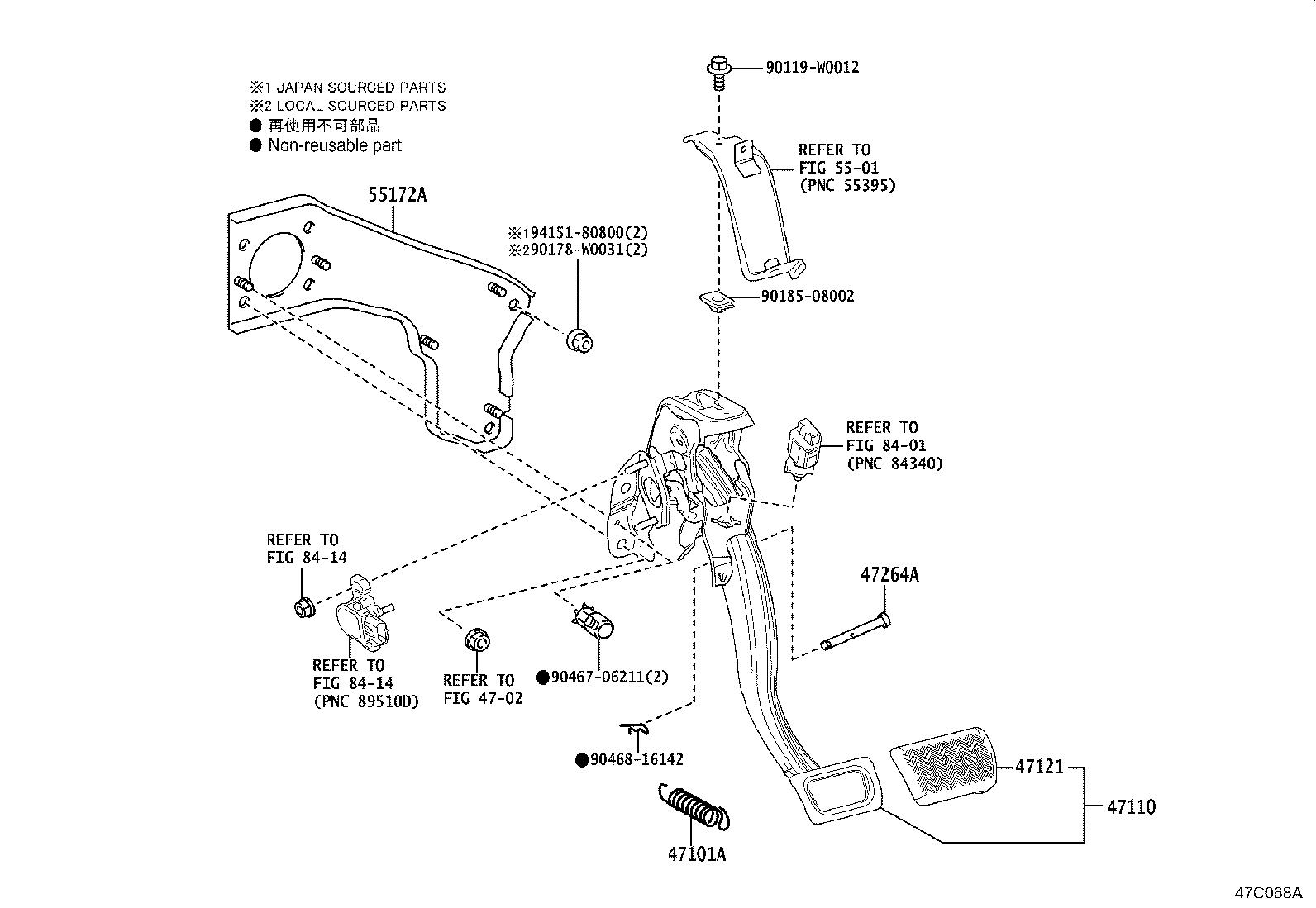

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15010 |
Spring(FOR BRAKE PEDAL RETURN)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90507-15010 |
Spring(FOR BRAKE PEDAL RETURN)
2019-09 → —
|
NGX10,50 | — | |
| 90507-16030 |
Spring(FOR BRAKE PEDAL RETURN)
2019-09 → —
|
ZYX10 | — | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-F4010 |
Support Assy, Brake Pedal
2016-10 → 2019-09
ended
|
NGX10,50 LHD CVT | — | |
| 47110-F4030 |
Support Assy, Brake Pedal
2016-10 → 2019-09
ended
|
NGX10 LHD 6F | — | |
| 47110-F4050 |
Support Assy, Brake Pedal
2016-10 → 2019-09
ended
|
NGX10,50 RHD CVT | — | |
| 47110-F4070 |
Support Assy, Brake Pedal
2016-10 → 2019-09
ended
|
NGX10 RHD 6F | — | |
| 47110-F4010 |
Support Assy, Brake Pedal
2019-09 → —
|
NGX10,50 LHD CVT | — | |
| 47110-F4030 |
Support Assy, Brake Pedal
2019-09 → —
|
NGX10 LHD 6F | — | |
| 47110-F4050 |
Support Assy, Brake Pedal
2019-09 → —
|
NGX10 RHD CVT | — | |
| 47110-F4070 |
Support Assy, Brake Pedal
2019-09 → —
|
NGX10 RHD 6F | — | |
| 47110-F4090 |
Support Assy, Brake Pedal
2019-09 → —
|
ZYX10 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-F4010 |
Pad, Brake Pedal
2016-10 → 2019-09
ended
|
NGX10,50 CVT | — | |
| 47121-F4020 |
Pad, Brake Pedal
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 47121-F4010 |
Pad, Brake Pedal
2019-09 → —
|
NGX10,50,ZYX10 CVT | — | |
| 47121-F4020 |
Pad, Brake Pedal
2019-09 → —
|
NGX10 6F | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-06187 |
Pin(FOR PUSH ROD)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90249-06187 |
Pin(FOR PUSH ROD)
2019-09 → —
|
NGX10,50 | — | |
| 90249-08221 |
Pin(FOR PUSH ROD)
2019-09 → —
|
ZYX10 | — | |
| 55172A — Base, Brake Pedal Support | ||||
| 55172-F4010 |
Base, Brake Pedal Support
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 55172-F4020 |
Base, Brake Pedal Support
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 55172-F4010 |
Base, Brake Pedal Support
2019-09 → 2019-10
ended
|
NGX10,50,ZYX10 LHD | — | |
| 55172-F4011 |
Base, Brake Pedal Support
2019-11 → —
|
NGX10,50,ZYX10 LHD | — | |
| 55172-F4020 |
Base, Brake Pedal Support
2019-09 → 2019-10
ended
|
NGX10 RHD | — | |
| 55172-F4021 |
Base, Brake Pedal Support
2019-11 → —
|
NGX10 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
