Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

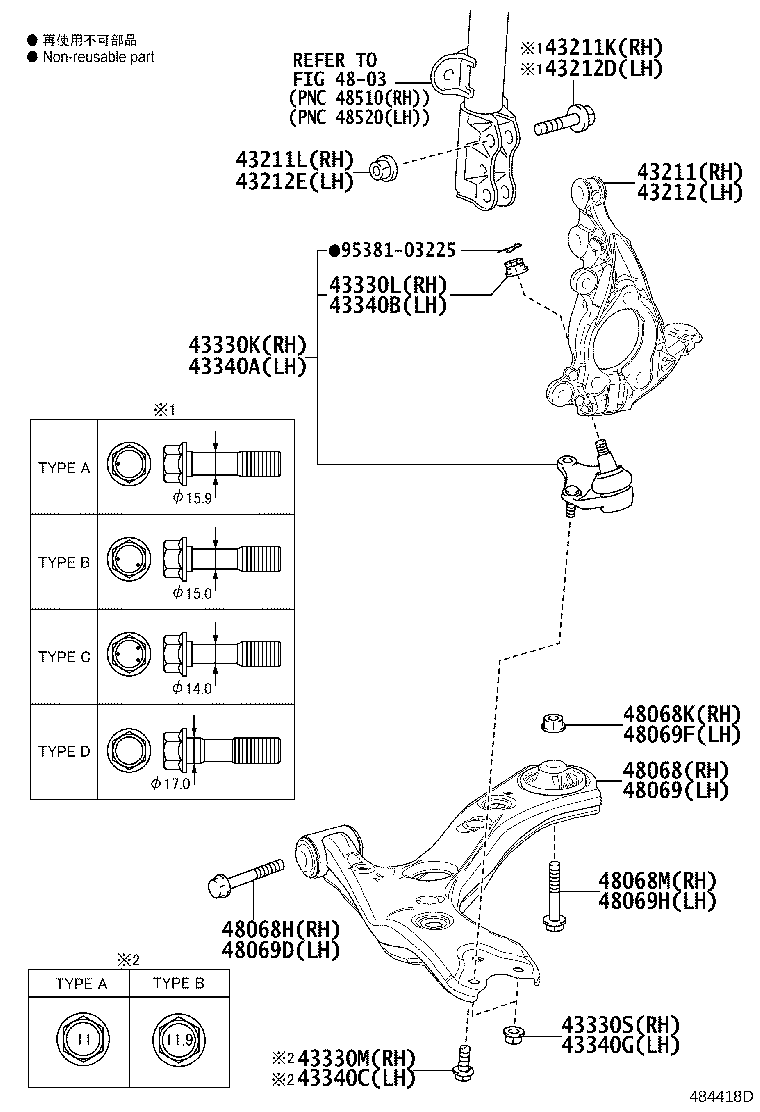

Exploded illustration 484418D 43211 — KNUCKLE, STEERING, RH (2 parts) 43212 — KNUCKLE, STEERING, LH (2 parts) 43330K — JOINT ASSY, LOWER BALL, FRONT RH (2 parts) 43330L — NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) (2 parts) 43330M — BOLT (FOR FRONT LOWER BALL JOINT RH) (5 parts) 43330S — NUT (FOR FRONT LOWER BALL JOINT RH) (2 parts) 43340A — JOINT ASSY, LOWER BALL, FRONT LH (2 parts) 43340B — NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) (2 parts) 43340C — BOLT (FOR FRONT LOWER BALL JOINT LH) (5 parts) 43340G — NUT (FOR FRONT LOWER BALL JOINT LH) (2 parts) 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (2 parts) 48068H — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) (2 parts) 48068K — NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) (4 parts) 48068M — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) (2 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (2 parts) 48069D — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) (2 parts) 48069F — NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) (4 parts) 48069H — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) (2 parts) 9538103225 — not listed in this catalogue 43211K — BOLT (FOR STEERING KNUCKLE RH) (8 parts) 43212D — BOLT (FOR STEERING KNUCKLE LH) (8 parts) 43211L — NUT (FOR STEERING KNUCKLE RH) (2 parts) 43212E — NUT (FOR STEERING KNUCKLE LH) (2 parts) 4803 — not listed in this catalogue
484418D · 22 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
43211 — Knuckle, Steering, RH
43211-F4010 Knuckle, Steering, RH
2016-10 → 2019-09 ended
NGX10,50 —
43211-F4010 Knuckle, Steering, RH
2019-09 → —
NGX10,50,ZYX10 —
43211K — Bolt (FOR STEERING KNUCKLE RH)
90105-17009 note Bolt (FOR STEERING KNUCKLE RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-17010 note Bolt (FOR STEERING KNUCKLE RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-17011 note Bolt (FOR STEERING KNUCKLE RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-W0070 note Bolt (FOR STEERING KNUCKLE RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-17009 note Bolt (FOR STEERING KNUCKLE RH)
2019-09 → —
NGX10,50,ZYX10 —
90105-17010 note Bolt (FOR STEERING KNUCKLE RH)
2019-09 → —
NGX10,50,ZYX10 —
90105-17011 note Bolt (FOR STEERING KNUCKLE RH)
2019-09 → —
NGX10,50,ZYX10 —
90105-W0070 note Bolt (FOR STEERING KNUCKLE RH)
2019-09 → —
NGX10,50,ZYX10 —
43211L — Nut (FOR STEERING KNUCKLE RH)
90178-17002 Nut (FOR STEERING KNUCKLE RH)
2016-10 → 2019-09 ended
NGX10,50 —
90178-17002 Nut (FOR STEERING KNUCKLE RH)
2019-09 → —
NGX10,50,ZYX10 —
43212 — Knuckle, Steering, LH
43212-F4010 Knuckle, Steering, LH
2016-10 → 2019-09 ended
NGX10,50 —
43212-F4010 Knuckle, Steering, LH
2019-09 → —
NGX10,50,ZYX10 —
43212D — Bolt (FOR STEERING KNUCKLE LH)
90105-17009 note Bolt (FOR STEERING KNUCKLE LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-17010 note Bolt (FOR STEERING KNUCKLE LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-17011 note Bolt (FOR STEERING KNUCKLE LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-W0070 note Bolt (FOR STEERING KNUCKLE LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-17009 note Bolt (FOR STEERING KNUCKLE LH)
2019-09 → —
NGX10,50,ZYX10 —
90105-17010 note Bolt (FOR STEERING KNUCKLE LH)
2019-09 → —
NGX10,50,ZYX10 —
90105-17011 note Bolt (FOR STEERING KNUCKLE LH)
2019-09 → —
NGX10,50,ZYX10 —
90105-W0070 note Bolt (FOR STEERING KNUCKLE LH)
2019-09 → —
NGX10,50,ZYX10 —
43212E — Nut (FOR STEERING KNUCKLE LH)
90178-17002 Nut (FOR STEERING KNUCKLE LH)
2016-10 → 2019-09 ended
NGX10,50 —
90178-17002 Nut (FOR STEERING KNUCKLE LH)
2019-09 → —
NGX10,50,ZYX10 —
43330K — Joint Assy, Lower Ball, Front RH
43330-09631 Joint Assy, Lower Ball, Front RH
2016-10 → 2019-09 ended
NGX10,50 —
43330-09631 Joint Assy, Lower Ball, Front RH
2019-09 → —
NGX10,50,ZYX10 —
43330L — Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2016-10 → 2019-09 ended
NGX10,50 —
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2019-09 → —
NGX10,50,ZYX10 —
43330M — Bolt (FOR FRONT LOWER BALL JOINT RH)
90105-12346 note Bolt (FOR FRONT LOWER BALL JOINT RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-W0077 note Bolt (FOR FRONT LOWER BALL JOINT RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-12346 note Bolt (FOR FRONT LOWER BALL JOINT RH)
2019-09 → —
NGX10,50,ZYX10 —
90105-12407 note Bolt (FOR FRONT LOWER BALL JOINT RH)
2019-09 → —
NGX10,50,ZYX10 —
90105-W0320 note Bolt (FOR FRONT LOWER BALL JOINT RH)
2023-03 → —
NGX10,50,ZYX10 —
43330S — Nut (FOR FRONT LOWER BALL JOINT RH)
90178-12019 Nut (FOR FRONT LOWER BALL JOINT RH)
2016-10 → 2019-09 ended
NGX10,50 —
90178-12019 Nut (FOR FRONT LOWER BALL JOINT RH)
2019-09 → —
NGX10,50,ZYX10 —
43340A — Joint Assy, Lower Ball, Front LH
43330-09631 Joint Assy, Lower Ball, Front LH
2016-10 → 2019-09 ended
NGX10,50 —
43330-09631 Joint Assy, Lower Ball, Front LH
2019-09 → —
NGX10,50,ZYX10 —
43340B — Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2016-10 → 2019-09 ended
NGX10,50 —
90171-14003 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2019-09 → —
NGX10,50,ZYX10 —
43340C — Bolt (FOR FRONT LOWER BALL JOINT LH)
90105-12346 note Bolt (FOR FRONT LOWER BALL JOINT LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-W0077 note Bolt (FOR FRONT LOWER BALL JOINT LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-12346 note Bolt (FOR FRONT LOWER BALL JOINT LH)
2019-09 → —
NGX10,50,ZYX10 —
90105-12407 note Bolt (FOR FRONT LOWER BALL JOINT LH)
2019-09 → —
NGX10,50,ZYX10 —
90105-W0320 note Bolt (FOR FRONT LOWER BALL JOINT LH)
2023-03 → —
NGX10,50,ZYX10 —
43340G — Nut (FOR FRONT LOWER BALL JOINT LH)
90178-12019 Nut (FOR FRONT LOWER BALL JOINT LH)
2016-10 → 2019-09 ended
NGX10,50 —
90178-12019 Nut (FOR FRONT LOWER BALL JOINT LH)
2019-09 → —
NGX10,50,ZYX10 —
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-10130 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2016-10 → 2019-09 ended
NGX10,50 —
48068-10130 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2019-09 → —
NGX10,50,ZYX10 —
48068H — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16091 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-16091 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2019-09 → —
NGX10,50,ZYX10 —
48068K — Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-W0045 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2016-10 → 2019-09 ended
NGX10,50 —
90179-14068 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2016-10 → 2019-09 ended
NGX10,50 —
90178-W0045 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2019-09 → —
NGX10,50,ZYX10 —
90179-14068 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2019-09 → —
NGX10,50,ZYX10 —
48068M — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-W0279 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2016-10 → 2019-09 ended
NGX10,50 —
90119-W0279 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2019-09 → —
NGX10,50,ZYX10 —
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-10110 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2016-10 → 2019-09 ended
NGX10,50 —
48069-10110 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2019-09 → —
NGX10,50,ZYX10 —
48069D — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16091 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2016-10 → 2019-09 ended
NGX10,50 —
90105-16091 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2019-09 → —
NGX10,50,ZYX10 —
48069F — Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-W0045 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2016-10 → 2019-09 ended
NGX10,50 —
90179-14068 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2016-10 → 2019-09 ended
NGX10,50 —
90178-W0045 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2019-09 → —
NGX10,50,ZYX10 —
90179-14068 note Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2019-09 → —
NGX10,50,ZYX10 —
48069H — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-W0279 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2016-10 → 2019-09 ended
NGX10,50 —
90119-W0279 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
