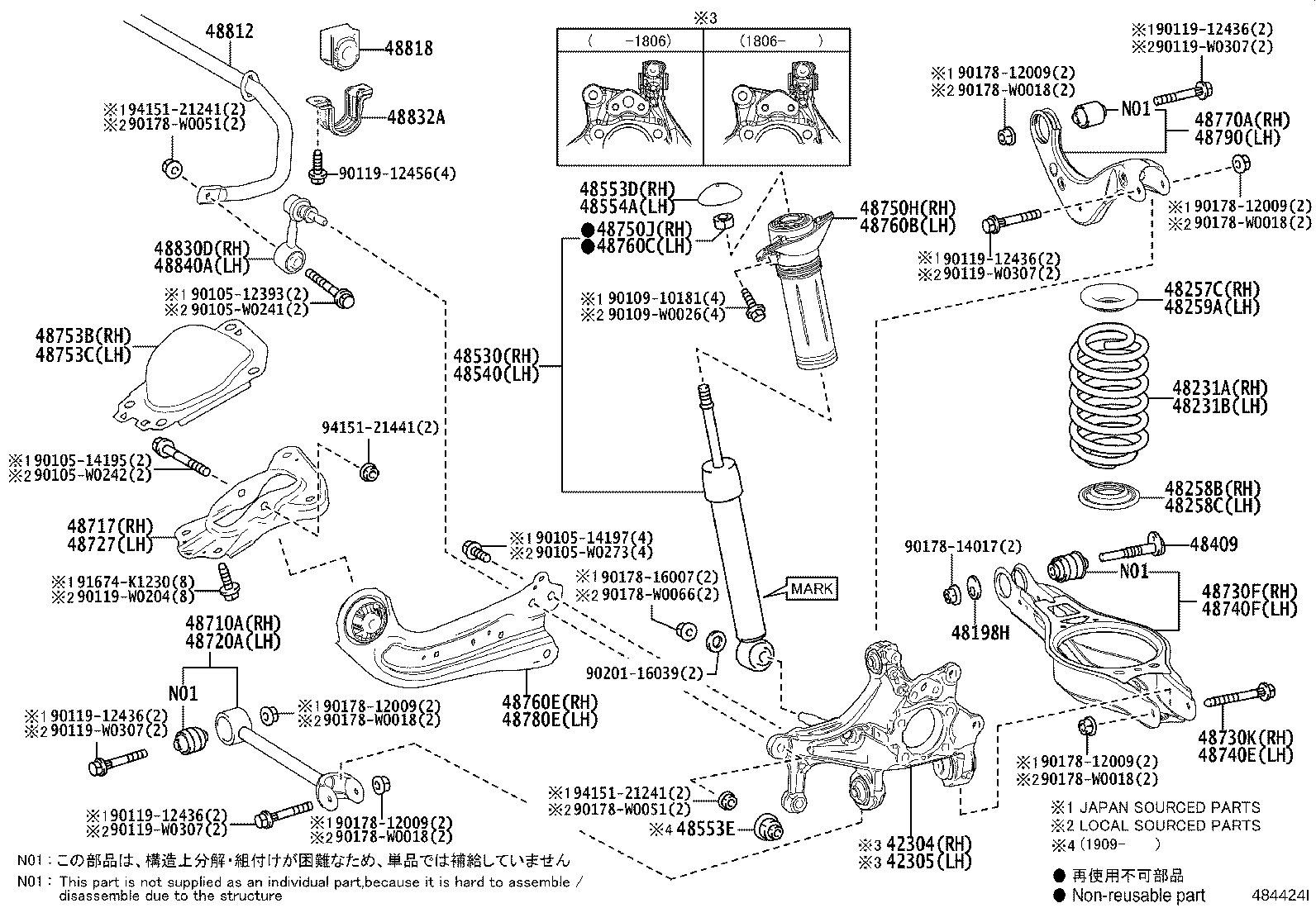

Exploded illustration 484424I 48710A — ARM ASSY, REAR SUSPENSION, NO.1 RH (3 parts) 48720A — ARM ASSY, REAR SUSPENSION, NO.1 LH (3 parts) 48730F — ARM ASSY, REAR SUSPENSION, NO.2 RH (2 parts) 48740F — ARM ASSY, REAR SUSPENSION, NO.2 LH (2 parts) 48770A — ARM ASSY, UPPER CONTROL, REAR RH (2 parts) 48790 — ARM ASSY, UPPER CONTROL, REAR LH (2 parts) 48198H — CAM, CAMBER ADJUST, NO.2 (2 parts) 48231A — SPRING, COIL, REAR RH (7 parts) 48231B — SPRING, COIL, REAR LH (7 parts) 48257C — INSULATOR, REAR COIL SPRING, UPPER RH (2 parts) 48258B — INSULATOR, REAR COIL SPRING, LOWER RH (2 parts) 48258C — INSULATOR, REAR COIL SPRING, LOWER LH (2 parts) 48259A — INSULATOR, REAR COIL SPRING, UPPER LH (2 parts) 48409 — CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST (2 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (9 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (9 parts) 48553D — CAP, REAR SHOCK ABSORBER, RH (2 parts) 48554A — CAP, REAR SHOCK ABSORBER, LH (2 parts) 48717 — BRACKET, REAR SUSPENSION ARM, RH (2 parts) 48727 — BRACKET, REAR SUSPENSION ARM, LH (2 parts) 48730K — BOLT(FOR REAR SUSPENSION ARM NO.2 RH) (4 parts) 48753B — COVER, REAR SUSPENSION SUPOPORT, NO.1 RH (2 parts) 48753C — COVER, REAR SUSPENSION SUPOPORT, NO.1 LH (2 parts) 48740E — BOLT(FOR REAR SUSPENSION ARM NO.2 LH) (4 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (2 parts) 48750J — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) (2 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (2 parts) 48760C — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) (2 parts) 48760E — ARM ASSY, TRAILING, REAR RH (3 parts) 48780E — ARM ASSY, TRAILING, REAR LH (3 parts) 48812 — BAR, STABILIZER, REAR (4 parts) 48818 — BUSH, STABILIZER, REAR (5 parts) 48830D — LINK ASSY, REAR STABILIZER, RH (2 parts) 48832A — BRACKET, REAR STABILIZER BAR, NO.1 (4 parts) 48840A — LINK ASSY, REAR STABILIZER, LH (2 parts) 9010512393 — not listed in this catalogue 90105W0241 — not listed in this catalogue 9010910181 — not listed in this catalogue 90109W0026 — not listed in this catalogue 9011912456 — not listed in this catalogue 9011912436 — not listed in this catalogue 90119W0307 — not listed in this catalogue 9011912436 — not listed in this catalogue 90119W0307 — not listed in this catalogue 90119W0307 — not listed in this catalogue 9011912436 — not listed in this catalogue 9011912436 — not listed in this catalogue 90119W0307 — not listed in this catalogue 9017812009 — not listed in this catalogue 90178W0018 — not listed in this catalogue 9017812009 — not listed in this catalogue 90178W0018 — not listed in this catalogue 9017812009 — not listed in this catalogue 90178W0018 — not listed in this catalogue 90178W0018 — not listed in this catalogue 9017812009 — not listed in this catalogue 9017812009 — not listed in this catalogue 90178W0018 — not listed in this catalogue 9017814017 — not listed in this catalogue 9020116039 — not listed in this catalogue 91674K1230 — not listed in this catalogue 90119W0204 — not listed in this catalogue 9010514195 — not listed in this catalogue 90105W0242 — not listed in this catalogue 9010514197 — not listed in this catalogue 90105W0273 — not listed in this catalogue 9415121241 — not listed in this catalogue 90178W0051 — not listed in this catalogue 9415121241 — not listed in this catalogue 90178W0051 — not listed in this catalogue 9415121441 — not listed in this catalogue 42304 — CARRIER SUB-ASSY, REAR AXLE, RH (3 parts) 42305 — CARRIER SUB-ASSY, REAR AXLE, LH (3 parts) 9017816007 — not listed in this catalogue 90178W0066 — not listed in this catalogue 48553E — CAP (1 parts)
484424I · 38 callouts, 38 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
42304 — Carrier Sub-assy, Rear Axle, RH
42304-F4030 Carrier Sub-assy, Rear Axle, RH
2016-10 → 2018-06 ended
NGX10,50 —
42304-F4031 Carrier Sub-assy, Rear Axle, RH
2018-06 → 2019-09 ended
NGX10,50 —
42304-F4031 Carrier Sub-assy, Rear Axle, RH
2019-09 → —
NGX10,50,ZYX10 —
42305 — Carrier Sub-assy, Rear Axle, LH
42305-F4030 Carrier Sub-assy, Rear Axle, LH
2016-10 → 2018-06 ended
NGX10,50 —
42305-F4031 Carrier Sub-assy, Rear Axle, LH
2018-06 → 2019-09 ended
NGX10,50 —
42305-F4031 Carrier Sub-assy, Rear Axle, LH
2019-09 → —
NGX10,50,ZYX10 —
48198H — Cam, Camber Adjust, NO.2
48198-47010 Cam, Camber Adjust, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
48198-47010 Cam, Camber Adjust, NO.2
2019-09 → —
NGX10,50,ZYX10 —
48231A — Spring, Coil, Rear RH
48231-F4010 Spring, Coil, Rear RH
2016-10 → 2019-09 ended
NGX10 —
48231-F4060 Spring, Coil, Rear RH
2016-10 → 2017-08 ended
NGX50 —
48231-F4061 Spring, Coil, Rear RH
2017-09 → 2018-01 ended
NGX50 —
48231-F4180 Spring, Coil, Rear RH
2018-02 → 2019-09 ended
NGX50 —
48231-F4010 Spring, Coil, Rear RH
2019-09 → —
NGX10 —
48231-F4071 Spring, Coil, Rear RH
2019-09 → —
ZYX10 —
48231-F4180 Spring, Coil, Rear RH
2019-09 → —
NGX50 —
48231B — Spring, Coil, Rear LH
48231-F4010 Spring, Coil, Rear LH
2016-10 → 2019-09 ended
NGX10 —
48231-F4060 Spring, Coil, Rear LH
2016-10 → 2017-08 ended
NGX50 —
48231-F4061 Spring, Coil, Rear LH
2017-09 → 2018-01 ended
NGX50 —
48231-F4180 Spring, Coil, Rear LH
2018-02 → 2019-09 ended
NGX50 —
48231-F4010 Spring, Coil, Rear LH
2019-09 → —
NGX10 —
48231-F4071 Spring, Coil, Rear LH
2019-09 → —
ZYX10 —
48231-F4180 Spring, Coil, Rear LH
2019-09 → —
NGX50 —
48257C — Insulator, Rear Coil Spring, Upper RH
48257-F4010 Insulator, Rear Coil Spring, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
48257-F4010 Insulator, Rear Coil Spring, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
48258B — Insulator, Rear Coil Spring, Lower RH
48258-F4010 Insulator, Rear Coil Spring, Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
48258-F4010 Insulator, Rear Coil Spring, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
48258C — Insulator, Rear Coil Spring, Lower LH
48258-F4010 Insulator, Rear Coil Spring, Lower LH
2016-10 → 2019-09 ended
NGX10,50 —
48258-F4010 Insulator, Rear Coil Spring, Lower LH
2019-09 → —
NGX10,50,ZYX10 —
48259A — Insulator, Rear Coil Spring, Upper LH
48257-F4010 Insulator, Rear Coil Spring, Upper LH
2016-10 → 2019-09 ended
NGX10,50 —
48257-F4010 Insulator, Rear Coil Spring, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
48409 — Cam Sub-assy, Rear Suspension Toe Adjust
48409-47011 Cam Sub-assy, Rear Suspension Toe Adjust
2016-10 → 2019-09 ended
NGX10,50 —
48409-47011 Cam Sub-assy, Rear Suspension Toe Adjust
2019-09 → —
NGX10,50,ZYX10 —
48530 — Absorber Assy, Shock, Rear RH
48530-F9010 note Absorber Assy, Shock, Rear RH
2016-10 → 2019-09 ended
NGX10 —
48530-F9030 note Absorber Assy, Shock, Rear RH
2016-10 → 2019-09 ended
NGX50 —
48530-F9090 note Absorber Assy, Shock, Rear RH
2019-02 → 2019-09 ended
NGX10 LHD —
48530-F9100 note Absorber Assy, Shock, Rear RH
2019-02 → 2019-09 ended
NGX50 LHD —
48530-F9010 note Absorber Assy, Shock, Rear RH
2019-09 → —
NGX10 —
48530-F9020 note Absorber Assy, Shock, Rear RH
2019-09 → —
ZYX10 —
48530-F9030 note Absorber Assy, Shock, Rear RH
2019-09 → —
NGX50 —
48530-F9090 note Absorber Assy, Shock, Rear RH
2019-09 → —
NGX10 LHD CVT —
48530-F9100 note Absorber Assy, Shock, Rear RH
2019-09 → —
NGX50 E —
48540 — Absorber Assy, Shock, Rear LH
48530-F9010 note Absorber Assy, Shock, Rear LH
2016-10 → 2019-09 ended
NGX10 —
48530-F9030 note Absorber Assy, Shock, Rear LH
2016-10 → 2019-09 ended
NGX50 —
48530-F9090 note Absorber Assy, Shock, Rear LH
2019-02 → 2019-09 ended
NGX10 LHD —
48530-F9100 note Absorber Assy, Shock, Rear LH
2019-02 → 2019-09 ended
NGX50 LHD —
48530-F9010 note Absorber Assy, Shock, Rear LH
2019-09 → —
NGX10 —
48530-F9020 note Absorber Assy, Shock, Rear LH
2019-09 → —
ZYX10 —
48530-F9030 note Absorber Assy, Shock, Rear LH
2019-09 → —
NGX50 —
48530-F9090 note Absorber Assy, Shock, Rear LH
2019-09 → —
NGX10 LHD CVT —
48530-F9100 note Absorber Assy, Shock, Rear LH
2019-09 → —
NGX50 E —
48553D — Cap, Rear Shock Absorber, RH
48553-F4010 Cap, Rear Shock Absorber, RH
2016-10 → 2019-09 ended
NGX10,50 —
48553-F4010 Cap, Rear Shock Absorber, RH
2019-09 → —
NGX10,50,ZYX10 —
48553E — Cap
48553-52030 Cap
2019-09 → —
NGX10,50,ZYX10 —
48554A — Cap, Rear Shock Absorber, LH
48553-F4010 Cap, Rear Shock Absorber, LH
2016-10 → 2019-09 ended
NGX10,50 —
48553-F4010 Cap, Rear Shock Absorber, LH
2019-09 → —
NGX10,50,ZYX10 —
48710A — Arm Assy, Rear Suspension, NO.1 RH
48710-02090 Arm Assy, Rear Suspension, NO.1 RH
2018-11 → 2019-09 ended
NGX10,50 —
48710-47010 Arm Assy, Rear Suspension, NO.1 RH
2016-10 → 2018-11 ended
NGX10,50 —
48710-02090 Arm Assy, Rear Suspension, NO.1 RH
2019-09 → —
NGX10,50,ZYX10 —
48717 — Bracket, Rear Suspension Arm, RH
48717-F4010 Bracket, Rear Suspension Arm, RH
2016-10 → 2019-09 ended
NGX10,50 —
48717-F4010 Bracket, Rear Suspension Arm, RH
2019-09 → —
NGX10,50,ZYX10 —
48720A — Arm Assy, Rear Suspension, NO.1 LH
48710-02090 Arm Assy, Rear Suspension, NO.1 LH
2018-11 → 2019-09 ended
NGX10,50 —
48710-47010 Arm Assy, Rear Suspension, NO.1 LH
2016-10 → 2018-11 ended
NGX10,50 —
48710-02090 Arm Assy, Rear Suspension, NO.1 LH
2019-09 → —
NGX10,50,ZYX10 —
48727 — Bracket, Rear Suspension Arm, LH
48727-F4010 Bracket, Rear Suspension Arm, LH
2016-10 → 2019-09 ended
NGX10,50 —
48727-F4010 Bracket, Rear Suspension Arm, LH
2019-09 → —
NGX10,50,ZYX10 —
48730F — Arm Assy, Rear Suspension, NO.2 RH
48730-F4010 Arm Assy, Rear Suspension, NO.2 RH
2016-10 → 2019-09 ended
NGX10,50 —
48730-F4010 Arm Assy, Rear Suspension, NO.2 RH
2019-09 → —
NGX10,50,ZYX10 —
48730K — Bolt(FOR REAR SUSPENSION ARM NO.2 RH)
90119-12426 note Bolt(FOR REAR SUSPENSION ARM NO.2 RH)
2016-10 → 2019-09 ended
NGX10,50 —
90119-W0278 note Bolt(FOR REAR SUSPENSION ARM NO.2 RH)
2016-10 → 2019-09 ended
NGX10,50 —
90119-12426 note Bolt(FOR REAR SUSPENSION ARM NO.2 RH)
2019-09 → —
NGX10,50,ZYX10 —
90119-W0278 note Bolt(FOR REAR SUSPENSION ARM NO.2 RH)
2019-09 → —
NGX10,50,ZYX10 —
48740E — Bolt(FOR REAR SUSPENSION ARM NO.2 LH)
90119-12426 note Bolt(FOR REAR SUSPENSION ARM NO.2 LH)
2016-10 → 2019-09 ended
NGX10,50 —
90119-W0278 note Bolt(FOR REAR SUSPENSION ARM NO.2 LH)
2016-10 → 2019-09 ended
NGX10,50 —
90119-12426 note Bolt(FOR REAR SUSPENSION ARM NO.2 LH)
2019-09 → —
NGX10,50,ZYX10 —
90119-W0278 note Bolt(FOR REAR SUSPENSION ARM NO.2 LH)
2019-09 → —
NGX10,50,ZYX10 —
48740F — Arm Assy, Rear Suspension, NO.2 LH
48730-F4010 Arm Assy, Rear Suspension, NO.2 LH
2016-10 → 2019-09 ended
NGX10,50 —
48730-F4010 Arm Assy, Rear Suspension, NO.2 LH
2019-09 → —
NGX10,50,ZYX10 —
48750H — Support Assy, Rear Suspension, RH
48750-F4010 Support Assy, Rear Suspension, RH
2016-10 → 2019-09 ended
NGX10,50 —
48750-F4010 Support Assy, Rear Suspension, RH
2019-09 → —
NGX10,50,ZYX10 —
48750J — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
94130-61200 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2016-10 → 2019-09 ended
NGX10,50 —
94130-61200 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2019-09 → —
NGX10,50,ZYX10 —
48753B — Cover, Rear Suspension Supoport, NO.1 RH
48753-F4010 Cover, Rear Suspension Supoport, NO.1 RH
2016-10 → 2019-09 ended
NGX10,50 —
48753-F4010 Cover, Rear Suspension Supoport, NO.1 RH
2019-09 → —
NGX10,50,ZYX10 —
48753C — Cover, Rear Suspension Supoport, NO.1 LH
48753-F4020 Cover, Rear Suspension Supoport, NO.1 LH
2016-10 → 2019-09 ended
NGX10,50 —
48753-F4020 Cover, Rear Suspension Supoport, NO.1 LH
2019-09 → —
NGX10,50,ZYX10 —
48760B — Support Assy Rear Suspension, LH
48750-F4010 Support Assy Rear Suspension, LH
2016-10 → 2019-09 ended
NGX10,50 —
48750-F4010 Support Assy Rear Suspension, LH
2019-09 → —
NGX10,50,ZYX10 —
48760C — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
94130-61200 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2016-10 → 2019-09 ended
NGX10,50 —
94130-61200 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2019-09 → —
NGX10,50,ZYX10 —
48760E — Arm Assy, Trailing, Rear RH
48760-F4010 Arm Assy, Trailing, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
48760-F4020 note Arm Assy, Trailing, Rear RH
2016-10 → 2019-09 ended
NGX10,50 LHD —
48760-F4010 Arm Assy, Trailing, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
48770A — Arm Assy, Upper Control, Rear RH
48770-F4010 Arm Assy, Upper Control, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
48770-F4010 Arm Assy, Upper Control, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
48780E — Arm Assy, Trailing, Rear LH
48780-F4010 Arm Assy, Trailing, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
48780-F4020 note Arm Assy, Trailing, Rear LH
2016-10 → 2019-09 ended
NGX10,50 LHD —
48780-F4010 Arm Assy, Trailing, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
48790 — Arm Assy, Upper Control, Rear LH
48790-F4010 Arm Assy, Upper Control, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
48790-F4010 Arm Assy, Upper Control, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
48812 — Bar, Stabilizer, Rear
48812-F4010 Bar, Stabilizer, Rear
2016-10 → 2019-09 ended
NGX10 —
48812-F4020 Bar, Stabilizer, Rear
2016-10 → 2019-09 ended
NGX50 —
48812-F4010 Bar, Stabilizer, Rear
2019-09 → —
NGX10,ZYX10 —
48812-F4020 Bar, Stabilizer, Rear
2019-09 → —
NGX50 —
48818 — Bush, Stabilizer, Rear
48818-10022 Bush, Stabilizer, Rear
2019-04 → 2019-09 ended
NGX50 —
48818-F4010 Bush, Stabilizer, Rear
2016-10 → 2019-09 ended
NGX10 —
48818-F4020 Bush, Stabilizer, Rear
2016-10 → 2019-03 ended
NGX50 —
48818-10022 Bush, Stabilizer, Rear
2019-09 → —
NGX50 —
48818-F4010 Bush, Stabilizer, Rear
2019-09 → —
NGX10,ZYX10 —
48830D — Link Assy, Rear Stabilizer, RH
48830-47010 Link Assy, Rear Stabilizer, RH
2016-10 → 2019-09 ended
NGX10,50 —
48830-47010 Link Assy, Rear Stabilizer, RH
2019-09 → —
NGX10,50,ZYX10 —
48832A — Bracket, Rear Stabilizer Bar, NO.1
48832-F4010 Bracket, Rear Stabilizer Bar, NO.1
2016-10 → 2019-09 ended
NGX10 —
48832-F4020 Bracket, Rear Stabilizer Bar, NO.1
2016-10 → 2019-09 ended
NGX50 —
48832-F4010 Bracket, Rear Stabilizer Bar, NO.1
2019-09 → —
NGX10,ZYX10 —
48832-F4020 Bracket, Rear Stabilizer Bar, NO.1
2019-09 → —
NGX50 —
48840A — Link Assy, Rear Stabilizer, LH
48830-47010 Link Assy, Rear Stabilizer, LH
2016-10 → 2019-09 ended
NGX10,50 —
48830-47010 Link Assy, Rear Stabilizer, LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
