Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

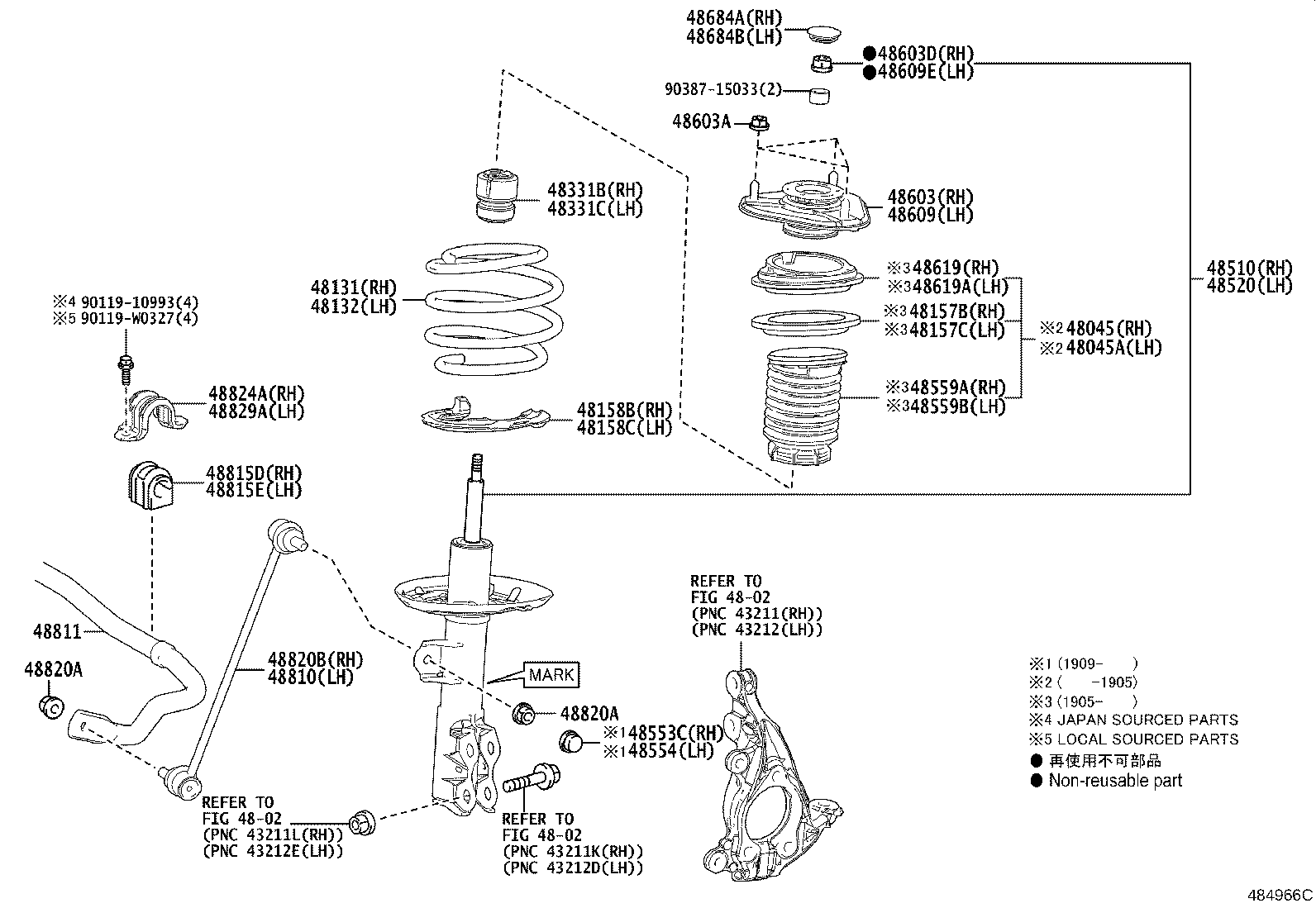

Exploded illustration 484966C 48045 — SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR (1 parts) 48045A — SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR (1 parts) 48131 — SPRING, FRONT COIL, RH (7 parts) 48132 — SPRING, FRONT COIL, LH (7 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (2 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (2 parts) 48331B — BUMPER, FRONT SPRING, RH (2 parts) 48331C — BUMPER, FRONT SPRING, LH (2 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (11 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (11 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (2 parts) 48603A — NUT(FOR FRONT SUSPENSION SUPPORT) (3 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (2 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (2 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (2 parts) 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (2 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (2 parts) 48811 — BAR, STABILIZER, FRONT (2 parts) 48815D — BUSH, FRONT STABILIZER BAR, RH (3 parts) 48815E — BUSH, FRONT STABILIZER BAR, LH (3 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (4 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (4 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (2 parts) 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (2 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (2 parts) 9011910993 — not listed in this catalogue 9038715033 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue 48553C — CAP, FRONT SHOCK ABSORBER, RH (1 parts) 48554 — CAP, FRONT SHOCK ABSORBER, LH (1 parts) 48559A — COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 (3 parts) 48559B — COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 (3 parts) 48619 — BEARING, STRUT MOUNTING, RH (2 parts) 48619A — BEARING, STRUT MOUNTING, LH (2 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (2 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (2 parts) 90119W0327 — not listed in this catalogue
484966C · 34 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
97 parts on this figure
Part number Description Fitment Price
48045 — Seat Sub-assy, Front Spring RH, W/Insulator
48045-F4010 Seat Sub-assy, Front Spring RH, W/Insulator
2016-10 → 2019-05 ended
NGX10,50 —
48045A — Seat Sub-assy, Front Spring LH, W/Insulator
48045-F4010 Seat Sub-assy, Front Spring LH, W/Insulator
2016-10 → 2019-05 ended
NGX10,50 —
48131 — Spring, Front Coil, RH
48131-F4010 Spring, Front Coil, RH
2016-10 → 2018-05 ended
NGX10 —
48131-F4011 Spring, Front Coil, RH
2018-06 → 2019-09 ended
NGX10 —
48131-F4020 Spring, Front Coil, RH
2016-10 → 2018-05 ended
NGX50 —
48131-F4021 Spring, Front Coil, RH
2018-06 → 2019-09 ended
NGX50 —
48131-F4011 Spring, Front Coil, RH
2019-09 → —
NGX10 —
48131-F4021 Spring, Front Coil, RH
2019-09 → —
NGX50 —
48131-F4061 Spring, Front Coil, RH
2019-09 → —
ZYX10 —
48132 — Spring, Front Coil, LH
48131-F4010 Spring, Front Coil, LH
2016-10 → 2018-05 ended
NGX10 —
48131-F4011 Spring, Front Coil, LH
2018-06 → 2019-09 ended
NGX10 —
48131-F4020 Spring, Front Coil, LH
2016-10 → 2018-05 ended
NGX50 —
48131-F4021 Spring, Front Coil, LH
2018-06 → 2019-09 ended
NGX50 —
48131-F4011 Spring, Front Coil, LH
2019-09 → —
NGX10 —
48131-F4021 Spring, Front Coil, LH
2019-09 → —
NGX50 —
48131-F4061 Spring, Front Coil, LH
2019-09 → —
ZYX10 —
48157B — Insulator, Front Coil Spring, Upper RH
48157-F4010 Insulator, Front Coil Spring, Upper RH
2019-05 → 2019-09 ended
NGX10,50 —
48157-F4010 Insulator, Front Coil Spring, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
48157C — Insulator, Front Coil Spring, Upper LH
48157-F4010 Insulator, Front Coil Spring, Upper LH
2019-05 → 2019-09 ended
NGX10,50 —
48157-F4010 Insulator, Front Coil Spring, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
48158B — Insulator, Front Coil Spring, Lower RH
48158-F4010 Insulator, Front Coil Spring, Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
48158-F4010 Insulator, Front Coil Spring, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
48158C — Insulator, Front Coil Spring, Lower LH
48158-F4010 Insulator, Front Coil Spring, Lower LH
2016-10 → 2019-09 ended
NGX10,50 —
48158-F4010 Insulator, Front Coil Spring, Lower LH
2019-09 → —
NGX10,50,ZYX10 —
48331B — Bumper, Front Spring, RH
48331-F4010 Bumper, Front Spring, RH
2016-10 → 2019-09 ended
NGX10,50 —
48331-F4010 Bumper, Front Spring, RH
2019-09 → —
NGX10,50,ZYX10 —
48331C — Bumper, Front Spring, LH
48331-F4010 Bumper, Front Spring, LH
2016-10 → 2019-09 ended
NGX10,50 —
48331-F4010 Bumper, Front Spring, LH
2019-09 → —
NGX10,50,ZYX10 —
48510 — Absorber Assy, Shock, Front RH
48510-F9010 note Absorber Assy, Shock, Front RH
2016-10 → 2018-05 ended
NGX10 —
48510-F9011 note Absorber Assy, Shock, Front RH
2018-05 → 2019-09 ended
NGX10 —
48510-F9030 note Absorber Assy, Shock, Front RH
2016-10 → 2018-05 ended
NGX50 —
48510-F9031 note Absorber Assy, Shock, Front RH
2018-05 → 2019-09 ended
NGX50 —
48510-F9120 note Absorber Assy, Shock, Front RH
2019-02 → 2019-09 ended
NGX10 LHD —
48510-F9130 note Absorber Assy, Shock, Front RH
2019-02 → 2019-09 ended
NGX50 LHD —
48510-F9011 note Absorber Assy, Shock, Front RH
2019-09 → —
NGX10 —
48510-F9021 note Absorber Assy, Shock, Front RH
2019-09 → —
ZYX10 —
48510-F9031 note Absorber Assy, Shock, Front RH
2019-09 → —
NGX50 —
48510-F9120 note Absorber Assy, Shock, Front RH
2019-09 → —
NGX10 LHD CVT —
48510-F9130 note Absorber Assy, Shock, Front RH
2019-09 → —
NGX50 E —
48520 — Absorber Assy, Shock, Front LH
48520-F9010 note Absorber Assy, Shock, Front LH
2016-10 → 2018-05 ended
NGX10 —
48520-F9011 note Absorber Assy, Shock, Front LH
2018-05 → 2019-09 ended
NGX10 —
48520-F9030 note Absorber Assy, Shock, Front LH
2016-10 → 2018-05 ended
NGX50 —
48520-F9031 note Absorber Assy, Shock, Front LH
2018-05 → 2019-09 ended
NGX50 —
48520-F9120 note Absorber Assy, Shock, Front LH
2019-02 → 2019-09 ended
NGX10 LHD —
48520-F9130 note Absorber Assy, Shock, Front LH
2019-02 → 2019-09 ended
NGX50 LHD —
48520-F9011 note Absorber Assy, Shock, Front LH
2019-09 → —
NGX10 —
48520-F9021 note Absorber Assy, Shock, Front LH
2019-09 → —
ZYX10 —
48520-F9031 note Absorber Assy, Shock, Front LH
2019-09 → —
NGX50 —
48520-F9120 note Absorber Assy, Shock, Front LH
2019-09 → —
NGX10 LHD CVT —
48520-F9130 note Absorber Assy, Shock, Front LH
2019-09 → —
NGX50 E —
48553C — Cap, Front Shock Absorber, RH
48553-52030 Cap, Front Shock Absorber, RH
2019-09 → —
NGX10,50,ZYX10 —
48554 — Cap, Front Shock Absorber, LH
48553-52030 Cap, Front Shock Absorber, LH
2019-09 → —
NGX10,50,ZYX10 —
48559A — Cover, Front Shock Absorber Dust, RH NO.1
48559-F4010 Cover, Front Shock Absorber Dust, RH NO.1
2019-05 → 2019-06 ended
NGX10,50 —
48559-F4011 Cover, Front Shock Absorber Dust, RH NO.1
2019-07 → 2019-09 ended
NGX10,50 —
48559-F4011 Cover, Front Shock Absorber Dust, RH NO.1
2019-09 → —
NGX10,50,ZYX10 —
48559B — Cover, Front Shock Absorber Dust, LH NO.1
48559-F4010 Cover, Front Shock Absorber Dust, LH NO.1
2019-05 → 2019-06 ended
NGX10,50 —
48559-F4011 Cover, Front Shock Absorber Dust, LH NO.1
2019-07 → 2019-09 ended
NGX10,50 —
48559-F4011 Cover, Front Shock Absorber Dust, LH NO.1
2019-09 → —
NGX10,50,ZYX10 —
48603 — Support Sub-assy, Front Suspension, RH
48609-F4010 Support Sub-assy, Front Suspension, RH
2016-10 → 2019-09 ended
NGX10,50 —
48609-F4010 Support Sub-assy, Front Suspension, RH
2019-09 → —
NGX10,50,ZYX10 —
48603A — Nut(FOR FRONT SUSPENSION SUPPORT)
90178-10029 Nut(FOR FRONT SUSPENSION SUPPORT)
2016-10 → 2019-09 ended
NGX10,50 —
90178-10029 note Nut(FOR FRONT SUSPENSION SUPPORT)
2019-09 → —
NGX10,50,ZYX10 —
90178-W0060 note Nut(FOR FRONT SUSPENSION SUPPORT)
2019-09 → —
NGX10,50,ZYX10 —
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90177-14005 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2016-10 → 2019-09 ended
NGX10,50 —
90177-14005 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2019-09 → —
NGX10,50,ZYX10 —
48609 — Support Sub-assy, Front Suspension, LH
48609-F4010 Support Sub-assy, Front Suspension, LH
2016-10 → 2019-09 ended
NGX10,50 —
48609-F4010 Support Sub-assy, Front Suspension, LH
2019-09 → —
NGX10,50,ZYX10 —
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90177-14005 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2016-10 → 2019-09 ended
NGX10,50 —
90177-14005 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2019-09 → —
NGX10,50,ZYX10 —
48619 — Bearing, Strut Mounting, RH
48619-F4010 Bearing, Strut Mounting, RH
2019-05 → 2019-09 ended
NGX10,50 —
48619-F4010 Bearing, Strut Mounting, RH
2019-09 → —
NGX10,50,ZYX10 —
48619A — Bearing, Strut Mounting, LH
48619-F4010 Bearing, Strut Mounting, LH
2019-05 → 2019-09 ended
NGX10,50 —
48619-F4010 Bearing, Strut Mounting, LH
2019-09 → —
NGX10,50,ZYX10 —
48684A — Cover, Front Suspension Support Dust, RH
48684-52010 Cover, Front Suspension Support Dust, RH
2016-10 → 2019-09 ended
NGX10,50 —
48684-52010 Cover, Front Suspension Support Dust, RH
2019-09 → —
NGX10,50,ZYX10 —
48684B — Cover, Front Suspension Support Dust, LH
48684-52010 Cover, Front Suspension Support Dust, LH
2016-10 → 2019-09 ended
NGX10,50 —
48684-52010 Cover, Front Suspension Support Dust, LH
2019-09 → —
NGX10,50,ZYX10 —
48810 — Link Assy, Front Stabilizer, LH
48820-47040 Link Assy, Front Stabilizer, LH
2016-10 → 2019-09 ended
NGX10,50 —
48820-47040 Link Assy, Front Stabilizer, LH
2019-09 → —
NGX10,50,ZYX10 —
48811 — Bar, Stabilizer, Front
48811-F4010 Bar, Stabilizer, Front
2016-10 → 2019-09 ended
NGX10,50 —
48811-F4010 Bar, Stabilizer, Front
2019-09 → —
NGX10,50,ZYX10 —
48815D — Bush, Front Stabilizer Bar, RH
48815-F4010 Bush, Front Stabilizer Bar, RH
2016-10 → 2017-11 ended
NGX10,50 —
48815-F4011 Bush, Front Stabilizer Bar, RH
2017-12 → 2019-09 ended
NGX10,50 —
48815-F4011 Bush, Front Stabilizer Bar, RH
2019-09 → —
NGX10,50,ZYX10 —
48815E — Bush, Front Stabilizer Bar, LH
48815-F4010 Bush, Front Stabilizer Bar, LH
2016-10 → 2017-11 ended
NGX10,50 —
48815-F4011 Bush, Front Stabilizer Bar, LH
2017-12 → 2019-09 ended
NGX10,50 —
48815-F4011 Bush, Front Stabilizer Bar, LH
2019-09 → —
NGX10,50,ZYX10 —
48820A — Nut(FOR FRONT STABILIZER LINK)
90178-W0051 note Nut(FOR FRONT STABILIZER LINK)
2016-10 → 2019-09 ended
NGX10,50 —
94151-21241 note Nut(FOR FRONT STABILIZER LINK)
2016-10 → 2019-09 ended
NGX10,50 —
90178-W0051 note Nut(FOR FRONT STABILIZER LINK)
2019-09 → —
NGX10,50,ZYX10 —
94151-21241 note Nut(FOR FRONT STABILIZER LINK)
2019-09 → —
NGX10,50,ZYX10 —
48820B — Link Assy, Front Stabilizer, RH
48820-47040 Link Assy, Front Stabilizer, RH
2016-10 → 2019-09 ended
NGX10,50 —
48820-47040 Link Assy, Front Stabilizer, RH
2019-09 → —
NGX10,50,ZYX10 —
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-F4010 Bracket, Front Stabilizer, NO.1 RH
2016-10 → 2019-09 ended
NGX10,50 —
48824-F4010 Bracket, Front Stabilizer, NO.1 RH
2019-09 → —
NGX10,50,ZYX10 —
48829A — Bracket, Front Stabilizer, NO.1 LH
48824-F4010 Bracket, Front Stabilizer, NO.1 LH
2016-10 → 2019-09 ended
NGX10,50 —
48824-F4010 Bracket, Front Stabilizer, NO.1 LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
