Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

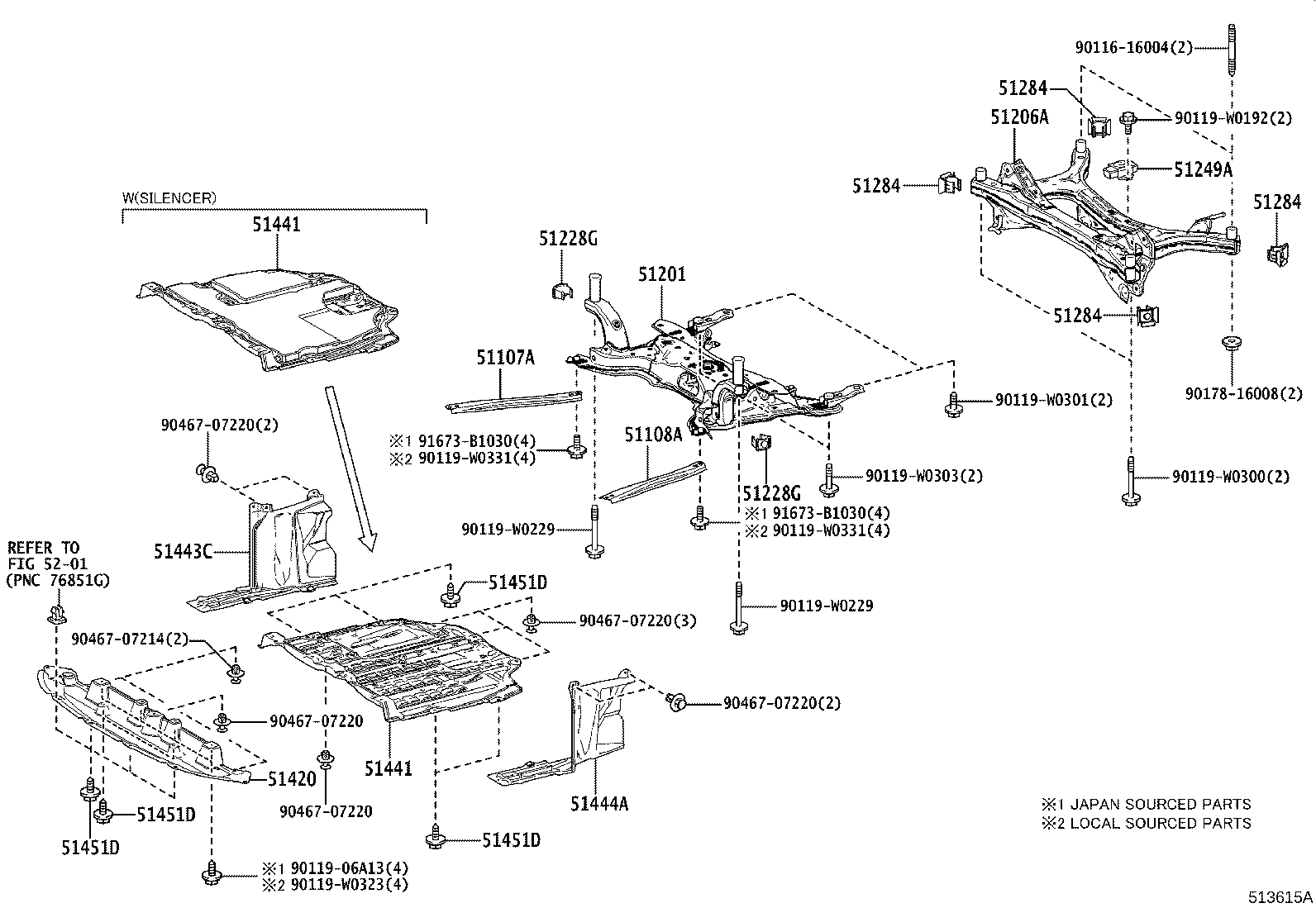

Exploded illustration 513615A 51107A — REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH (2 parts) 51108A — REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH (2 parts) 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (5 parts) 51206A — MEMBER SUB-ASSY, REAR SUSPENSION (8 parts) 51228G — PLATE, FRONT SUSPENSION MEMBER (2 parts) 51228G — PLATE, FRONT SUSPENSION MEMBER (2 parts) 51249A — DAMPER, REAR SUSPENSION MEMBER (2 parts) 51284 — COVER, REAR SUSPENSION MEMBER HOLE (2 parts) 51284 — COVER, REAR SUSPENSION MEMBER HOLE (2 parts) 51284 — COVER, REAR SUSPENSION MEMBER HOLE (2 parts) 51284 — COVER, REAR SUSPENSION MEMBER HOLE (2 parts) 51420 — COVER ASSY, ENGINE UNDER, NO.2 (2 parts) 51441 — COVER, ENGINE UNDER, NO.1 (5 parts) 51443C — COVER, ENGINE UNDER, REAR RH (2 parts) 51444A — COVER, ENGINE UNDER, REAR LH (2 parts) 9011616004 — not listed in this catalogue 90119W0323 — not listed in this catalogue 9011906A13 — not listed in this catalogue 90119W0192 — not listed in this catalogue 90119W0229 — not listed in this catalogue 90119W0300 — not listed in this catalogue 90119W0229 — not listed in this catalogue 90119W0301 — not listed in this catalogue 90119W0303 — not listed in this catalogue 9017816008 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707214 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 90119W0331 — not listed in this catalogue 90119W0331 — not listed in this catalogue 91673B1030 — not listed in this catalogue 91673B1030 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (5 parts) 51451D — SCREW, NO.1 (5 parts) 51451D — SCREW, NO.1 (5 parts) 51451D — SCREW, NO.1 (5 parts) 5201 — not listed in this catalogue
513615A · 19 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
51107A — Reinforcement Sub-assy, Side Rail, Rear RH
51151-F4010 Reinforcement Sub-assy, Side Rail, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
51151-F4010 Reinforcement Sub-assy, Side Rail, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
51108A — Reinforcement Sub-assy, Side Rail, Rear LH
51151-F4010 Reinforcement Sub-assy, Side Rail, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
51151-F4010 Reinforcement Sub-assy, Side Rail, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
51201 — Crossmember Sub-assy, Front Suspension
51201-F4010 Crossmember Sub-assy, Front Suspension
2016-10 → 2017-07 ended
NGX10,50 —
51201-F4011 Crossmember Sub-assy, Front Suspension
2017-08 → 2017-09 ended
NGX10,50 —
51201-F4012 Crossmember Sub-assy, Front Suspension
2017-10 → 2019-07 ended
NGX10,50 —
51201-F4013 Crossmember Sub-assy, Front Suspension
2019-08 → 2019-09 ended
NGX10,50 —
51201-F4013 Crossmember Sub-assy, Front Suspension
2019-09 → —
NGX10,50,ZYX10 —
51206A — Member Sub-assy, Rear Suspension
51206-F4011 Member Sub-assy, Rear Suspension
2016-10 → 2016-11 ended
NGX10 —
51206-F4012 Member Sub-assy, Rear Suspension
2016-11 → 2017-05 ended
NGX10 —
51206-F4013 Member Sub-assy, Rear Suspension
2017-05 → 2019-09 ended
NGX10 —
51206-F4020 Member Sub-assy, Rear Suspension
2016-10 → 2016-11 ended
NGX50 —
51206-F4021 Member Sub-assy, Rear Suspension
2016-11 → 2017-05 ended
NGX50 —
51206-F4022 Member Sub-assy, Rear Suspension
2017-05 → 2019-09 ended
NGX50 —
51206-F4013 Member Sub-assy, Rear Suspension
2019-09 → —
NGX10,ZYX10 —
51206-F4022 Member Sub-assy, Rear Suspension
2019-09 → —
NGX50 —
51228G — Plate, Front Suspension Member
51228-F4010 Plate, Front Suspension Member
2016-10 → 2019-09 ended
NGX10,50 —
51228-F4010 Plate, Front Suspension Member
2019-09 → —
NGX10,50,ZYX10 —
51249A — Damper, Rear Suspension Member
51249-F4010 Damper, Rear Suspension Member
2016-10 → 2019-09 ended
NGX10 —
51249-F4010 Damper, Rear Suspension Member
2019-09 → —
NGX10,ZYX10 —
51284 — Cover, Rear Suspension Member Hole
51284-F4010 Cover, Rear Suspension Member Hole
2016-10 → 2019-09 ended
NGX10,50 —
51284-F4010 Cover, Rear Suspension Member Hole
2019-09 → —
NGX10,50,ZYX10 —
51420 — Cover Assy, Engine Under, NO.2
51420-F4010 Cover Assy, Engine Under, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
51420-F4010 Cover Assy, Engine Under, NO.2
2019-09 → —
NGX10,50,ZYX10 —
51441 — Cover, Engine Under, NO.1
51410-F4010 Cover, Engine Under, NO.1
2016-10 → 2019-09 ended
NGX10 —
51410-F4020 Cover, Engine Under, NO.1
2016-10 → 2019-09 ended
NGX50 —
51410-F4100 Cover, Engine Under, NO.1
2019-09 → —
ZYX10 —
51410-F4110 Cover, Engine Under, NO.1
2019-09 → —
NGX10 —
51410-F4120 Cover, Engine Under, NO.1
2019-09 → —
NGX50 —
51443C — Cover, Engine Under, Rear RH
51443-F4010 Cover, Engine Under, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
51443-F4010 Cover, Engine Under, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
51444A — Cover, Engine Under, Rear LH
51444-F4010 Cover, Engine Under, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
51444-F4010 Cover, Engine Under, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
51451D — Screw, NO.1
90159-60477 Screw, NO.1
2016-10 → 2018-04 ended
NGX10,50 —
90159-60477 note Screw, NO.1
2018-04 → 2019-09 ended
NGX10,50 —
90159-W0026 note Screw, NO.1
2018-04 → 2019-09 ended
NGX10,50 —
90159-60477 note Screw, NO.1
2019-09 → —
NGX10,50,ZYX10 —
90159-W0026 note Screw, NO.1
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
