Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

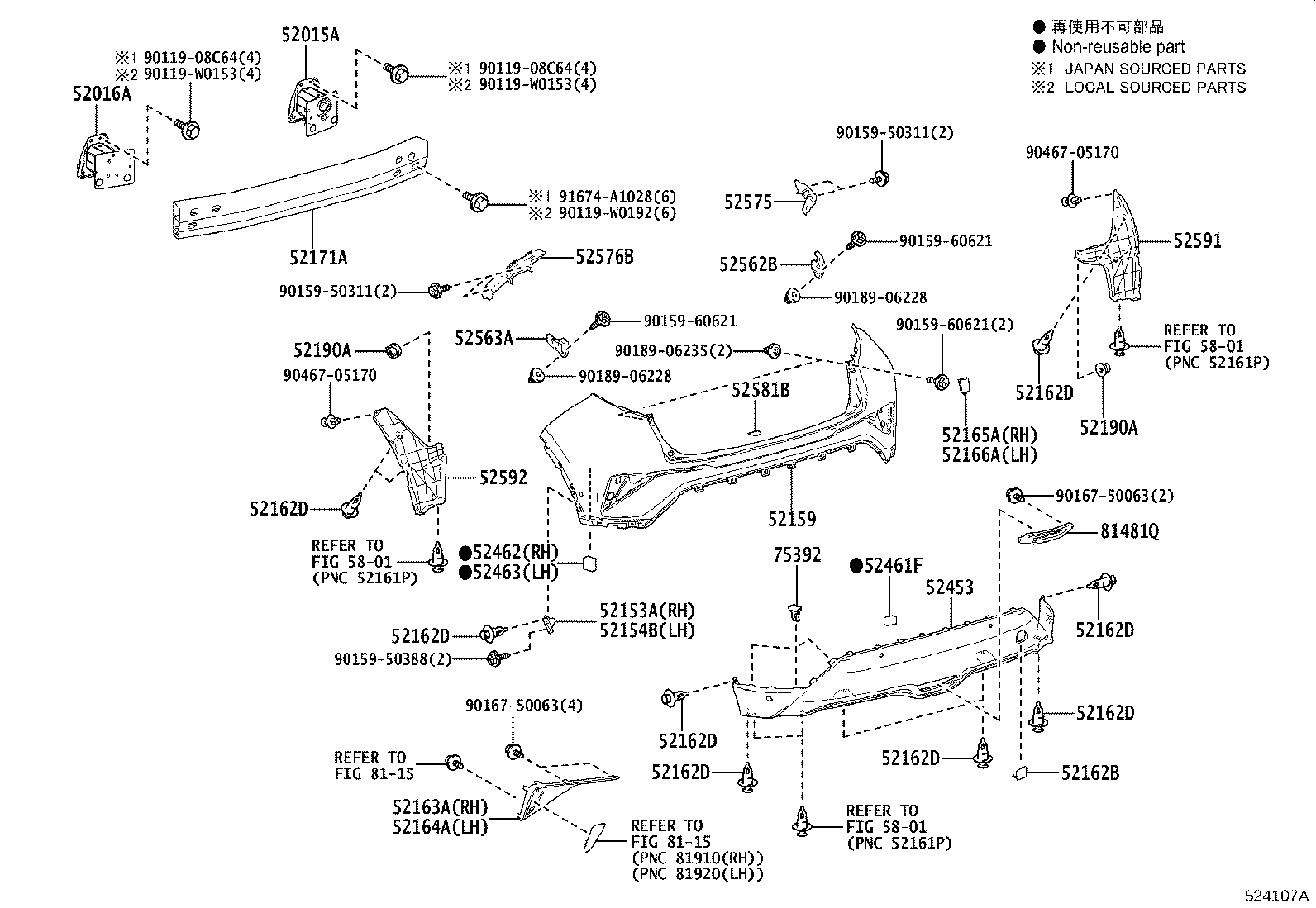

Exploded illustration 524107A 8115 — not listed in this catalogue 5801 — not listed in this catalogue 52165A — COVER, REAR BUMPER, UPR RH (2 parts) 52166A — COVER, REAR BUMPER, UPR LH (2 parts) 52163A — PLATE, REAR BUMPER, RH (7 parts) 52164A — PLATE, REAR BUMPER, LH (7 parts) 52153A — STAY, REAR BUMPER SIDE, RH (2 parts) 52154B — STAY, REAR BUMPER SIDE, LH (2 parts) 52462 — PAD, REAR BUMPER, RH (2 parts) 52463 — PAD, REAR BUMPER, LH (2 parts) 52159 — COVER, REAR BUMPER (6 parts) 52162B — PLATE, REAR BUMPER, NO.1 (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52162D — PIECE, REAR BUMPER (2 parts) 52453 — GUARD, REAR BUMPER, CENTER (7 parts) 52461F — PAD, REAR BUMPER (2 parts) 52562B — RETAINER, REAR BUMPER, UPPER RH (2 parts) 52563A — RETAINER, REAR BUMPER, UPPER LH (2 parts) 52575 — RETAINER, REAR BUMPER SIDE, RH (2 parts) 52576B — RETAINER, REAR BUMPER SIDE, LH (2 parts) 52581B — PROTECTOR, REAR BUMPER (2 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (2 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (2 parts) 75392 — RETAINER, OUTSIDE MOULDING (2 parts) 81481Q — BRACKET, FOG LAMP (2 parts) 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950388 — not listed in this catalogue 9015960621 — not listed in this catalogue 9015960621 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9015960621 — not listed in this catalogue 9018906228 — not listed in this catalogue 9018906228 — not listed in this catalogue 9018906235 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046705170 — not listed in this catalogue 8115 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 52190A — CLIP (2 parts) 52190A — CLIP (2 parts) 52015A — ARM SUB-ASSY, REAR BUMPER, RH (2 parts) 52171A — REINFORCEMENT, REAR BUMPER, NO.1 (1 parts) 52016A — ARM SUB-ASSY, REAR BUMPER, LH (2 parts) 9011908C64 — not listed in this catalogue 90119W0153 — not listed in this catalogue 91674A1028 — not listed in this catalogue 90119W0192 — not listed in this catalogue 9011908C64 — not listed in this catalogue 90119W0153 — not listed in this catalogue
524107A · 34 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-F4010 Arm Sub-assy, Rear Bumper, RH
2019-09 → 2020-07 ended
ZYX10 —
52015-F4011 Arm Sub-assy, Rear Bumper, RH
2020-08 → —
ZYX10 —
52016A — Arm Sub-assy, Rear Bumper, LH
52016-F4011 Arm Sub-assy, Rear Bumper, LH
2019-09 → 2020-07 ended
ZYX10 —
52016-F4012 Arm Sub-assy, Rear Bumper, LH
2020-08 → —
ZYX10 —
52153A — Stay, Rear Bumper Side, RH
52153-F4010 Stay, Rear Bumper Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
52153-F4010 Stay, Rear Bumper Side, RH
2019-09 → —
NGX10,50,ZYX10 —
52154B — Stay, Rear Bumper Side, LH
52154-F4010 Stay, Rear Bumper Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
52154-F4010 Stay, Rear Bumper Side, LH
2019-09 → —
NGX10,50,ZYX10 —
52159 — Cover, Rear Bumper
52159-F4900 note Cover, Rear Bumper
2016-10 → 2018-09 ended
NGX10,50 —
52159-F4901 note Cover, Rear Bumper
2016-10 → 2018-09 ended
NGX10,50 RHD E —
52159-F4907 note Cover, Rear Bumper
2018-09 → 2019-09 ended
NGX10,50 —
52159-F4908 note Cover, Rear Bumper
2018-09 → 2019-09 ended
NGX10,50 RHD E —
52159-F4907 note Cover, Rear Bumper
2019-09 → —
NGX10,50,ZYX10 —
52159-F4911 note Cover, Rear Bumper
2019-09 → —
NGX10 RHD E —
52162B — Plate, Rear Bumper, NO.1
52162-F4010 Plate, Rear Bumper, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
52162-F4010 Plate, Rear Bumper, NO.1
2019-09 → —
NGX10,50,ZYX10 —
52162D — Piece, Rear Bumper
52161-02030 Piece, Rear Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52161-02030 Piece, Rear Bumper
2019-09 → —
NGX10,50,ZYX10 —
52163A — Plate, Rear Bumper, RH
52163-F4020 Plate, Rear Bumper, RH
2016-10 → 2019-09 ended
NGX10,50 —
52163-F4020 Plate, Rear Bumper, RH
2019-09 → —
ZYX10 —
52163-F4100 note Plate, Rear Bumper, RH
2019-09 → —
NGX10 RHD E —
52163-F4100 note Plate, Rear Bumper, RH
2019-09 → —
NGX10 RHD E —
52163-F4100 note Plate, Rear Bumper, RH
2019-09 → —
NGX10 RHD E —
52163-F4100 note Plate, Rear Bumper, RH
2019-09 → —
NGX10 RHD E —
52163-F4110 Plate, Rear Bumper, RH
2019-09 → —
NGX10,50 —
52164A — Plate, Rear Bumper, LH
52164-F4020 Plate, Rear Bumper, LH
2016-10 → 2019-09 ended
NGX10,50 —
52164-F4020 Plate, Rear Bumper, LH
2019-09 → —
ZYX10 —
52164-F4100 note Plate, Rear Bumper, LH
2019-09 → —
NGX10 RHD E —
52164-F4100 note Plate, Rear Bumper, LH
2019-09 → —
NGX10 RHD E —
52164-F4100 note Plate, Rear Bumper, LH
2019-09 → —
NGX10 RHD E —
52164-F4100 note Plate, Rear Bumper, LH
2019-09 → —
NGX10 RHD E —
52164-F4110 Plate, Rear Bumper, LH
2019-09 → —
NGX10,50 —
52165A — Cover, Rear Bumper, Upr RH
52165-F4901 note Cover, Rear Bumper, Upr RH
2016-10 → 2019-09 ended
NGX10,50 —
52165-F4901 note Cover, Rear Bumper, Upr RH
2019-09 → —
NGX10,50,ZYX10 —
52166A — Cover, Rear Bumper, Upr LH
52166-F4901 note Cover, Rear Bumper, Upr LH
2016-10 → 2019-09 ended
NGX10,50 —
52166-F4901 note Cover, Rear Bumper, Upr LH
2019-09 → —
NGX10,50,ZYX10 —
52171A — Reinforcement, Rear Bumper, NO.1
52171-F4011 Reinforcement, Rear Bumper, NO.1
2019-09 → —
ZYX10 —
52190A — Clip
90467-06206-C0 note Clip
2016-10 → 2019-09 ended
NGX10,50 —
90467-06206-C0 note Clip
2019-09 → —
NGX10,50,ZYX10 —
52453 — Guard, Rear Bumper, Center
52453-F4010 Guard, Rear Bumper, Center
2016-10 → 2019-09 ended
NGX10,50 —
52453-F4020 note Guard, Rear Bumper, Center
2016-10 → 2019-09 ended
NGX10,50 RHD E —
52453-F4011 Guard, Rear Bumper, Center
2019-09 → —
NGX10,50,ZYX10 —
52453-F4130 note Guard, Rear Bumper, Center
2019-09 → —
NGX10 RHD E —
52453-F4130 note Guard, Rear Bumper, Center
2019-09 → —
NGX10 RHD E —
52453-F4130 note Guard, Rear Bumper, Center
2019-09 → —
NGX10 RHD E —
52453-F4130 note Guard, Rear Bumper, Center
2019-09 → —
NGX10 RHD E —
52461F — Pad, Rear Bumper
52462-F4010 Pad, Rear Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52462-F4010 Pad, Rear Bumper
2019-09 → —
NGX10,50,ZYX10 —
52462 — Pad, Rear Bumper, RH
52462-02160 Pad, Rear Bumper, RH
2016-10 → 2019-09 ended
NGX10,50 —
52462-02160 Pad, Rear Bumper, RH
2019-09 → —
NGX10,50,ZYX10 —
52463 — Pad, Rear Bumper, LH
52462-02160 Pad, Rear Bumper, LH
2016-10 → 2019-09 ended
NGX10,50 —
52462-02160 Pad, Rear Bumper, LH
2019-09 → —
NGX10,50,ZYX10 —
52562B — Retainer, Rear Bumper, Upper RH
52562-F4010 Retainer, Rear Bumper, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
52562-F4010 Retainer, Rear Bumper, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
52563A — Retainer, Rear Bumper, Upper LH
52563-F4010 Retainer, Rear Bumper, Upper LH
2016-10 → 2019-09 ended
NGX10,50 —
52563-F4010 Retainer, Rear Bumper, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
52575 — Retainer, Rear Bumper Side, RH
52575-F4010 Retainer, Rear Bumper Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
52575-F4010 Retainer, Rear Bumper Side, RH
2019-09 → —
NGX10,50,ZYX10 —
52576B — Retainer, Rear Bumper Side, LH
52576-F4010 Retainer, Rear Bumper Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
52576-F4010 Retainer, Rear Bumper Side, LH
2019-09 → —
NGX10,50,ZYX10 —
52581B — Protector, Rear Bumper
52581-02020 Protector, Rear Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52581-02020 Protector, Rear Bumper
2019-09 → —
NGX10,50,ZYX10 —
52591 — Seal, Rear Bumper Side, RH
52591-F4010 Seal, Rear Bumper Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
52591-F4010 Seal, Rear Bumper Side, RH
2019-09 → —
NGX10,50,ZYX10 —
52592 — Seal, Rear Bumper Side, LH
52592-F4010 Seal, Rear Bumper Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
52592-F4010 Seal, Rear Bumper Side, LH
2019-09 → —
NGX10,50,ZYX10 —
75392 — Retainer, Outside Moulding
75392-35200 Retainer, Outside Moulding
2016-10 → 2019-09 ended
NGX10,50 —
75392-35200 Retainer, Outside Moulding
2019-09 → —
NGX10,50,ZYX10 —
81481Q — Bracket, Fog Lamp
81481-F4040 Bracket, Fog Lamp
2016-10 → 2019-09 ended
NGX10,50 —
81481-F4040 Bracket, Fog Lamp
2019-09 → —
ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
