Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

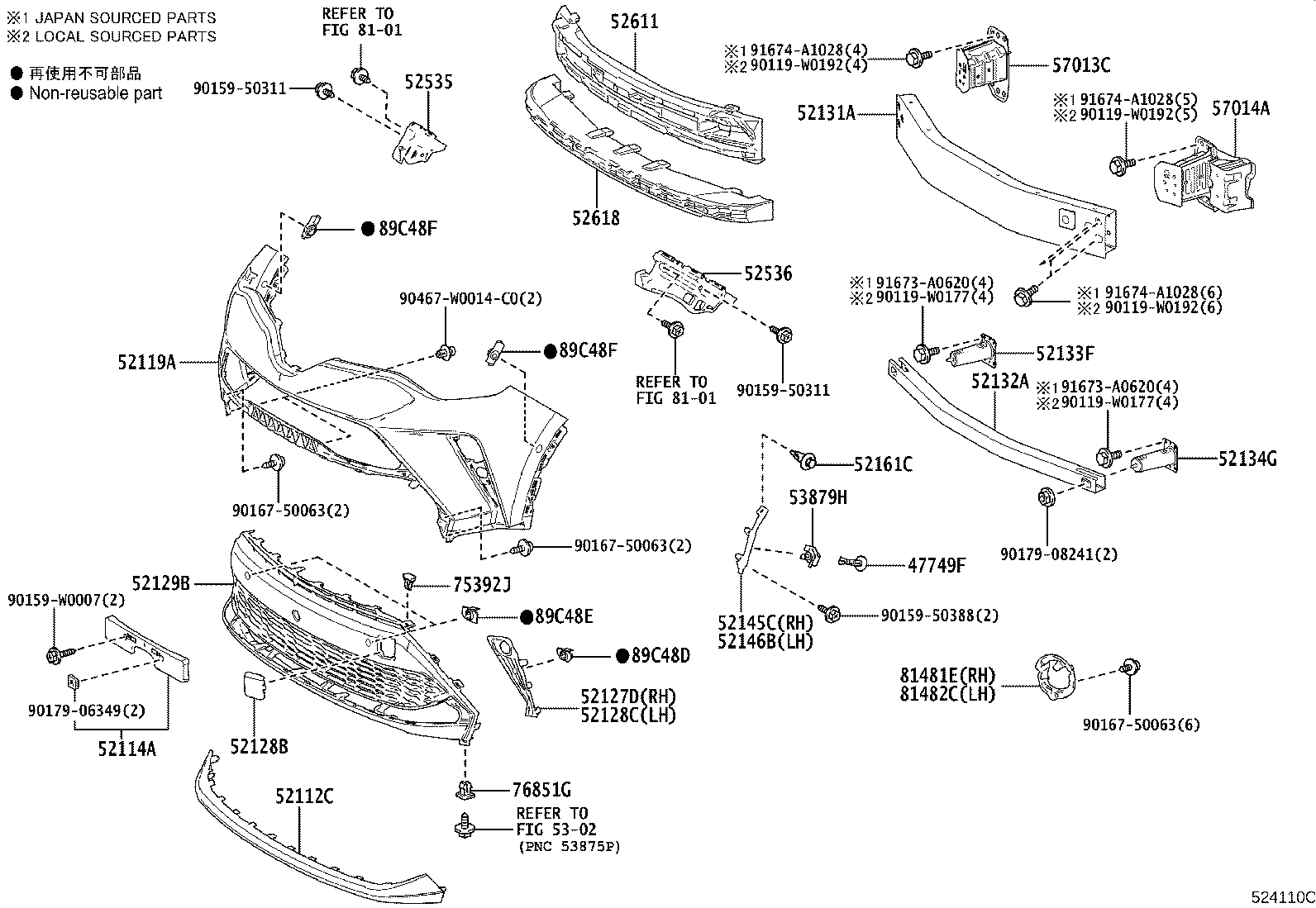

Exploded illustration 524110C 8101 — not listed in this catalogue 8101 — not listed in this catalogue 47749F — CLIP, PIN HOLD (2 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (2 parts) 52129B — COVER, FRONT BUMPER, LOWER (6 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (2 parts) 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (2 parts) 52133F — BRACKET, FRONT BUMPER, RH (2 parts) 52134G — BRACKET, FRONT BUMPER, LH (2 parts) 52145C — BRACKET, FRONT BUMPER SIDE MOUNTING, RH (2 parts) 52146B — BRACKET, FRONT BUMPER SIDE MOUNTING, LH (2 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (9 parts) 52128C — COVER, FRONT BUMPER HOLE, LH (9 parts) 81481E — COVER, FOG LAMP, RH (7 parts) 81482C — COVER, FOG LAMP, LH (7 parts) 52161C — PIECE, FRONT BUMPER (2 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (2 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (2 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (3 parts) 53879H — RETAINER, FRONT FENDER LINER (2 parts) 57013C — BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH (3 parts) 75392J — RETAINER, OUTSIDE MOULDING (2 parts) 90119W0192 — not listed in this catalogue 91674A1028 — not listed in this catalogue 90119W0177 — not listed in this catalogue 91673A0620 — not listed in this catalogue 90119W0177 — not listed in this catalogue 91673A0620 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950388 — not listed in this catalogue 90159W0007 — not listed in this catalogue 9016750063 — not listed in this catalogue 9017906349 — not listed in this catalogue 9017908241 — not listed in this catalogue 52131A — REINFORCEMENT, FRONT BUMPER (3 parts) 57014A — BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH (3 parts) 90119W0192 — not listed in this catalogue 91674A1028 — not listed in this catalogue 90119W0192 — not listed in this catalogue 91674A1028 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (6 parts) 9016750063 — not listed in this catalogue 90467W0014C0 — not listed in this catalogue 9016750063 — not listed in this catalogue 52112C — EXTENSION, FRONT BUMPER (1 parts) 76851G — GROMMET, SCREW, NO.1 (2 parts) 5302 — not listed in this catalogue 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (3 parts) 89C48E — RETAINER, ULTRASONIC SENSOR, FRONT CENTER (5 parts) 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (41 parts) 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (41 parts)
524110C · 30 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
137 parts on this figure
Part number Description Fitment Price
47749F — Clip, Pin Hold
47749-50090 Clip, Pin Hold
2016-10 → 2019-09 ended
NGX10,50 —
47749-50090 Clip, Pin Hold
2019-09 → —
NGX10,50,ZYX10 —
52112C — Extension, Front Bumper
52112-F4900 Extension, Front Bumper
2019-09 → —
NGX10,50,ZYX10 —
52114A — Bracket, Front Bumper Extension Mounting
52114-F4010 Bracket, Front Bumper Extension Mounting
2016-10 → 2019-09 ended
NGX10,50 —
52114-F4110 Bracket, Front Bumper Extension Mounting
2019-09 → —
NGX10,50,ZYX10 —
52119A — Cover, Front Bumper
52119-F4900 note Cover, Front Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52119-F4901 note Cover, Front Bumper
2016-10 → 2019-09 ended
NGX10,50 RHD E —
52119-F4901 note Cover, Front Bumper
2016-10 → 2019-09 ended
NGX10,50 RHD E —
52119-F4909 note Cover, Front Bumper
2019-09 → —
NGX10,50,ZYX10 —
52119-F4910 note Cover, Front Bumper
2019-09 → —
NGX10 RHD E —
52119-F4910 note Cover, Front Bumper
2019-09 → —
NGX10 RHD E —
52127D — Cover, Front Bumper Hole, RH
52127-F4020 Cover, Front Bumper Hole, RH
2016-10 → 2019-09 ended
NGX10,50 —
52127-F4110 Cover, Front Bumper Hole, RH
2019-09 → —
NGX10 D;ZYX10 N —
52127-F4120 Cover, Front Bumper Hole, RH
2019-09 → —
NGX10,50 E,N —
52127-F4130 note Cover, Front Bumper Hole, RH
2019-09 → —
NGX10,50 E —
52127-F4150 note Cover, Front Bumper Hole, RH
2019-09 → —
NGX10 RHD E —
52127-F4150 note Cover, Front Bumper Hole, RH
2019-09 → —
NGX10 RHD E —
52127-F4160 note Cover, Front Bumper Hole, RH
2019-09 → —
NGX10 RHD E —
52127-F4160 note Cover, Front Bumper Hole, RH
2019-09 → —
NGX10 RHD E —
52127-F4210 Cover, Front Bumper Hole, RH
2019-09 → —
ZYX10 E —
52128B — Cover, Front Bumper Hole, LH
52128-F4020 Cover, Front Bumper Hole, LH
2016-10 → 2019-09 ended
NGX10,50 —
52128-F4200 Cover, Front Bumper Hole, LH
2019-09 → —
NGX10,50,ZYX10 —
52128C — Cover, Front Bumper Hole, LH
52128-F4901 Cover, Front Bumper Hole, LH
2016-10 → 2019-09 ended
NGX10,50 —
52128-F4170 Cover, Front Bumper Hole, LH
2019-09 → —
NGX10 D;ZYX10 N —
52128-F4180 Cover, Front Bumper Hole, LH
2019-09 → —
NGX10,50 E,N —
52128-F4190 note Cover, Front Bumper Hole, LH
2019-09 → —
NGX10,50 E —
52128-F4210 note Cover, Front Bumper Hole, LH
2019-09 → —
NGX10 RHD E —
52128-F4210 note Cover, Front Bumper Hole, LH
2019-09 → —
NGX10 RHD E —
52128-F4220 note Cover, Front Bumper Hole, LH
2019-09 → —
NGX10 RHD E —
52128-F4220 note Cover, Front Bumper Hole, LH
2019-09 → —
NGX10 RHD E —
52128-F4280 Cover, Front Bumper Hole, LH
2019-09 → —
ZYX10 E —
52129B — Cover, Front Bumper, Lower
52129-F4010 Cover, Front Bumper, Lower
2016-10 → 2019-09 ended
NGX10,50 —
52129-F4130 note Cover, Front Bumper, Lower
2019-09 → —
NGX10 RHD E —
52129-F4130 note Cover, Front Bumper, Lower
2019-09 → —
NGX10 RHD E —
52129-F4130 note Cover, Front Bumper, Lower
2019-09 → —
NGX10 RHD E —
52129-F4130 note Cover, Front Bumper, Lower
2019-09 → —
NGX10 RHD E —
52129-F4140 Cover, Front Bumper, Lower
2019-09 → —
NGX10,50,ZYX10 —
52131A — Reinforcement, Front Bumper
52131-F4020 Reinforcement, Front Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52131-F4010 Reinforcement, Front Bumper
2019-09 → —
ZYX10 —
52131-F4090 Reinforcement, Front Bumper
2019-09 → —
NGX10,50 —
52132A — Reinforcement, Front Bumper, NO.2
52132-F4010 Reinforcement, Front Bumper, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
52132-F4010 Reinforcement, Front Bumper, NO.2
2019-09 → —
NGX10,50,ZYX10 —
52133F — Bracket, Front Bumper, RH
52133-F4010 Bracket, Front Bumper, RH
2016-10 → 2019-09 ended
NGX10,50 —
52133-F4010 Bracket, Front Bumper, RH
2019-09 → —
NGX10,50,ZYX10 —
52134G — Bracket, Front Bumper, LH
52133-F4010 Bracket, Front Bumper, LH
2016-10 → 2019-09 ended
NGX10,50 —
52133-F4010 Bracket, Front Bumper, LH
2019-09 → —
NGX10,50,ZYX10 —
52145C — Bracket, Front Bumper Side Mounting, RH
52145-F4030 Bracket, Front Bumper Side Mounting, RH
2016-10 → 2019-09 ended
NGX10,50 —
52145-F4030 Bracket, Front Bumper Side Mounting, RH
2019-09 → —
NGX10,50,ZYX10 —
52146B — Bracket, Front Bumper Side Mounting, LH
52146-F4030 Bracket, Front Bumper Side Mounting, LH
2016-10 → 2019-09 ended
NGX10,50 —
52146-F4030 Bracket, Front Bumper Side Mounting, LH
2019-09 → —
NGX10,50,ZYX10 —
52161C — Piece, Front Bumper
52161-02030 Piece, Front Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52161-02030 Piece, Front Bumper
2019-09 → —
NGX10,50,ZYX10 —
52535 — Retainer, Front Bumper Side, RH
52535-F4010 Retainer, Front Bumper Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
52535-F4010 Retainer, Front Bumper Side, RH
2019-09 → —
NGX10,50,ZYX10 —
52536 — Retainer, Front Bumper Side, LH
52536-F4010 Retainer, Front Bumper Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
52536-F4010 Retainer, Front Bumper Side, LH
2019-09 → —
NGX10,50,ZYX10 —
52611 — Absorber, Front Bumper Energy
52611-F4010 Absorber, Front Bumper Energy
2016-10 → 2019-09 ended
NGX10,50 —
52611-F4070 Absorber, Front Bumper Energy
2019-09 → —
ZYX10 —
52611-F4080 Absorber, Front Bumper Energy
2019-09 → —
NGX10,50 —
52618 — Absorber, Front Bumper, Lower
52618-F4010 Absorber, Front Bumper, Lower
2016-10 → 2019-09 ended
NGX10,50 —
52618-F4070 Absorber, Front Bumper, Lower
2019-09 → —
ZYX10 —
52618-F4080 Absorber, Front Bumper, Lower
2019-09 → —
NGX10,50 —
53879H — Retainer, Front Fender Liner
53879-30050 Retainer, Front Fender Liner
2016-10 → 2019-09 ended
NGX10,50 —
53879-30050 Retainer, Front Fender Liner
2019-09 → —
NGX10,50,ZYX10 —
57013C — Bracket Sub-assy, Front Side Member, RH
57013-F4020 Bracket Sub-assy, Front Side Member, RH
2016-10 → 2019-09 ended
NGX10,50 —
57013-F4010 Bracket Sub-assy, Front Side Member, RH
2019-09 → —
ZYX10 —
57013-F4020 Bracket Sub-assy, Front Side Member, RH
2019-09 → —
NGX10,50 —
57014A — Bracket Sub-assy, Front Side Member, LH
57014-F4020 Bracket Sub-assy, Front Side Member, LH
2016-10 → 2019-09 ended
NGX10,50 —
57014-F4011 Bracket Sub-assy, Front Side Member, LH
2019-09 → —
ZYX10 —
57014-F4020 Bracket Sub-assy, Front Side Member, LH
2019-09 → —
NGX10,50 —
75392J — Retainer, Outside Moulding
75392-35200 Retainer, Outside Moulding
2016-10 → 2019-09 ended
NGX10,50 —
75392-35200 Retainer, Outside Moulding
2019-09 → —
NGX10,50,ZYX10 —
76851G — Grommet, Screw, NO.1
90189-06237 Grommet, Screw, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
90189-06237 Grommet, Screw, NO.1
2019-09 → —
NGX10,50,ZYX10 —
81481E — Cover, Fog Lamp, RH
81481-F4010 Cover, Fog Lamp, RH
2016-10 → 2019-09 ended
NGX10,50 E,N —
81481-F4020 Cover, Fog Lamp, RH
2016-10 → 2019-09 ended
NGX10 D —
81481-F4130 Cover, Fog Lamp, RH
2019-09 → —
NGX10,50 E,N —
81481-F4140 note Cover, Fog Lamp, RH
2019-09 → —
NGX10 RHD E —
81481-F4140 note Cover, Fog Lamp, RH
2019-09 → —
NGX10,50 E —
81481-F4140 note Cover, Fog Lamp, RH
2019-09 → —
NGX10 RHD E —
81481-F4190 Cover, Fog Lamp, RH
2019-09 → —
ZYX10 E —
81482C — Cover, Fog Lamp, LH
81482-F4010 Cover, Fog Lamp, LH
2016-10 → 2019-09 ended
NGX10,50 E,N —
81482-F4020 Cover, Fog Lamp, LH
2016-10 → 2019-09 ended
NGX10 D —
81482-F4120 Cover, Fog Lamp, LH
2019-09 → —
NGX10,50 E,N —
81482-F4130 note Cover, Fog Lamp, LH
2019-09 → —
NGX10 RHD E —
81482-F4130 note Cover, Fog Lamp, LH
2019-09 → —
NGX10,50 E —
81482-F4130 note Cover, Fog Lamp, LH
2019-09 → —
NGX10 RHD E —
81482-F4140 Cover, Fog Lamp, LH
2019-09 → —
ZYX10 E —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-F4030 note Retainer, Ultrasonic Sensor, Front Corner
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-10050-C0 note Retainer, Ultrasonic Sensor, Front Corner
2019-09 → —
NGX10 RHD E —
89348-10050-C0 note Retainer, Ultrasonic Sensor, Front Corner
2019-09 → —
NGX10 RHD E —
89C48E — Retainer, Ultrasonic Sensor, Front Center
89348-F4020-C1 note Retainer, Ultrasonic Sensor, Front Center
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-62130-C2 note Retainer, Ultrasonic Sensor, Front Center
2019-09 → —
NGX10 RHD E —
89348-62130-C2 note Retainer, Ultrasonic Sensor, Front Center
2019-09 → —
NGX10 RHD E —
89348-62140-C2 note Retainer, Ultrasonic Sensor, Front Center
2019-09 → —
NGX10 RHD E —
89348-62140-C2 note Retainer, Ultrasonic Sensor, Front Center
2019-09 → —
NGX10 RHD E —
89C48F — Retainer, Ultrasonic Sensor, Front Side
89348-F4010-A0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-A1 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-B0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-B1 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-B2 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-C0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-D0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-E0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-01 ended
NGX10,50 RHD E —
89348-F4010-E1 note Retainer, Ultrasonic Sensor, Front Side
2019-01 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-F1 note Retainer, Ultrasonic Sensor, Front Side
2019-03 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-G0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2018-05 ended
NGX10,50 RHD E —
89348-F4010-J0 note Retainer, Ultrasonic Sensor, Front Side
2016-10 → 2019-09 ended
NGX10,50 RHD E —
89348-F4010-J2 note Retainer, Ultrasonic Sensor, Front Side
2018-05 → 2019-09 ended
NGX10,50 RHD E —
89348-47090-23 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47090-A0 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47090-A1 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-01 ended
NGX10 RHD E —
89348-47090-A3 note Retainer, Ultrasonic Sensor, Front Side
2022-01 → —
NGX10 RHD E —
89348-47090-B1 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47090-B4 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-01 ended
NGX10 RHD E —
89348-47090-B5 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47090-B7 note Retainer, Ultrasonic Sensor, Front Side
2022-01 → —
NGX10 RHD E —
89348-47090-D4 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47090-E3 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-01 ended
NGX10 RHD E —
89348-47090-G1 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-11 ended
NGX10 RHD E —
89348-47090-H2 note Retainer, Ultrasonic Sensor, Front Side
2022-11 → —
NGX10 RHD E —
89348-47090-J5 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-11 ended
NGX10 RHD E —
89348-47090-K0 note Retainer, Ultrasonic Sensor, Front Side
2022-01 → —
NGX10 RHD E —
89348-47100-23 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47100-A0 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47100-A1 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-01 ended
NGX10 RHD E —
89348-47100-A3 note Retainer, Ultrasonic Sensor, Front Side
2022-01 → —
NGX10 RHD E —
89348-47100-B1 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47100-B4 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-01 ended
NGX10 RHD E —
89348-47100-B5 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47100-B7 note Retainer, Ultrasonic Sensor, Front Side
2022-01 → —
NGX10 RHD E —
89348-47100-D4 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → —
NGX10 RHD E —
89348-47100-E3 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-01 ended
NGX10 RHD E —
89348-47100-G1 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-11 ended
NGX10 RHD E —
89348-47100-H2 note Retainer, Ultrasonic Sensor, Front Side
2022-11 → —
NGX10 RHD E —
89348-47100-J5 note Retainer, Ultrasonic Sensor, Front Side
2019-09 → 2022-11 ended
NGX10 RHD E —
89348-47100-K0 note Retainer, Ultrasonic Sensor, Front Side
2022-01 → —
NGX10 RHD E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
