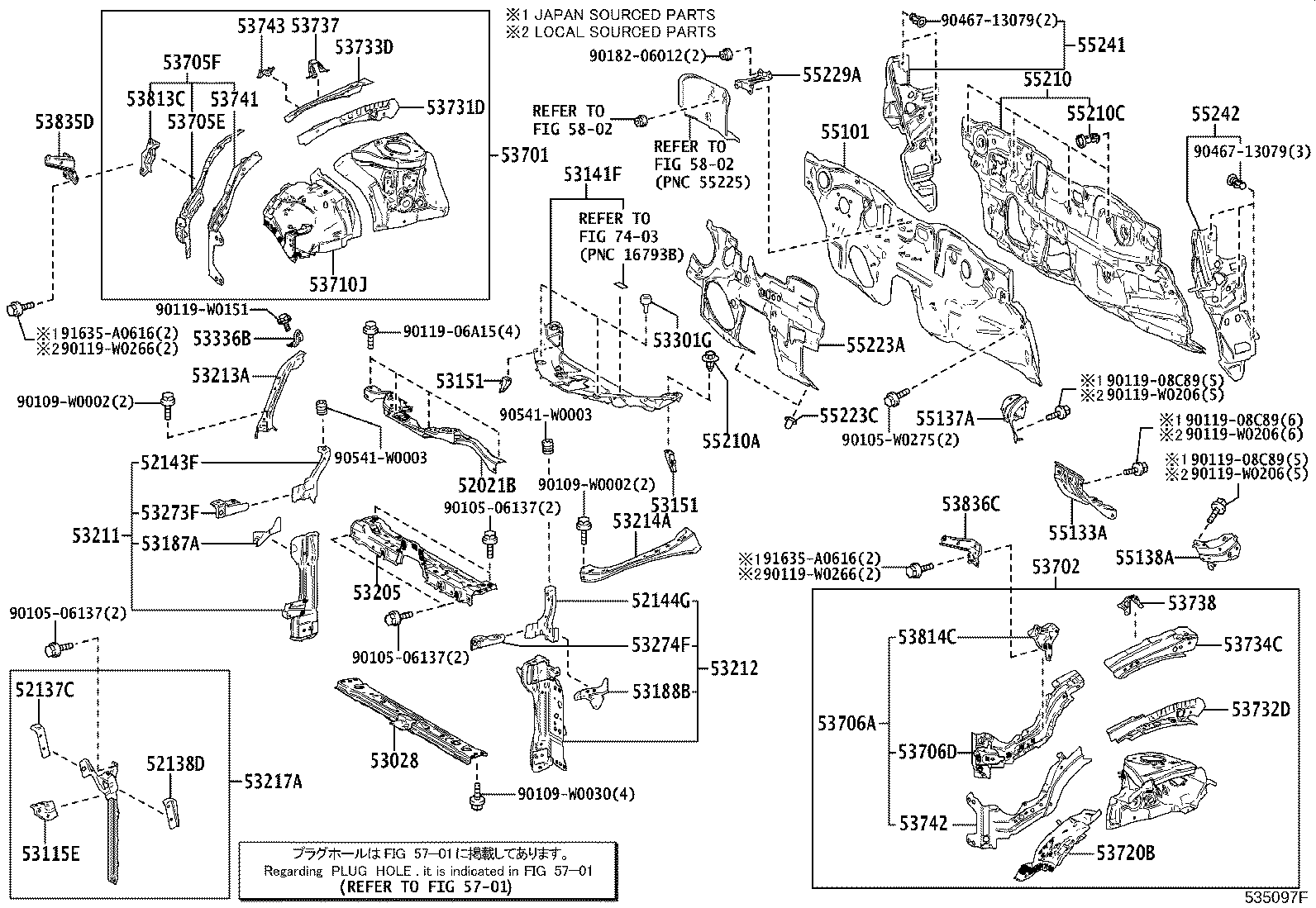

Exploded illustration 535097F 5802 — not listed in this catalogue 52137C — BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 (2 parts) 52021B — REINFORCEMENT SUB-ASSY, FRONT BUMPER (2 parts) 52138D — BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 (2 parts) 52143F — BRACKET, FRONT BUMPER SIDE, RH (2 parts) 52144G — BRACKET, FRONT BUMPER SIDE, LH (2 parts) 53028 — SUPPORT SUB-ASSY, RADIATOR, LOWER (2 parts) 53115E — BRACKET, RADIATOR GRILLE (2 parts) 53187A — STAY, RADIATOR SUPPORT, RH (2 parts) 53188B — STAY, RADIATOR SUPPORT, LH (2 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (2 parts) 53211 — SUPPORT, RADIATOR, RH (2 parts) 53212 — SUPPORT, RADIATOR, LH (2 parts) 53213A — SUPPORT, RADIATOR, UPPER RH (2 parts) 53214A — SUPPORT, RADIATOR, UPPER LH (2 parts) 53217A — BRACE, HOOD LOCK SUPPORT (2 parts) 53273F — BRACKET, FRONT BUMPER RETAINER MOUNTING, RH (2 parts) 53274F — BRACKET, FRONT BUMPER RETAINER MOUNTING, LH (2 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (2 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (2 parts) 53705E — MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH (2 parts) 53705F — BRACE SUB-ASSY, FENDER APRON, RH (2 parts) 53706A — BRACE SUB-ASSY, FENDER APRON, LH (2 parts) 53706D — MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH (2 parts) 53710J — APRON ASSY, FRONT FENDER, RH (2 parts) 53720B — APRON ASSY, FRONT FENDER, LH (2 parts) 53731D — MEMBER, FRONT APRON TO COWL SIDE, UPPER RH (2 parts) 53732D — MEMBER, FRONT APRON TO COWL SIDE, UPPER LH (2 parts) 53733D — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH (2 parts) 53734C — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH (2 parts) 53737 — PLATE, FRONT APRON TO COWL SIDE MEMBER, RH (2 parts) 53738 — PLATE, FRONT APRON TO COWL SIDE MEMBER, LH (2 parts) 53741 — PLATE, FRONT FENDER APRON WIND GUIDE, RH (2 parts) 53742 — PLATE, FRONT FENDER APRON WIND GUIDE, LH (2 parts) 53743 — REINFORCEMENT, FRONT FENDER APRON EXTENSION (2 parts) 53813C — EXTENSION, FRONT FENDER, RH (2 parts) 53814C — EXTENSION, FRONT FENDER, LH (2 parts) 53835D — BRACKET, FRONT SIDE PANEL, RH (2 parts) 53836C — BRACKET, FRONT SIDE PANEL, LH (2 parts) 55101 — PANEL SUB-ASSY, DASH (12 parts) 55133A — REINFORCEMENT, DASH TO FLOOR, RH (2 parts) 55137A — BRACE, DASH TO FRAME, RH (2 parts) 55138A — BRACE, DASH TO FRAME, LH (2 parts) 55210 — INSULATOR ASSY, DASH PANEL (4 parts) 55210C — CLIP (2 parts) 55223A — INSULATOR, DASH PANEL, OUTER (6 parts) 55223C — CLIP (2 parts) 55229A — PLATE, FRONT FLOOR FOOTREST, NO.1 (2 parts) 9010506137 — not listed in this catalogue 9010506137 — not listed in this catalogue 9010506137 — not listed in this catalogue 90105W0275 — not listed in this catalogue 90109W0002 — not listed in this catalogue 90109W0002 — not listed in this catalogue 90109W0030 — not listed in this catalogue 9011906A15 — not listed in this catalogue 9011908C89 — not listed in this catalogue 90119W0206 — not listed in this catalogue 9011908C89 — not listed in this catalogue 90119W0206 — not listed in this catalogue 9011908C89 — not listed in this catalogue 90119W0206 — not listed in this catalogue 90119W0266 — not listed in this catalogue 9018206012 — not listed in this catalogue 90541W0003 — not listed in this catalogue 90541W0003 — not listed in this catalogue 91635A0616 — not listed in this catalogue 90119W0266 — not listed in this catalogue 91635A0616 — not listed in this catalogue 5701 — not listed in this catalogue 55241 — SILENCER, FRONT PANEL SIDE, NO.1 RH (2 parts) 55242 — SILENCER, FRONT PANEL SIDE, NO.1 LH (2 parts) 9046713079 — not listed in this catalogue 9046713079 — not listed in this catalogue 5802 — not listed in this catalogue 7403 — not listed in this catalogue 53141F — COVER, RADIATOR (4 parts) 53151 — BRACKET, RADIATOR COVER SUPPORT (2 parts) 53151 — BRACKET, RADIATOR COVER SUPPORT (2 parts) 55210A — CLIP (3 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 53336B — BRACKET, HOOD STAY (3 parts) 90119W0151 — not listed in this catalogue
535097F · 55 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
128 parts on this figure
Part number Description Fitment Price
52021B — Reinforcement Sub-assy, Front Bumper
52029-F4010 Reinforcement Sub-assy, Front Bumper
2016-10 → 2019-09 ended
NGX10,50 —
52029-F4010 Reinforcement Sub-assy, Front Bumper
2019-09 → —
NGX10,50,ZYX10 —
52137C — Bracket, Front Bumper Arm Mounting, NO.3
52137-F4010 Bracket, Front Bumper Arm Mounting, NO.3
2016-10 → 2019-09 ended
NGX10,50 —
52137-F4010 Bracket, Front Bumper Arm Mounting, NO.3
2019-09 → —
NGX10,50,ZYX10 —
52138D — Bracket, Front Bumper Arm Mounting, NO.4
52138-F4010 Bracket, Front Bumper Arm Mounting, NO.4
2016-10 → 2019-09 ended
NGX10,50 —
52138-F4010 Bracket, Front Bumper Arm Mounting, NO.4
2019-09 → —
NGX10,50,ZYX10 —
52143F — Bracket, Front Bumper Side, RH
52143-F4010 Bracket, Front Bumper Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
52143-F4010 Bracket, Front Bumper Side, RH
2019-09 → —
NGX10,50,ZYX10 —
52144G — Bracket, Front Bumper Side, LH
52144-F4010 Bracket, Front Bumper Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
52144-F4010 Bracket, Front Bumper Side, LH
2019-09 → —
NGX10,50,ZYX10 —
53028 — Support Sub-assy, Radiator, Lower
53028-F4010 Support Sub-assy, Radiator, Lower
2016-10 → 2019-09 ended
NGX10,50 —
53028-F4010 Support Sub-assy, Radiator, Lower
2019-09 → —
NGX10,50,ZYX10 —
53115E — Bracket, Radiator Grille
53115-F4010 Bracket, Radiator Grille
2016-10 → 2019-09 ended
NGX10,50 —
53115-F4010 Bracket, Radiator Grille
2019-09 → —
NGX10,50,ZYX10 —
53141F — Cover, Radiator
53141-F4011 Cover, Radiator
2016-10 → 2018-09 ended
NGX10,50 —
53141-F4012 Cover, Radiator
2018-10 → 2019-09 ended
NGX10,50 —
53141-F4012 Cover, Radiator
2019-09 → —
NGX10,50 —
53141-F4021 Cover, Radiator
2019-09 → —
ZYX10 —
53151 — Bracket, Radiator Cover Support
53151-F4010 Bracket, Radiator Cover Support
2016-10 → 2019-09 ended
NGX10,50 —
53151-F4010 Bracket, Radiator Cover Support
2019-09 → —
NGX10,50,ZYX10 —
53187A — Stay, Radiator Support, RH
53187-F4010 Stay, Radiator Support, RH
2016-10 → 2019-09 ended
NGX10,50 —
53187-F4010 Stay, Radiator Support, RH
2019-09 → —
NGX10,50,ZYX10 —
53188B — Stay, Radiator Support, LH
53188-F4010 Stay, Radiator Support, LH
2016-10 → 2019-09 ended
NGX10,50 —
53188-F4010 Stay, Radiator Support, LH
2019-09 → —
NGX10,50,ZYX10 —
53205 — Support Sub-assy, Radiator, Upper
53205-F4010 Support Sub-assy, Radiator, Upper
2016-10 → 2019-09 ended
NGX10,50 —
53205-F4010 Support Sub-assy, Radiator, Upper
2019-09 → —
NGX10,50,ZYX10 —
53211 — Support, Radiator, RH
53202-F4900 Support, Radiator, RH
2016-10 → 2019-09 ended
NGX10,50 —
53202-F4900 Support, Radiator, RH
2019-09 → —
NGX10,50,ZYX10 —
53212 — Support, Radiator, LH
53203-F4900 Support, Radiator, LH
2016-10 → 2019-09 ended
NGX10,50 —
53203-F4900 Support, Radiator, LH
2019-09 → —
NGX10,50,ZYX10 —
53213A — Support, Radiator, Upper RH
53213-F4010 Support, Radiator, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
53213-F4010 Support, Radiator, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
53214A — Support, Radiator, Upper LH
53214-F4010 Support, Radiator, Upper LH
2016-10 → 2019-09 ended
NGX10,50 —
53214-F4010 Support, Radiator, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
53217A — Brace, Hood Lock Support
53208-F4900 Brace, Hood Lock Support
2016-10 → 2019-09 ended
NGX10,50 —
53208-F4900 Brace, Hood Lock Support
2019-09 → —
NGX10,50,ZYX10 —
53273F — Bracket, Front Bumper Retainer Mounting, RH
53273-F4010 Bracket, Front Bumper Retainer Mounting, RH
2016-10 → 2019-09 ended
NGX10,50 —
53273-F4010 Bracket, Front Bumper Retainer Mounting, RH
2019-09 → —
NGX10,50,ZYX10 —
53274F — Bracket, Front Bumper Retainer Mounting, LH
53274-F4010 Bracket, Front Bumper Retainer Mounting, LH
2016-10 → 2019-09 ended
NGX10,50 —
53274-F4010 Bracket, Front Bumper Retainer Mounting, LH
2019-09 → —
NGX10,50,ZYX10 —
53301G — Cushion, Hood Bumper
53119-12150 Cushion, Hood Bumper
2016-10 → 2019-09 ended
NGX10,50 —
53119-12150 Cushion, Hood Bumper
2019-09 → —
NGX10,50,ZYX10 —
53336B — Bracket, Hood Stay
53336-F4010 Bracket, Hood Stay
2016-10 → 2019-05 ended
NGX10,50 —
53336-F4011 Bracket, Hood Stay
2019-05 → 2019-09 ended
NGX10,50 —
53336-F4011 Bracket, Hood Stay
2019-09 → —
NGX10,50,ZYX10 —
53701 — Apron Sub-assy, Front Fender, RH
53701-F4010 Apron Sub-assy, Front Fender, RH
2016-10 → 2019-09 ended
NGX10,50 —
53701-F4010 Apron Sub-assy, Front Fender, RH
2019-09 → —
NGX10,50,ZYX10 —
53702 — Apron Sub-assy, Front Fender, LH
53702-F4010 Apron Sub-assy, Front Fender, LH
2016-10 → 2019-09 ended
NGX10,50 —
53702-F4010 Apron Sub-assy, Front Fender, LH
2019-09 → —
NGX10,50,ZYX10 —
53705E — Member Sub-assy, Front Apron TO Cowl Side, RH
53705-F4010 Member Sub-assy, Front Apron TO Cowl Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
53705-F4010 Member Sub-assy, Front Apron TO Cowl Side, RH
2019-09 → —
NGX10,50,ZYX10 —
53705F — Brace Sub-assy, Fender Apron, RH
53705-F4900 Brace Sub-assy, Fender Apron, RH
2016-10 → 2019-09 ended
NGX10,50 —
53705-F4900 Brace Sub-assy, Fender Apron, RH
2019-09 → —
NGX10,50,ZYX10 —
53706A — Brace Sub-assy, Fender Apron, LH
53706-F4900 Brace Sub-assy, Fender Apron, LH
2016-10 → 2019-09 ended
NGX10,50 —
53706-F4900 Brace Sub-assy, Fender Apron, LH
2019-09 → —
NGX10,50,ZYX10 —
53706D — Member Sub-assy, Front Apron TO Cowl Side, LH
53706-F4010 Member Sub-assy, Front Apron TO Cowl Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
53706-F4010 Member Sub-assy, Front Apron TO Cowl Side, LH
2019-09 → —
NGX10,50,ZYX10 —
53710J — Apron Assy, Front Fender, RH
53710-F4010 Apron Assy, Front Fender, RH
2016-10 → 2019-09 ended
NGX10,50 —
53710-F4010 Apron Assy, Front Fender, RH
2019-09 → —
NGX10,50,ZYX10 —
53720B — Apron Assy, Front Fender, LH
53720-F4010 Apron Assy, Front Fender, LH
2016-10 → 2019-09 ended
NGX10,50 —
53720-F4010 Apron Assy, Front Fender, LH
2019-09 → —
NGX10,50,ZYX10 —
53731D — Member, Front Apron TO Cowl Side, Upper RH
53731-F4011 Member, Front Apron TO Cowl Side, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
53731-F4011 Member, Front Apron TO Cowl Side, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
53732D — Member, Front Apron TO Cowl Side, Upper LH
53732-F4010 Member, Front Apron TO Cowl Side, Upper LH
2016-10 → 2019-09 ended
NGX10,50 —
53732-F4010 Member, Front Apron TO Cowl Side, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
53733D — Member, Front Apron TO Cowl Side, Lower Front RH
53733-F4010 Member, Front Apron TO Cowl Side, Lower Front RH
2016-10 → 2019-09 ended
NGX10,50 —
53733-F4010 Member, Front Apron TO Cowl Side, Lower Front RH
2019-09 → —
NGX10,50,ZYX10 —
53734C — Member, Front Apron TO Cowl Side, Lower Front LH
53734-F4010 Member, Front Apron TO Cowl Side, Lower Front LH
2016-10 → 2019-09 ended
NGX10,50 —
53734-F4010 Member, Front Apron TO Cowl Side, Lower Front LH
2019-09 → —
NGX10,50,ZYX10 —
53737 — Plate, Front Apron TO Cowl Side Member, RH
53737-F4010 Plate, Front Apron TO Cowl Side Member, RH
2016-10 → 2019-09 ended
NGX10,50 —
53737-F4010 Plate, Front Apron TO Cowl Side Member, RH
2019-09 → —
NGX10,50,ZYX10 —
53738 — Plate, Front Apron TO Cowl Side Member, LH
53738-F4010 Plate, Front Apron TO Cowl Side Member, LH
2016-10 → 2019-09 ended
NGX10,50 —
53738-F4010 Plate, Front Apron TO Cowl Side Member, LH
2019-09 → —
NGX10,50,ZYX10 —
53741 — Plate, Front Fender Apron Wind Guide, RH
53741-F4011 Plate, Front Fender Apron Wind Guide, RH
2016-10 → 2019-09 ended
NGX10,50 —
53741-F4011 Plate, Front Fender Apron Wind Guide, RH
2019-09 → —
NGX10,50,ZYX10 —
53742 — Plate, Front Fender Apron Wind Guide, LH
53742-F4011 Plate, Front Fender Apron Wind Guide, LH
2016-10 → 2019-09 ended
NGX10,50 —
53742-F4011 Plate, Front Fender Apron Wind Guide, LH
2019-09 → —
NGX10,50,ZYX10 —
53743 — Reinforcement, Front Fender Apron Extension
53743-F4010 Reinforcement, Front Fender Apron Extension
2016-10 → 2019-09 ended
NGX10,50 —
53743-F4010 Reinforcement, Front Fender Apron Extension
2019-09 → —
NGX10,50,ZYX10 —
53813C — Extension, Front Fender, RH
53813-F4010 Extension, Front Fender, RH
2016-10 → 2019-09 ended
NGX10,50 —
53813-F4010 Extension, Front Fender, RH
2019-09 → —
NGX10,50,ZYX10 —
53814C — Extension, Front Fender, LH
53814-F4010 Extension, Front Fender, LH
2016-10 → 2019-09 ended
NGX10,50 —
53814-F4010 Extension, Front Fender, LH
2019-09 → —
NGX10,50,ZYX10 —
53835D — Bracket, Front Side Panel, RH
53835-F4010 Bracket, Front Side Panel, RH
2016-10 → 2019-09 ended
NGX10,50 —
53835-F4010 Bracket, Front Side Panel, RH
2019-09 → —
NGX10,50,ZYX10 —
53836C — Bracket, Front Side Panel, LH
53836-F4010 Bracket, Front Side Panel, LH
2016-10 → 2019-09 ended
NGX10,50 —
53836-F4010 Bracket, Front Side Panel, LH
2019-09 → —
NGX10,50,ZYX10 —
55101 — Panel Sub-assy, Dash
55101-F4010 Panel Sub-assy, Dash
2016-10 → 2019-09 ended
NGX10,50 LHD CVT —
55101-F4020 Panel Sub-assy, Dash
2016-10 → 2019-09 ended
NGX10 LHD 6F —
55101-F4030 Panel Sub-assy, Dash
2016-10 → 2018-10 ended
NGX10,50 RHD CVT —
55101-F4031 Panel Sub-assy, Dash
2018-10 → 2019-09 ended
NGX10,50 RHD CVT —
55101-F4040 Panel Sub-assy, Dash
2016-10 → 2018-10 ended
NGX10 RHD 6F —
55101-F4041 Panel Sub-assy, Dash
2018-10 → 2019-09 ended
NGX10 RHD 6F —
55101-F4010 Panel Sub-assy, Dash
2019-09 → 2022-11 ended
NGX10,50,ZYX10 LHD CVT —
55101-F4011 Panel Sub-assy, Dash
2022-11 → —
NGX10,50,ZYX10 LHD CVT —
55101-F4020 Panel Sub-assy, Dash
2019-09 → 2022-11 ended
NGX10 LHD 6F —
55101-F4021 Panel Sub-assy, Dash
2022-11 → —
NGX10 LHD 6F —
55101-F4031 Panel Sub-assy, Dash
2019-09 → —
NGX10 RHD CVT —
55101-F4041 Panel Sub-assy, Dash
2019-09 → —
NGX10 RHD 6F —
55133A — Reinforcement, Dash TO Floor, RH
55133-F4010 Reinforcement, Dash TO Floor, RH
2016-10 → 2019-09 ended
NGX10,50 —
55133-F4010 Reinforcement, Dash TO Floor, RH
2019-09 → —
NGX10,50,ZYX10 —
55137A — Brace, Dash TO Frame, RH
55137-F4010 Brace, Dash TO Frame, RH
2016-10 → 2019-09 ended
NGX10,50 —
55137-F4010 Brace, Dash TO Frame, RH
2019-09 → —
NGX10,50,ZYX10 —
55138A — Brace, Dash TO Frame, LH
55138-F4010 Brace, Dash TO Frame, LH
2016-10 → 2019-09 ended
NGX10,50 —
55138-F4010 Brace, Dash TO Frame, LH
2019-09 → —
NGX10,50,ZYX10 —
55210 — Insulator Assy, Dash Panel
55210-F4010 Insulator Assy, Dash Panel
2016-10 → 2019-09 ended
NGX10,50 LHD —
55210-F4020 Insulator Assy, Dash Panel
2016-10 → 2019-09 ended
NGX10,50 RHD —
55210-F4010 Insulator Assy, Dash Panel
2019-09 → —
NGX10,50,ZYX10 LHD —
55210-F4020 Insulator Assy, Dash Panel
2019-09 → —
NGX10 RHD —
55210A — Clip
90467-07217 Clip
2016-10 → 2019-09 ended
NGX10,50 —
90467-07217 Clip
2019-09 → —
NGX10,50 —
90467-07217 Clip
2019-09 → —
ZYX10 —
55210C — Clip
90467-11122 Clip
2016-10 → 2019-09 ended
NGX10,50 —
90467-11122 Clip
2019-09 → —
NGX10,50,ZYX10 —
55223A — Insulator, Dash Panel, Outer
55223-F4010 Insulator, Dash Panel, Outer
2016-10 → 2019-09 ended
NGX10,50 LHD —
55223-F4020 Insulator, Dash Panel, Outer
2016-10 → 2019-09 ended
NGX10,50 RHD —
55223-F4010 Insulator, Dash Panel, Outer
2019-09 → 2021-04 ended
NGX10,50,ZYX10 LHD —
55223-F4011 Insulator, Dash Panel, Outer
2021-05 → —
NGX10,50,ZYX10 LHD —
55223-F4020 Insulator, Dash Panel, Outer
2019-09 → 2021-05 ended
NGX10 RHD —
55223-F4021 Insulator, Dash Panel, Outer
2021-06 → —
NGX10 RHD —
55223C — Clip
90467-06197 Clip
2016-10 → 2019-09 ended
NGX10,50 —
90467-06197 Clip
2019-09 → —
NGX10,50,ZYX10 —
55229A — Plate, Front Floor Footrest, NO.1
55229-F4010 Plate, Front Floor Footrest, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
55229-F4010 Plate, Front Floor Footrest, NO.1
2019-09 → —
NGX10,50 —
55241 — Silencer, Front Panel Side, NO.1 RH
55241-F4010 Silencer, Front Panel Side, NO.1 RH
2016-10 → 2019-09 ended
NGX10,50 —
55241-F4010 Silencer, Front Panel Side, NO.1 RH
2019-09 → —
NGX10,50,ZYX10 —
55242 — Silencer, Front Panel Side, NO.1 LH
55242-F4010 Silencer, Front Panel Side, NO.1 LH
2016-10 → 2019-09 ended
NGX10,50 —
55242-F4010 Silencer, Front Panel Side, NO.1 LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
