Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

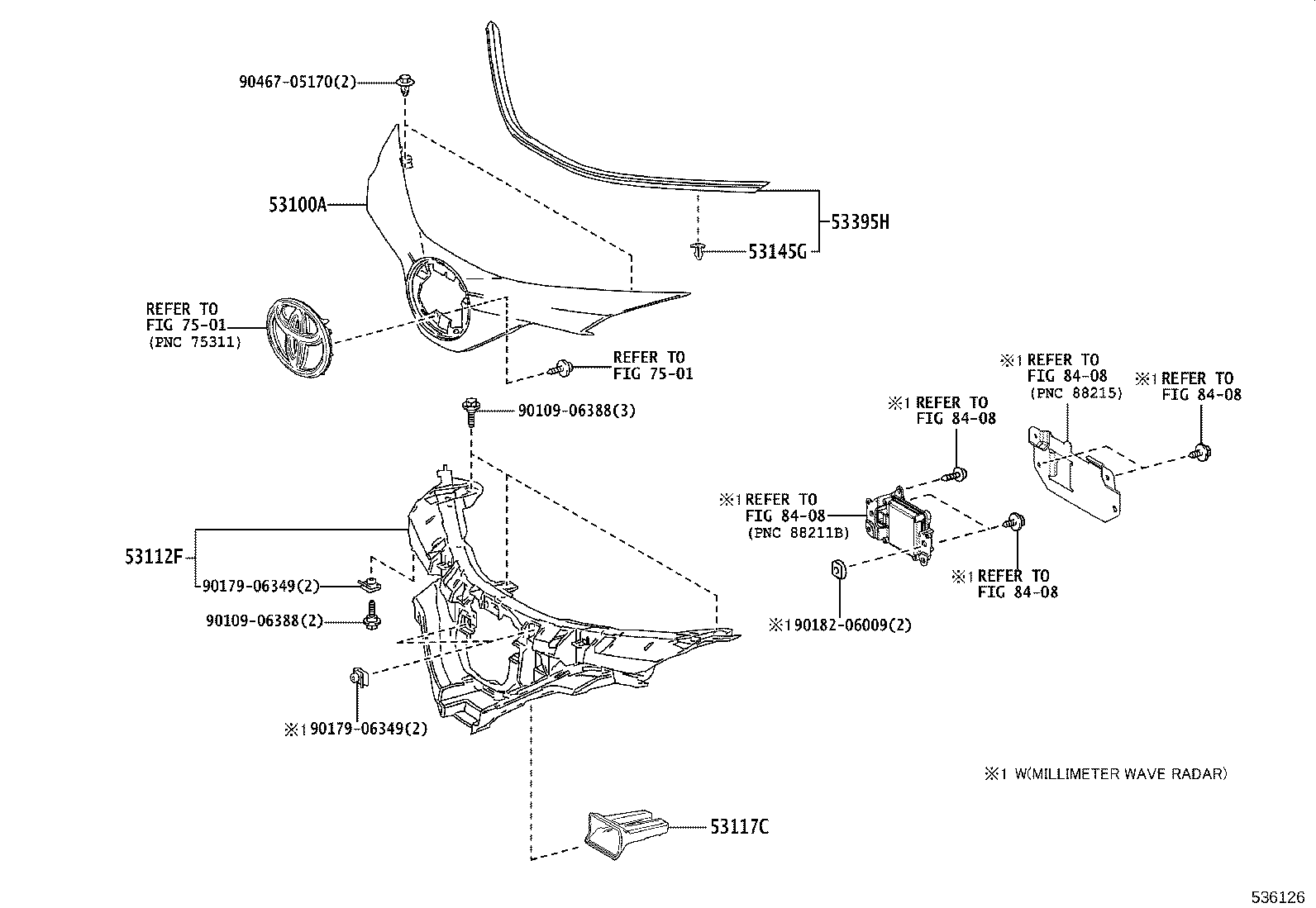

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53100A — Grille Assy, Radiator | ||||
| 53111-F4071 |
Grille Assy, Radiator
2020-10 → —
|
NGX10,50,ZYX10 | — | |
| 53111-F4902 |
Grille Assy, Radiator
2019-09 → 2020-10
ended
|
NGX10,50,ZYX10 | — | |
| 53112F — Grille, Radiator, Inside | ||||
| 53112-F4010 |
Grille, Radiator, Inside
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 53112-F4070 |
Grille, Radiator, Inside
2019-09 → 2020-10
ended
|
NGX10,50,ZYX10 | — | |
| 53112-F4080 |
Grille, Radiator, Inside
2020-10 → —
|
NGX10,50,ZYX10 | — | |
| 53117C — Retainer, Radiator Grille, NO.1 | ||||
| 52521-F4010 |
Retainer, Radiator Grille, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 52521-F4010 |
Retainer, Radiator Grille, NO.1
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 53145G — Clip, Radiator Grille | ||||
| 53145-60030 |
Clip, Radiator Grille
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 53145-60030 |
Clip, Radiator Grille
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 53395H — Seal, Hood TO Radiator Grille | ||||
| 53395-F4010 |
Seal, Hood TO Radiator Grille
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 53395-F4070 |
Seal, Hood TO Radiator Grille
2019-09 → —
|
NGX10,50,ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
