Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 536132 51963F — HOOK, TRANSPORT (1 parts) 51964F — HOOK, TRANSPORT, LH (1 parts) 57023A — MEMBER SUB-ASSY, REAR SIDE, RH (7 parts) 57024A — MEMBER SUB-ASSY, REAR SIDE, LH (7 parts) 57026B — MEMBER SUB-ASSY, FRONT SIDE, OUTER LH (3 parts) 57027B — MEMBER SUB-ASSY, FRONT SIDE, INNER RH (3 parts) 57028B — MEMBER SUB-ASSY, FRONT SIDE, INNER LH (2 parts) 57031A — REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH (2 parts) 57032B — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH (2 parts) 57077 — BOX SUB-ASSY, TORQUE, FRONT RH (4 parts) 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (4 parts) 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (3 parts) 57107D — REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH (2 parts) 57108D — REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH (2 parts) 57123 — SUPPORT, FRONT SIDE MEMBER, RH (2 parts) 57124 — SUPPORT, FRONT SIDE MEMBER, LH (2 parts) 57147B — PLATE, FRONT SIDE MEMBER, REAR RH (2 parts) 57148A — PLATE, FRONT SIDE MEMBER, REAR LH (2 parts) 57191E — MEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH (2 parts) 57192C — MEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH (2 parts) 57195A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH (2 parts) 57196A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH (2 parts) 57203A — EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH (3 parts) 57204A — EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH (3 parts) 57401H — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (4 parts) 57402F — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (4 parts) 5701 — not listed in this catalogue 57025C — MEMBER SUB-ASSY, FRONT SIDE, OUTER RH (3 parts) 90105W0275 — not listed in this catalogue 57078A — BOX SUB-ASSY, TORQUE, FRONT LH (4 parts) 90105W0275 — not listed in this catalogue 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (2 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (2 parts) 57603A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH (2 parts) 57607A — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 (1 parts) 57604A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH (2 parts) 57653A — MEMBER, REAR FLOOR CROSS, NO.2 (2 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (6 parts)

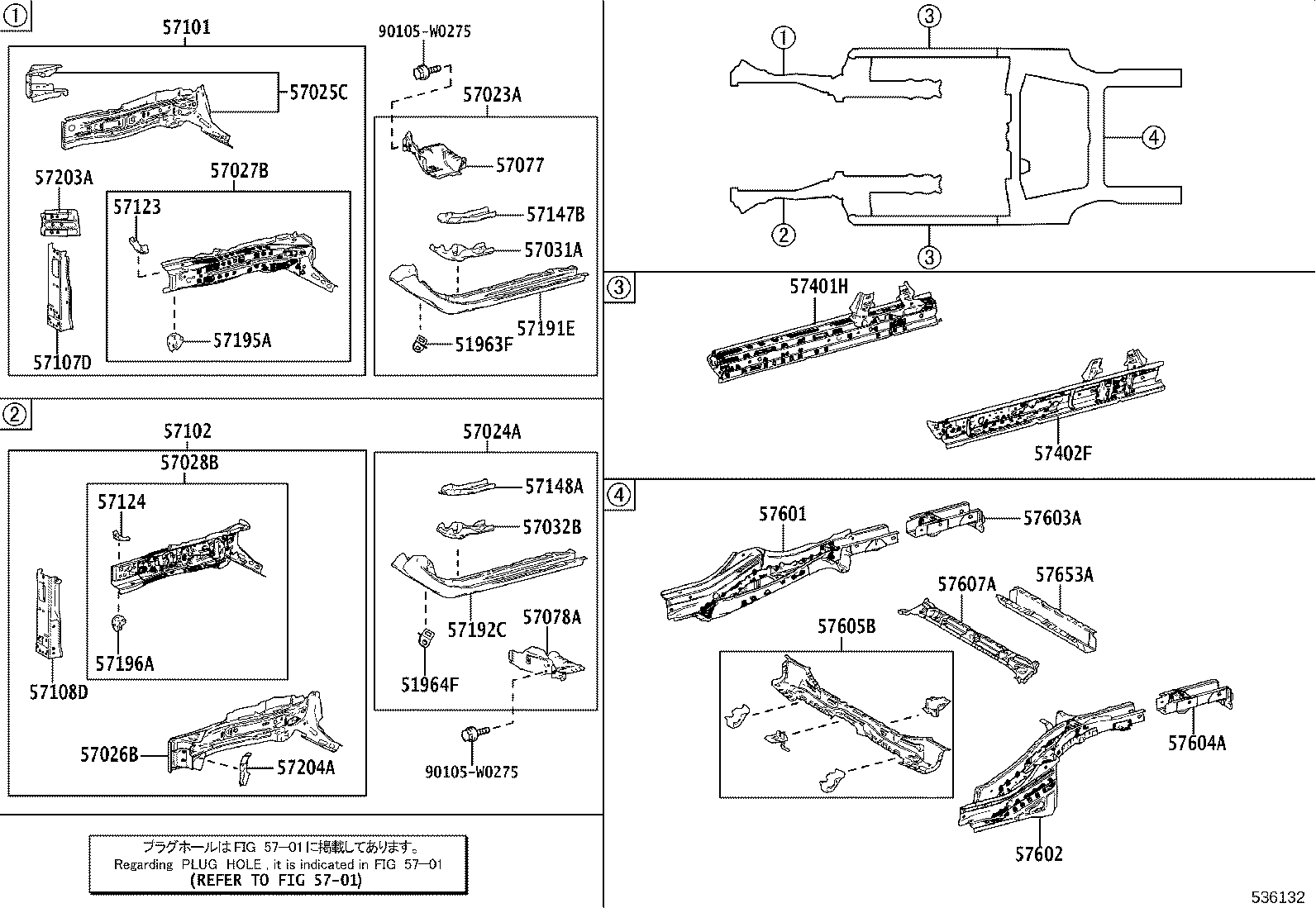

536132 · 35 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
97 parts on this figure
Part number Description Fitment Price
51963F — Hook, Transport
51093-F4011 Hook, Transport
2019-09 → —
ZYX10 —
51964F — Hook, Transport, LH
51094-F4011 Hook, Transport, LH
2019-09 → —
ZYX10 —
57023A — Member Sub-assy, Rear Side, RH
57023-F4020 Member Sub-assy, Rear Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
57023-F4010 Member Sub-assy, Rear Side, RH
2019-09 → 2020-08 ended
ZYX10 —
57023-F4011 Member Sub-assy, Rear Side, RH
2020-08 → 2022-11 ended
ZYX10 —
57023-F4012 Member Sub-assy, Rear Side, RH
2022-11 → —
ZYX10 —
57023-F4020 Member Sub-assy, Rear Side, RH
2019-09 → 2020-08 ended
NGX10,50 —
57023-F4021 Member Sub-assy, Rear Side, RH
2020-08 → 2022-11 ended
NGX10,50 —
57023-F4022 Member Sub-assy, Rear Side, RH
2022-11 → —
NGX10,50 —
57024A — Member Sub-assy, Rear Side, LH
57024-F4020 Member Sub-assy, Rear Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
57024-F4010 Member Sub-assy, Rear Side, LH
2019-09 → 2020-08 ended
ZYX10 —
57024-F4011 Member Sub-assy, Rear Side, LH
2020-08 → 2022-11 ended
ZYX10 —
57024-F4012 Member Sub-assy, Rear Side, LH
2022-11 → —
ZYX10 —
57024-F4020 Member Sub-assy, Rear Side, LH
2019-09 → 2020-08 ended
NGX10,50 —
57024-F4021 Member Sub-assy, Rear Side, LH
2020-08 → 2022-11 ended
NGX10,50 —
57024-F4022 Member Sub-assy, Rear Side, LH
2022-11 → —
NGX10,50 —
57025C — Member Sub-assy, Front Side, Outer RH
57025-F4010 Member Sub-assy, Front Side, Outer RH
2016-10 → 2018-12 ended
NGX10,50 —
57025-F4011 Member Sub-assy, Front Side, Outer RH
2019-01 → 2019-09 ended
NGX10,50 —
57025-F4011 Member Sub-assy, Front Side, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
57026B — Member Sub-assy, Front Side, Outer LH
57026-F4010 Member Sub-assy, Front Side, Outer LH
2016-10 → 2018-12 ended
NGX10,50 —
57026-F4011 Member Sub-assy, Front Side, Outer LH
2019-01 → 2019-09 ended
NGX10,50 —
57026-F4011 Member Sub-assy, Front Side, Outer LH
2019-09 → —
NGX10,50,ZYX10 —
57027B — Member Sub-assy, Front Side, Inner RH
57027-F4010 Member Sub-assy, Front Side, Inner RH
2016-10 → 2017-08 ended
NGX10,50 —
57027-F4011 Member Sub-assy, Front Side, Inner RH
2017-09 → 2019-09 ended
NGX10,50 —
57027-F4011 Member Sub-assy, Front Side, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
57028B — Member Sub-assy, Front Side, Inner LH
57028-F4010 Member Sub-assy, Front Side, Inner LH
2016-10 → 2019-09 ended
NGX10,50 —
57028-F4010 Member Sub-assy, Front Side, Inner LH
2019-09 → —
NGX10,50,ZYX10 —
57031A — Reinforce Sub-assy, Front Side Member, NO.2 RH
57031-F4010 Reinforce Sub-assy, Front Side Member, NO.2 RH
2016-10 → 2019-09 ended
NGX10,50 —
57031-F4010 Reinforce Sub-assy, Front Side Member, NO.2 RH
2019-09 → —
NGX10,50,ZYX10 —
57032B — Reinforcement Sub-assy, Front Side Member, NO.2 LH
57032-F4010 Reinforcement Sub-assy, Front Side Member, NO.2 LH
2016-10 → 2019-09 ended
NGX10,50 —
57032-F4010 Reinforcement Sub-assy, Front Side Member, NO.2 LH
2019-09 → —
NGX10,50,ZYX10 —
57077 — Box Sub-assy, Torque, Front RH
57077-F4010 Box Sub-assy, Torque, Front RH
2016-10 → 2019-09 ended
NGX10,50 —
57077-F4010 Box Sub-assy, Torque, Front RH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 —
57077-F4011 Box Sub-assy, Torque, Front RH
2020-08 → 2022-11 ended
NGX10,50,ZYX10 —
57077-F4070 Box Sub-assy, Torque, Front RH
2022-11 → —
NGX10,50,ZYX10 —
57078A — Box Sub-assy, Torque, Front LH
57078-F4010 Box Sub-assy, Torque, Front LH
2016-10 → 2019-09 ended
NGX10,50 —
57078-F4010 Box Sub-assy, Torque, Front LH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 —
57078-F4011 Box Sub-assy, Torque, Front LH
2020-08 → 2022-11 ended
NGX10,50,ZYX10 —
57078-F4070 Box Sub-assy, Torque, Front LH
2022-11 → —
NGX10,50,ZYX10 —
57101 — Member Sub-assy, Front Side, RH
57101-F4900 Member Sub-assy, Front Side, RH
2016-10 → 2017-09 ended
NGX10,50 —
57101-F4901 Member Sub-assy, Front Side, RH
2017-09 → 2019-01 ended
NGX10,50 —
57101-F4903 Member Sub-assy, Front Side, RH
2019-01 → 2019-09 ended
NGX10,50 —
57101-F4903 Member Sub-assy, Front Side, RH
2019-09 → —
NGX10,50,ZYX10 —
57102 — Member Sub-assy, Front Side, LH
57102-F4900 Member Sub-assy, Front Side, LH
2016-10 → 2019-01 ended
NGX10,50 —
57102-F4902 Member Sub-assy, Front Side, LH
2019-01 → 2019-09 ended
NGX10,50 —
57102-F4902 Member Sub-assy, Front Side, LH
2019-09 → —
NGX10,50,ZYX10 —
57107D — Reinforce Sub-assy, Front Bumper Mounting, RH
57107-F4010 Reinforce Sub-assy, Front Bumper Mounting, RH
2016-10 → 2019-09 ended
NGX10,50 —
57107-F4010 Reinforce Sub-assy, Front Bumper Mounting, RH
2019-09 → —
NGX10,50,ZYX10 —
57108D — Reinforce Sub-assy, Front Bumper Mounting, LH
57108-F4010 Reinforce Sub-assy, Front Bumper Mounting, LH
2016-10 → 2019-09 ended
NGX10,50 —
57108-F4010 Reinforce Sub-assy, Front Bumper Mounting, LH
2019-09 → —
NGX10,50,ZYX10 —
57123 — Support, Front Side Member, RH
57123-F4010 Support, Front Side Member, RH
2016-10 → 2019-09 ended
NGX10,50 —
57123-F4010 Support, Front Side Member, RH
2019-09 → —
NGX10,50,ZYX10 —
57124 — Support, Front Side Member, LH
57124-F4010 Support, Front Side Member, LH
2016-10 → 2019-09 ended
NGX10,50 —
57124-F4010 Support, Front Side Member, LH
2019-09 → —
NGX10,50,ZYX10 —
57147B — Plate, Front Side Member, Rear RH
57147-F4010 Plate, Front Side Member, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
57147-F4010 Plate, Front Side Member, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
57148A — Plate, Front Side Member, Rear LH
57148-F4010 Plate, Front Side Member, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
57148-F4010 Plate, Front Side Member, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
57191E — Member Sub-assy, Front Side, Inner Rear RH
57191-F4010 Member Sub-assy, Front Side, Inner Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
57191-F4010 Member Sub-assy, Front Side, Inner Rear RH
2019-09 → —
NGX10,50,ZYX10 —
57192C — Member Sub-assy, Front Side, Inner Rear LH
57192-F4010 Member Sub-assy, Front Side, Inner Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
57192-F4010 Member Sub-assy, Front Side, Inner Rear LH
2019-09 → —
NGX10,50,ZYX10 —
57195A — Reinforcement, Front Side Member, Front RH
57195-F4010 Reinforcement, Front Side Member, Front RH
2016-10 → 2019-09 ended
NGX10,50 —
57195-F4010 Reinforcement, Front Side Member, Front RH
2019-09 → —
NGX10,50,ZYX10 —
57196A — Reinforcement, Front Side Member, Front LH
57196-F4010 Reinforcement, Front Side Member, Front LH
2016-10 → 2019-09 ended
NGX10,50 —
57196-F4010 Reinforcement, Front Side Member, Front LH
2019-09 → —
NGX10,50,ZYX10 —
57203A — Extension Sub-assy, Front Side Member, NO.2 RH
57203-F4010 Extension Sub-assy, Front Side Member, NO.2 RH
2016-10 → 2018-12 ended
NGX10,50 —
57203-F4011 Extension Sub-assy, Front Side Member, NO.2 RH
2019-01 → 2019-09 ended
NGX10,50 —
57203-F4011 Extension Sub-assy, Front Side Member, NO.2 RH
2019-09 → —
NGX10,50,ZYX10 —
57204A — Extension Sub-assy, Front Side Member, NO.2 LH
57204-F4010 Extension Sub-assy, Front Side Member, NO.2 LH
2016-10 → 2018-12 ended
NGX10,50 —
57204-F4011 Extension Sub-assy, Front Side Member, NO.2 LH
2019-01 → 2019-09 ended
NGX10,50 —
57204-F4011 Extension Sub-assy, Front Side Member, NO.2 LH
2019-09 → —
NGX10,50,ZYX10 —
57401H — Member Sub-assy, Floor Side, Inner RH
57401-F4010 Member Sub-assy, Floor Side, Inner RH
2016-10 → 2019-03 ended
NGX10,50 —
57401-F4011 Member Sub-assy, Floor Side, Inner RH
2019-04 → 2019-09 ended
NGX10,50 —
57401-F4011 Member Sub-assy, Floor Side, Inner RH
2019-09 → 2022-06 ended
NGX10,50,ZYX10 —
57401-F4012 Member Sub-assy, Floor Side, Inner RH
2022-07 → —
NGX10,50,ZYX10 —
57402F — Member Sub-assy, Floor Side, Inner LH
57402-F4010 Member Sub-assy, Floor Side, Inner LH
2016-10 → 2019-03 ended
NGX10,50 —
57402-F4011 Member Sub-assy, Floor Side, Inner LH
2019-04 → 2019-09 ended
NGX10,50 —
57402-F4011 Member Sub-assy, Floor Side, Inner LH
2019-09 → 2022-06 ended
NGX10,50,ZYX10 —
57402-F4012 Member Sub-assy, Floor Side, Inner LH
2022-07 → —
NGX10,50,ZYX10 —
57601 — Member Sub-assy, Rear Floor Side, RH
57601-F4010 Member Sub-assy, Rear Floor Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
57601-F4010 Member Sub-assy, Rear Floor Side, RH
2019-09 → —
NGX10,50,ZYX10 —
57602 — Member Sub-assy, Rear Floor Side, LH
57602-F4010 Member Sub-assy, Rear Floor Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
57602-F4010 Member Sub-assy, Rear Floor Side, LH
2019-09 → —
NGX10,50,ZYX10 —
57603A — Member Sub-assy, Rear Floor Side, Rear RH
57603-F4010 Member Sub-assy, Rear Floor Side, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
57603-F4010 Member Sub-assy, Rear Floor Side, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
57604A — Member Sub-assy, Rear Floor Side, Rear LH
57604-F4010 Member Sub-assy, Rear Floor Side, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
57604-F4010 Member Sub-assy, Rear Floor Side, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-F4020 Member Sub-assy, Rear Floor Cross, NO.1
2016-10 → 2018-07 ended
NGX10 —
57605-F4021 Member Sub-assy, Rear Floor Cross, NO.1
2018-08 → 2019-09 ended
NGX10 —
57605-F4030 Member Sub-assy, Rear Floor Cross, NO.1
2016-10 → 2019-09 ended
NGX50 —
57605-F4010 Member Sub-assy, Rear Floor Cross, NO.1
2019-09 → —
ZYX10 —
57605-F4021 Member Sub-assy, Rear Floor Cross, NO.1
2019-09 → —
NGX10 —
57605-F4030 Member Sub-assy, Rear Floor Cross, NO.1
2019-09 → —
NGX50 —
57607A — Member Sub-assy, Rear Floor Cross, NO.3
57607-F4010 Member Sub-assy, Rear Floor Cross, NO.3
2019-09 → —
ZYX10 —
57653A — Member, Rear Floor Cross, NO.2
57653-F4010 Member, Rear Floor Cross, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
57653-F4010 Member, Rear Floor Cross, NO.2
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
