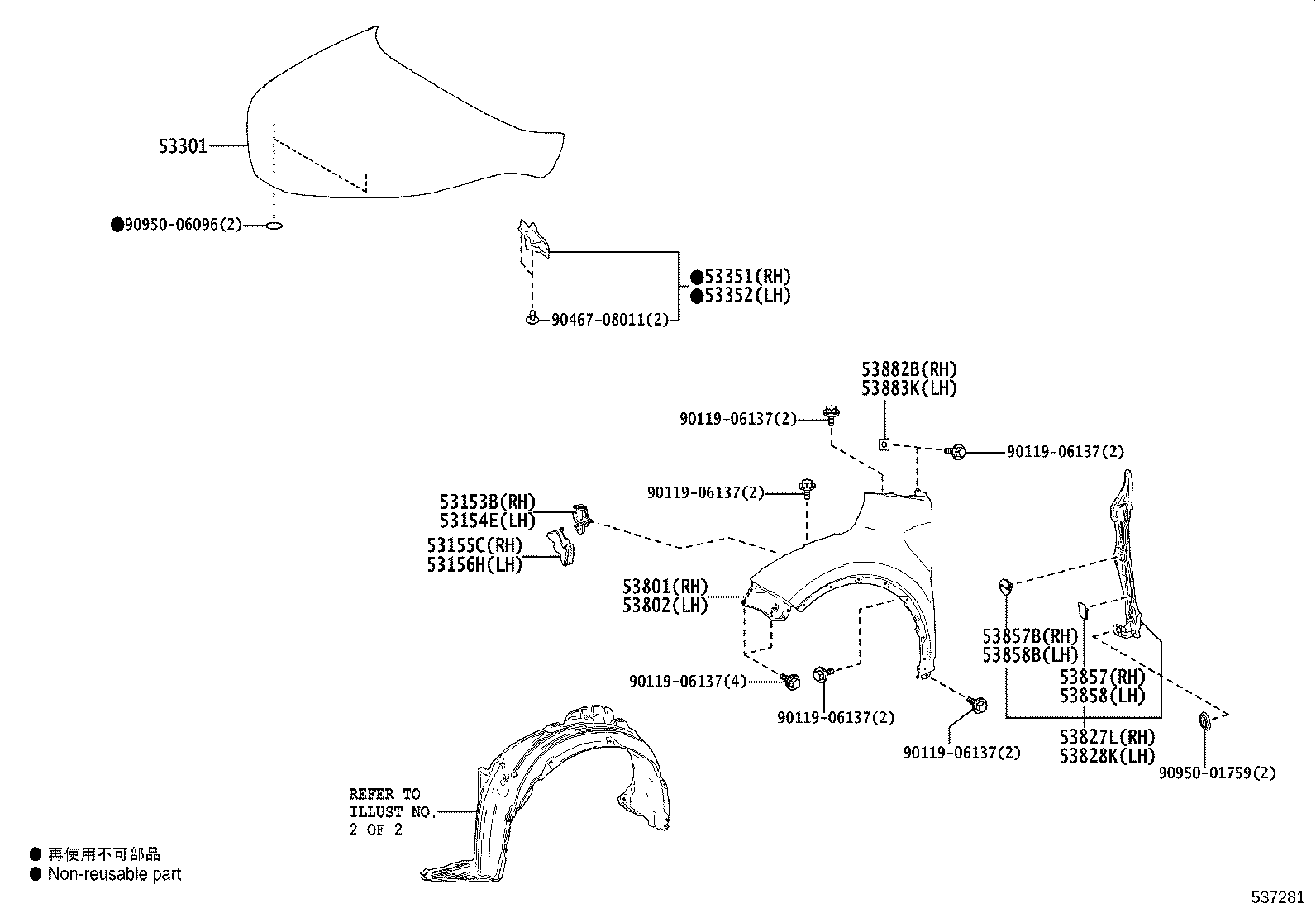

Exploded illustration 537281 53301 — HOOD SUB-ASSY (2 parts) 53351 — PANEL, HOOD SIDE, RH (1 parts) 53352 — PANEL, HOOD SIDE, LH (1 parts) 53882B — SEAL, FRONT FENDER, RH (2 parts) 53883K — SEAL, FRONT FENDER, LH (2 parts) 53857 — RETAINER, FRONT WHEEL OPENING EXTENSION, RH (2 parts) 53858 — RETAINER, FRONT WHEEL OPENING EXTENSION, LH (2 parts) 53827L — PROTECTOR, FRONT FENDER SIDE PANEL, RH (2 parts) 53828K — PROTECTOR, FRONT FENDER SIDE PANEL, LH (2 parts) 53857B — RETAINER, FRONT WHEEL OPENING EXTENSION, RH (2 parts) 53858B — RETAINER, FRONT WHEEL OPENING EXTENSION, LH (2 parts) 53153B — GUIDE, FRONT SIDE AIR (2 parts) 53154E — GUIDE, FRONT SIDE AIR, NO.2 (2 parts) 53155C — SEAL, RADIATOR GRILLE, NO.1 (2 parts) 53156H — SEAL, RADIATOR GRILLE, NO.2 (2 parts) 53801 — FENDER SUB-ASSY, FRONT RH (2 parts) 53802 — FENDER SUB-ASSY, FRONT LH (2 parts) 9046708011 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9095001759 — not listed in this catalogue 9095006096 — not listed in this catalogue
537281 · 17 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
53153B — Guide, Front Side Air
53153-F4010 Guide, Front Side Air
2016-10 → 2019-09 ended
NGX10,50 —
53153-F4010 Guide, Front Side Air
2019-09 → —
NGX10,50,ZYX10 —
53154E — Guide, Front Side Air, NO.2
53154-F4010 Guide, Front Side Air, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
53154-F4010 Guide, Front Side Air, NO.2
2019-09 → —
NGX10,50,ZYX10 —
53155C — Seal, Radiator Grille, NO.1
53155-F4010 Seal, Radiator Grille, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
53155-F4010 Seal, Radiator Grille, NO.1
2019-09 → —
NGX10,50,ZYX10 —
53156H — Seal, Radiator Grille, NO.2
53156-F4010 Seal, Radiator Grille, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
53156-F4010 Seal, Radiator Grille, NO.2
2019-09 → —
NGX10,50,ZYX10 —
53301 — Hood Sub-assy
53301-F4010 Hood Sub-assy
2016-10 → 2019-09 ended
NGX10,50 —
53301-F4010 Hood Sub-assy
2019-09 → —
NGX10,50,ZYX10 —
53351 — Panel, Hood Side, RH
53351-F4010 Panel, Hood Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
53352 — Panel, Hood Side, LH
53352-F4010 Panel, Hood Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
53801 — Fender Sub-assy, Front RH
53801-F4010 Fender Sub-assy, Front RH
2016-10 → 2019-09 ended
NGX10,50 —
53801-F4010 Fender Sub-assy, Front RH
2019-09 → —
NGX10,50,ZYX10 —
53802 — Fender Sub-assy, Front LH
53802-F4010 Fender Sub-assy, Front LH
2016-10 → 2019-09 ended
NGX10,50 —
53802-F4010 Fender Sub-assy, Front LH
2019-09 → —
NGX10,50,ZYX10 —
53827L — Protector, Front Fender Side Panel, RH
53827-F4010 Protector, Front Fender Side Panel, RH
2016-10 → 2019-09 ended
NGX10,50 —
53827-F4010 Protector, Front Fender Side Panel, RH
2019-09 → —
NGX10,50,ZYX10 —
53828K — Protector, Front Fender Side Panel, LH
53828-F4010 Protector, Front Fender Side Panel, LH
2016-10 → 2019-09 ended
NGX10,50 —
53828-F4010 Protector, Front Fender Side Panel, LH
2019-09 → —
NGX10,50,ZYX10 —
53857 — Retainer, Front Wheel Opening Extension, RH
53857-12010 Retainer, Front Wheel Opening Extension, RH
2016-10 → 2019-09 ended
NGX10,50 —
53857-12010 Retainer, Front Wheel Opening Extension, RH
2019-09 → —
NGX10,50,ZYX10 —
53857B — Retainer, Front Wheel Opening Extension, RH
53857-47011 Retainer, Front Wheel Opening Extension, RH
2016-10 → 2019-09 ended
NGX10,50 —
53857-47011 Retainer, Front Wheel Opening Extension, RH
2019-09 → —
NGX10,50,ZYX10 —
53858 — Retainer, Front Wheel Opening Extension, LH
53857-12010 Retainer, Front Wheel Opening Extension, LH
2016-10 → 2019-09 ended
NGX10,50 —
53857-12010 Retainer, Front Wheel Opening Extension, LH
2019-09 → —
NGX10,50,ZYX10 —
53858B — Retainer, Front Wheel Opening Extension, LH
53857-47011 Retainer, Front Wheel Opening Extension, LH
2016-10 → 2019-09 ended
NGX10,50 —
53857-47011 Retainer, Front Wheel Opening Extension, LH
2019-09 → —
NGX10,50,ZYX10 —
53882B — Seal, Front Fender, RH
53882-16030 Seal, Front Fender, RH
2016-10 → 2019-09 ended
NGX10,50 —
53882-16030 Seal, Front Fender, RH
2019-09 → —
NGX10,50,ZYX10 —
53883K — Seal, Front Fender, LH
53882-16030 Seal, Front Fender, LH
2016-10 → 2019-09 ended
NGX10,50 —
53882-16030 Seal, Front Fender, LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
