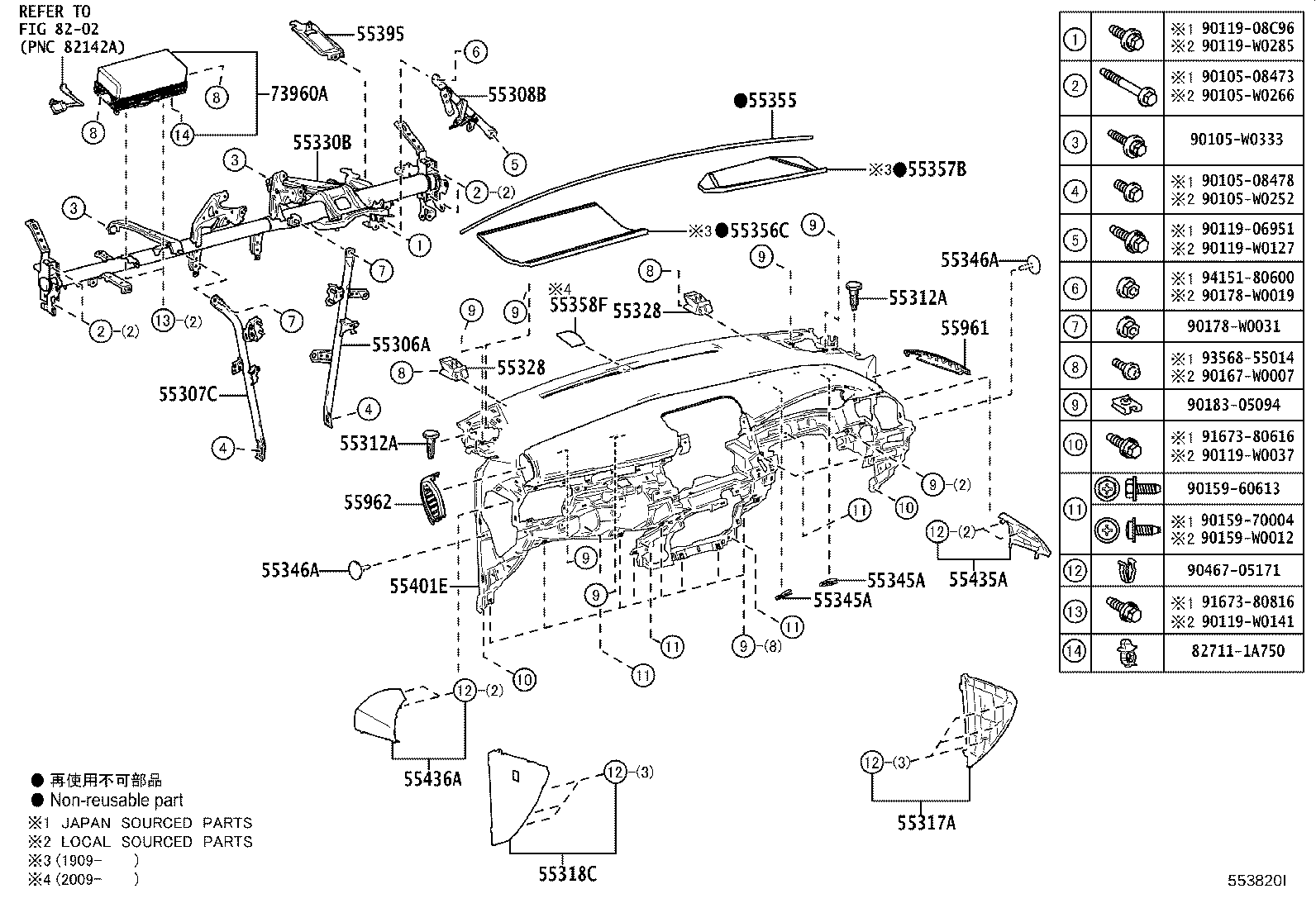

Exploded illustration 553820I 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (1 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (1 parts) 9011906951 — not listed in this catalogue 90119W0127 — not listed in this catalogue 9010508478 — not listed in this catalogue 90105W0252 — not listed in this catalogue 90178W0019 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9018305094 — not listed in this catalogue 9167380616 — not listed in this catalogue 90119W0037 — not listed in this catalogue 9015960613 — not listed in this catalogue 9015970004 — not listed in this catalogue 90159W0012 — not listed in this catalogue 9046705171 — not listed in this catalogue 9167380816 — not listed in this catalogue 90119W0141 — not listed in this catalogue 90178W0031 — not listed in this catalogue 9415180600 — not listed in this catalogue 90119W0285 — not listed in this catalogue 90105W0333 — not listed in this catalogue 9011908C96 — not listed in this catalogue 90105W0266 — not listed in this catalogue 9010508473 — not listed in this catalogue 8202 — not listed in this catalogue 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (4 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (4 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (2 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (2 parts) 55345A — CLIP, INSTRUMENT PANEL, NO.1 (2 parts) 55345A — CLIP, INSTRUMENT PANEL, NO.1 (2 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (6 parts) 55308B — BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 (5 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (2 parts) 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (38 parts) 55435A — PANEL, INSTRUMENT PANEL FINISH, END RH (5 parts) 55436A — PANEL, INSTRUMENT PANEL FINISH, END LH (5 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (4 parts) 55395 — BRACKET, INSTRUMENT PANEL TO PEDAL (4 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (9 parts) 55346A — CLIP, INSTRUMENT PANEL, NO.2 (5 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (9 parts) 55346A — CLIP, INSTRUMENT PANEL, NO.2 (5 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55317A — PANEL, INSTRUMENT SIDE, RH (18 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (11 parts) 827111A750 — not listed in this catalogue 55358F — PROTECTOR, EDGE (1 parts)
553820I · 25 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
138 parts on this figure
Part number Description Fitment Price
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-F4020 Brace Sub-assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
55306-F4030 Brace Sub-assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
55306-F4020 Brace Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD —
55306-F4030 Brace Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 RHD —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-F4010 Brace Sub-assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD —
55307-F4020 Brace Sub-assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD —
55307-F4010 Brace Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD —
55307-F4020 Brace Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10 RHD —
55308B — Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55308-F4020 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2016-10 → 2018-12 ended
NGX10,50 LHD —
55308-F4021 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2018-12 → 2019-09 ended
NGX10,50 LHD —
55308-F4030 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2016-10 → 2019-09 ended
NGX10,50 RHD —
55308-F4021 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2019-09 → —
NGX10,50,ZYX10 LHD —
55308-F4030 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2019-09 → —
NGX10 RHD —
55312A — Clip, Instrument Panel
52161-02030 Clip, Instrument Panel
2016-10 → 2019-09 ended
NGX10,50 —
52161-02030 Clip, Instrument Panel
2019-09 → —
NGX10,50,ZYX10 —
55317A — Panel, Instrument Side, RH
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 RHD —
55317-F4010-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4010-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
55317-F4010-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
55317-F4010-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX50 LHD E;NGX10 LHD +1 —
55317-F4010-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
55317-F4010-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
55317-F4010-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX10,50 RHD —
55317-F4020-C0 note Panel, Instrument Side, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55317-F4020-C1 note Panel, Instrument Side, RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
55317-F4010-C1 note Panel, Instrument Side, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
55317-F4010-C1 note Panel, Instrument Side, RH
2019-09 → —
ZYX10 E —
55317-F4010-C1 note Panel, Instrument Side, RH
2019-09 → —
NGX10,50 E —
55318C — Panel, Instrument Side, LH
55318-F4010-C0 note Panel, Instrument Side, LH
2016-10 → 2018-05 ended
NGX10,50 LHD —
55318-F4010-C0 note Panel, Instrument Side, LH
2016-10 → 2018-05 ended
NGX10,50 RHD —
55318-F4010-C1 note Panel, Instrument Side, LH
2018-05 → 2019-09 ended
NGX10,50 RHD —
55318-F4010-C1 note Panel, Instrument Side, LH
2018-05 → 2019-09 ended
NGX10,50 LHD —
55318-F4020-C0 note Panel, Instrument Side, LH
2016-10 → 2018-05 ended
NGX10,50 RHD —
55318-F4020-C1 note Panel, Instrument Side, LH
2018-05 → 2019-09 ended
NGX10,50 RHD —
55318-F4010-C1 note Panel, Instrument Side, LH
2019-09 → —
NGX10,50 LHD E —
55318-F4010-C1 note Panel, Instrument Side, LH
2019-09 → —
ZYX10 E —
55318-F4010-C1 note Panel, Instrument Side, LH
2019-09 → —
NGX10,50,ZYX10 LHD N —
55318-F4020-C1 note Panel, Instrument Side, LH
2019-09 → —
NGX10 RHD (D,N) —
55318-F4020-C1 note Panel, Instrument Side, LH
2019-09 → —
NGX10 RHD E —
55328 — Pin, Instrument Panel, NO.1
55328-F4030 Pin, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
55328-F4030 Pin, Instrument Panel, NO.1
2019-09 → —
NGX10,50,ZYX10 —
55330B — Reinforcement Assy, Instrument Panel
55330-F4020 Reinforcement Assy, Instrument Panel
2016-10 → 2019-09 ended
NGX10 LHD 6F —
55330-F4030 Reinforcement Assy, Instrument Panel
2016-10 → 2019-09 ended
NGX10,50 RHD —
55330-F4050 Reinforcement Assy, Instrument Panel
2016-10 → 2019-09 ended
NGX10,50 LHD CVT —
55330-F4020 Reinforcement Assy, Instrument Panel
2019-09 → —
NGX10 LHD 6F —
55330-F4030 Reinforcement Assy, Instrument Panel
2019-09 → —
NGX10 RHD —
55330-F4050 Reinforcement Assy, Instrument Panel
2019-09 → —
NGX10,50,ZYX10 LHD CVT —
55345A — Clip, Instrument Panel, NO.1
55345-12060 Clip, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
55345-12060 Clip, Instrument Panel, NO.1
2019-09 → —
NGX10,50,ZYX10 —
55346A — Clip, Instrument Panel, NO.2
90467-05161-C0 note Clip, Instrument Panel, NO.2
2016-10 → 2018-08 ended
NGX10,50 —
90467-05161-C9 note Clip, Instrument Panel, NO.2
2018-08 → 2019-09 ended
NGX10,50 —
90467-W0001-C0 note Clip, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
90467-05161-C0 note Clip, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 —
90467-W0001-C0 note Clip, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 —
55355 — Cushion, Instrument Panel, NO.1
55355-F4010 Cushion, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
55355-F4010 Cushion, Instrument Panel, NO.1
2019-09 → —
NGX10,50,ZYX10 —
55356C — Cushion, Instrument Panel, NO.2
55356-F4020 Cushion, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 E —
55357B — Cushion, Instrument Panel, NO.3
55357-F4010 Cushion, Instrument Panel, NO.3
2019-09 → —
NGX10,50,ZYX10 E —
55358F — Protector, Edge
55358-F4010 Protector, Edge
2020-09 → —
NGX10,50,ZYX10 —
55395 — Bracket, Instrument Panel TO Pedal
55395-F4010 Bracket, Instrument Panel TO Pedal
2016-10 → 2019-09 ended
NGX10,50 LHD —
55395-F4020 Bracket, Instrument Panel TO Pedal
2016-10 → 2019-09 ended
NGX10,50 RHD —
55395-F4010 Bracket, Instrument Panel TO Pedal
2019-09 → —
NGX10,50,ZYX10 LHD —
55395-F4020 Bracket, Instrument Panel TO Pedal
2019-09 → —
NGX10 RHD —
55401E — Pad Sub-assy, Instrument Panel Safety
55401-F4020-C0 note Pad Sub-assy, Instrument Panel Safety
2016-10 → 2018-04 ended
NGX10,50 LHD N —
55401-F4020-C1 note Pad Sub-assy, Instrument Panel Safety
2016-10 → 2018-04 ended
NGX10,50 LHD N —
55401-F4020-C1 note Pad Sub-assy, Instrument Panel Safety
2016-10 → 2018-04 ended
NGX10 LHD D —
55401-F4020-C2 note Pad Sub-assy, Instrument Panel Safety
2016-10 → 2018-04 ended
NGX10,50 LHD E —
55401-F4021-C3 note Pad Sub-assy, Instrument Panel Safety
2018-05 → 2019-09 ended
NGX10,50 LHD E —
55401-F4021-C4 note Pad Sub-assy, Instrument Panel Safety
2018-05 → 2019-03 ended
NGX10,50 LHD (D,N) —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-03 → 2019-09 ended
NGX10,50 LHD (D,N) —
55401-F4040-C1 note Pad Sub-assy, Instrument Panel Safety
2016-10 → 2018-05 ended
NGX10,50 RHD (D,N) —
55401-F4040-C2 note Pad Sub-assy, Instrument Panel Safety
2016-10 → 2018-05 ended
NGX10,50 RHD E —
55401-F4040-C3 note Pad Sub-assy, Instrument Panel Safety
2018-05 → 2019-09 ended
NGX10,50 RHD E —
55401-F4040-C4 note Pad Sub-assy, Instrument Panel Safety
2018-05 → 2019-03 ended
NGX10,50 RHD (D,N) —
55401-F4040-C5 note Pad Sub-assy, Instrument Panel Safety
2019-03 → 2019-09 ended
NGX10,50 RHD (D,N) —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 E —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 N —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX50 N —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX50 E —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD CVT N —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD N —
55401-F4021-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD E —
55401-F4021-C6 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD E —
55401-F4021-C6 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX50 E —
55401-F4021-C6 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 E —
55401-F4021-C7 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 E —
55401-F4021-C7 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX50 E —
55401-F4021-C7 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD E —
55401-F4090-C4 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10,50 LHD N —
55401-F4090-C4 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD E —
55401-F4090-C4 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 E —
55401-F4090-C4 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 N —
55401-F4090-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX50 E —
55401-F4090-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD E —
55401-F4090-C5 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 E —
55401-F4090-C6 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 LHD E —
55401-F4090-C6 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
ZYX10 E —
55401-F4100-C0 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 RHD (D,N) —
55401-F4100-C0 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 RHD E —
55401-F4100-C1 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 RHD E —
55401-F4100-C2 note Pad Sub-assy, Instrument Panel Safety
2019-09 → —
NGX10 RHD E —
55435A — Panel, Instrument Panel Finish, End RH
55435-F4010-C0 note Panel, Instrument Panel Finish, End RH
2016-10 → 2018-05 ended
NGX10,50 —
55435-F4010-C1 note Panel, Instrument Panel Finish, End RH
2018-05 → 2019-09 ended
NGX10,50 —
55435-F4010-C1 note Panel, Instrument Panel Finish, End RH
2019-09 → —
NGX10,50,ZYX10 D,N —
55435-F4010-C1 note Panel, Instrument Panel Finish, End RH
2019-09 → —
ZYX10 E —
55435-F4010-C1 note Panel, Instrument Panel Finish, End RH
2019-09 → —
NGX10,50 E —
55436A — Panel, Instrument Panel Finish, End LH
55436-F4010-C0 note Panel, Instrument Panel Finish, End LH
2016-10 → 2018-05 ended
NGX10,50 —
55436-F4010-C1 note Panel, Instrument Panel Finish, End LH
2018-05 → 2019-09 ended
NGX10,50 —
55436-F4010-C1 note Panel, Instrument Panel Finish, End LH
2019-09 → —
NGX10,50,ZYX10 D,N —
55436-F4010-C1 note Panel, Instrument Panel Finish, End LH
2019-09 → —
ZYX10 E —
55436-F4010-C1 note Panel, Instrument Panel Finish, End LH
2019-09 → —
NGX10,50 E —
55961 — Nozzle, Side Defroster, NO.1
55961-F4010-C0 note Nozzle, Side Defroster, NO.1
2016-10 → 2018-05 ended
NGX10,50 LHD —
55961-F4010-C1 note Nozzle, Side Defroster, NO.1
2018-05 → 2019-09 ended
NGX10,50 LHD —
55961-F4020-C0 note Nozzle, Side Defroster, NO.1
2016-10 → 2018-05 ended
NGX10,50 RHD —
55961-F4020-C1 note Nozzle, Side Defroster, NO.1
2018-05 → 2019-09 ended
NGX10,50 RHD —
55961-F4010-C1 note Nozzle, Side Defroster, NO.1
2019-09 → —
NGX50,ZYX10 E —
55961-F4010-C1 note Nozzle, Side Defroster, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD N —
55961-F4010-C1 note Nozzle, Side Defroster, NO.1
2019-09 → —
NGX10 LHD E —
55961-F4020-C1 note Nozzle, Side Defroster, NO.1
2019-09 → —
NGX10 RHD (D,N) —
55961-F4020-C1 note Nozzle, Side Defroster, NO.1
2019-09 → —
NGX10 RHD E —
55962 — Nozzle, Side Defroster, NO.2
55962-F4010-C0 note Nozzle, Side Defroster, NO.2
2016-10 → 2018-05 ended
NGX10,50 LHD —
55962-F4010-C1 note Nozzle, Side Defroster, NO.2
2018-05 → 2019-09 ended
NGX10,50 LHD —
55962-F4020-C0 note Nozzle, Side Defroster, NO.2
2016-10 → 2018-05 ended
NGX10,50 RHD —
55962-F4020-C1 note Nozzle, Side Defroster, NO.2
2018-05 → 2019-09 ended
NGX10,50 RHD —
55962-F4010-C1 note Nozzle, Side Defroster, NO.2
2019-09 → —
NGX10 LHD E —
55962-F4010-C1 note Nozzle, Side Defroster, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD N —
55962-F4010-C1 note Nozzle, Side Defroster, NO.2
2019-09 → —
NGX50,ZYX10 E —
55962-F4020-C1 note Nozzle, Side Defroster, NO.2
2019-09 → —
NGX10 RHD (D,N) —
55962-F4020-C1 note Nozzle, Side Defroster, NO.2
2019-09 → —
NGX10 RHD E —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-F4010 Airbag Assy, Instrument Panel Passenger W/O Door
2016-10 → 2018-08 ended
NGX10,50 —
73960-F4011 Airbag Assy, Instrument Panel Passenger W/O Door
2018-09 → 2019-09 ended
NGX10,50 —
73960-F4010 Airbag Assy, Instrument Panel Passenger W/O Door
2019-09 → 2019-11 ended
NGX10,50,ZYX10 —
73960-F4011 Airbag Assy, Instrument Panel Passenger W/O Door
2019-12 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
