Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

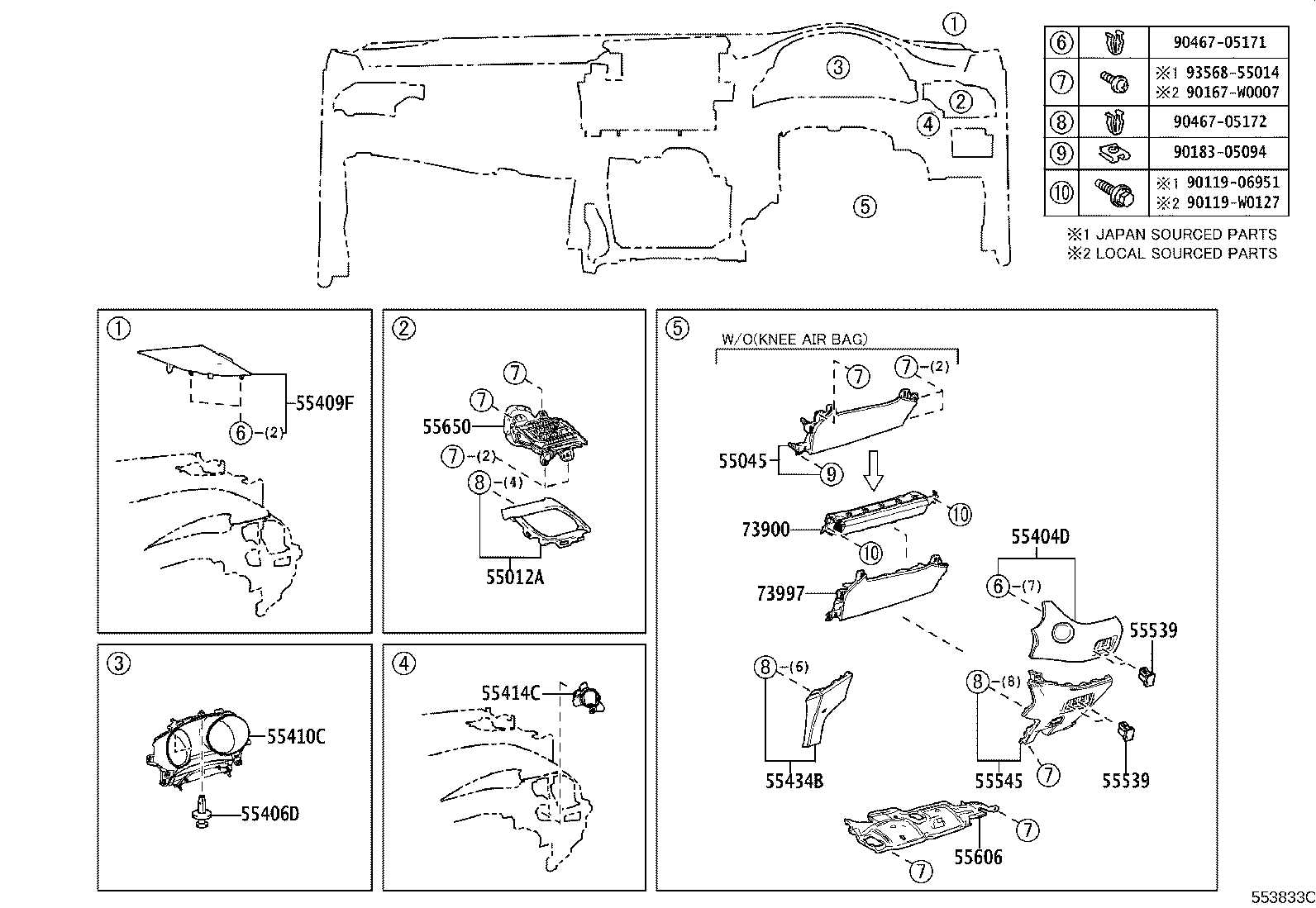

Exploded illustration 553833C 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (5 parts) 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (4 parts) 55406D — CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) (2 parts) 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (4 parts) 55045 — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER (15 parts) 73997 — DOOR, INSTRUMENT PANEL AIRBAG, LOWER NO.1 (8 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (10 parts) 55434B — PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER (12 parts) 55545 — COVER, FUSE BOX OPENING (9 parts) 55539 — COVER, SPARE SWITCH HOLE (12 parts) 55539 — COVER, SPARE SWITCH HOLE (12 parts) 55012A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 (16 parts) 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (11 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (4 parts) 55414C — BEZEL, STARTER SWITCH (4 parts) 9011906951 — not listed in this catalogue 90119W0127 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9018305094 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705171 — not listed in this catalogue
553833C · 15 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
55012A — Garnish Sub-assy, Instrument Panel, NO.2
55012-F4010-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10 LHD D —
55012-F4010-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2018-05 → 2019-09 ended
NGX10,50 LHD N —
55012-F4010-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2016-10 → 2018-05 ended
NGX10,50 LHD N —
55012-F4010-B1 note Garnish Sub-assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD E —
55012-F4020-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55012-F4020-B1 note Garnish Sub-assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55012-F4060-B1 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD E —
55012-F4060-B2 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD N —
55012-F4060-J0 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10,50 LHD E —
55012-F4060-J0 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
ZYX10 E —
55012-F4060-J1 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → 2022-01 ended
NGX10,50 LHD E —
55012-F4060-J1 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → 2022-01 ended
ZYX10 E —
55012-F4070-B1 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10 RHD E —
55012-F4070-B2 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10 RHD (D,N) —
55012-F4070-J0 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → —
NGX10 RHD E —
55012-F4070-J1 note Garnish Sub-assy, Instrument Panel, NO.2
2019-09 → 2022-01 ended
NGX10 RHD E —
55045 — Panel Sub-assy, Instrument Panel Finish, Lower
55045-F4010-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
55045-F4010-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
55045-F4010-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
55045-F4010-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
55045-F4010-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
55045-F4020-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-10 → 2018-05 ended
NGX10 RHD (D,N) —
55045-F4020-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-05 → 2019-09 ended
NGX10 RHD (D,N) —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2019-09 → —
NGX10 LHD CVT N —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2019-09 → —
NGX10 LHD 6F —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2019-09 → —
ZYX10 N —
55045-F4010-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2019-09 → —
ZYX10 E —
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-F4010-C0 note Panel Sub-assy, Instrument Cluster Finish
2016-10 → 2018-05 ended
NGX10,50 LHD —
55404-F4010-C1 note Panel Sub-assy, Instrument Cluster Finish
2018-05 → 2019-09 ended
NGX10,50 LHD —
55404-F4020-C0 note Panel Sub-assy, Instrument Cluster Finish
2016-10 → 2018-05 ended
NGX10,50 RHD (D,N) —
55404-F4020-C1 note Panel Sub-assy, Instrument Cluster Finish
2018-05 → 2019-09 ended
NGX10,50 RHD (D,N) —
55404-F4030-C0 note Panel Sub-assy, Instrument Cluster Finish
2016-10 → 2018-05 ended
NGX10,50 RHD E —
55404-F4030-C1 note Panel Sub-assy, Instrument Cluster Finish
2018-05 → 2019-09 ended
NGX10,50 RHD E —
55404-F4010-C1 note Panel Sub-assy, Instrument Cluster Finish
2019-09 → —
NGX10,50 LHD E —
55404-F4010-C1 note Panel Sub-assy, Instrument Cluster Finish
2019-09 → —
ZYX10 E —
55404-F4010-C1 note Panel Sub-assy, Instrument Cluster Finish
2019-09 → —
NGX10,50,ZYX10 LHD N —
55404-F4020-C1 note Panel Sub-assy, Instrument Cluster Finish
2019-09 → —
NGX10 RHD (D,N) —
55404-F4030-C1 note Panel Sub-assy, Instrument Cluster Finish
2019-09 → —
NGX10 RHD E —
55406D — Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90467-06165-C3 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2016-10 → 2019-09 ended
NGX10,50 —
90467-06165-C3 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2019-09 → —
NGX10,50,ZYX10 —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55409-F4010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2016-10 → 2018-05 ended
NGX10,50 —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2018-05 → 2019-09 ended
NGX10,50 —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-09 → —
NGX10,50,ZYX10 D,N —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-09 → —
ZYX10 E —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-09 → —
NGX10,50 E —
55410C — Panel Assy, Instrument Cluster Finish
55410-F4010 Panel Assy, Instrument Cluster Finish
2016-10 → 2019-09 ended
NGX10,50 LHD —
55410-F4020 Panel Assy, Instrument Cluster Finish
2016-10 → 2019-09 ended
NGX10,50 RHD —
55410-F4010 Panel Assy, Instrument Cluster Finish
2019-09 → —
NGX10,50,ZYX10 LHD —
55410-F4020 Panel Assy, Instrument Cluster Finish
2019-09 → —
NGX10 RHD —
55414C — Bezel, Starter Switch
55414-F4030 Bezel, Starter Switch
2016-10 → 2019-09 ended
NGX10,50 LHD E —
55414-F4040 Bezel, Starter Switch
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55414-F4030 Bezel, Starter Switch
2019-09 → —
ZYX10;NGX10,50 LHD E —
55414-F4040 Bezel, Starter Switch
2019-09 → —
NGX10 RHD E —
55434B — Panel, Instrument Panel Finish, Lower Center
55434-F4010-C0 note Panel, Instrument Panel Finish, Lower Center
2016-10 → 2018-05 ended
NGX10,50 LHD E —
55434-F4010-C1 note Panel, Instrument Panel Finish, Lower Center
2018-05 → 2019-09 ended
NGX10,50 LHD E —
55434-F4020-C0 note Panel, Instrument Panel Finish, Lower Center
2016-10 → 2018-05 ended
NGX10,50 RHD —
55434-F4020-C1 note Panel, Instrument Panel Finish, Lower Center
2018-05 → 2019-09 ended
NGX10,50 RHD —
55434-F4030-C0 note Panel, Instrument Panel Finish, Lower Center
2016-10 → 2018-05 ended
NGX10,50 LHD (D,N) —
55434-F4030-C1 note Panel, Instrument Panel Finish, Lower Center
2018-05 → 2019-09 ended
NGX10,50 LHD (D,N) —
55434-F4010-C1 note Panel, Instrument Panel Finish, Lower Center
2019-09 → —
NGX10,50 LHD E —
55434-F4010-C1 note Panel, Instrument Panel Finish, Lower Center
2019-09 → —
ZYX10 E —
55434-F4010-C1 note Panel, Instrument Panel Finish, Lower Center
2019-09 → —
ZYX10 N —
55434-F4020-C1 note Panel, Instrument Panel Finish, Lower Center
2019-09 → —
NGX10 RHD (D,N) —
55434-F4020-C1 note Panel, Instrument Panel Finish, Lower Center
2019-09 → —
NGX10 RHD E —
55434-F4030-C1 note Panel, Instrument Panel Finish, Lower Center
2019-09 → —
NGX10,50 LHD N —
55539 — Cover, Spare Switch Hole
55539-28160-C0 note Cover, Spare Switch Hole
2016-10 → 2016-12 ended
NGX10,50 —
55539-28160-C0 note Cover, Spare Switch Hole
2016-10 → 2016-12 ended
NGX10,50 RHD E —
55539-28160-C0 note Cover, Spare Switch Hole
2016-10 → 2016-12 ended
NGX10,50 D,N —
55539-28160-C1 note Cover, Spare Switch Hole
2016-12 → 2019-09 ended
NGX10,50 —
55539-28160-C1 note Cover, Spare Switch Hole
2016-12 → 2019-09 ended
NGX10,50 RHD E —
55539-28160-C1 note Cover, Spare Switch Hole
2016-12 → 2019-09 ended
NGX10,50 D,N —
55539-28160-C1 note Cover, Spare Switch Hole
2019-09 → 2023-10 ended
NGX10 RHD E —
55539-28160-C1 note Cover, Spare Switch Hole
2019-09 → —
NGX10,50 E —
55539-28160-C1 note Cover, Spare Switch Hole
2019-09 → —
ZYX10 E —
55539-28160-C1 note Cover, Spare Switch Hole
2019-09 → —
NGX10,50,ZYX10 D,N —
55539-28160-C1 note Cover, Spare Switch Hole
2019-09 → 2023-10 ended
NGX10 RHD E —
55539-28160-C1 note Cover, Spare Switch Hole
2019-09 → 2023-10 ended
NGX10 RHD E —
55545 — Cover, Fuse Box Opening
55545-F4010-C0 note Cover, Fuse Box Opening
2016-10 → 2018-05 ended
NGX10,50 LHD —
55545-F4010-C1 note Cover, Fuse Box Opening
2018-05 → 2019-09 ended
NGX10,50 LHD —
55545-F4020-C0 note Cover, Fuse Box Opening
2016-10 → 2018-05 ended
NGX10,50 RHD —
55545-F4020-C1 note Cover, Fuse Box Opening
2018-05 → 2019-09 ended
NGX10,50 RHD —
55545-F4010-C1 note Cover, Fuse Box Opening
2019-09 → —
NGX10,50 LHD E —
55545-F4010-C1 note Cover, Fuse Box Opening
2019-09 → —
ZYX10 E —
55545-F4010-C1 note Cover, Fuse Box Opening
2019-09 → —
NGX10,50,ZYX10 LHD N —
55545-F4020-C1 note Cover, Fuse Box Opening
2019-09 → —
NGX10 RHD (D,N) —
55545-F4020-C1 note Cover, Fuse Box Opening
2019-09 → —
NGX10 RHD E —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-F4010 Cover Sub-assy, Instrument Panel Under, NO.1
2016-10 → 2018-12 ended
NGX10,50 LHD (D,N) —
55606-F4011 Cover Sub-assy, Instrument Panel Under, NO.1
2018-12 → 2019-09 ended
NGX10,50 LHD (D,N) —
55606-F4020 Cover Sub-assy, Instrument Panel Under, NO.1
2016-10 → 2018-12 ended
NGX10,50 LHD E —
55606-F4021 Cover Sub-assy, Instrument Panel Under, NO.1
2018-12 → 2019-09 ended
NGX10,50 LHD E —
55606-F4030 Cover Sub-assy, Instrument Panel Under, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55606-F4040 Cover Sub-assy, Instrument Panel Under, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55606-F4011 Cover Sub-assy, Instrument Panel Under, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD N —
55606-F4021 Cover Sub-assy, Instrument Panel Under, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD E —
55606-F4030 Cover Sub-assy, Instrument Panel Under, NO.1
2019-09 → —
NGX10 RHD (D,N) —
55606-F4040 Cover Sub-assy, Instrument Panel Under, NO.1
2019-09 → —
NGX10 RHD E —
55650 — Register Assy, Instrument Panel, NO.1
55650-F4010 Register Assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
55650-F4020 Register Assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
55650-F4010 Register Assy, Instrument Panel, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD —
55650-F4020 Register Assy, Instrument Panel, NO.1
2019-09 → —
NGX10 RHD —
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73901-F4010 Airbag Assy, Instrument Panel, Lower NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
73901-F4020 Airbag Assy, Instrument Panel, Lower NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
73901-F4010 Airbag Assy, Instrument Panel, Lower NO.1
2019-09 → —
NGX10,50 LHD —
73901-F4020 Airbag Assy, Instrument Panel, Lower NO.1
2019-09 → —
NGX10 RHD —
73997 — Door, Instrument Panel Airbag, Lower NO.1
73997-F4010-C0 note Door, Instrument Panel Airbag, Lower NO.1
2016-10 → 2018-05 ended
NGX10,50 LHD —
73997-F4010-C1 note Door, Instrument Panel Airbag, Lower NO.1
2018-05 → 2019-09 ended
NGX10,50 LHD —
73997-F4020-C0 note Door, Instrument Panel Airbag, Lower NO.1
2016-10 → 2018-05 ended
NGX10,50 RHD —
73997-F4020-C1 note Door, Instrument Panel Airbag, Lower NO.1
2018-05 → 2019-09 ended
NGX10,50 RHD —
73997-F4010-C1 note Door, Instrument Panel Airbag, Lower NO.1
2019-09 → —
NGX10,50 LHD N —
73997-F4010-C1 note Door, Instrument Panel Airbag, Lower NO.1
2019-09 → —
NGX10,50 LHD E —
73997-F4020-C1 note Door, Instrument Panel Airbag, Lower NO.1
2019-09 → —
NGX10 RHD (D,N) —
73997-F4020-C1 note Door, Instrument Panel Airbag, Lower NO.1
2019-09 → —
NGX10 RHD E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
