Exploded illustration 554516A 53383B — SEAL, HOOD TO COWL TOP (2 parts) 53383D — CLIP(FOR HOOD TO COWL TOP SEAL) (2 parts) 55211B — SILENCER, FRONT PANEL (4 parts) 55224A — INSULATOR, DASH PANEL, OUTER NO.2 (4 parts) 55700B — COWL ASSY (4 parts) 55701J — PANEL SUB-ASSY, COWL TOP, OUTER (4 parts) 55708 — LOUVER SUB-ASSY, COWL TOP VENTILATOR (4 parts) 55735A — PLATE, WATER GUARD, LH (1 parts) 55735C — REINFORCEMENT, COWL BODY MOUNTING, RH (4 parts) 55736D — REINFORCEMENT, COWL BODY MOUNTING, LH (4 parts) 55737B — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 (4 parts) 55743A — EXTENSION, COWL TO COWL SIDE, RH (2 parts) 55744D — EXTENSION, COWL TO COWL SIDE, LH (2 parts) 55745A — REINFORCEMENT, COWL TOP, INNER (4 parts) 55767A — SHEET, COWL TOP INSULATOR, NO.5 (4 parts) 55797A — SEAL, COWL WATER EXTRACT (2 parts) 56111 — GLASS, WINDSHIELD (13 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 56117A — DAM, WINDOW GLASS ADHESIVE (6 parts) 56153C — MOULDING, FRONT WINDOW, INNER CENTER (6 parts) 75533G — MOULDING, WINDSHIELD, OUTSIDE (2 parts) 90119W0134 — not listed in this catalogue 90119W0134 — not listed in this catalogue 9046706188 — not listed in this catalogue 9046706197 — not listed in this catalogue 9046711122 — not listed in this catalogue 9056010098 — not listed in this catalogue 9046709242 — not listed in this catalogue 55745A — REINFORCEMENT, COWL TOP, INNER (4 parts) 55783B — LOUVER, COWL TOP VENTILATOR, CENTER NO.1 (4 parts) 90119W0134 — not listed in this catalogue

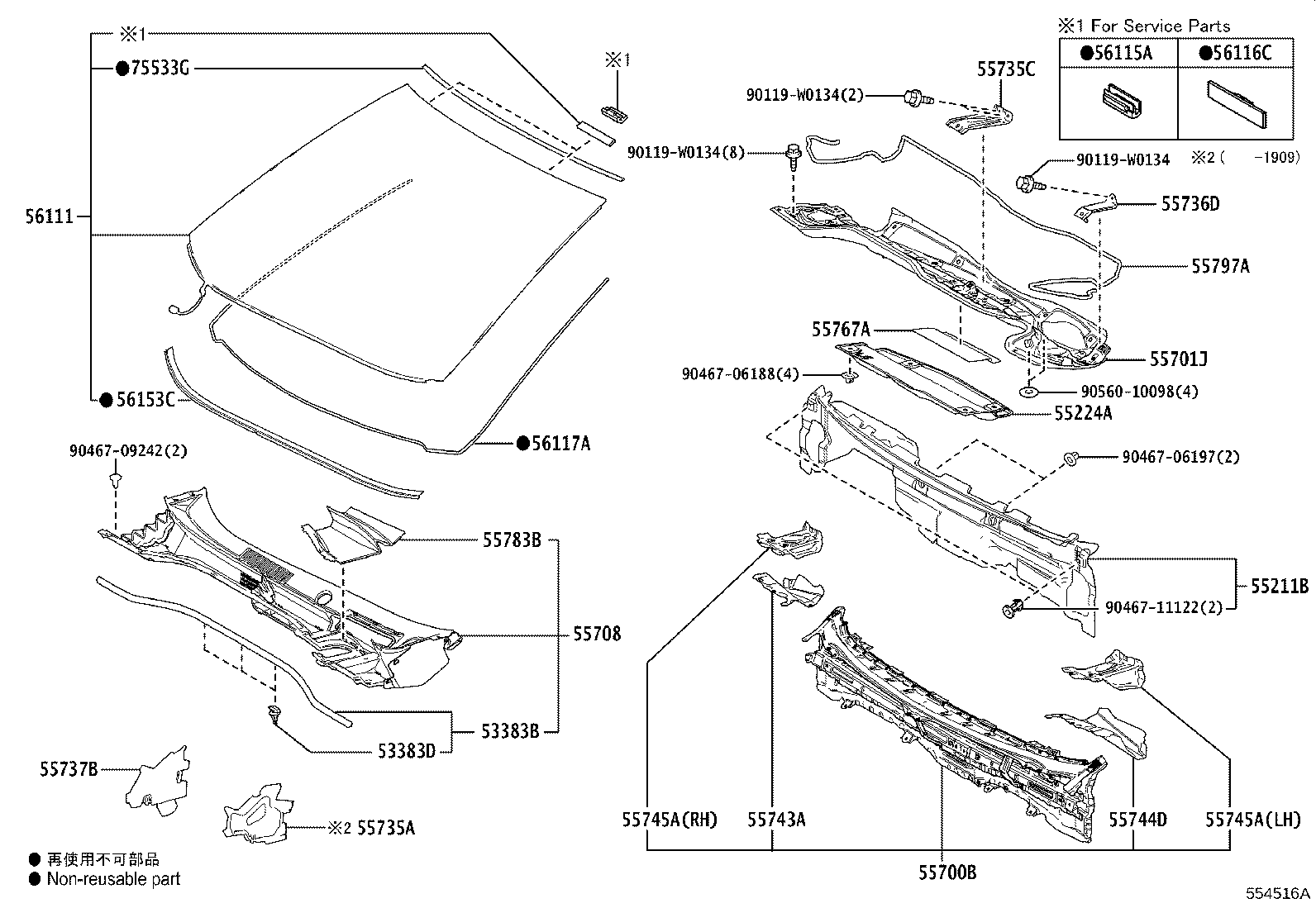

554516A · 24 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
53383B — Seal, Hood TO Cowl Top
53383-F4010 Seal, Hood TO Cowl Top
2016-10 → 2019-09 ended
NGX10,50 —
53383-F4010 Seal, Hood TO Cowl Top
2019-09 → —
NGX10,50,ZYX10 —
53383D — Clip(FOR HOOD TO COWL TOP SEAL)
67867-F4010 Clip(FOR HOOD TO COWL TOP SEAL)
2016-10 → 2019-09 ended
NGX10,50 —
67867-F4010 Clip(FOR HOOD TO COWL TOP SEAL)
2019-09 → —
NGX10,50,ZYX10 —
55211B — Silencer, Front Panel
55211-F4010 Silencer, Front Panel
2016-10 → 2019-09 ended
NGX10,50 LHD —
55211-F4020 Silencer, Front Panel
2016-10 → 2019-09 ended
NGX10,50 RHD —
55211-F4060 Silencer, Front Panel
2019-09 → —
NGX10,50,ZYX10 LHD —
55211-F4070 Silencer, Front Panel
2019-09 → —
NGX10 RHD —
55224A — Insulator, Dash Panel, Outer NO.2
55224-F4010 Insulator, Dash Panel, Outer NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD —
55224-F4020 Insulator, Dash Panel, Outer NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD —
55224-F4010 Insulator, Dash Panel, Outer NO.2
2019-09 → —
NGX10,50,ZYX10 LHD —
55224-F4020 Insulator, Dash Panel, Outer NO.2
2019-09 → —
NGX10 RHD —
55700B — Cowl Assy
55700-F4010 Cowl Assy
2016-10 → 2019-09 ended
NGX10,50 LHD —
55700-F4020 Cowl Assy
2016-10 → 2019-09 ended
NGX10,50 RHD —
55700-F4010 Cowl Assy
2019-09 → —
NGX10,50,ZYX10 LHD —
55700-F4020 Cowl Assy
2019-09 → —
NGX10 RHD —
55701J — Panel Sub-assy, Cowl Top, Outer
55701-F4010 Panel Sub-assy, Cowl Top, Outer
2016-10 → 2019-09 ended
NGX10,50 LHD —
55701-F4020 Panel Sub-assy, Cowl Top, Outer
2016-10 → 2019-09 ended
NGX10,50 RHD —
55701-F4010 Panel Sub-assy, Cowl Top, Outer
2019-09 → —
NGX10,50,ZYX10 LHD —
55701-F4021 Panel Sub-assy, Cowl Top, Outer
2019-09 → —
NGX10 RHD —
55708 — Louver Sub-assy, Cowl Top Ventilator
55708-F4010 Louver Sub-assy, Cowl Top Ventilator
2016-10 → 2019-09 ended
NGX10,50 LHD —
55708-F4030 Louver Sub-assy, Cowl Top Ventilator
2016-10 → 2019-09 ended
NGX10,50 RHD —
55708-F4011 Louver Sub-assy, Cowl Top Ventilator
2019-09 → —
NGX10,50,ZYX10 LHD —
55708-F4031 Louver Sub-assy, Cowl Top Ventilator
2019-09 → —
NGX10 RHD —
55735A — Plate, Water Guard, LH
55734-F4010 Plate, Water Guard, LH
2016-10 → 2019-09 ended
NGX10,50 —
55735C — Reinforcement, Cowl Body Mounting, RH
55736-F4010 Reinforcement, Cowl Body Mounting, RH
2016-10 → 2019-09 ended
NGX10,50 LHD —
55736-F4020 Reinforcement, Cowl Body Mounting, RH
2016-10 → 2019-09 ended
NGX10,50 RHD —
55736-F4010 Reinforcement, Cowl Body Mounting, RH
2019-09 → —
NGX10,50,ZYX10 LHD —
55736-F4020 Reinforcement, Cowl Body Mounting, RH
2019-09 → —
NGX10 RHD —
55736D — Reinforcement, Cowl Body Mounting, LH
55736-F4010 Reinforcement, Cowl Body Mounting, LH
2016-10 → 2019-09 ended
NGX10,50 RHD —
55736-F4020 Reinforcement, Cowl Body Mounting, LH
2016-10 → 2019-09 ended
NGX10,50 LHD —
55736-F4010 Reinforcement, Cowl Body Mounting, LH
2019-09 → —
NGX10 RHD —
55736-F4020 Reinforcement, Cowl Body Mounting, LH
2019-09 → —
NGX10,50,ZYX10 LHD —
55737B — Seal, Heater Air Duct Splash Shield, NO.1
55737-F4010 Seal, Heater Air Duct Splash Shield, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
55737-F4020 Seal, Heater Air Duct Splash Shield, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
55737-F4010 Seal, Heater Air Duct Splash Shield, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD —
55737-F4020 Seal, Heater Air Duct Splash Shield, NO.1
2019-09 → —
NGX10 RHD —
55743A — Extension, Cowl TO Cowl Side, RH
55743-F4010 Extension, Cowl TO Cowl Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
55743-F4010 Extension, Cowl TO Cowl Side, RH
2019-09 → —
NGX10,50,ZYX10 —
55744D — Extension, Cowl TO Cowl Side, LH
55744-F4010 Extension, Cowl TO Cowl Side, LH
2016-10 → 2019-09 ended
NGX10,50 —
55744-F4010 Extension, Cowl TO Cowl Side, LH
2019-09 → —
NGX10,50,ZYX10 —
55745A — Reinforcement, Cowl Top, Inner
55745-F4010 note Reinforcement, Cowl Top, Inner
2016-10 → 2019-09 ended
NGX10,50 —
55746-F4010 note Reinforcement, Cowl Top, Inner
2016-10 → 2019-09 ended
NGX10,50 —
55745-F4010 note Reinforcement, Cowl Top, Inner
2019-09 → —
NGX10,50,ZYX10 —
55746-F4010 note Reinforcement, Cowl Top, Inner
2019-09 → —
NGX10,50,ZYX10 —
55767A — Sheet, Cowl Top Insulator, NO.5
55767-F4010 Sheet, Cowl Top Insulator, NO.5
2016-10 → 2019-09 ended
NGX10,50 LHD —
55767-F4020 Sheet, Cowl Top Insulator, NO.5
2016-10 → 2019-09 ended
NGX10,50 RHD —
55767-F4010 Sheet, Cowl Top Insulator, NO.5
2019-09 → —
NGX10,50,ZYX10 LHD —
55767-F4020 Sheet, Cowl Top Insulator, NO.5
2019-09 → —
NGX10 RHD —
55783B — Louver, Cowl Top Ventilator, Center NO.1
55783-F4010 Louver, Cowl Top Ventilator, Center NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
55783-F4020 Louver, Cowl Top Ventilator, Center NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
55783-F4010 Louver, Cowl Top Ventilator, Center NO.1
2019-09 → —
NGX10,50,ZYX10 LHD —
55783-F4020 Louver, Cowl Top Ventilator, Center NO.1
2019-09 → —
NGX10 RHD —
55797A — Seal, Cowl Water Extract
55797-F4010 Seal, Cowl Water Extract
2016-10 → 2019-09 ended
NGX10,50 —
55797-F4010 Seal, Cowl Water Extract
2019-09 → —
NGX10,50,ZYX10 —
56111 — Glass, Windshield
56101-F4010 Glass, Windshield
2016-10 → 2019-09 ended
NGX10 LHD D —
56101-F4130 Glass, Windshield
2016-10 → 2019-09 ended
NGX10 RHD D —
56101-F4140 Glass, Windshield
2016-10 → 2019-09 ended
NGX10,50 RHD (E,N) —
56101-F4200 Glass, Windshield
2016-10 → 2019-09 ended
NGX10,50 LHD (E,N) —
56101-F4290 note Glass, Windshield
2018-05 → 2019-09 ended
NGX10 LHD CVT N —
56101-F4010 Glass, Windshield
2019-09 → —
ZYX10 —
56101-F4010 note Glass, Windshield
2019-09 → —
NGX10 LHD CVT N —
56101-F4010 note Glass, Windshield
2019-09 → —
NGX10,50 LHD N —
56101-F4130 Glass, Windshield
2019-09 → —
NGX10 D —
56101-F4140 Glass, Windshield
2019-09 → —
NGX10 RHD (E,N) —
56101-F4170 note Glass, Windshield
2019-09 → 2020-10 ended
NGX10 RHD E —
56101-F4200 Glass, Windshield
2019-09 → —
NGX10,50 LHD —
56101-F4590 note Glass, Windshield
2020-10 → —
NGX10 RHD E —
56115A — Stopper, Windshield Glass, NO.1
56115-30100 Stopper, Windshield Glass, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
56115-30100 Stopper, Windshield Glass, NO.1
2019-09 → —
NGX10,50,ZYX10 —
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
56116-22050 Stopper, Windshield Glass, NO.2
2019-09 → —
NGX10,50,ZYX10 —
56117A — Dam, Window Glass Adhesive
04562-12010 note Dam, Window Glass Adhesive
2016-10 → 2019-09 ended
NGX10,50 —
04562-12010 note Dam, Window Glass Adhesive
2018-05 → 2019-09 ended
NGX10 LHD CVT N —
04562-12010 note Dam, Window Glass Adhesive
2019-09 → —
NGX10 RHD E —
04562-12010 note Dam, Window Glass Adhesive
2019-09 → —
NGX10,50 LHD N —
04562-12010 note Dam, Window Glass Adhesive
2019-09 → —
NGX10 LHD CVT N —
04562-12010 note Dam, Window Glass Adhesive
2019-09 → —
NGX10,50,ZYX10 —
56153C — Moulding, Front Window, Inner Center
56153-10010 Moulding, Front Window, Inner Center
2016-10 → 2019-09 ended
NGX10,50 LHD —
56153-10020 Moulding, Front Window, Inner Center
2016-10 → 2019-09 ended
NGX10,50 RHD —
56153-10010 Moulding, Front Window, Inner Center
2019-09 → 2021-02 ended
NGX10,50,ZYX10 LHD —
56153-10020 Moulding, Front Window, Inner Center
2019-09 → 2021-02 ended
NGX10 RHD —
56153-F4060 Moulding, Front Window, Inner Center
2021-03 → —
NGX10,50,ZYX10 LHD —
56153-F4070 Moulding, Front Window, Inner Center
2021-03 → —
NGX10 RHD —
75533G — Moulding, Windshield, Outside
75533-F4010 Moulding, Windshield, Outside
2016-10 → 2019-09 ended
NGX10,50 —
75533-F4010 Moulding, Windshield, Outside
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
