Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

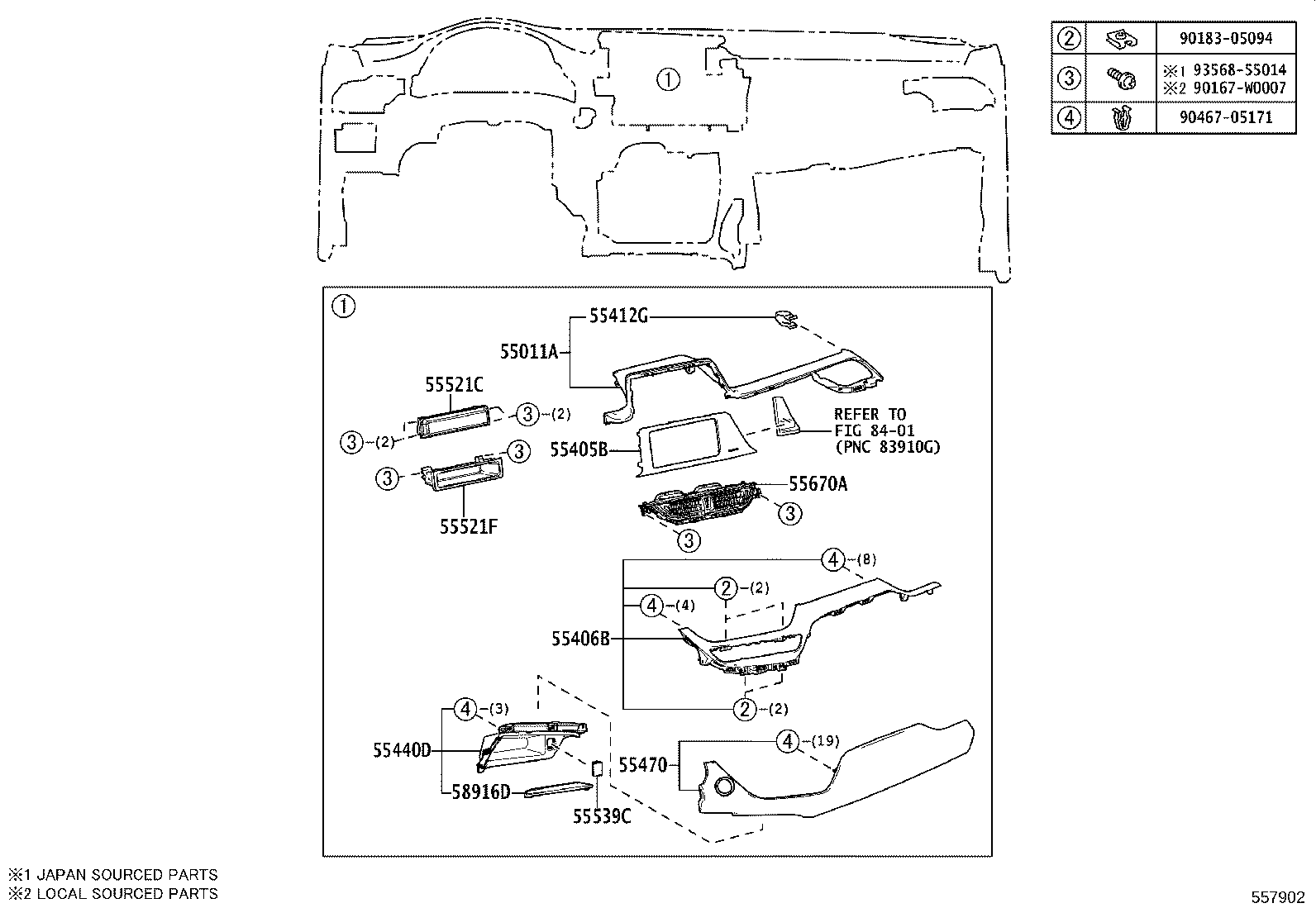

Exploded illustration 557902 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9046705171 — not listed in this catalogue 9018305094 — not listed in this catalogue 8401 — not listed in this catalogue 55412G — CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) (1 parts) 55011A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 (28 parts) 55440D — BOX ASSY, INSTRUMENT PANEL (4 parts) 55406B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER (4 parts) 55470 — GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL (12 parts) 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (4 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (9 parts) 55539C — COVER, SPARE SWITCH HOLE (11 parts) 55521C — COVER, STEREO OPENING (5 parts) 55521F — COVER, STEREO OPENING, NO.2 (5 parts) 58916D — MAT, BOX BOTTOM (4 parts)
557902 · 11 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
55011A — Garnish Sub-assy, Instrument Panel, NO.1
55011-F4010-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10 LHD D —
55011-F4010-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2016-10 → 2018-05 ended
NGX10,50 LHD N —
55011-F4010-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2018-05 → 2019-09 ended
NGX10,50 LHD N —
55011-F4010-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD E —
55011-F4020-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55011-F4020-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55011-F4010-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
ZYX10 E —
55011-F4010-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX50 E —
55011-F4010-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 LHD E —
55011-F4010-B3 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
ZYX10 N —
55011-F4010-B3 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 LHD N —
55011-F4010-B3 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 LHD CVT N —
55011-F4010-B3 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX50 N —
55011-F4010-J0 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
ZYX10 E —
55011-F4010-J0 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX50 E —
55011-F4010-J0 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 LHD E —
55011-F4090-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10,50 LHD E —
55011-F4090-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
ZYX10 E —
55011-F4090-B3 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
ZYX10 N —
55011-F4090-B3 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10,50 LHD N —
55011-F4090-J1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10,50 LHD E —
55011-F4090-J1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
ZYX10 E —
55011-F4090-J2 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → 2022-01 ended
ZYX10 E —
55011-F4090-J2 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → 2022-01 ended
NGX10,50 LHD E —
55011-F4100-B1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 RHD E —
55011-F4100-B2 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 RHD (D,N) —
55011-F4100-J0 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → —
NGX10 RHD E —
55011-F4100-J1 note Garnish Sub-assy, Instrument Panel, NO.1
2019-09 → 2022-01 ended
NGX10 RHD E —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-F4020 Panel Sub-assy, Instrument Cluster Finish, Center
2016-10 → 2019-09 ended
NGX10,50 LHD —
55405-F4030 Panel Sub-assy, Instrument Cluster Finish, Center
2016-10 → 2019-09 ended
NGX10,50 RHD —
55405-F4010 Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
NGX10 RHD —
55405-F4020 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
NGX50 —
55405-F4020 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
NGX10 LHD —
55405-F4020 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
NGX10 LHD CVT N —
55405-F4020 Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
ZYX10 —
55405-F4050 Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
NGX10,50 LHD —
55405-F4050 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-09 → —
ZYX10 —
55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406-F4010 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-10 → 2019-09 ended
NGX10,50 LHD —
55406-F4020 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-10 → 2019-09 ended
NGX10,50 RHD —
55406-F4060 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2019-09 → —
NGX10,50,ZYX10 LHD —
55406-F4070 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2019-09 → —
NGX10 RHD —
55412G — Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
90467-05172 Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
2016-10 → 2019-09 ended
NGX10,50 —
55440D — Box Assy, Instrument Panel
55440-F4010 Box Assy, Instrument Panel
2016-10 → 2019-09 ended
NGX10,50 LHD —
55440-F4020 Box Assy, Instrument Panel
2016-10 → 2019-09 ended
NGX10,50 RHD —
55440-F4070 Box Assy, Instrument Panel
2019-09 → —
NGX10,50,ZYX10 LHD —
55440-F4080 Box Assy, Instrument Panel
2019-09 → —
NGX10 RHD —
55470 — Garnish Assy, Instrument Cluster Finish Panel
55470-F4010-C0 note Garnish Assy, Instrument Cluster Finish Panel
2016-10 → 2018-05 ended
NGX10,50 LHD (D,N) —
55470-F4010-C1 note Garnish Assy, Instrument Cluster Finish Panel
2018-05 → 2019-09 ended
NGX10,50 LHD (D,N) —
55470-F4020-C0 note Garnish Assy, Instrument Cluster Finish Panel
2016-10 → 2018-05 ended
NGX10,50 LHD E —
55470-F4020-C1 note Garnish Assy, Instrument Cluster Finish Panel
2018-05 → 2019-09 ended
NGX10,50 LHD E —
55470-F4030-C0 note Garnish Assy, Instrument Cluster Finish Panel
2016-10 → 2018-05 ended
NGX10,50 RHD —
55470-F4030-C1 note Garnish Assy, Instrument Cluster Finish Panel
2018-05 → 2019-09 ended
NGX10,50 RHD —
55470-F4010-C1 note Garnish Assy, Instrument Cluster Finish Panel
2019-09 → —
NGX10,50 LHD N —
55470-F4020-C1 note Garnish Assy, Instrument Cluster Finish Panel
2019-09 → —
ZYX10 N —
55470-F4020-C1 note Garnish Assy, Instrument Cluster Finish Panel
2019-09 → —
ZYX10 E —
55470-F4020-C1 note Garnish Assy, Instrument Cluster Finish Panel
2019-09 → —
NGX10,50 LHD E —
55470-F4030-C1 note Garnish Assy, Instrument Cluster Finish Panel
2019-09 → —
NGX10 RHD (D,N) —
55470-F4030-C1 note Garnish Assy, Instrument Cluster Finish Panel
2019-09 → —
NGX10 RHD E —
55521C — Cover, Stereo Opening
55521-02100 Cover, Stereo Opening
2016-10 → 2019-09 ended
NGX10 D —
55521-02100 note Cover, Stereo Opening
2016-10 → 2019-09 ended
NGX10,50 E,N —
55521-02100 note Cover, Stereo Opening
2019-09 → 2023-10 ended
ZYX10 —
55521-02100 Cover, Stereo Opening
2019-09 → —
ZYX10 —
55521-02100 note Cover, Stereo Opening
2019-09 → —
NGX10 LHD CVT N —
55521F — Cover, Stereo Opening, NO.2
55521-02080 Cover, Stereo Opening, NO.2
2016-10 → 2019-09 ended
NGX10 D —
55521-02080 note Cover, Stereo Opening, NO.2
2016-10 → 2019-09 ended
NGX10,50 E,N —
55521-02080 note Cover, Stereo Opening, NO.2
2019-09 → 2023-10 ended
ZYX10 —
55521-02080 note Cover, Stereo Opening, NO.2
2019-09 → —
NGX10 LHD CVT N —
55521-02080 Cover, Stereo Opening, NO.2
2019-09 → —
ZYX10 —
55539C — Cover, Spare Switch Hole
55539-02100-C1 note Cover, Spare Switch Hole
2016-10 → 2018-05 ended
NGX10,50 —
55539-02100-C2 note Cover, Spare Switch Hole
2018-05 → 2019-09 ended
NGX10,50 —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
NGX10 LHD N —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
NGX10 LHD E —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
NGX10 LHD CVT N —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
NGX50 E —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
NGX50 N —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
ZYX10 N —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → —
ZYX10 E —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → 2023-10 ended
ZYX10 N —
55524-02010-C0 note Cover, Spare Switch Hole
2019-09 → 2023-10 ended
ZYX10 E —
55670A — Register Assy, Instrument Panel, Center
55670-F4010 Register Assy, Instrument Panel, Center
2016-10 → 2019-09 ended
NGX10,50 LHD —
55670-F4020 Register Assy, Instrument Panel, Center
2016-10 → 2019-09 ended
NGX10,50 RHD —
55670-F4010 Register Assy, Instrument Panel, Center
2019-09 → —
NGX10,50,ZYX10 LHD —
55670-F4020 Register Assy, Instrument Panel, Center
2019-09 → —
NGX10 RHD —
58916D — Mat, Box Bottom
58916-F4010 Mat, Box Bottom
2016-10 → 2019-09 ended
NGX10,50 LHD —
58916-F4020 Mat, Box Bottom
2016-10 → 2019-09 ended
NGX10,50 RHD —
58916-F4010 Mat, Box Bottom
2019-09 → —
NGX10,50,ZYX10 LHD —
58916-F4020 Mat, Box Bottom
2019-09 → —
NGX10 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
