Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

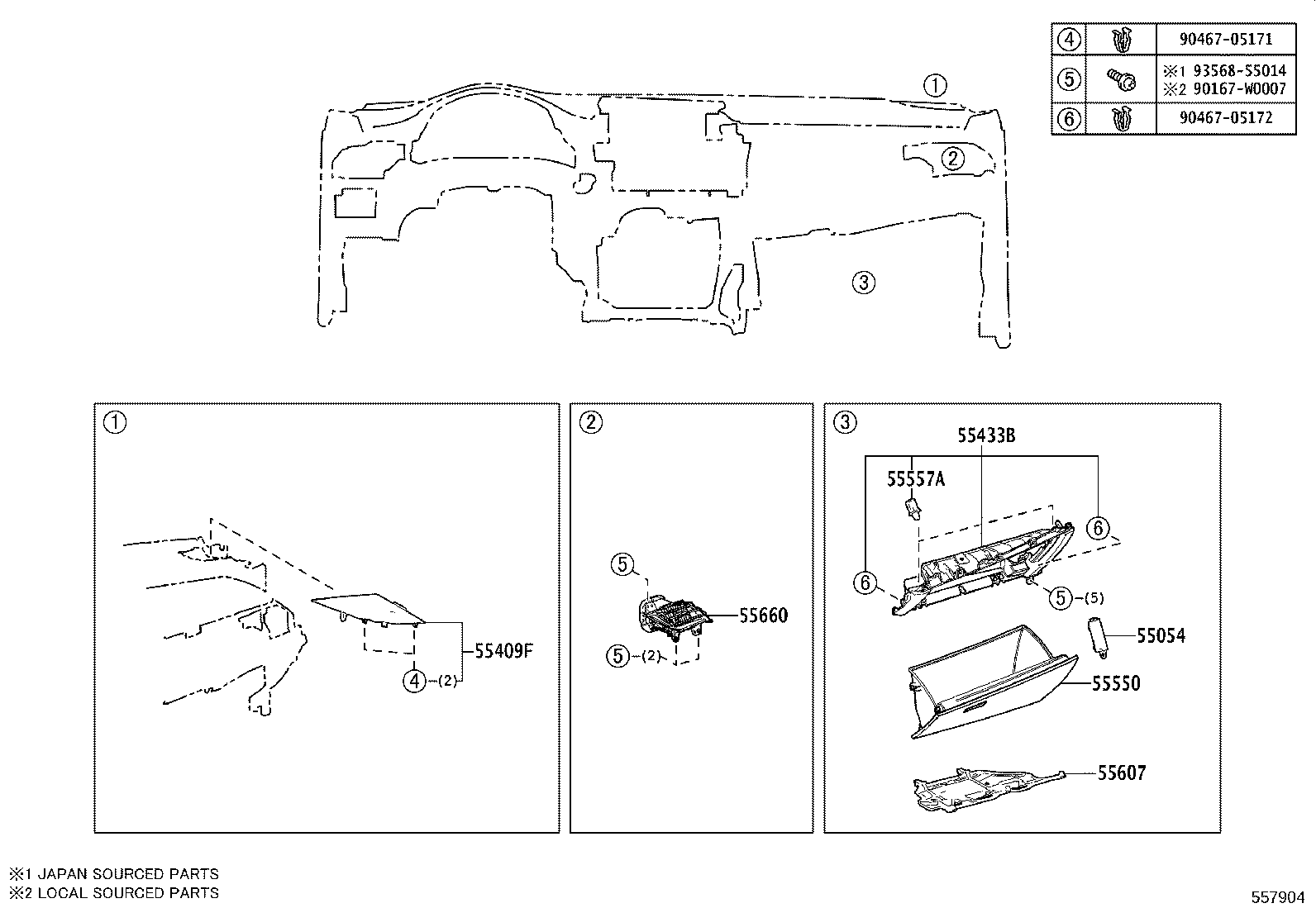

Exploded illustration 557904 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046705171 — not listed in this catalogue 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (5 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (4 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (9 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (3 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (9 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (8 parts)
557904 · 7 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
55054 — Stopper Sub-assy, Glove Compartment Door
55054-47010 Stopper Sub-assy, Glove Compartment Door
2016-10 → 2019-09 ended
NGX10,50 —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2019-09 → —
NGX10,50,ZYX10 —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55409-F4010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2016-10 → 2018-05 ended
NGX10,50 —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2018-05 → 2019-09 ended
NGX10,50 —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-09 → —
NGX10,50,ZYX10 D,N —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-09 → —
ZYX10 E —
55409-F4010-C1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-09 → —
NGX10,50 E —
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-F4010-C0 note Panel, Instrument Panel Finish, Lower NO.2
2016-10 → 2018-01 ended
NGX10,50 LHD —
55433-F4010-C1 note Panel, Instrument Panel Finish, Lower NO.2
2018-01 → 2019-09 ended
NGX10,50 LHD —
55433-F4020-C0 note Panel, Instrument Panel Finish, Lower NO.2
2016-10 → 2018-01 ended
NGX10,50 RHD —
55433-F4020-C1 note Panel, Instrument Panel Finish, Lower NO.2
2018-01 → 2019-09 ended
NGX10,50 RHD —
55433-F4010-C1 note Panel, Instrument Panel Finish, Lower NO.2
2019-09 → —
NGX10,50 LHD E —
55433-F4010-C1 note Panel, Instrument Panel Finish, Lower NO.2
2019-09 → —
NGX10,50,ZYX10 LHD N —
55433-F4010-C1 note Panel, Instrument Panel Finish, Lower NO.2
2019-09 → —
ZYX10 E —
55433-F4020-C1 note Panel, Instrument Panel Finish, Lower NO.2
2019-09 → —
NGX10 RHD (D,N) —
55433-F4020-C1 note Panel, Instrument Panel Finish, Lower NO.2
2019-09 → —
NGX10 RHD E —
55550 — Door Assy, Glove Compartment
55550-F4020-C0 note Door Assy, Glove Compartment
2016-10 → 2018-05 ended
NGX10,50 RHD —
55550-F4022-C1 note Door Assy, Glove Compartment
2018-05 → 2019-09 ended
NGX10,50 RHD —
55550-F4030-C0 note Door Assy, Glove Compartment
2016-10 → 2018-05 ended
NGX10,50 LHD —
55550-F4032-C1 note Door Assy, Glove Compartment
2018-05 → 2019-09 ended
NGX10,50 LHD —
55550-F4022-C1 note Door Assy, Glove Compartment
2019-09 → —
NGX10 RHD (D,N) —
55550-F4022-C1 note Door Assy, Glove Compartment
2019-09 → —
NGX10 RHD E —
55550-F4032-C1 note Door Assy, Glove Compartment
2019-09 → —
NGX10,50 LHD E —
55550-F4032-C1 note Door Assy, Glove Compartment
2019-09 → —
ZYX10 E —
55550-F4032-C1 note Door Assy, Glove Compartment
2019-09 → —
NGX10,50,ZYX10 LHD N —
55557A — Cushion, Glove Compartment Door Check
55557-52030 Cushion, Glove Compartment Door Check
2017-06 → 2019-09 ended
NGX10,50 —
55557-78010 Cushion, Glove Compartment Door Check
2016-10 → 2017-05 ended
NGX10,50 —
55557-52030 Cushion, Glove Compartment Door Check
2019-09 → —
NGX10,50,ZYX10 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-F4010 Cover Sub-assy, Instrument Panel Under, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD (D,N) —
55607-F4020 Cover Sub-assy, Instrument Panel Under, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD E —
55607-F4030 Cover Sub-assy, Instrument Panel Under, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55607-F4040 Cover Sub-assy, Instrument Panel Under, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55607-F4010 Cover Sub-assy, Instrument Panel Under, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD N —
55607-F4020 Cover Sub-assy, Instrument Panel Under, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD E —
55607-F4030 Cover Sub-assy, Instrument Panel Under, NO.2
2019-09 → —
NGX10 RHD (D,N) —
55607-F4040 Cover Sub-assy, Instrument Panel Under, NO.2
2019-09 → —
NGX10 RHD E —
55660 — Register Assy, Instrument Panel, NO.2
55660-F4010 Register Assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD —
55660-F4020 Register Assy, Instrument Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD —
55660-F4010 Register Assy, Instrument Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD —
55660-F4020 Register Assy, Instrument Panel, NO.2
2019-09 → —
NGX10 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
