Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

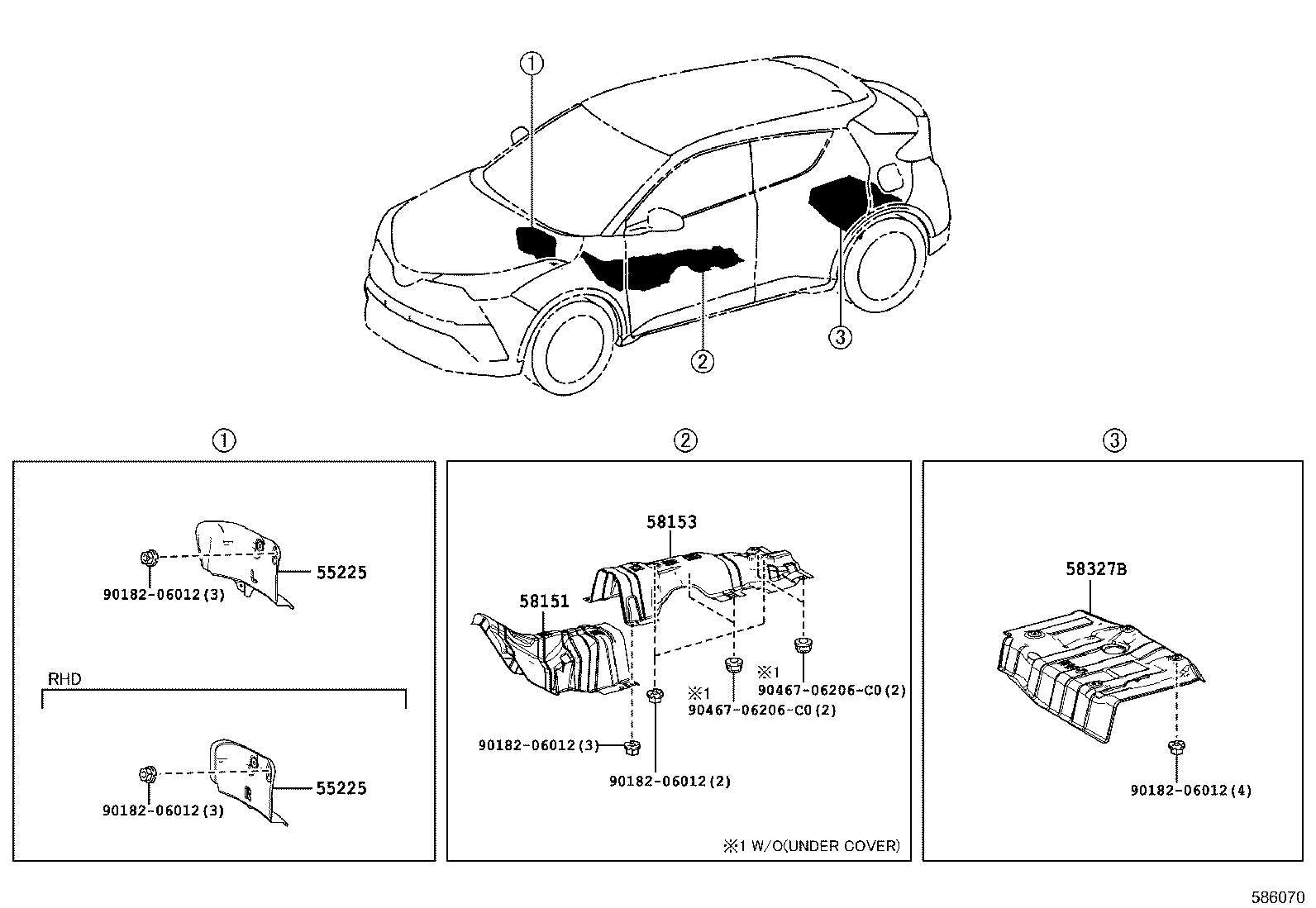

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55225 — Insulator, Dash Panel Heat | ||||
| 55225-F4010 |
Insulator, Dash Panel Heat
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 55225-F4020 |
Insulator, Dash Panel Heat
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 55225-F4010 |
Insulator, Dash Panel Heat
2019-09 → —
|
NGX10,50 LHD | — | |
| 55225-F4020 |
Insulator, Dash Panel Heat
2019-09 → —
|
NGX10 RHD | — | |
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-02580 |
Insulator, Front Floor Heat, NO.1
2018-05 → 2019-09
ended
|
NGX10 | — | |
| 58151-F4010 |
Insulator, Front Floor Heat, NO.1
2016-10 → 2018-04
ended
|
NGX10 | — | |
| 58151-F4030 |
Insulator, Front Floor Heat, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 58151-02580 |
Insulator, Front Floor Heat, NO.1
2019-09 → —
|
NGX10 | — | |
| 58151-F4020 |
Insulator, Front Floor Heat, NO.1
2019-09 → 2020-10
ended
|
ZYX10 | — | |
| 58151-F4030 |
Insulator, Front Floor Heat, NO.1
2019-09 → —
|
NGX50 | — | |
| 58151-F4090 |
Insulator, Front Floor Heat, NO.1
2020-10 → —
|
ZYX10 | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-F4010 |
Insulator, Front Floor Heat, NO.2
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 58153-F4010 |
Insulator, Front Floor Heat, NO.2
2019-09 → —
|
NGX10,ZYX10 | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-F4010 |
Insulator, Main Muffler Heat
2016-10 → 2019-03
ended
|
NGX10,50 | — | |
| 58327-F4011 |
Insulator, Main Muffler Heat
2019-04 → 2019-09
ended
|
NGX10,50 | — | |
| 58327-F4011 |
Insulator, Main Muffler Heat
2019-09 → —
|
NGX10,50,ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
